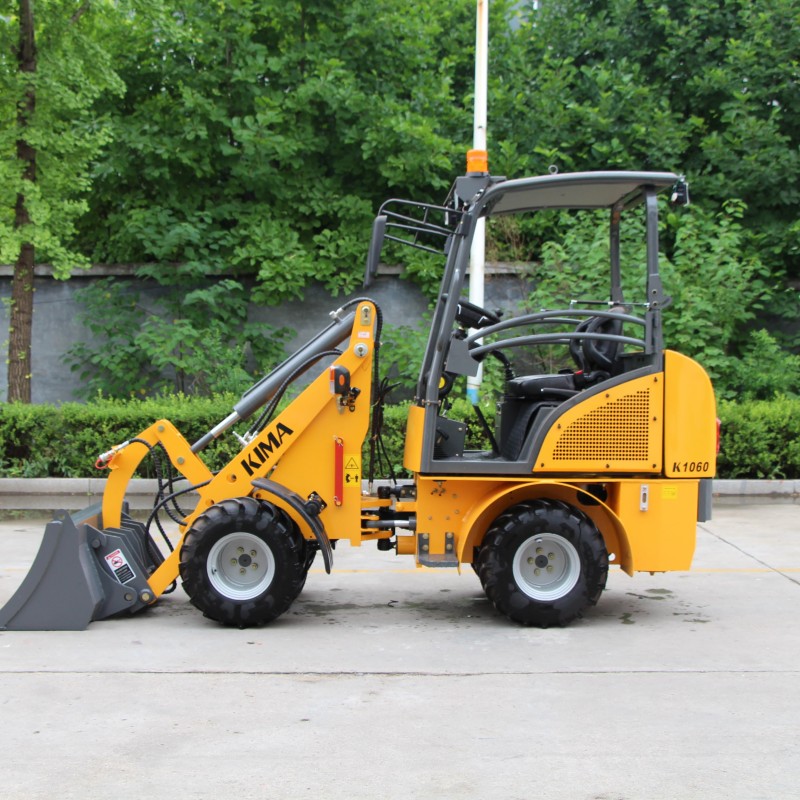

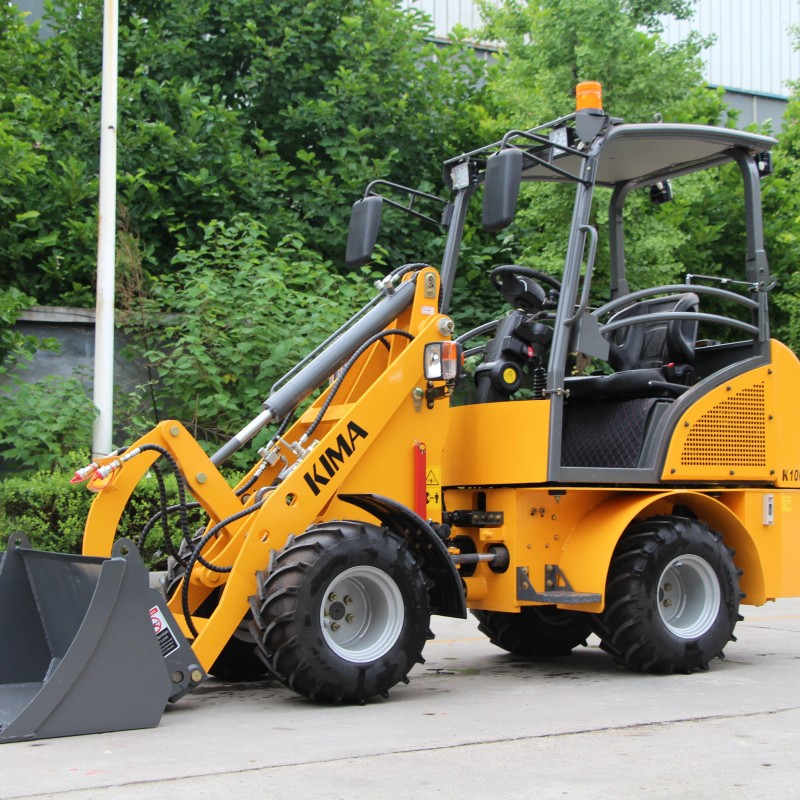

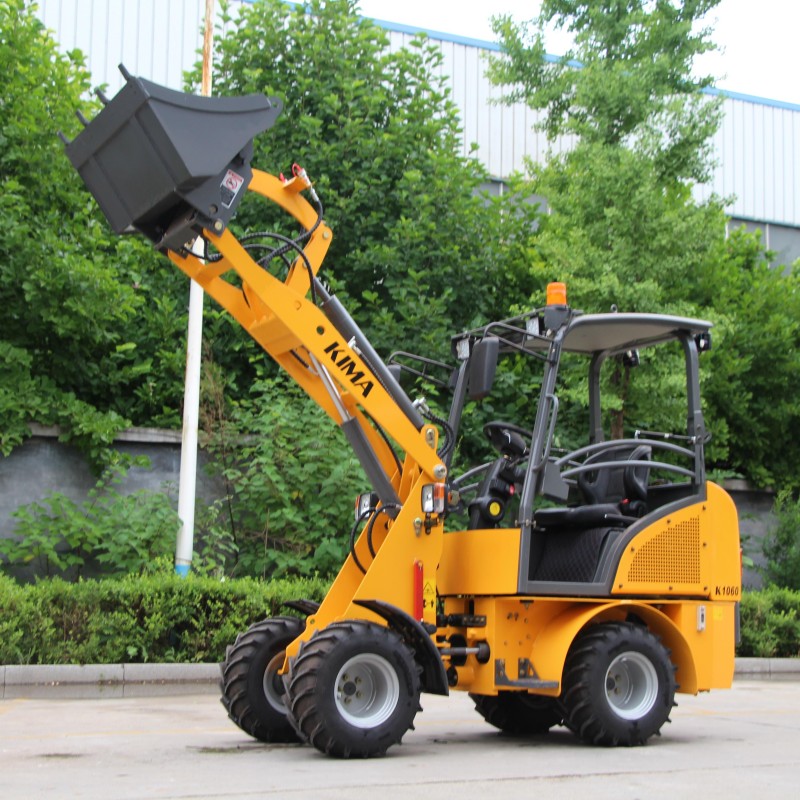

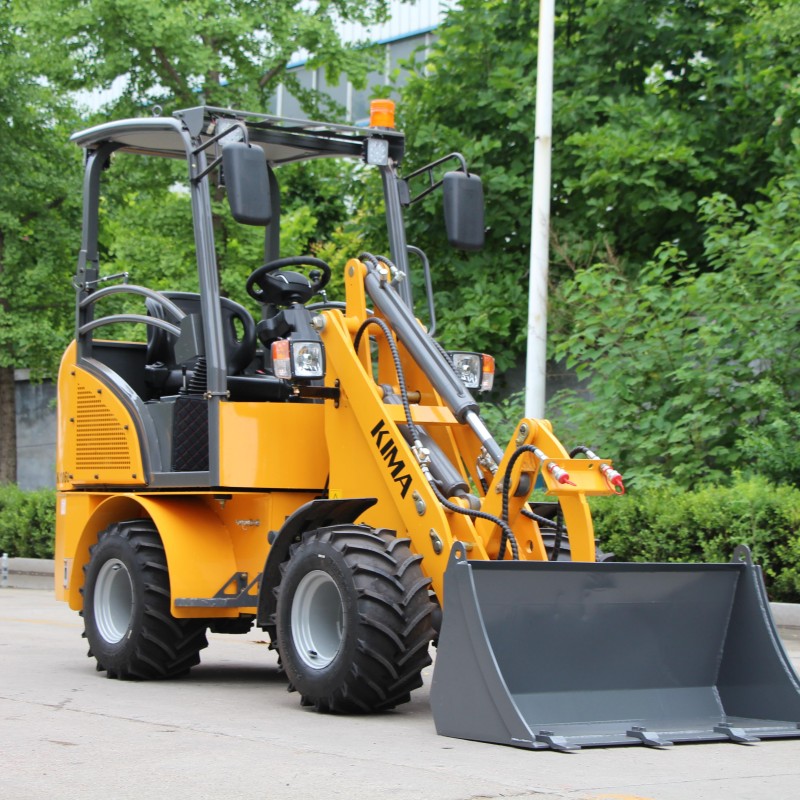

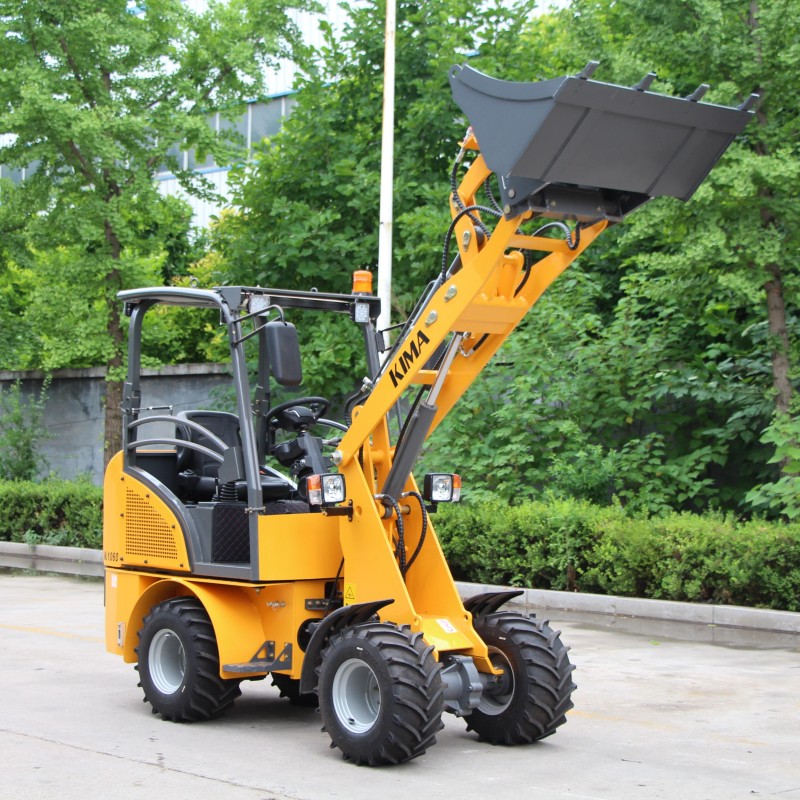

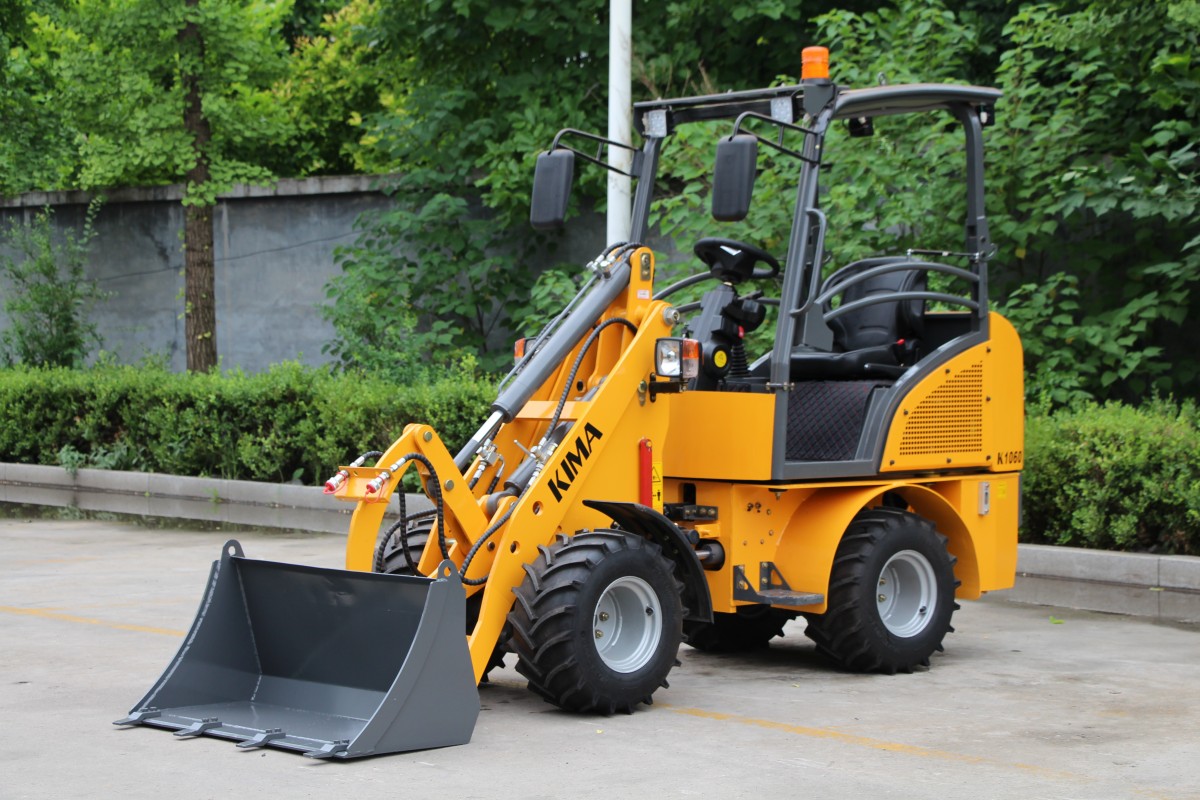

Good Mini Wheel Loader
1. Rated loading: 800 kg, Net Weight: 1900 kg.
2. Kubota EuroV/ EPA4 Engine
3. Italy Brand Hydrostatic System
4. 4 Wheel Driving Motor
5. Tire Size: 26*12-12.
6. Meet your different usage needs:Folded Canopy/Enclosed Cabin
Compact structure, low-gravity layout, nimble steering and strong output have long defined the K Series loaders. The K1060 operates with ease, delivering speed, agility and dependable safety. A broad range of attachments is available, and we can tailor both the tools and machine colors to match your individual requirements.
Product advantages
Convenient engine cover access
The engine cover opens smoothly and can be removed within seconds, making routine servicing simple. Key components such as the hydraulic oil tank, air filter, engine oil fill point, dipstick and coolant are all positioned for quick, hassle-free access—providing genuine operating comfort.
Wide range of attachments
Transform your loader into a versatile machine—KIMA offers an extensive portfolio of tools and working accessories.
Premium powder-coat finish
A core part of KIMA’s quality commitment is the use of powder coating, which provides outstanding resistance to corrosion. Compared with conventional painting, it greatly extends machine durability, offering improved efficiency and reduced environmental impact.
Precisely engineered P-kinematics
The specially shaped lift arm is built for strength and excellent torsion stability. KIMA calibrates the kinematic system to each model size, ensuring the ideal power distribution. P-kinematics offers accurate parallel lifting throughout the entire boom range.
Optimized hydraulic hose layout
KIMA loaders are designed with short, segmented hydraulic hoses. When replacement is required, only the affected section needs to be changed rather than the full hose line. This significantly reduces downtime and lowers maintenance costs.
Product parameters
Performance | rated loading (kg) | 600 |
Operating weight (kg) | 1980 | |
overall dimension (L×W×H) (mm) | 3960*1180*2330 | |
rated bucket capacity (CBM) | 0.26 | |
maximum grade ability（°） | 20 | |
maximum lifting height（mm） | 3145 | |
maximum dump height（mm） | 1830 | |
maximum dump reach（mm） | 786 | |
minimum turning radius（mm） | 2466 | |
Oscillation angle | 8° | |
Engine | model | KUBOTA D1105 |
displacement （L） | 1.123 | |
rated power（kW） | 18.2 | |
Transmission system | Type | Closed piston pump |
gear shift | Electric, Stepless | |
maximum speed | 12km/h | |
Drive axles | main reducing mode | Bevel gear grade l reduction |
wheel base (mm) | 1378 | |
wheel tread(mm) | 850 | |
ground clearance(mm) | 330 | |
Hydraulic system | system working pressure (Mpa) | 18 |
boom lifting time (s) | 3.2 | |
total time (s) | 6.3 | |
fuel tank capacity (L) | 40 | |
Max working flow (L/min) | 36 | |
Max traveling flow (L/min) | 60 | |
function of leveling automatically | yes | |
Brake system | service brake | Hydrostatic brake |
parking brake | Manual drum brake | |
Tyre | type specification | 26*12.12 |
front tyre pressure （kPa） | 350 | |
rear tyre pressure （kPa） | 350 |
Attachments display
 |  |

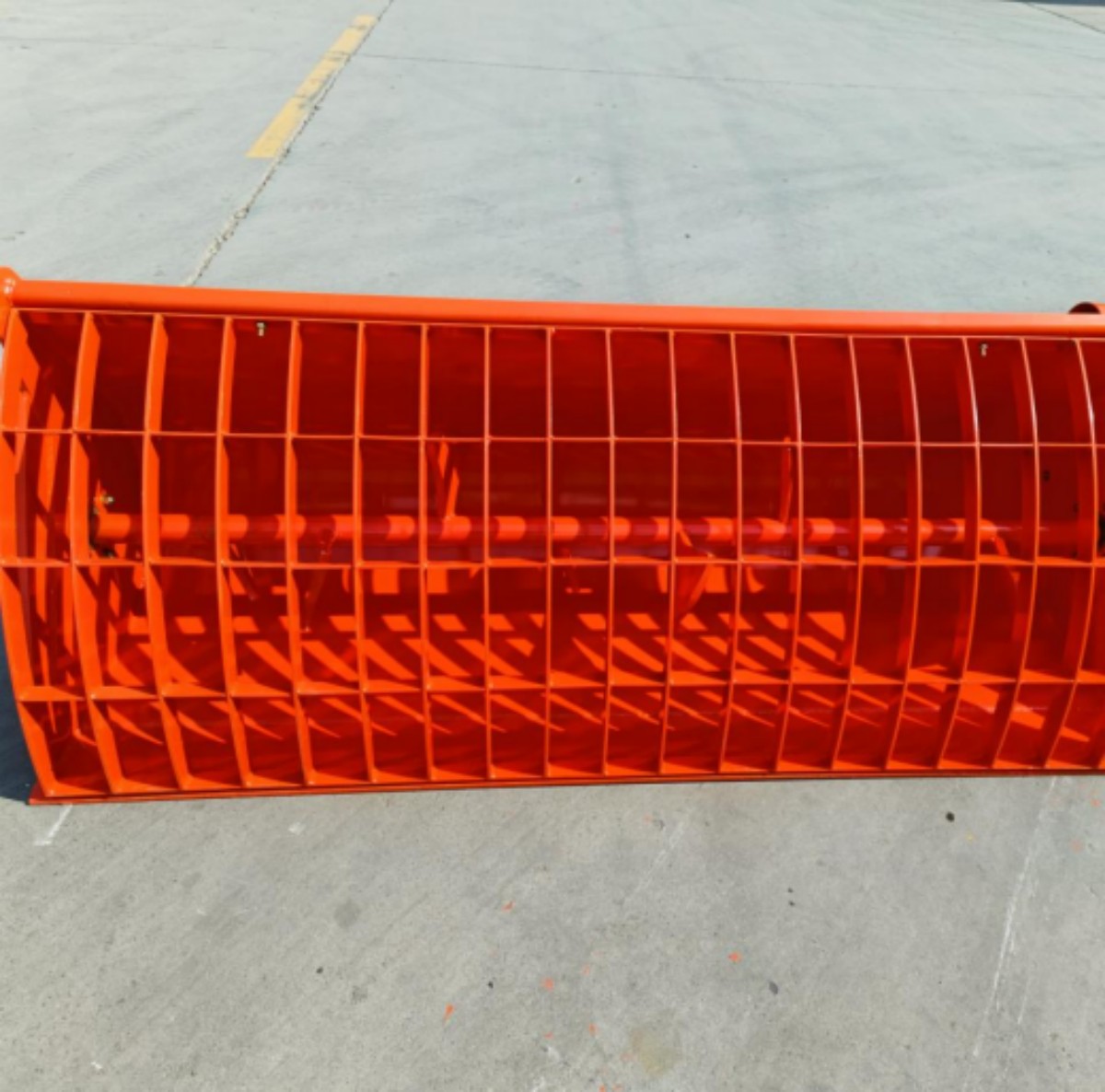

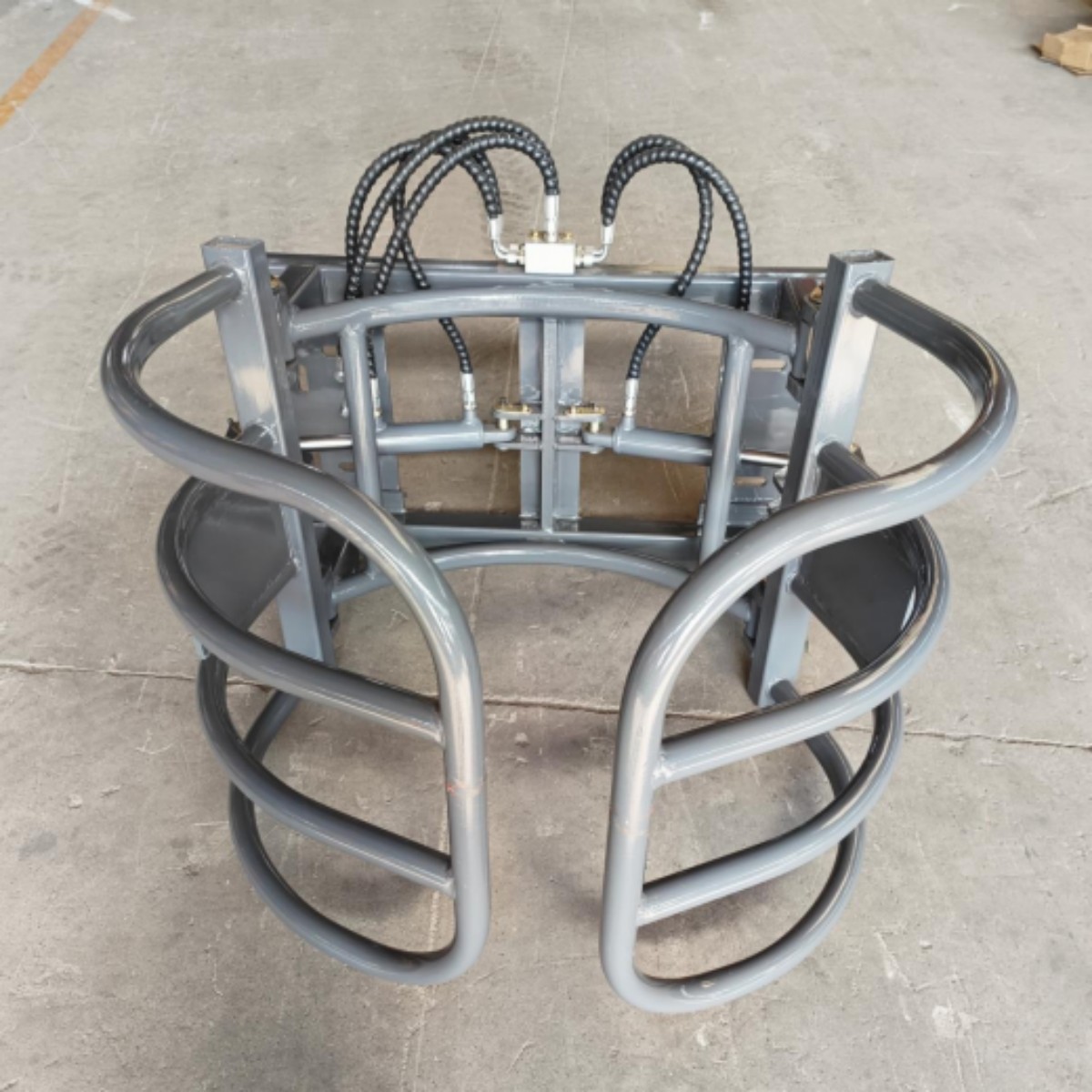

Barrel | Mixer Bucket |
 |  |

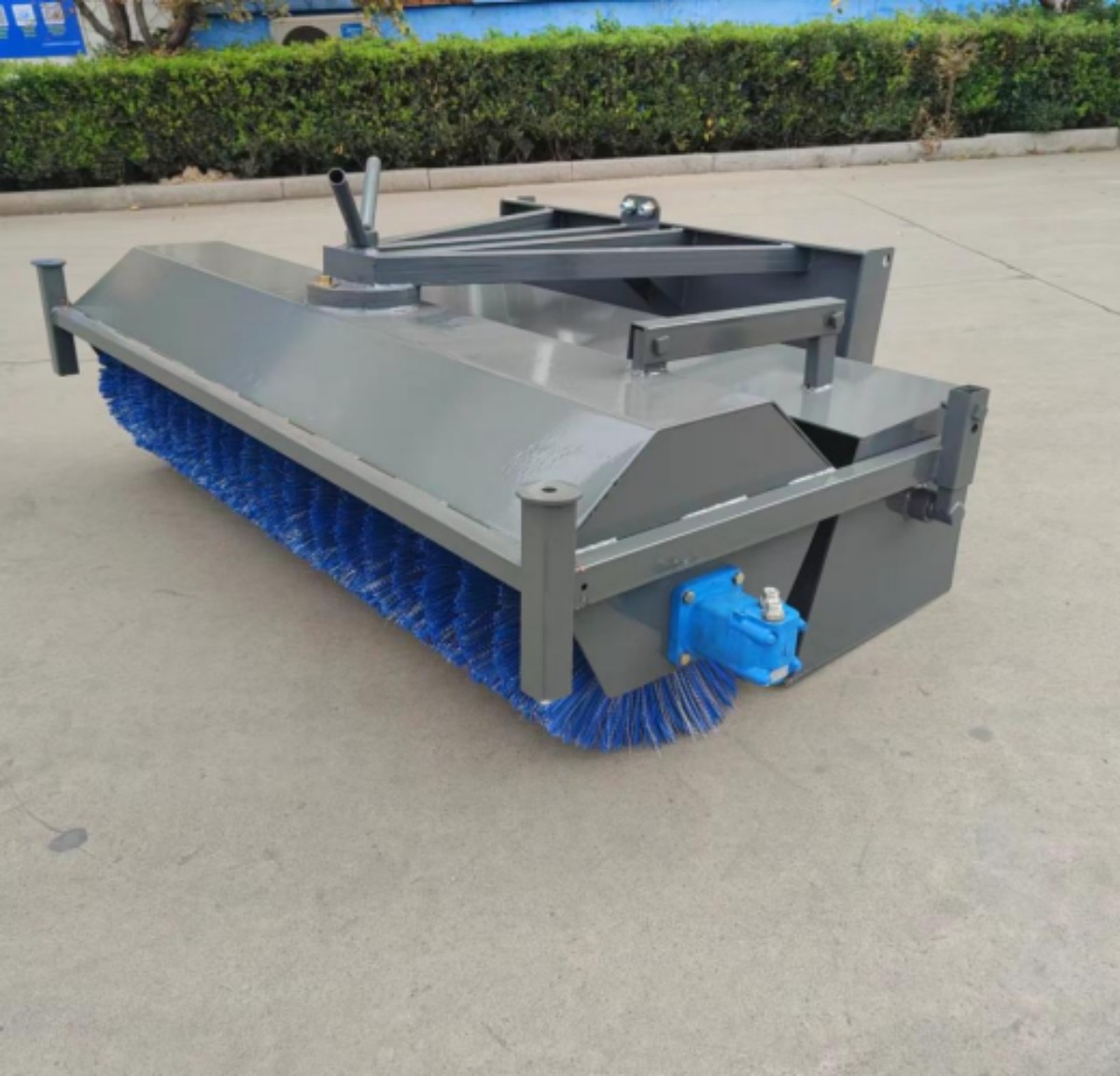

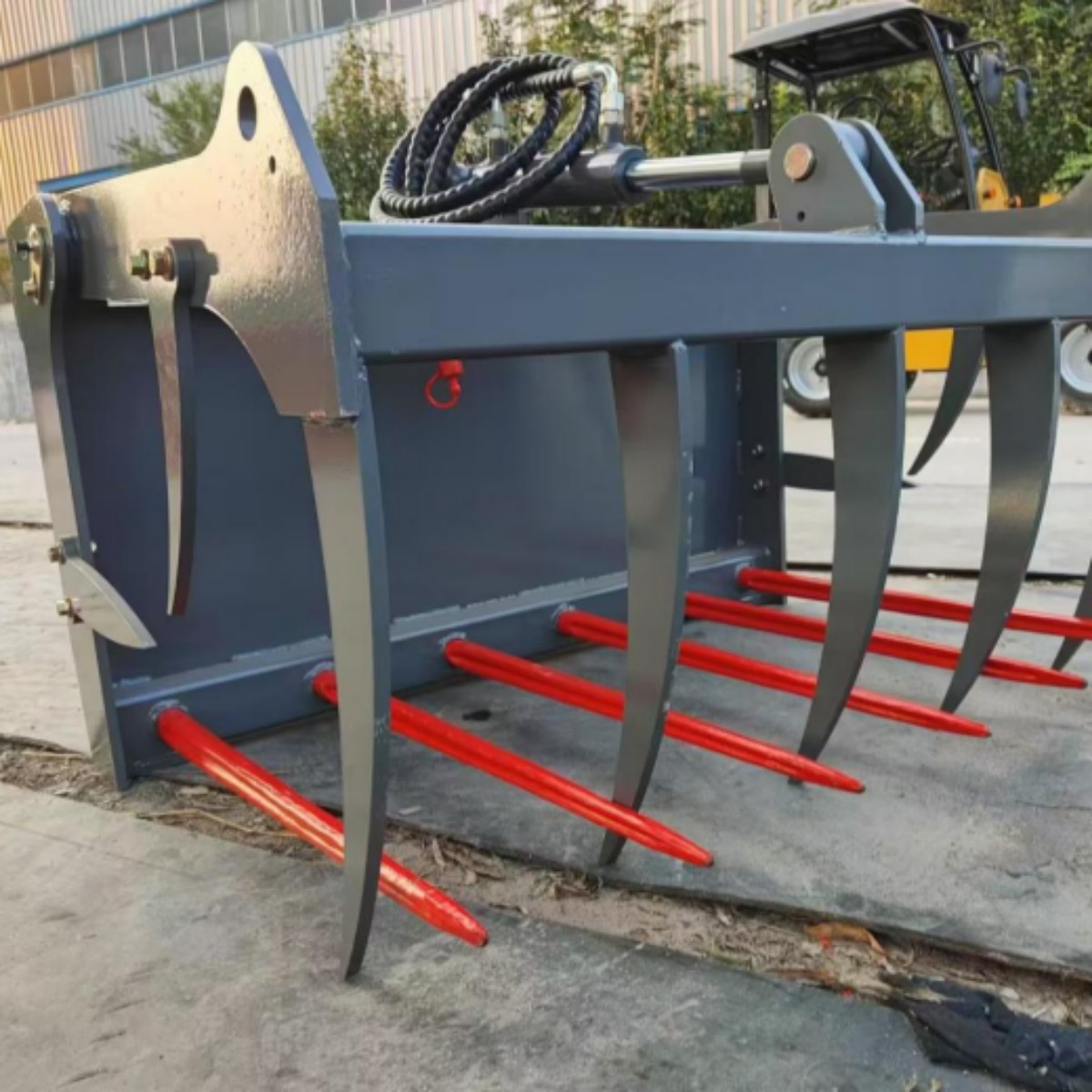

European forks | Sweeper |
 |  |

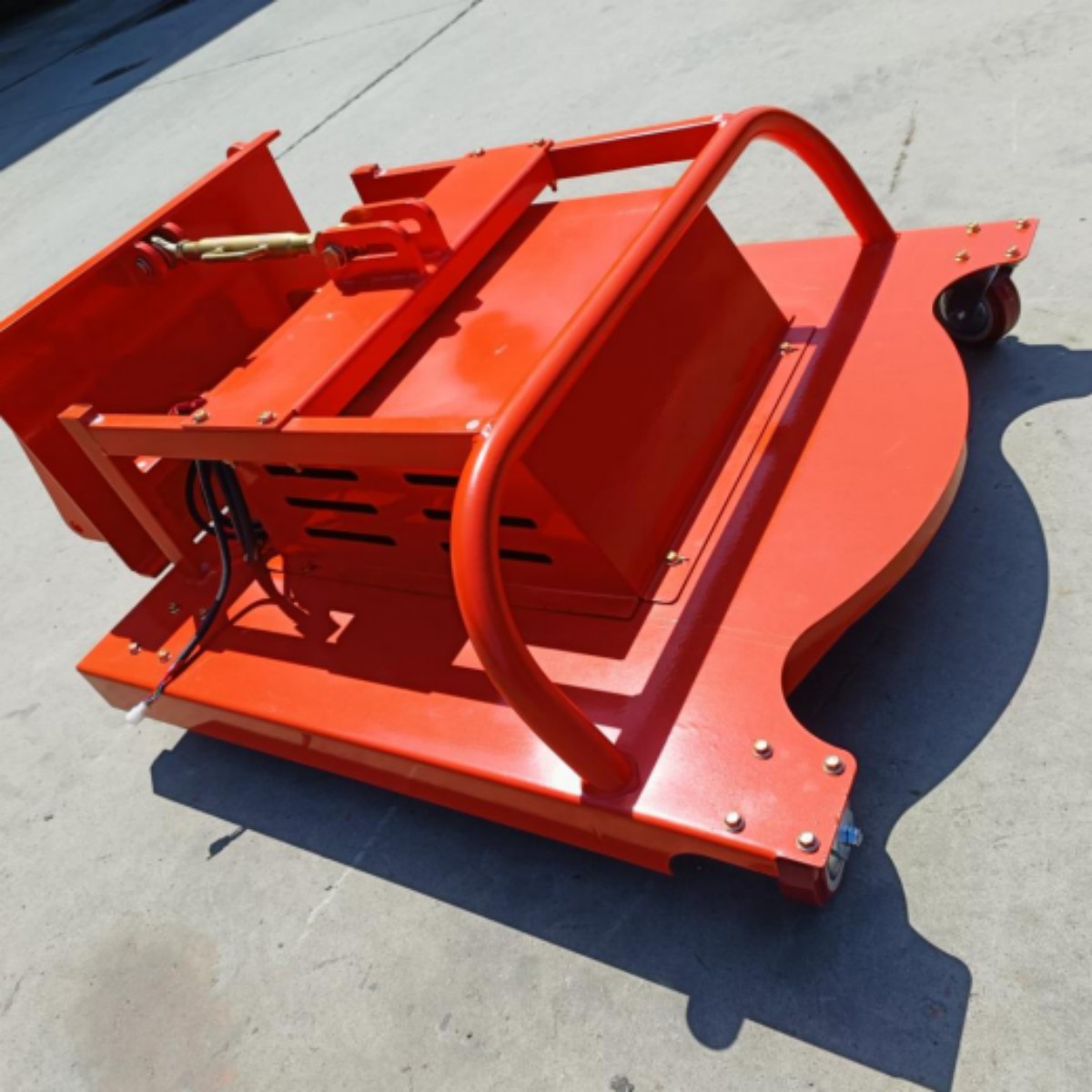

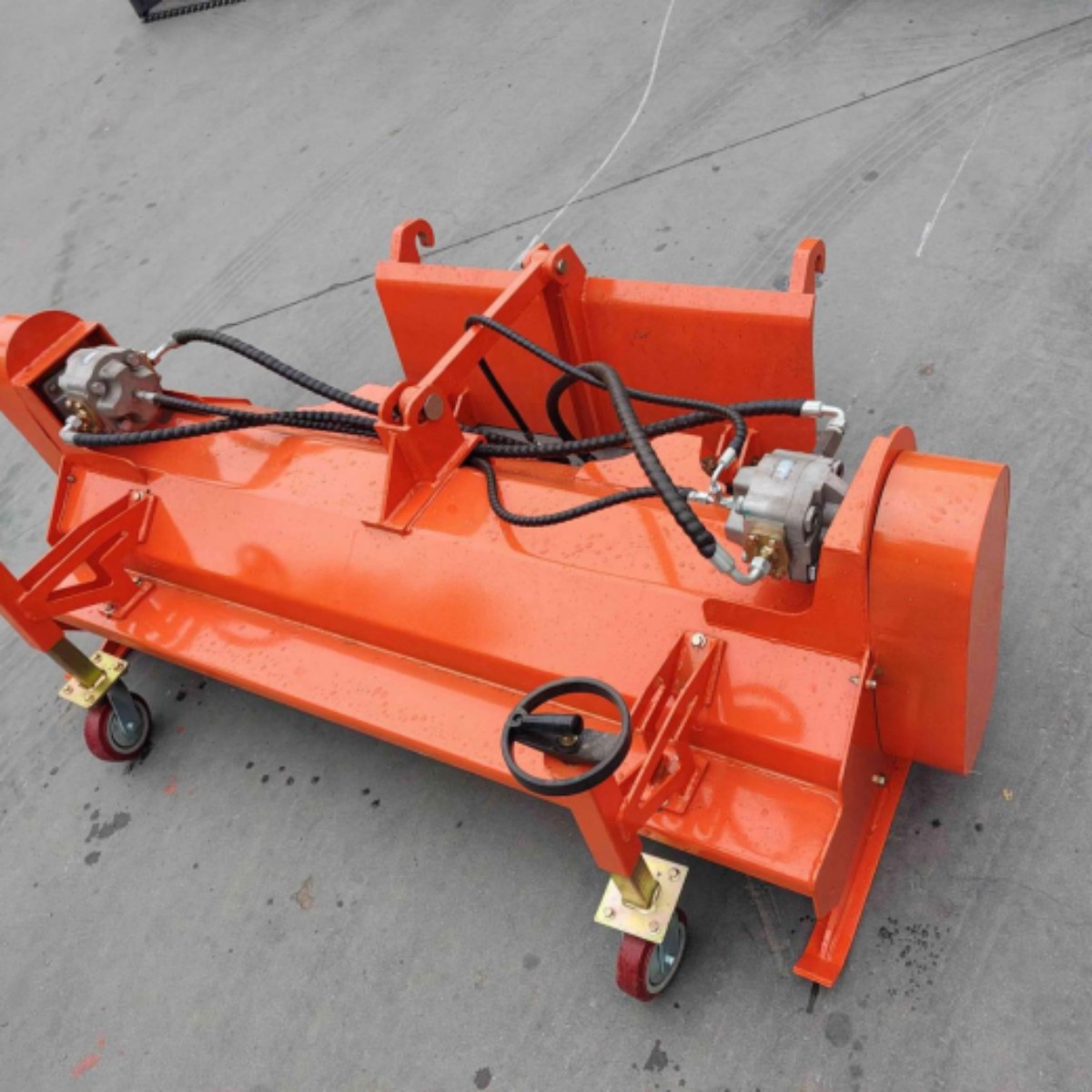

| Rotary mower | Disc Mower |
 |  |

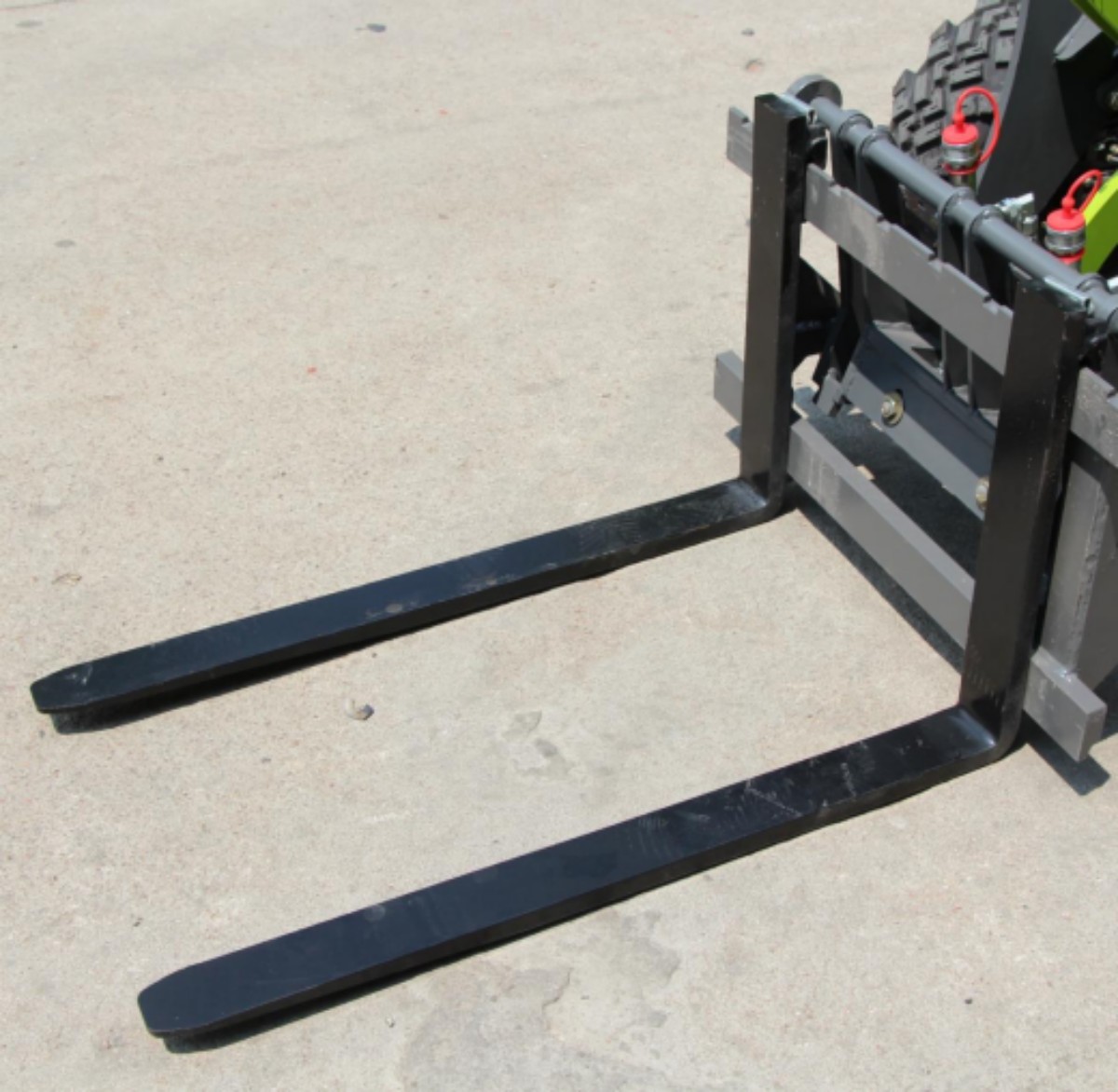

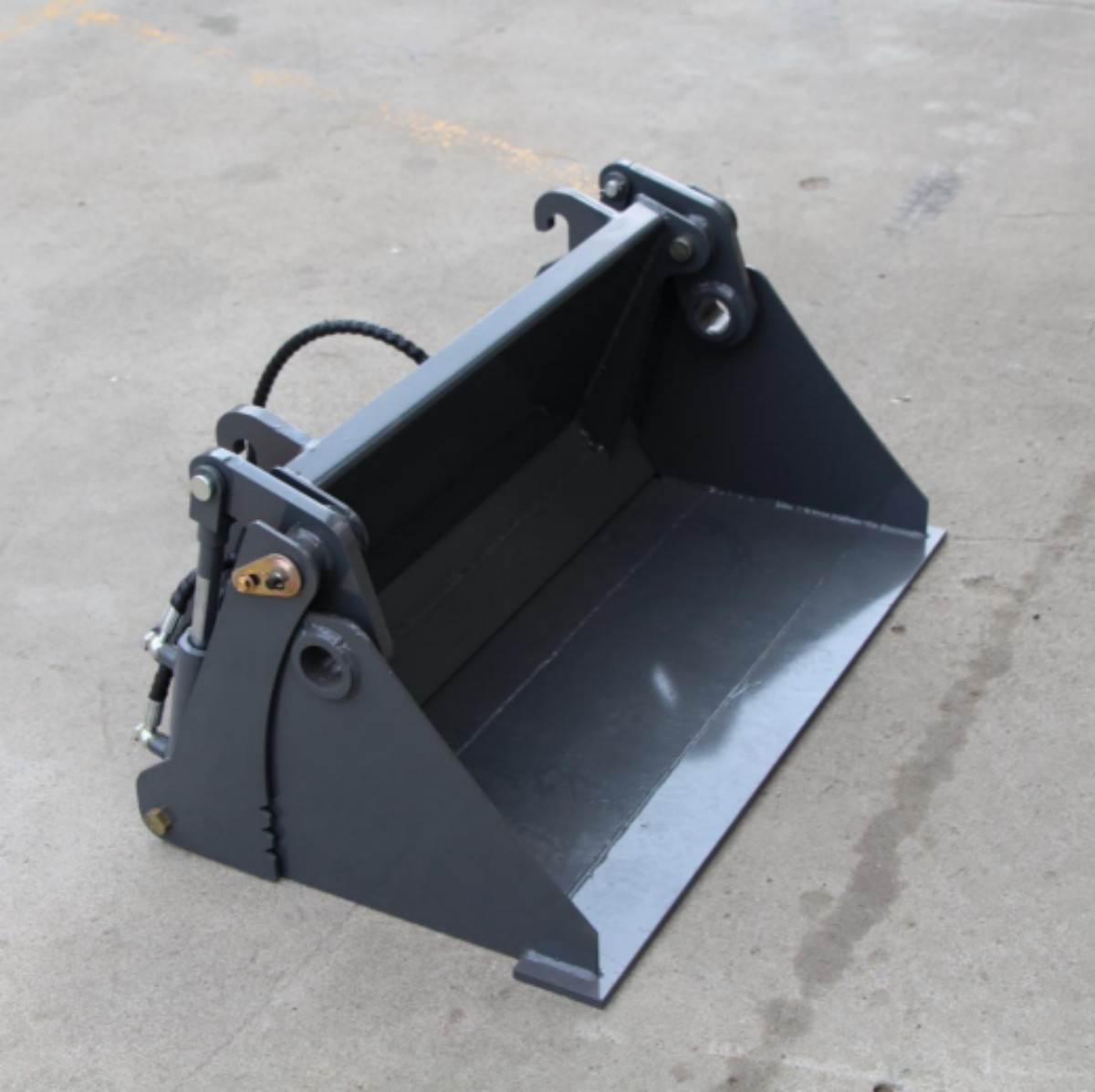

| Pallet fork | 4 in 1 Bucket |
 |  |

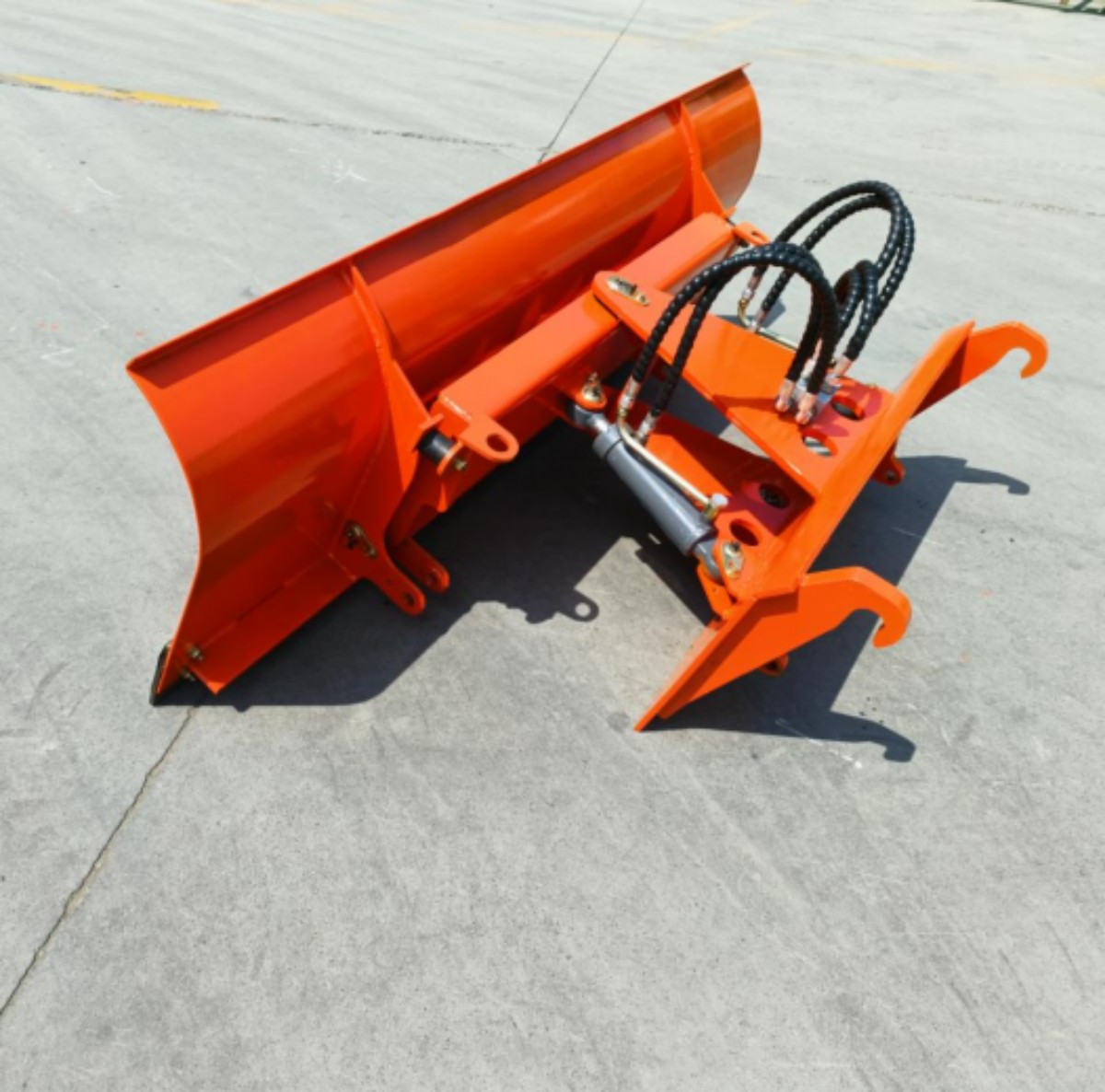

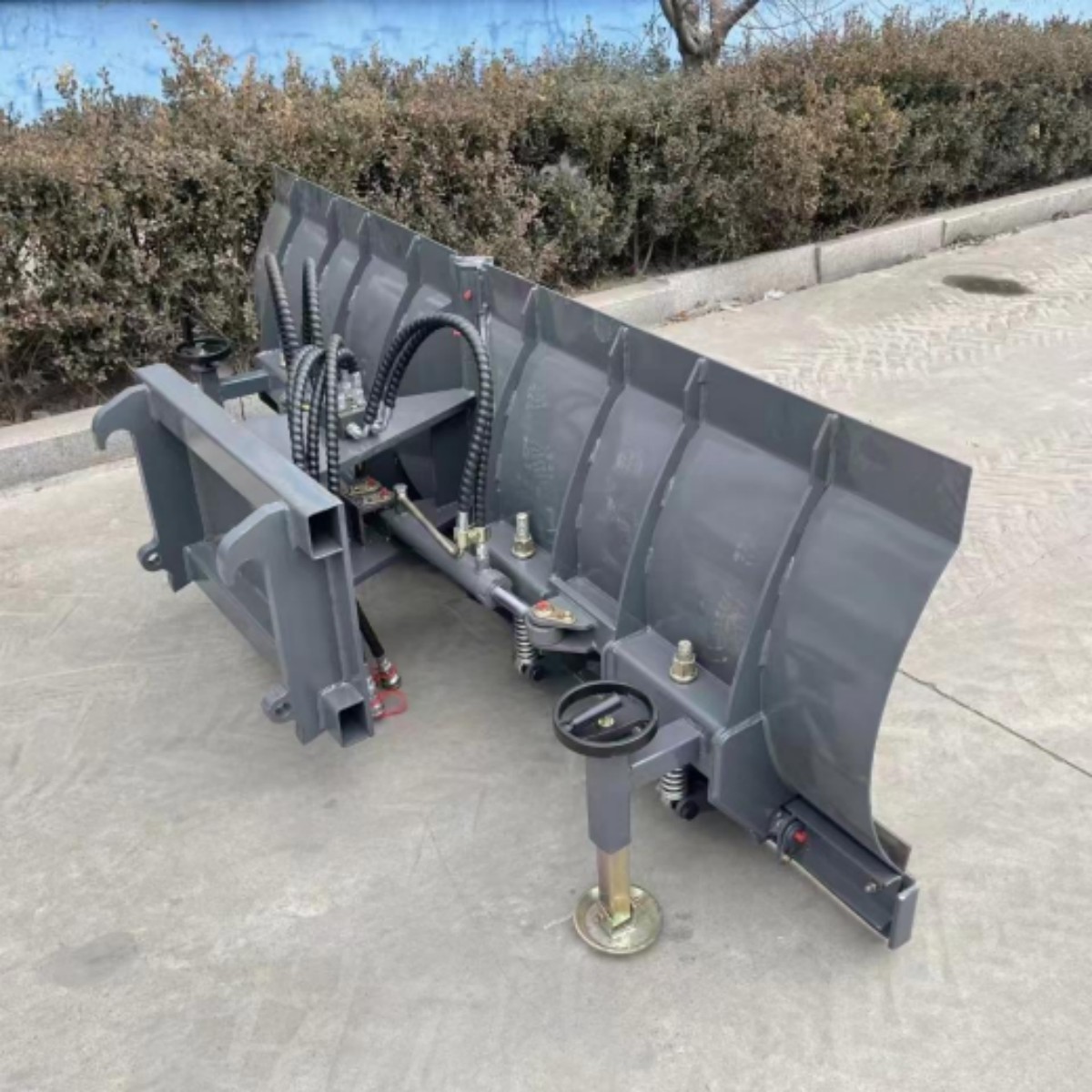

| Snow blade | V Snow blade |

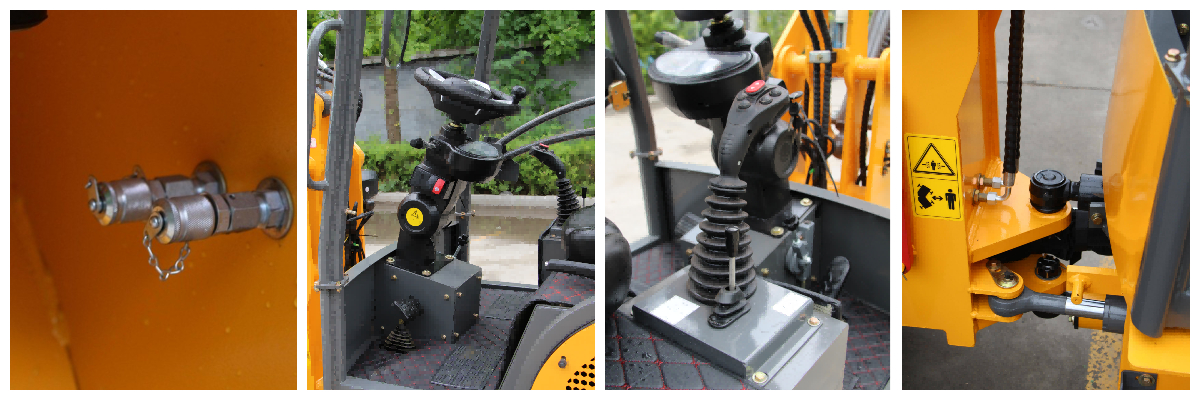

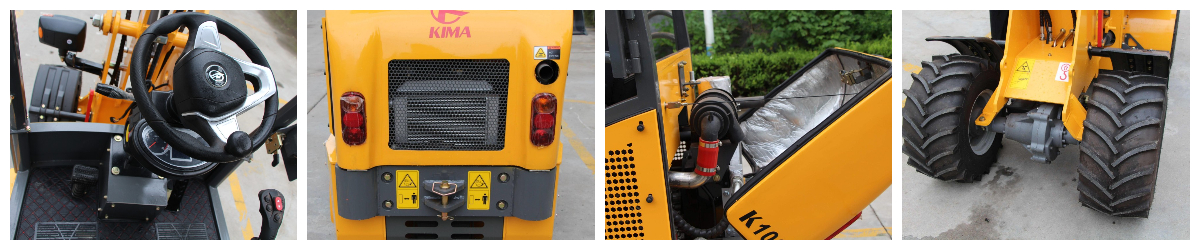

Details picture

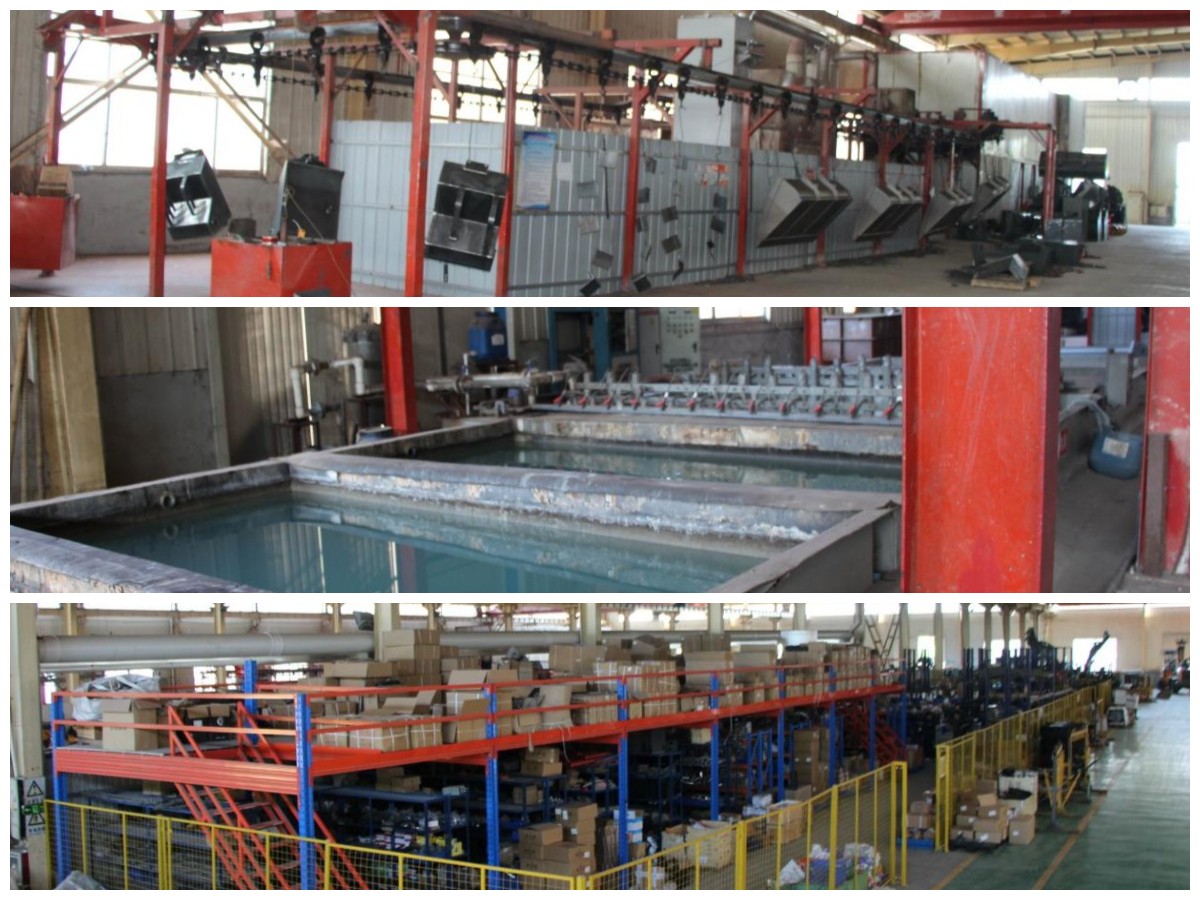

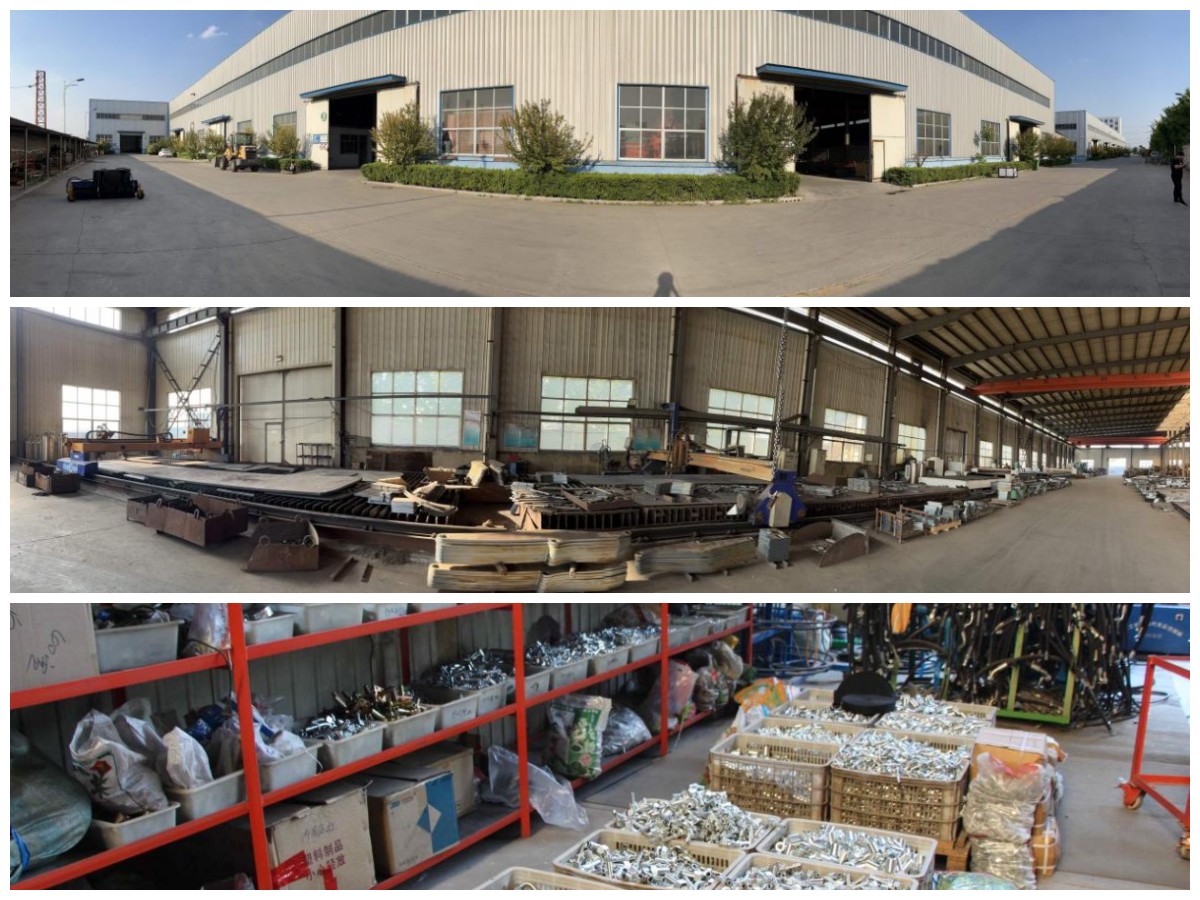

Factory

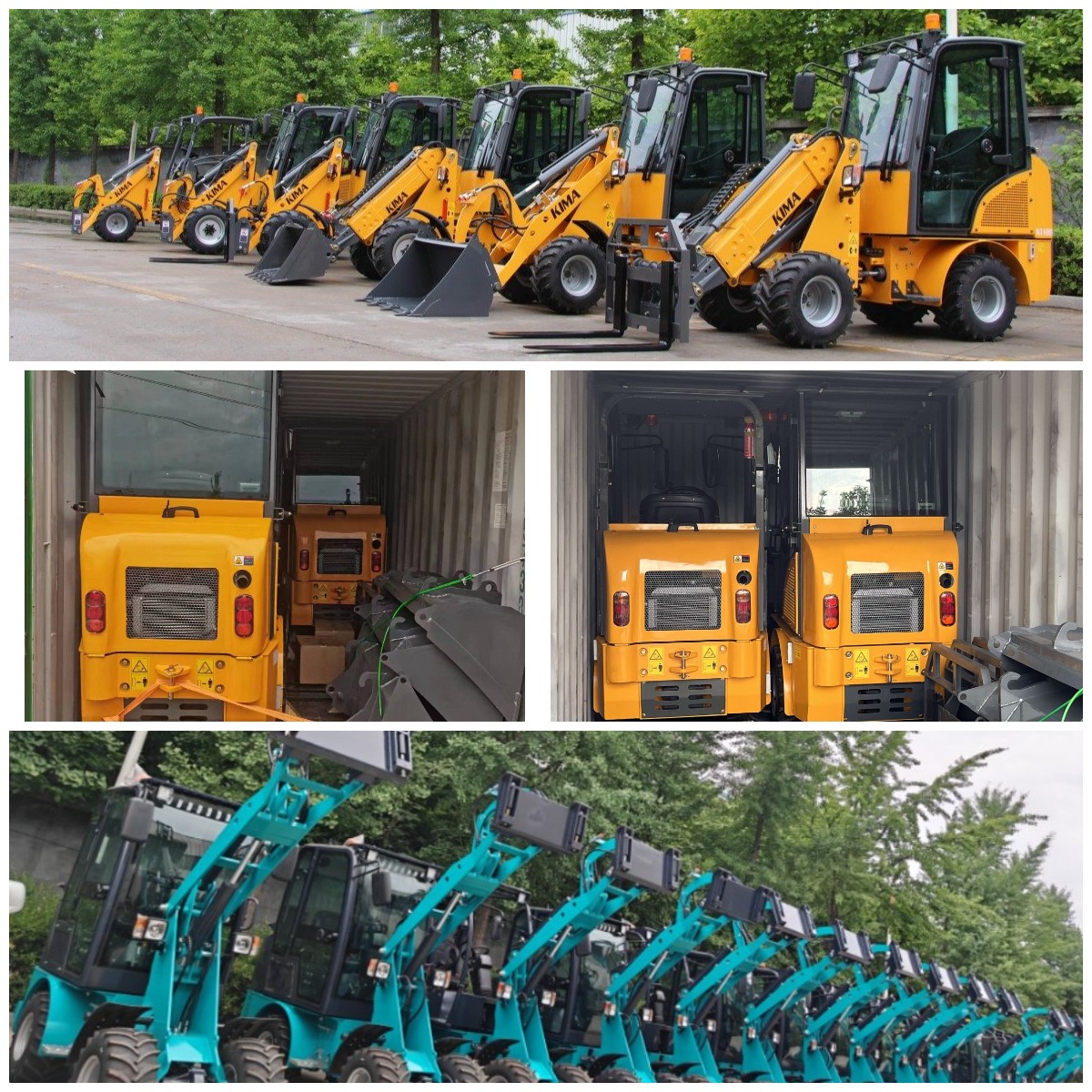

Delivery pictures
Bauma Germany Exhibition

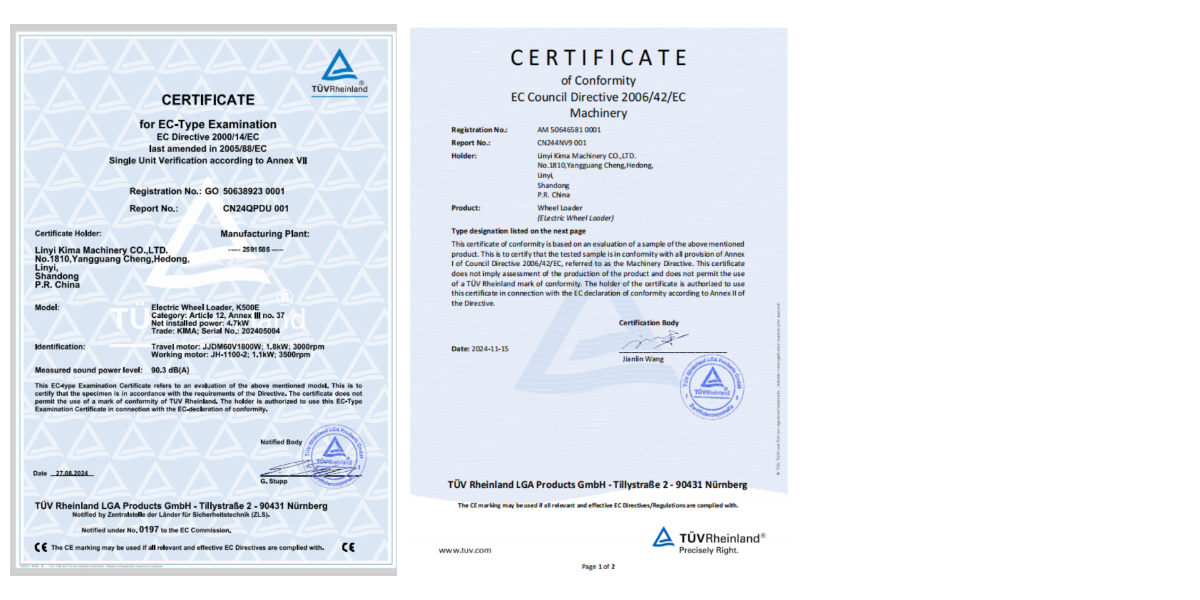

Qualification
