Small Excavator

Machine weight: 1200 kg
TUV certified
Equipped with YANMAR 3TNV70 EPA4 Euro5 or YANMAR 3TNV74 EPA4 engine
Overall dimensions: 3070 × 850/1100 × 2323 mm (L × W × H)
Standard bucket capacity: 0.03 m³
Comes with an additional hydraulic hammer pipeline

Contact Now E-Mail Telephone WhatsApp

Product Details

The Small Excavator (KME12U) features a load-sensing hydraulic system and pilot joysticks for precise, efficient control. An efficient oil cooler ensures stable operation. The expandable track chassis (850/1100 mm) offers both flexibility and stability, while the intelligent dual-speed system allows quick switching between travel and digging, meeting the demands of complex jobsites.

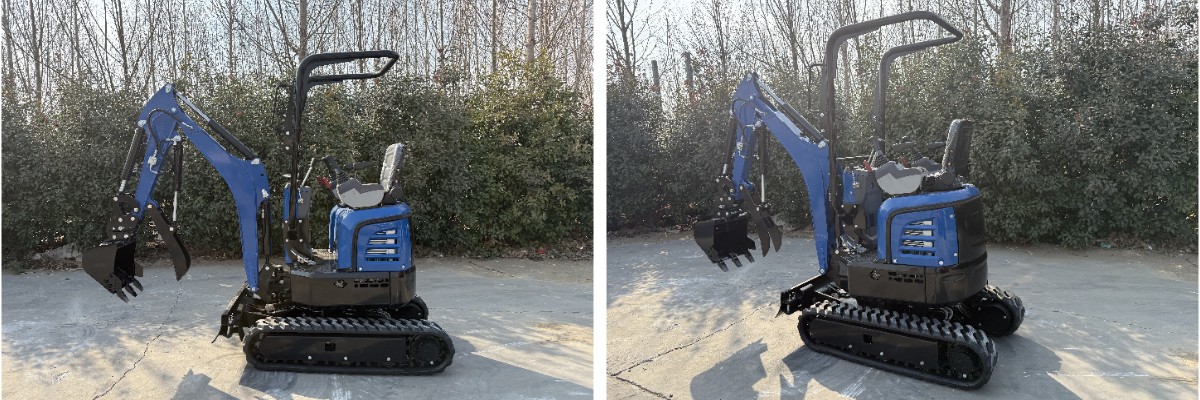

Small Excavator

Advantage

1. Passed TUV CE quality certification.

2.Hydraulic system

Equipped with load-sensing multi-valve and hydraulic joystick for precise and efficient control. Automatically adjusts power output to reduce fuel consumption.

3.Hydraulic oil radiator

Utilizes high-efficiency radiator cooling to reduce oil temperature, ensuring stable hydraulic system performance dramatically

4.Expandable undercarriage

(850/1100mm)

It can allow the machine to pass through narrow spaces and maintain good stability during excavation.

Details

Parameters

KME12U
Type of cab		Canopy
Bucket capacity		m3	0.03
Machine weight		kg	1200
Dimensions	Overall length	mm	3070
	Overall height	mm	2323
	Overall width	mm	850/1100
	Ground clearance	mm	130
	Tail swing radius	mm	550
Engine	Brand	YANMAR
	Model	3TNV70
	Displacement	L	0.854
	Output	kW/rpm	10/2200
Working ranges	Max Digging height	mm	3062
	Max Dumping height	mm	2075
	Max digging depth	mm	1830
	Max digging distance	mm	3542
	Max digging force (Arm)	KN	6.5
	Max digging force (Bucket）	KN	11
Track	Type		Rubber track
	Rubber shoe width	mm	180
	Track length	mm	1404
	Track grounding length	mm	1080
	Track gauge	mm	670/920
	Track width	mm	850/1100
	Grade ability		58%/30
Boom deflection angle left/right			50°/70°
Traveling speed		km/h	1.3/2.5
Swing speed		rpm	10
Ground pressure		kpa	31
Hydraulic pumps	Flow rate	L/min	19.2
Hydraulic pumps	Hydraulic pressure	Mpa	18
Fuel tank capacity		L	13
Hydraulic oil tank capacity		L	13

Attachments

Small Excavator

Factory
Linyi KIMA Machinery Co., Ltd. has specialized in manufacturing mini excavators and small wheel loaders for over 12 years, with extensive experience in both production and export. The majority of our products have successfully passed TÜV Rheinland testing and hold TÜV as well as EU CE certifications, fully meeting European ROPS and FOPS safety standards. Our machines have been exported to more than 40 dealers across numerous European countries and regions, as well as to North America, South America, and Oceania, earning wide recognition and positive feedback.
