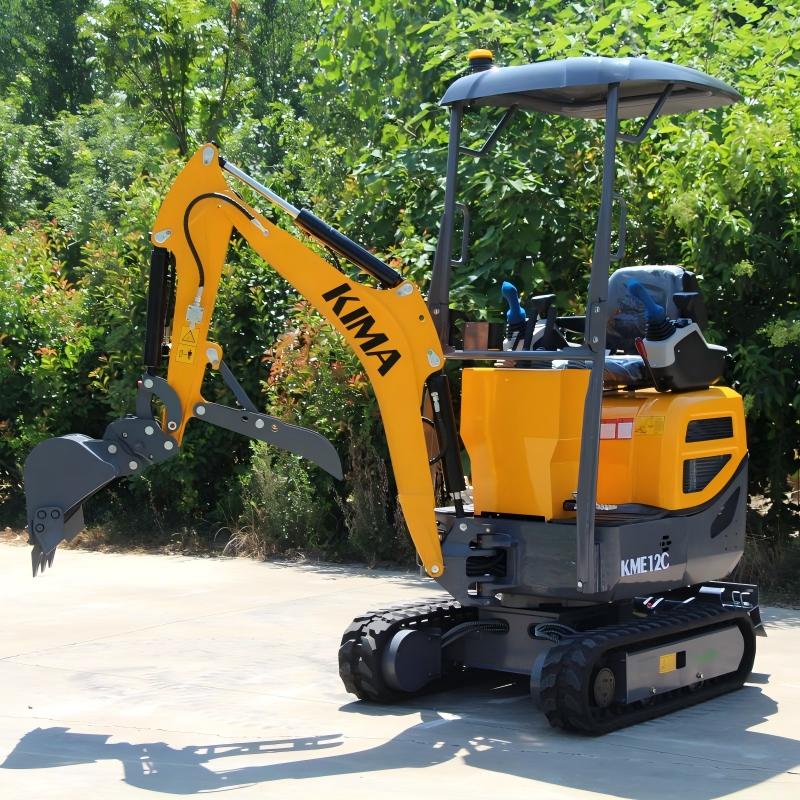

Mini Digger for Sale
Superior engine access
The engine hood can be fully lifted upwards for easy daily inspection and maintenance.
Radiator
The hydraulic oil radiator can improve work efficiency, extend the life of the hydraulic system improve system stability, reduce energy consumption and improve operating comfort, which is one of the important advantages of KME12C.
High and low speed
High speed can improve work efficiency and shorten working time. Low speed can enhance the traction and power output of the excavator and ensure work safety.
Large selection of accessories
Use your machine as a multi-tool - you have a wide range of accessories to choose from KIMA.
KME12C Mini Excavator: Durable Design, Superior Performance
Durability and serviceability are central to the KME12C's design. Critical components like the boom cylinder are strategically positioned on top to avoid damage in harsh working conditions. Maintenance is simplified through a fully openable hood, providing excellent access for daily checks and servicing. The machine is also equipped with an efficient hydraulic oil radiator, which maintains system stability, extends component life, and reduces overall energy consumption, contributing to lower operating costs and enhanced reliability over time.
Product advantages
Superior engine access
The engine hood can be fully lifted upwards for easy daily inspection and maintenance.
Radiator
The hydraulic oil radiator can improve work efficiency, extend the life of the hydraulic system improve system stability, reduce energy consumption and improve operating comfort, which is one of the important advantages of KME12C.
High and low speed
High speed can improve work efficiency and shorten working time. Low speed can enhance the traction and power output of the excavator and ensure work safety.
Large selection of accessories
Use your machine as a multi-tool - you have a wide range of accessories to choose from KIMA.
Product parameters
Type of cab | Canopy | |||
Bucket capacity | m³ | 0.03 | ||
Bucket width, std. | mm | 400 | ||
Machine weight | kg | 1317 | ||
Dimensions | Overall length | mm | 3050 | |
Overall height | mm | 2588 | ||
Overall width | mm | 880 | ||
Ground clearance | mm | 120 | ||
Engine | Brand | Yanmar | ||
Model | 3TNV70 | |||
Displacement | CC | 0.854 | ||
Output | kW/rpm | 10/2200 | ||
Working ranges | Max Digging height | mm | 3018 | |
Max Dumping height | mm | 2039 | ||
Max digging depth | mm | 1809 | ||
Max. Digging radius | mm | 3390 | ||
Min .swing radius | mm | 1591 | ||
Max digging force (Arm) | kN | 6.2 | ||
Max digging force (Bucket） | kN | 8 | ||
Track | Type | Rubber track | ||
Rubber shoe width | mm | 180 | ||
Undercarriage | Track length | mm | 1296 | |
Traveling speed | km/h | 2 | ||
Gradeability | deg | 58/30° | ||
Swing speed | rpm | 13 | ||
Ground pressure | kpa | 30 | ||
Dozer size | Width | mm | 840 | |
Height | mm | 240 | ||
Lifting capacity (Height/Depth) | mm | 150/200 | ||
Hydraulic | Type | Gear pump | ||
Flow rate | L/min | 21 | ||
Hydraulic pressure | Mpa | 17.2 | ||
Swing motor | RMR-315 | |||
Travel motor | R6K-310 | |||
Fuel tank capacity | L | 15 | ||
Hydraulic oil tank capacity | L | 13 | ||
Attachments display
|
|
|
Bucket with teeth | Driller with reducer | MS03 quick hitch |
|
|
|
Mechanic quick hitch | Steel track | Rake |
|
|
|
Hydraulic quick hitch | Hydraulic tilt quick hitch | Hydraulic thumb |
|
|
|
Mechanical thum | Hydraulic tilting bucket | Leveling bucket |
|
|
|
Narrow bucket | Mechanical grapple | Driller |
|
|
|
Grapple | Ripper | Hammer |
Details picture
Production line
Delivery pictures
Qualifications
