Mini Digger
1. Swing boom
The casting structure, swing part and both ends of the boom greatly improve the stability and working life of the machine.
2. Hydraulic pilot
Hydraulic pilot control can accurately control the liquid pressure, flow and direction, so as to realize high precision control.
3. Casting parts
The partial frame, swing part and both ends of the arm are cast and greatly improve the stability and life of the machine.
4. Boom cylinder
Boom cylinder is located at the top to avoid damage and extend working life.

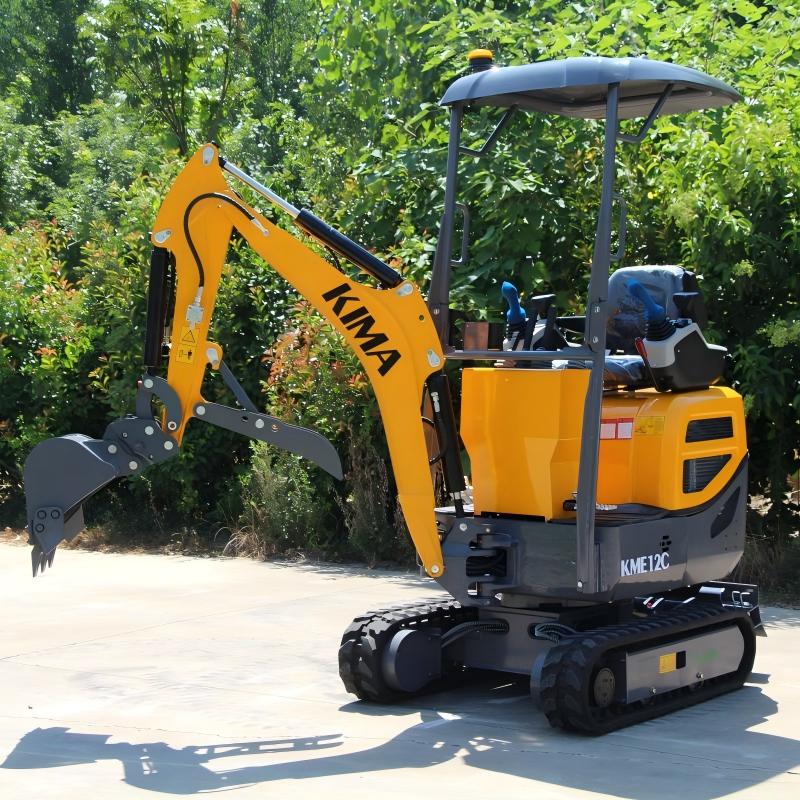

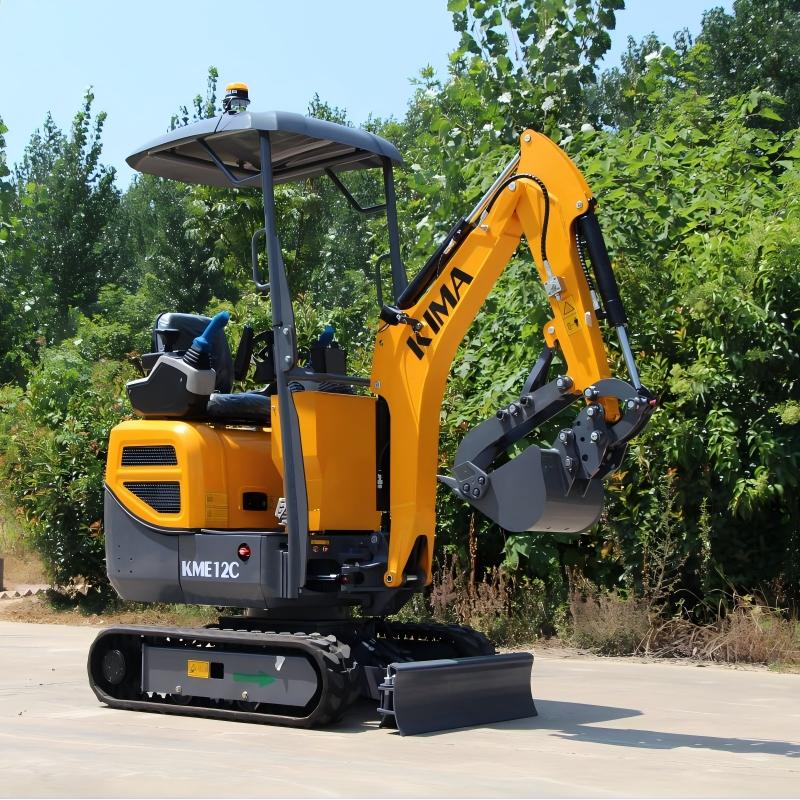

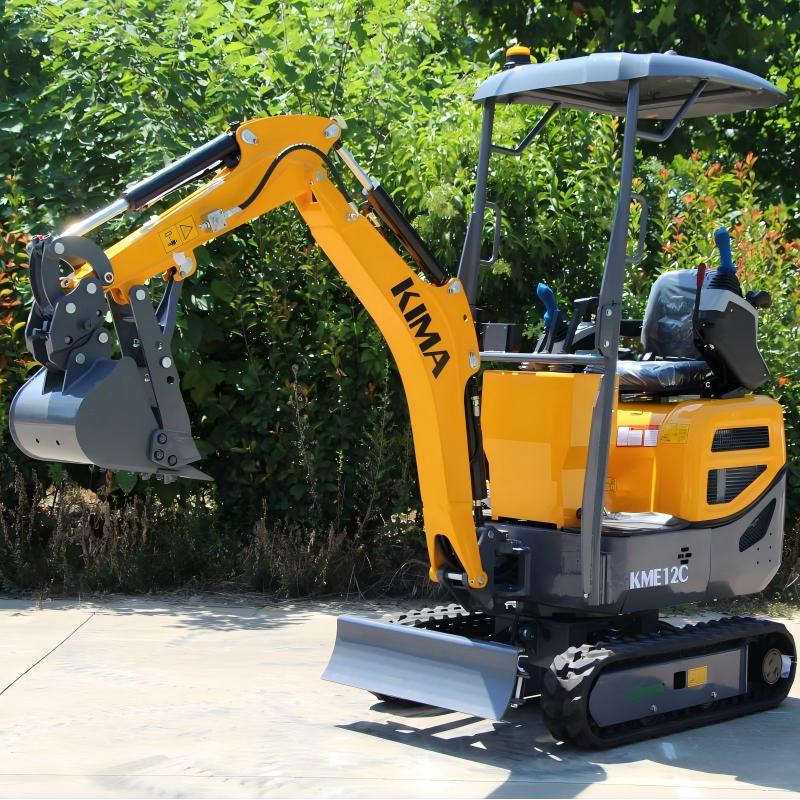

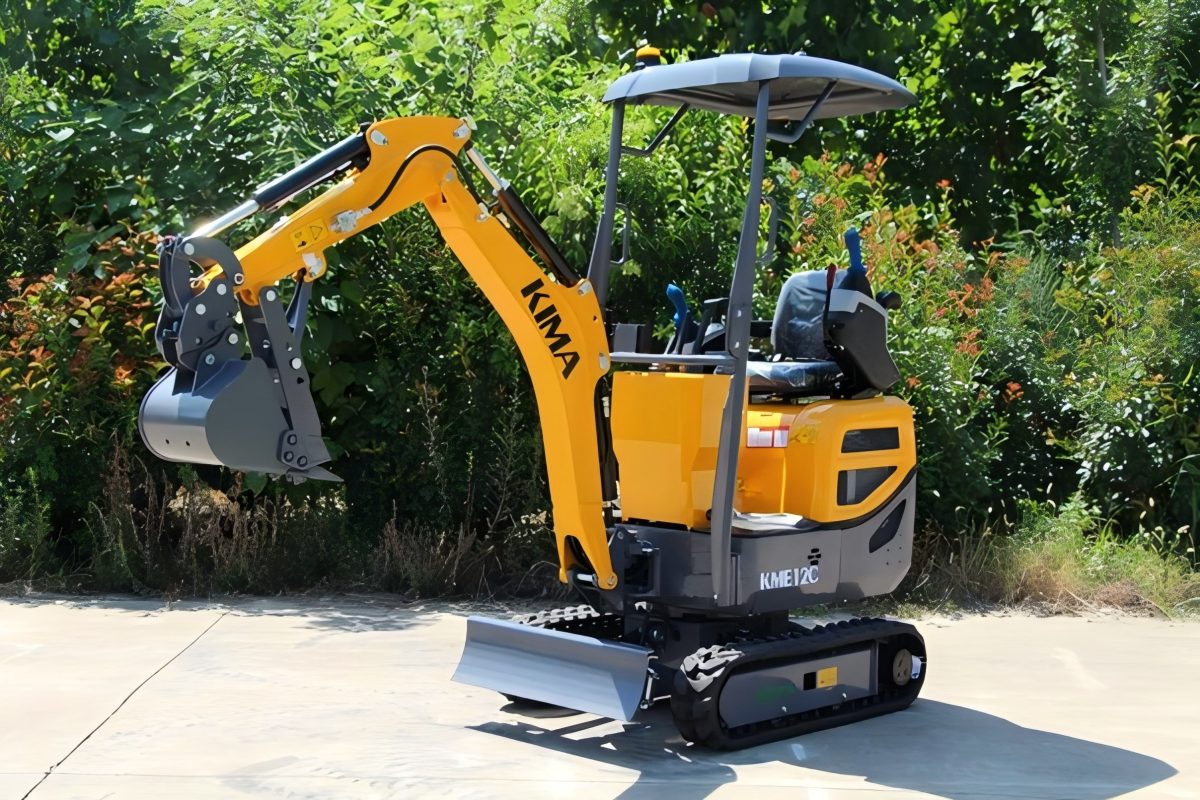

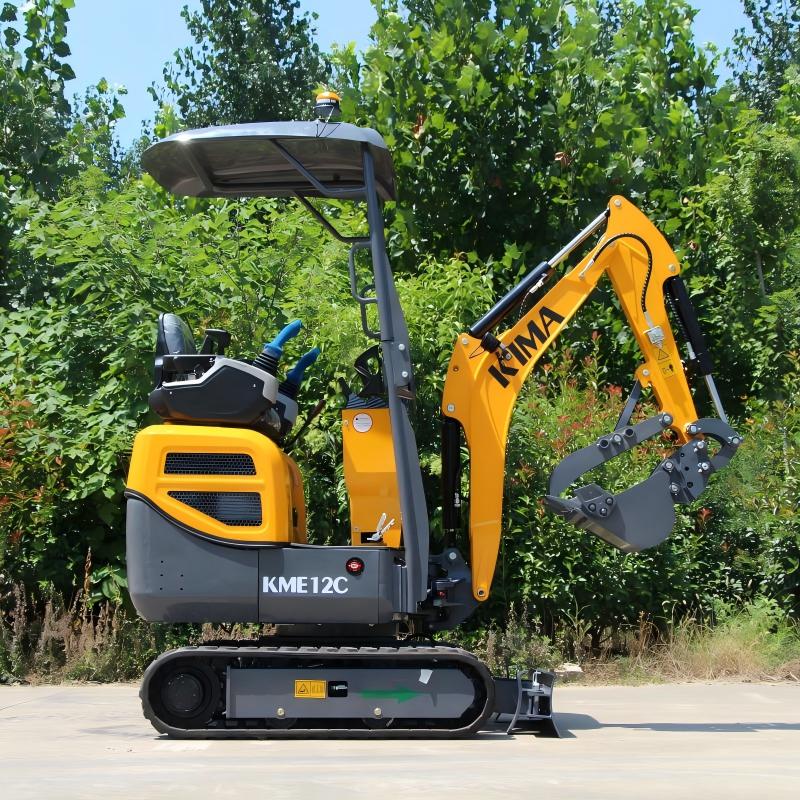

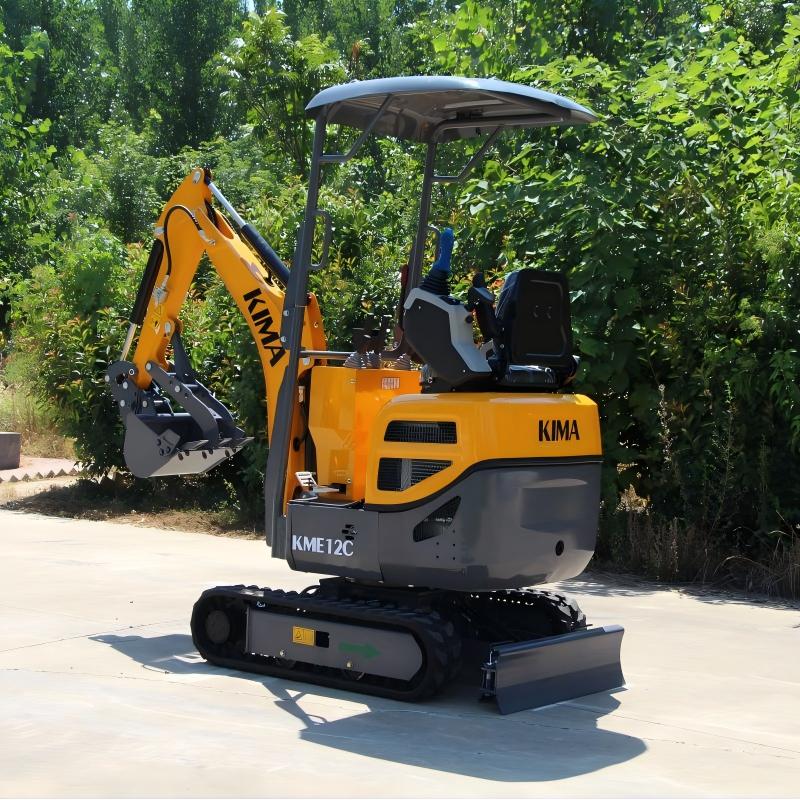

KME12C: High-Precision Mini Excavator with Hydraulic Pilot Control
The KME12C mini excavator is engineered for exceptional control and precision. It features an advanced hydraulic pilot control system, allowing operators to execute smooth and accurate movements with minimal effort. At the heart of the machine is a robust Yanmar 3-cylinder engine, compliant with Euro 5 standards, which delivers 10 kW of reliable power while ensuring low fuel consumption and reduced emissions. Designed for durability, its key structural components, including the swing gear and boom ends, are constructed from high-quality castings to resist fatigue and enhance long-term stability.
Product advantages
Swing boom
The casting structure, swing part and both ends of the boom greatly improve the stability and working life of the machine.
Hydraulic pilot
Hydraulic pilot control can accurately control the liquid pressure, flow and direction, so as to realize high precision control.
Casting parts
The partial frame, swing part and both ends of the arm are cast and greatly improve the stability and life of the machine.
Boom cylinder
Boom cylinder is located at the top to avoid damage and extend working life.
Product parameters
Type of cab | Canopy | |||
Bucket capacity | m³ | 0.03 | ||
Bucket width, std. | mm | 400 | ||
Machine weight | kg | 1317 | ||
Dimensions | Overall length | mm | 3050 | |
Overall height | mm | 2588 | ||
Overall width | mm | 880 | ||
Ground clearance | mm | 120 | ||
Engine | Brand | Yanmar | ||
Model | 3TNV70 | |||
Displacement | CC | 0.854 | ||
Output | kW/rpm | 10/2200 | ||
Working ranges | Max Digging height | mm | 3018 | |
Max Dumping height | mm | 2039 | ||
Max digging depth | mm | 1809 | ||
Max. Digging radius | mm | 3390 | ||
Min .swing radius | mm | 1591 | ||
Max digging force (Arm) | kN | 6.2 | ||
Max digging force (Bucket） | kN | 8 | ||
Track | Type | Rubber track | ||
Rubber shoe width | mm | 180 | ||
Undercarriage | Track length | mm | 1296 | |
Traveling speed | km/h | 2 | ||
Gradeability | deg | 58/30° | ||
Swing speed | rpm | 13 | ||
Ground pressure | kpa | 30 | ||
Dozer size | Width | mm | 840 | |
Height | mm | 240 | ||
Lifting capacity (Height/Depth) | mm | 150/200 | ||
Hydraulic | Type | Gear pump | ||
Flow rate | L/min | 21 | ||
Hydraulic pressure | Mpa | 17.2 | ||
Swing motor | RMR-315 | |||
Travel motor | R6K-310 | |||
Fuel tank capacity | L | 15 | ||
Hydraulic oil tank capacity | L | 13 | ||
Attachments display
|
|
|
Bucket with teeth | Driller with reducer | MS03 quick hitch |
|
|
|
Mechanic quick hitch | Steel track | Rake |
|
|
|
Hydraulic quick hitch | Hydraulic tilt quick hitch | Hydraulic thumb |
|
|
|
Mechanical thum | Hydraulic tilting bucket | Leveling bucket |
|
|
|
Narrow bucket | Mechanical grapple | Driller |
|
|
|
Grapple | Ripper | Hammer |

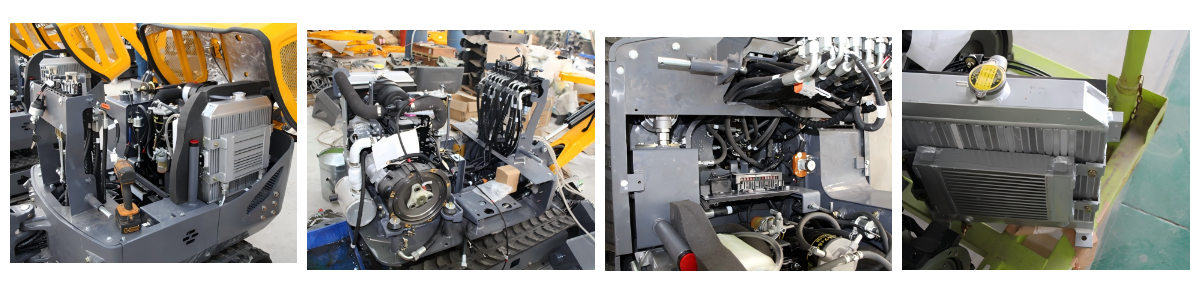

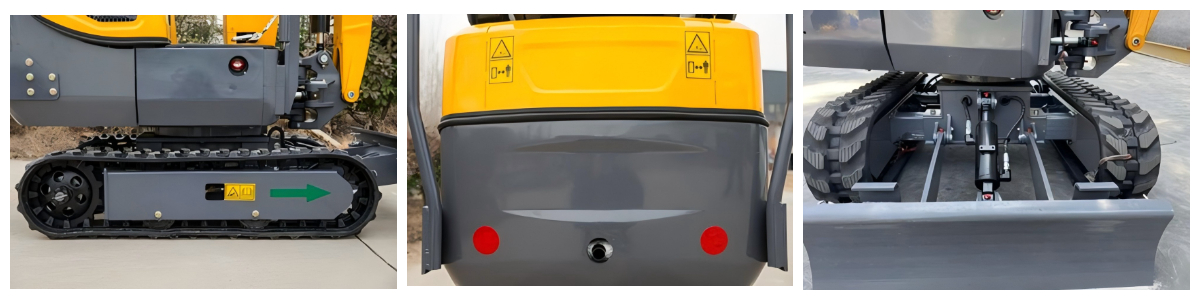

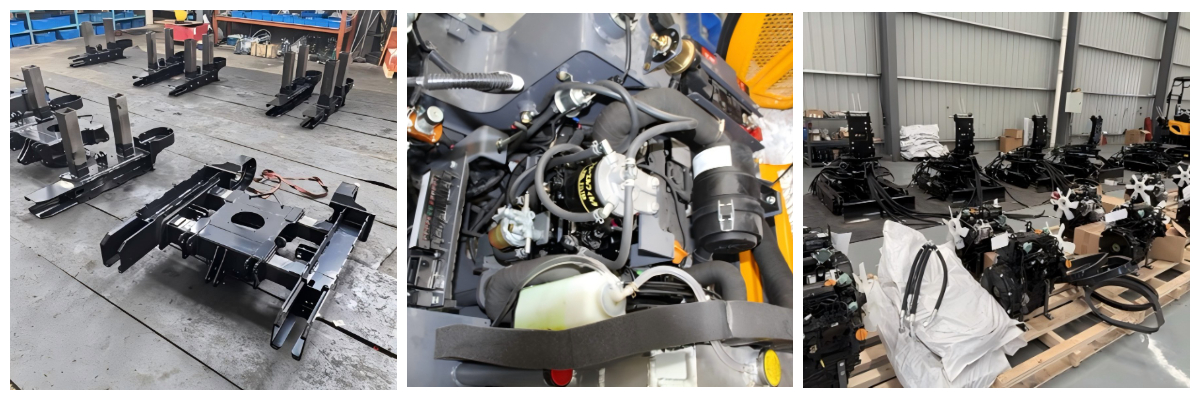

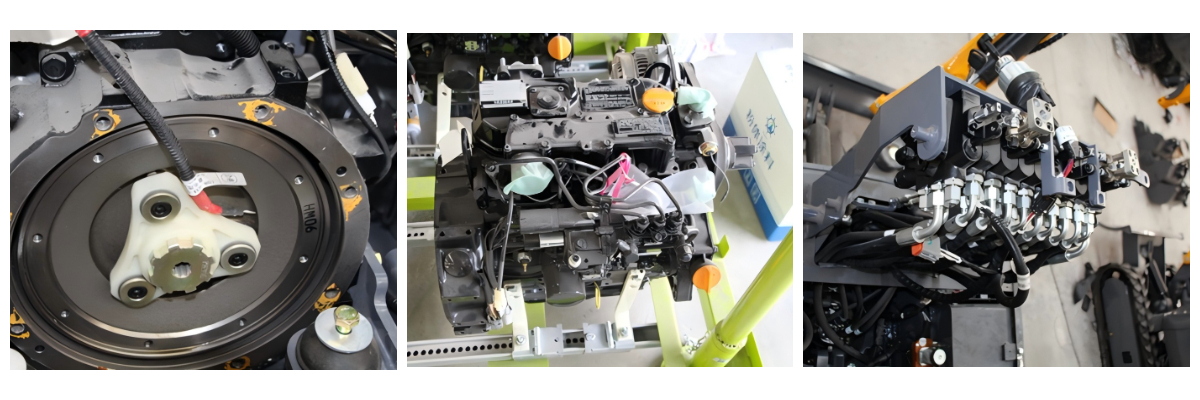

Details picture

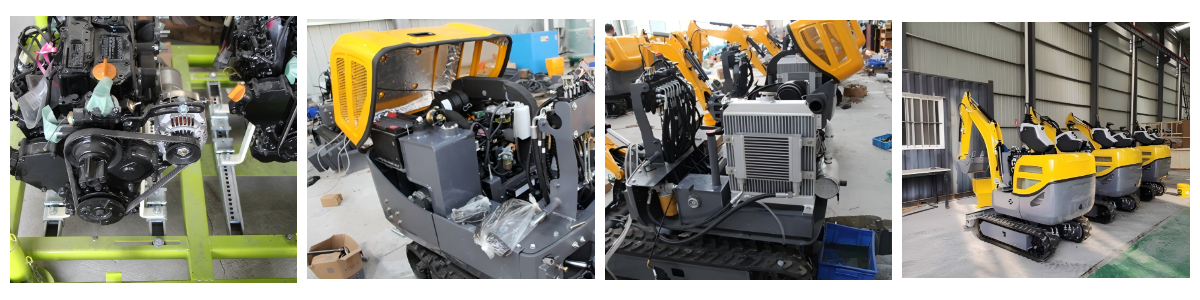

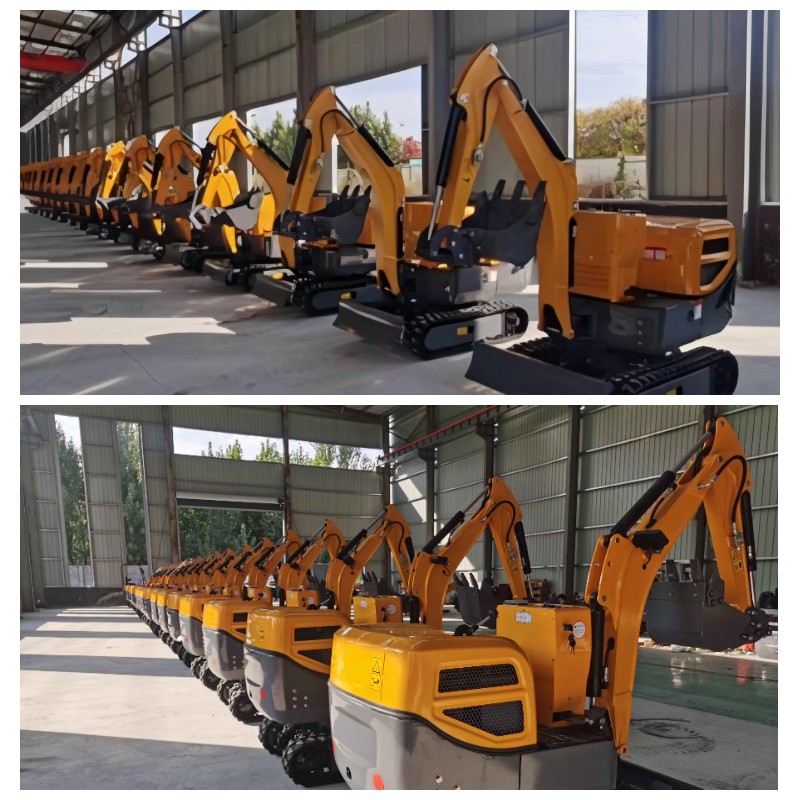

Production line
Delivery pictures

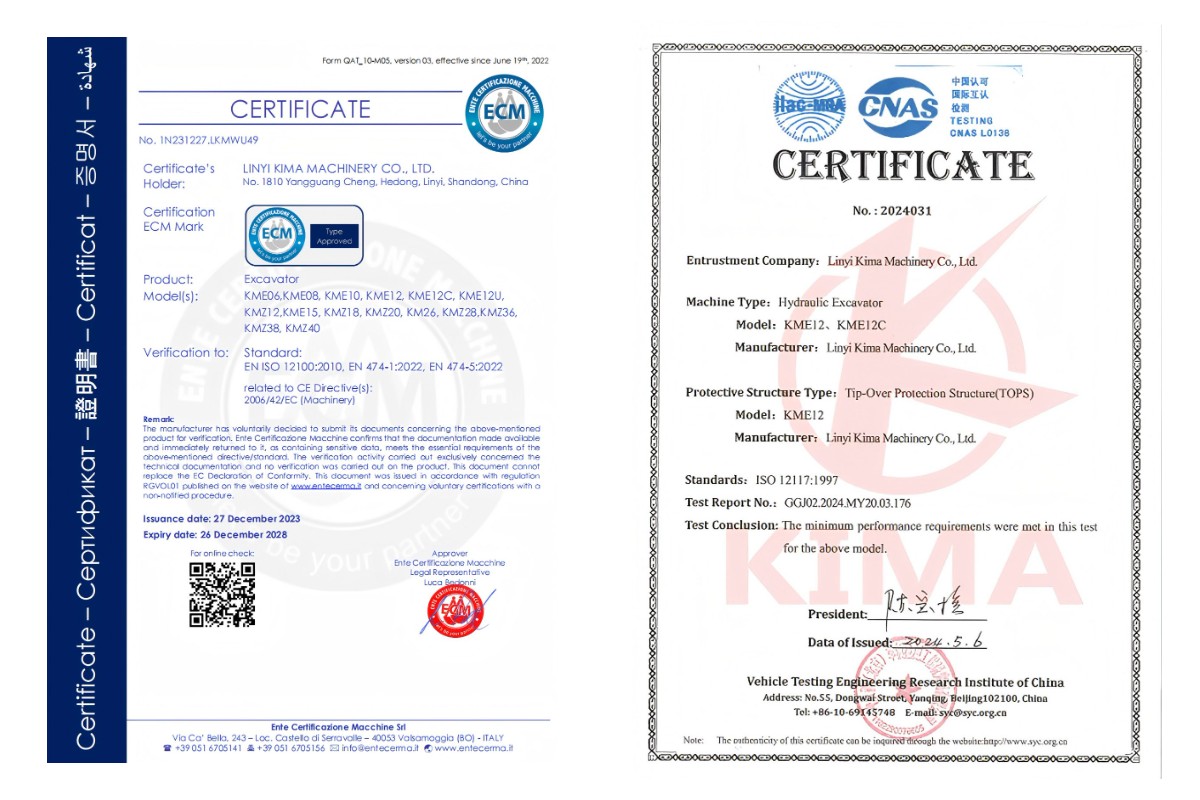

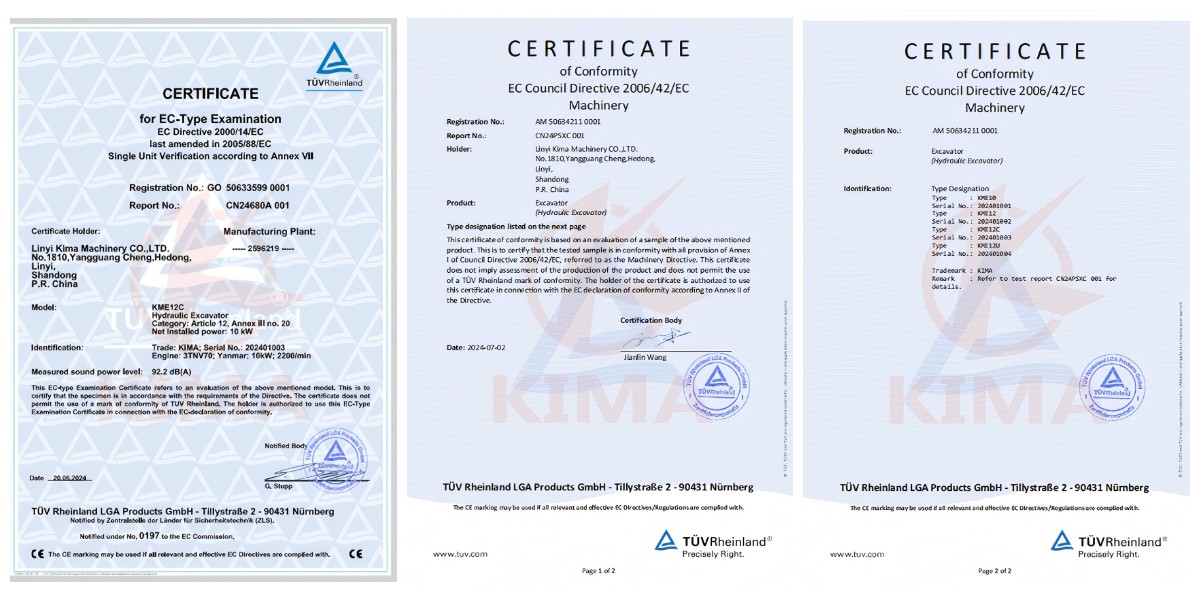

Qualifications
