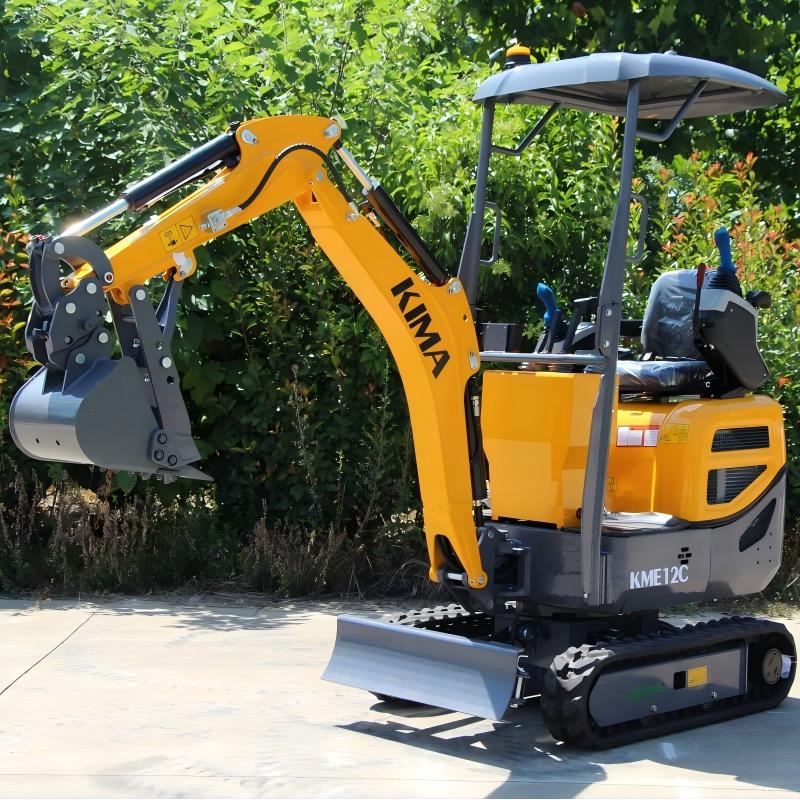

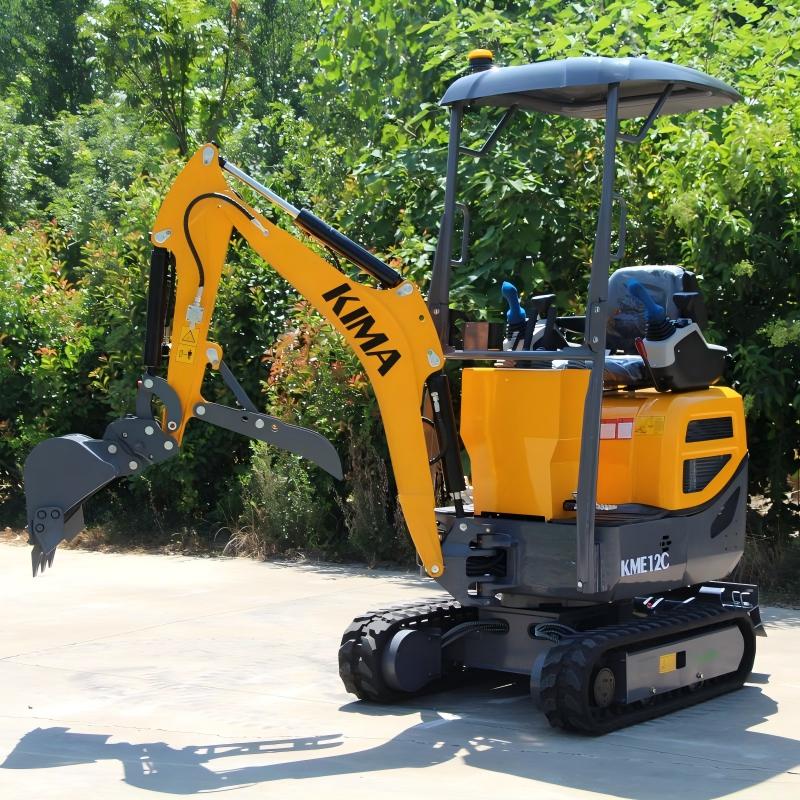

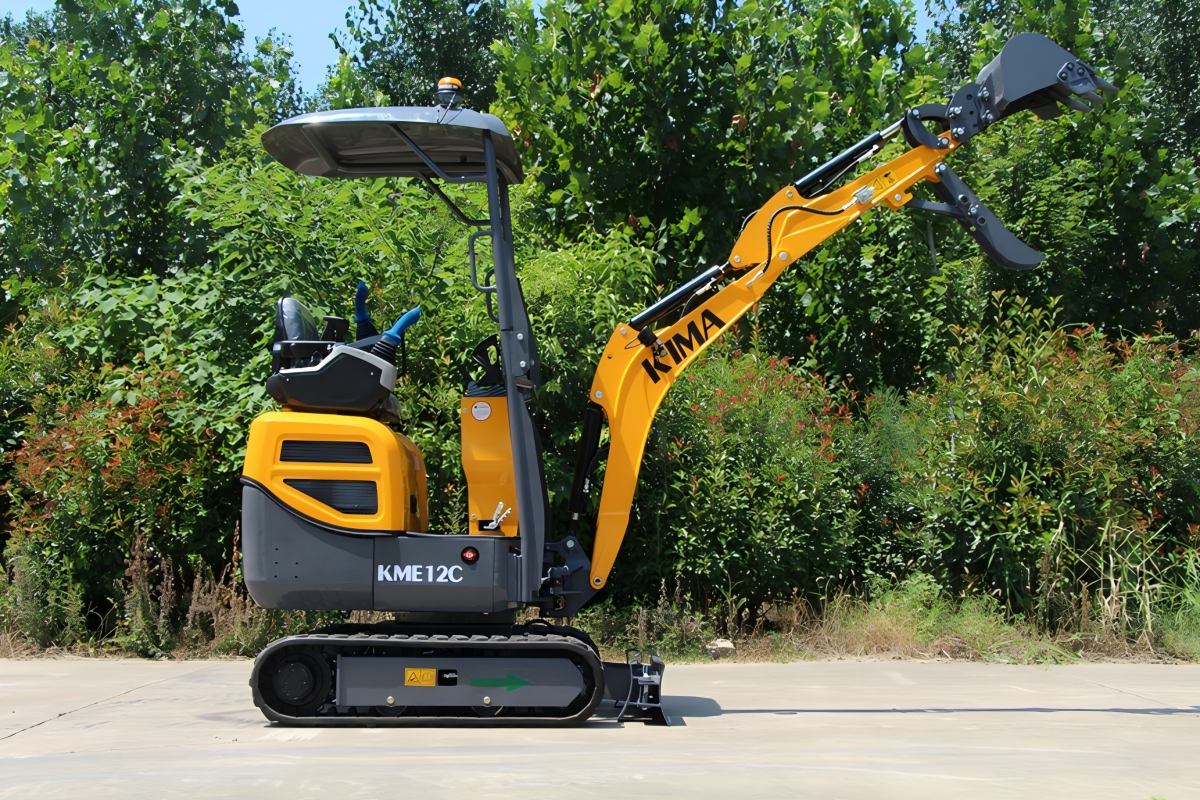

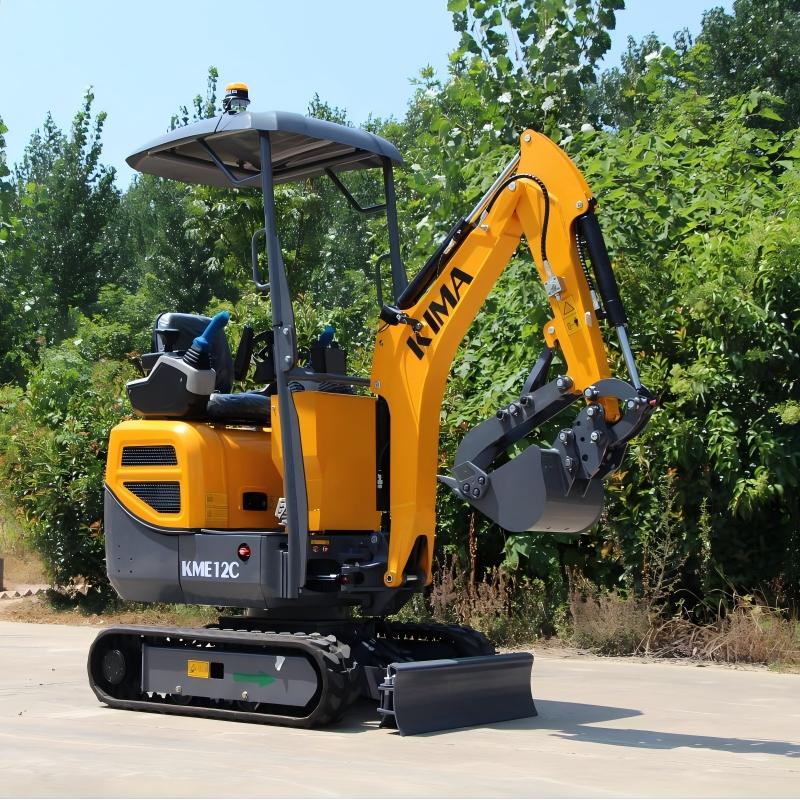

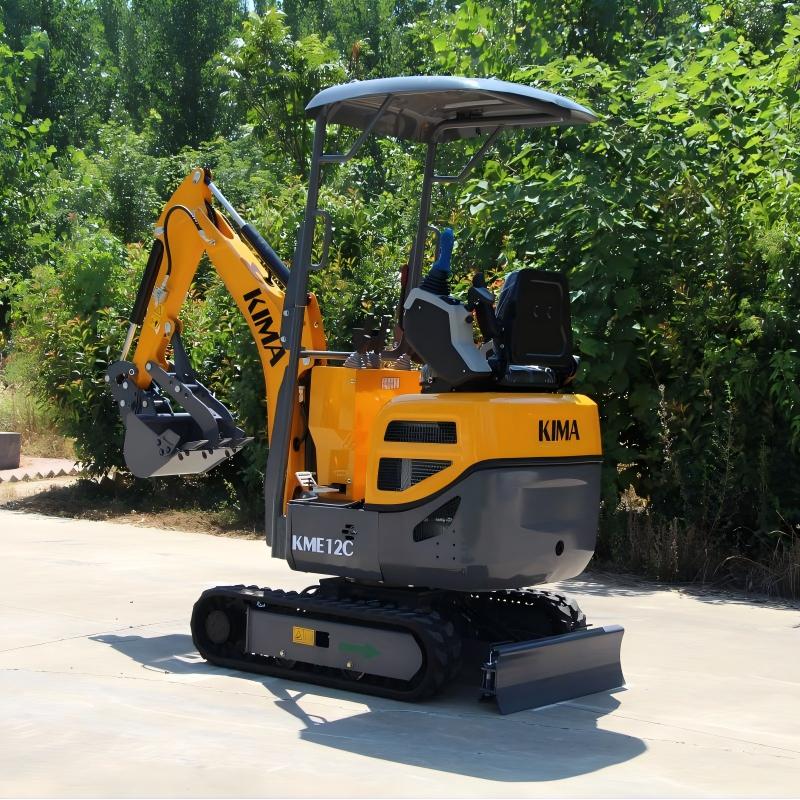

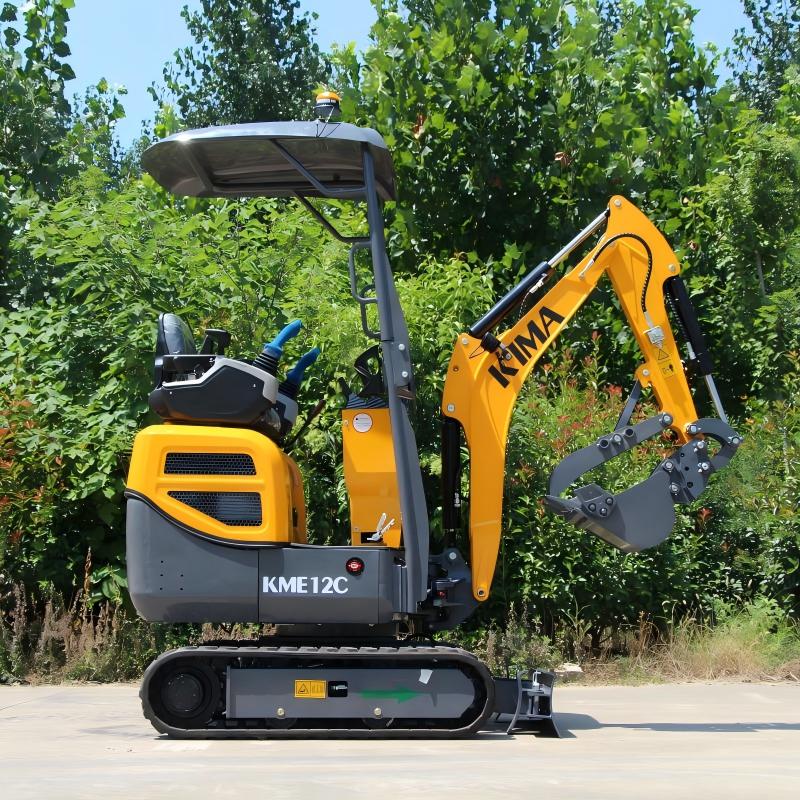

Mini Excavator 1200kg
1. Operating weight: 1317kg
2. CE & TUV certification passed
3. Standard bucket: 400mm, 0.03m³
4. Yanmar 3TNV70 Engine Euro5, 10 KW
5. Dimensions: 3050*880*2588mm(L*W*H)
6. Canopy, Rubber track, Extension track
7. Two-speed, Swing boom
Versatile KME12C: The Compact Solution for Confined Spaces
KME12C is the ideal for working near obstacles without risk of damage because of the compact design, half tail turning radius and swing boom. Easy to open engine hood and easy to find routine maintenance points allow maintenance tasks easier to complete.
Product advantages
Superior Power
Equipped with a reliable Yanmar 3TNV70 engine that delivers 10 kW of power, ensuring strong performance for its operations.
Low Emissions and Fuel Consumption
Compliant with Euro 5/EPA4 emission standards, making it an environmentally friendly choice with lower operating costs.
Advanced Hydraulic Pilot Control
Features a hydraulic pilot system that allows for precise, effortless, and smooth control of all excavator movements.
Dual-Speed Travel Function
High speed improves mobility and work efficiency, while low speed enhances traction and power for demanding tasks, ensuring both productivity and safety.
Wide Range of Attachments
The KME12C can be transformed into a multi-purpose tool, compatible with a large selection of accessories (e.g., hydraulic quick hitches, breakers, augers, grapples)
Product parameters
Type of cab | Canopy | |||
Bucket capacity | m³ | 0.03 | ||
Bucket width, std. | mm | 400 | ||
Machine weight | kg | 1317 | ||
Dimensions | Overall length | mm | 3050 | |
Overall height | mm | 2588 | ||
Overall width | mm | 880 | ||
Ground clearance | mm | 120 | ||
Engine | Brand | Yanmar | ||
Model | 3TNV70 | |||
Displacement | CC | 0.854 | ||
Output | kW/rpm | 10/2200 | ||
Working ranges | Max Digging height | mm | 3018 | |
Max Dumping height | mm | 2039 | ||
Max digging depth | mm | 1809 | ||
Max. Digging radius | mm | 3390 | ||
Min .swing radius | mm | 1591 | ||
Max digging force (Arm) | kN | 6.2 | ||
Max digging force (Bucket） | kN | 8 | ||
Track | Type | Rubber track | ||
Rubber shoe width | mm | 180 | ||
Undercarriage | Track length | mm | 1296 | |
Traveling speed | km/h | 2 | ||
Gradeability | deg | 58/30° | ||
Swing speed | rpm | 13 | ||
Ground pressure | kpa | 30 | ||
Dozer size | Width | mm | 840 | |
Height | mm | 240 | ||
Lifting capacity (Height/Depth) | mm | 150/200 | ||
Hydraulic | Type | Gear pump | ||
Flow rate | L/min | 21 | ||
Hydraulic pressure | Mpa | 17.2 | ||
Swing motor | RMR-315 | |||
Travel motor | R6K-310 | |||
Fuel tank capacity | L | 15 | ||
Hydraulic oil tank capacity | L | 13 | ||
Attachments display
|
|
|
Bucket with teeth | Driller with reducer | MS03 quick hitch |
|
|
|
Mechanic quick hitch | Steel track | Rake |
|
|
|
Hydraulic quick hitch | Hydraulic tilt quick hitch | Hydraulic thumb |
|
|
|
Mechanical thum | Hydraulic tilting bucket | Leveling bucket |
|
|
|
Narrow bucket | Mechanical grapple | Driller |
|
|
|
Grapple | Ripper | Hammer |
