2.5 Ton Digger For Sale

Total Weight: 2300 kg
0.07 m³ bucket for efficient digging performance
Utilizes the Kubota D1105 Euro 5/EPA-certified engine
Incorporates a LEZHUO piston pump for stable hydraulic output
Equipped with a closed cabin complete with air conditioning
Built with a track system that can be adjusted as needed

Contact Now E-Mail WhatsApp WhatsApp

Product Details

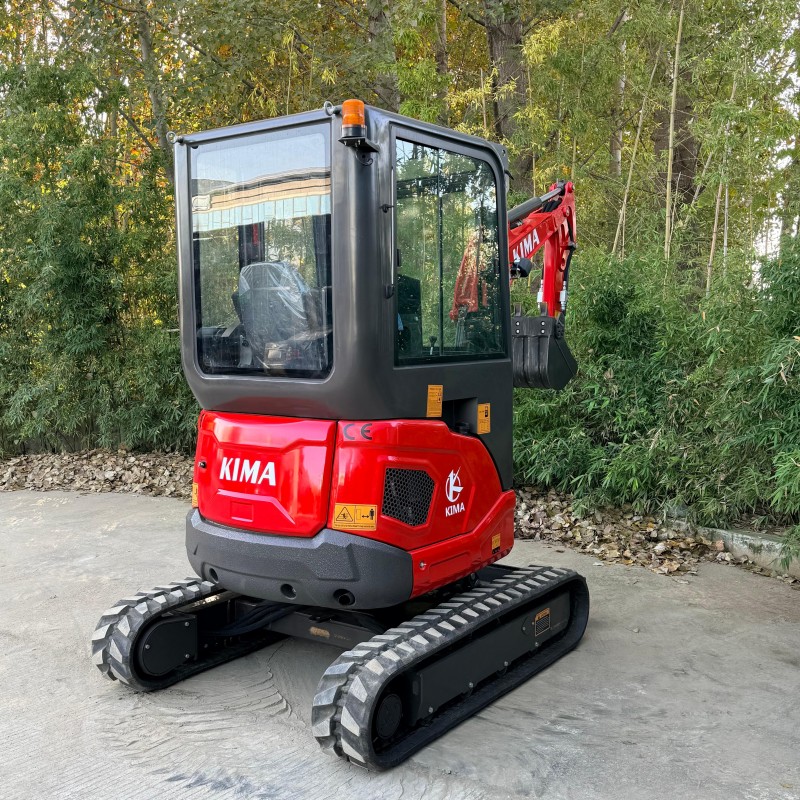

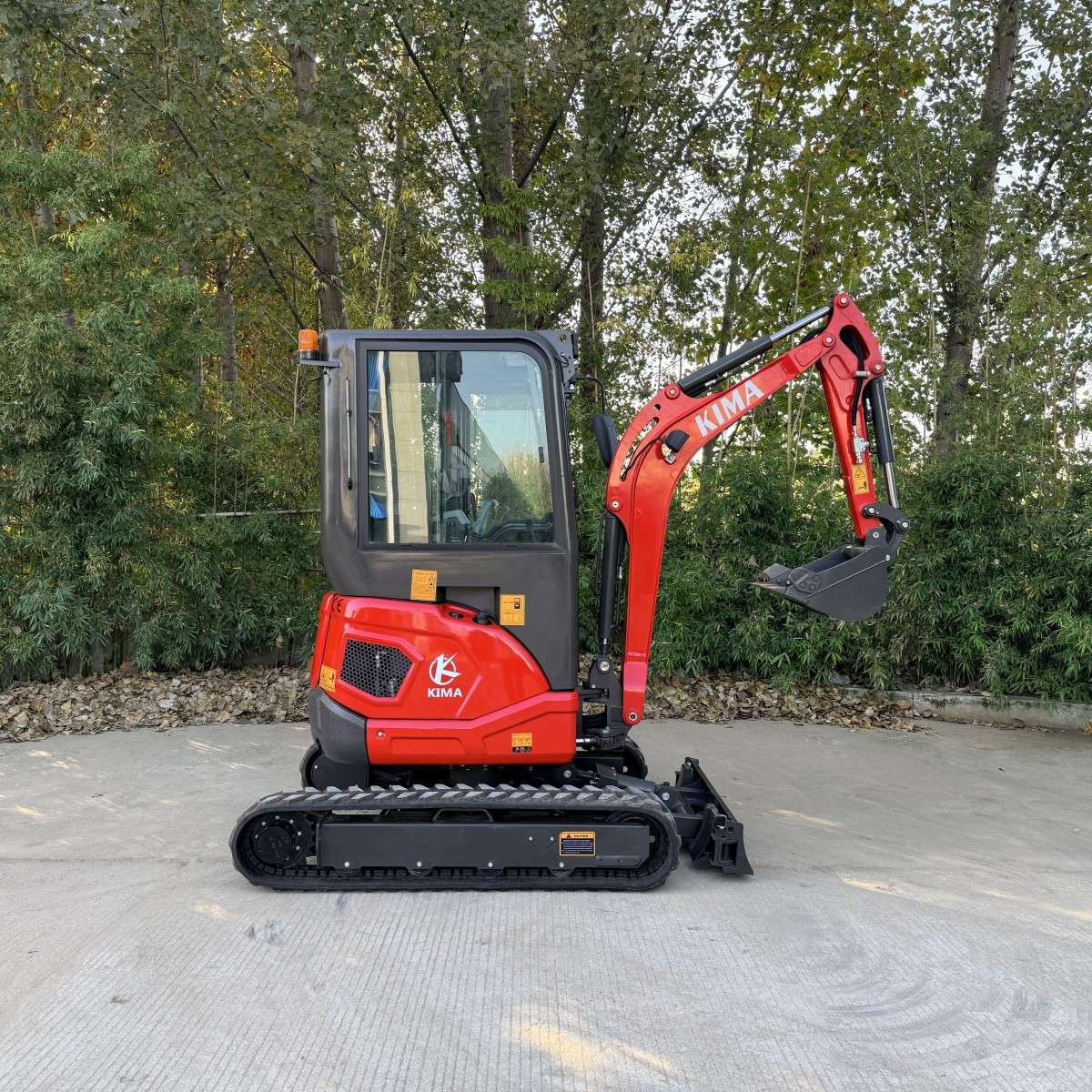

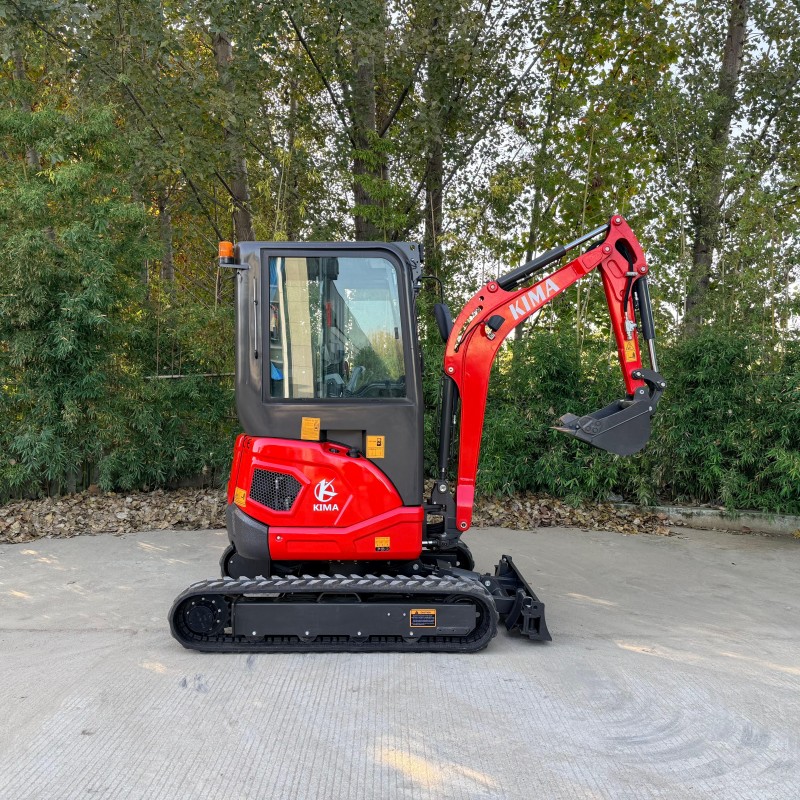

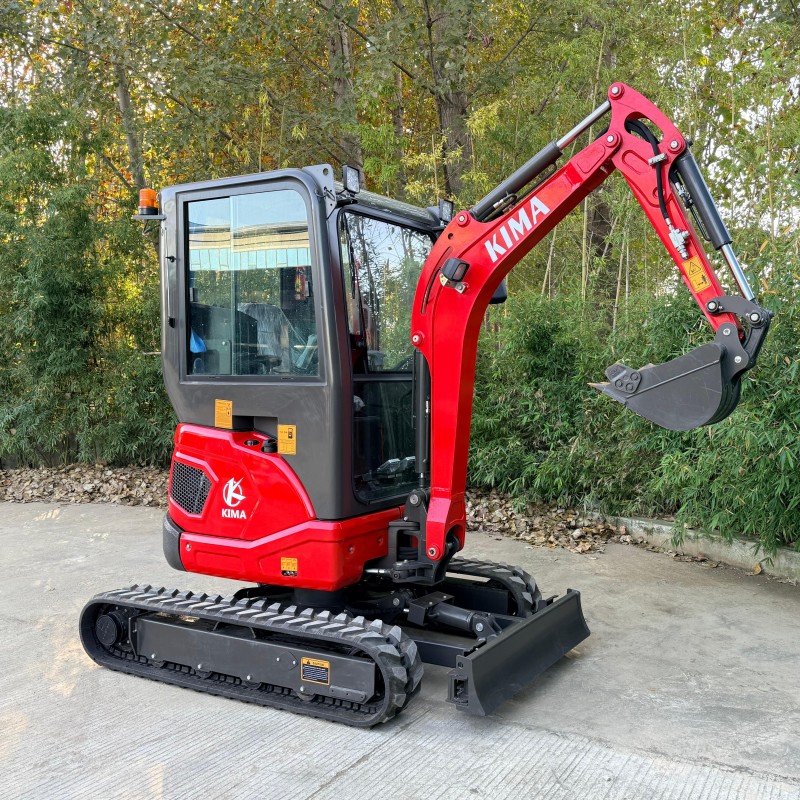

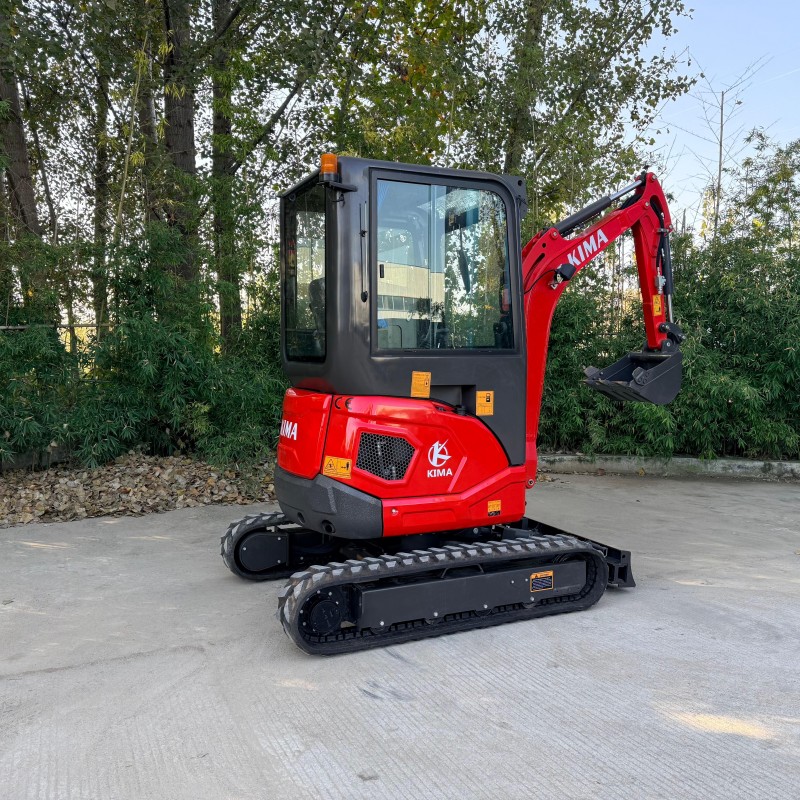

The zero-tail KMZ25 is ideally suited for confined job sites, offering strong performance within a compact frame for enhanced flexibility and precise handling. Powered by the Kubota D1105 engine delivering 14 kW and compliant with Euro 5/EPA emissions, this excavator features a 2300 kg operating weight, ensuring responsive, efficient maneuvering. 2.5 ton Excavator

Product advantages

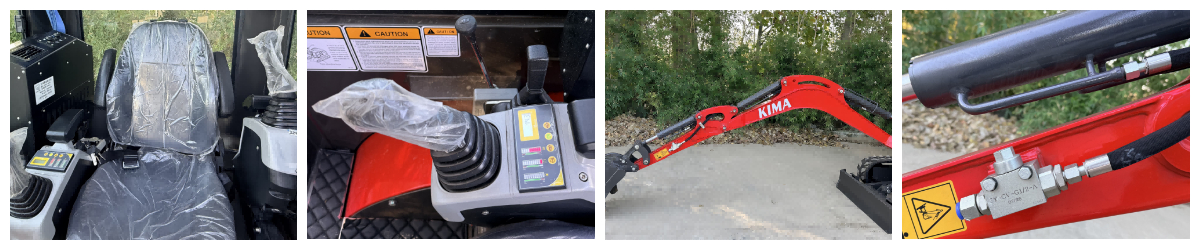

Comfort-Oriented Cabin with A/C

The sealed operator cabin comes equipped with air conditioning, creating a pleasant and efficient workspace throughout the year.

Hydraulic Pilot Servo System

Delivers accurate, smooth, and highly responsive machine control, suitable for operators with any level of experience.

Premium Hydraulic Setup

Features a LEZHUO piston pump combined with load-sensing valves to provide consistent power delivery and optimized hydraulic efficiency.

Swing Boom Configuration

Enables digging close to walls or within tight zones, enhancing flexibility on demanding or restricted worksites.

Telescopic Undercarriage with Two-Speed Travel

The variable track width boosts stability and allows the machine to fit into narrow areas, while the high/low travel speeds improve operational movement.

Robust 250 mm Rubber Track

Offers minimized surface disturbance and reliable grip across different working surfaces.

Product parameters

Type of cab		Cabin
Bucket capacity		m3	0.07
Machine weight		kg	2300
Dimensions	Overall length	mm	3936
	Overall height	mm	2405
	Overall width	mm	1200/1500
	Min. Ground clearance	mm	166
Engine	Brand	Kubota
	Model	D1105-e4b
	Number of cylinder	3
	Displacement	1.123L/min
	Emission Standard	Euro5 / EPA
	Output	KW	14
Working ranges	Maximum Digging height	mm	3675
	Maximum Dumping height	mm	2440
	Maximum Digging depth	mm	2628
	Maximum Vertical digging depth	mm	2098
	Maximum Digging radius	mm	4225
	Max .digging reach on the ground level	mm	4165
	Minimum swing radius(at front)	mm	1771
	Maximum Lifting height of blade	mm	365
	Maximum Cutting depth of blade	mm	230
	Boom swing angle(Left/Right)	°	70/50
Track	Type	Rubber track
	Rubber shoe width	mm	250
	Track length	mm	1923
	Track Gauge	mm	950/1250
	Track grounding Length	mm	1530
Traveling speed		km/h	2.5/4.3
Gradeability		deg	35%
Swing speed		rpm	10
Maximum Bucket digging force		kN	15.2
Maximum Arm digging force		kN	9.2
Hydraulic pumps	Flow rate	L/min	67.2
Hydraulic pumps	Hydraulic pressure	Mpa	23
Fuel tank capacity		L	22
Hydraulic oil tank capacity		L	20
