1 Ton Excavator

1. Weight: 960 kg

2. Engine: Koop KD192F-1 Euro5 / Briggs & Stratton EPA4

3. Bucket: 400 mm, 0.022 m³

4. Dimensions: 2876*880*2220mm(L*W*H)

5. Hydraulic System: Gear pump with 18 L/min flow rate

6. Optional Features: Hydraulic tilt bucket, mechanical quick hitch

Contact Now E-Mail Telephone WhatsApp

Product Details

The KME10 excavator is designed for efficiency in confined spaces. With its compact structure and versatile capabilities, it is perfect for work in narrow areas and around obstacles. The half-tail turning radius and optional swing boom provide enhanced maneuverability, while the easy-access engine cover simplifies maintenance. This machine excels in versatility and reliability, making it ideal for tight working conditions.

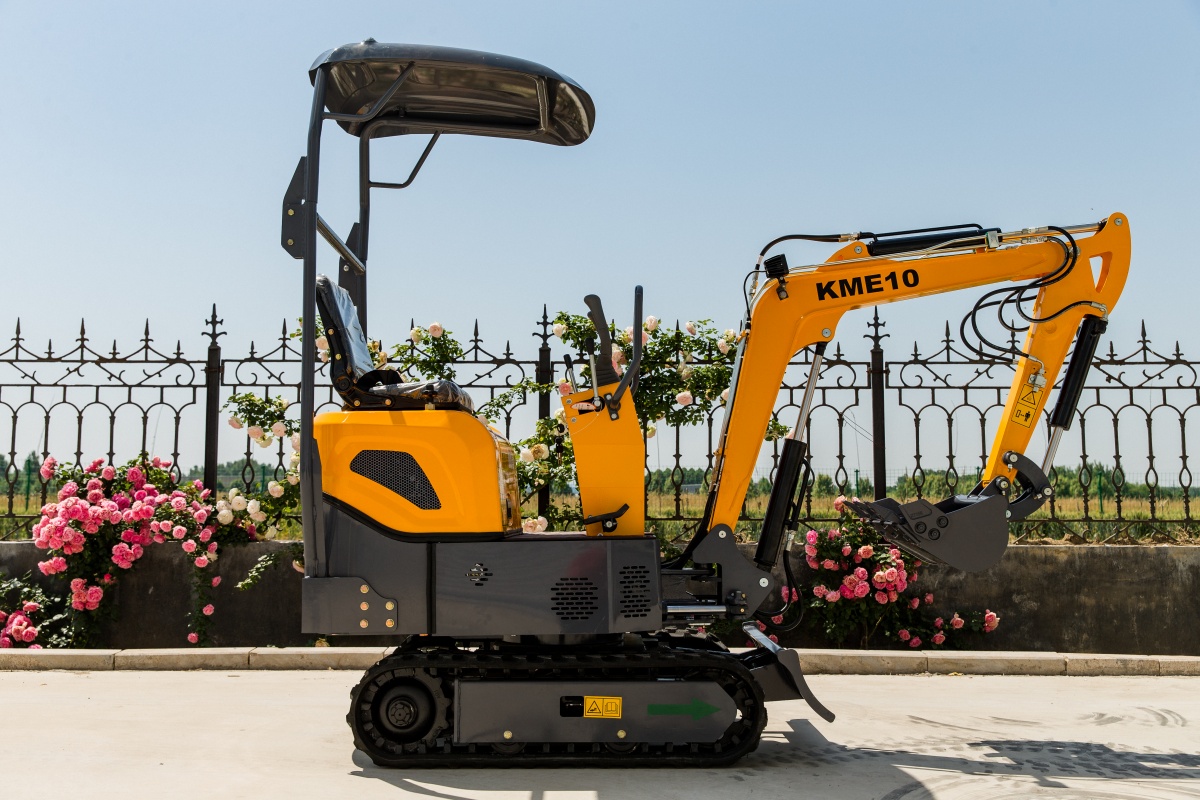

1 ton excavator

Product advantages:

TUV CE Certification: Meets high industry standards for quality.

Easy Access for Maintenance: The engine cover opens fully for easy access to key components, simplifying routine maintenance.

Koop Euro5/Briggs & Stratton EPA4 Engine: Provides low fuel consumption, high horsepower, and is environmentally friendly.

Durable Hydraulic Pipes: Steel hydraulic pipes are designed to resist aging, improving the lifespan of the system.

Casting Swing Head: The high-strength casting provides superior impact resistance and long service life.

Compact & Transport-Friendly: Can be easily transported on a dual-axle trailer, making it ideal for rental businesses and mobile operations.

Details

Parameters

Type of cab		Canopy
Bucket capacity		m3	0.022
Bucket width, std.		mm	400
Machine weight		kg	960
Dimensions	Overall length	mm	2876
	Overall height	mm	2220
	Overall width	mm	880
	Ground clearance	mm	132
Engine	Brand	KOOP
	Model	KD192F-1
	Displacement	L	0.499
	Output	kW/rpm	7.0/3000
Working ranges	Max Digging height	mm	2600
	Max Dumping height	mm	1830
	Max digging depth	mm	1715
	Max. Digging radius	mm	3065
	Min .swing radius	mm	1483
	Max digging force (Arm)	kN	4.6
	Max digging force (Bucket）	kN	7.2
Track	Type		Rubber track
Track	Rubber shoe width	mm	180
Undercarriage	Track length	mm	1233
	Traveling speed	km/h	2
	Gradeability	deg	58/30
Swing speed		rpm	13
Ground pressure		kpa	20
Dozer size	Width	mm	840
	Height	mm	240
	Lifting capacity (Height/Depth)	mm	150/200
Hydraulic pumps	Type		1 Gear pump
	Flow rate	L/min	18
	Hydraulic pressure	Mpa	16
Swing motor			Cycloidr motor
Travel motor			Cycloidr motor
Fuel tank capacity		L	7
Hydraulic oil tank capacity		L	14.5
