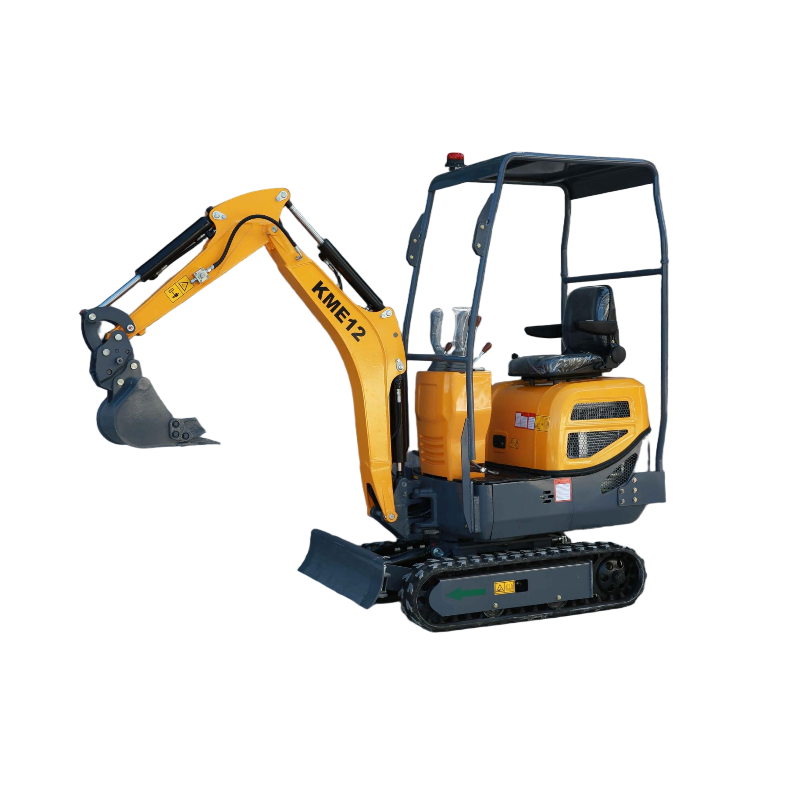

Micro Excavator

1. 1200 kg weight and 0.03 m³ bucket capacity

2. Powered by Yanmar Euro 5/EPA engine, 10.0 kW

3. Two-speed travel system for efficiency

4. Hydraulic safety lock for operator protection

5. Extendable track for greater stability

6. Verified with TÜV certification

Contact Now E-Mail Telephone WhatsApp

Product Details

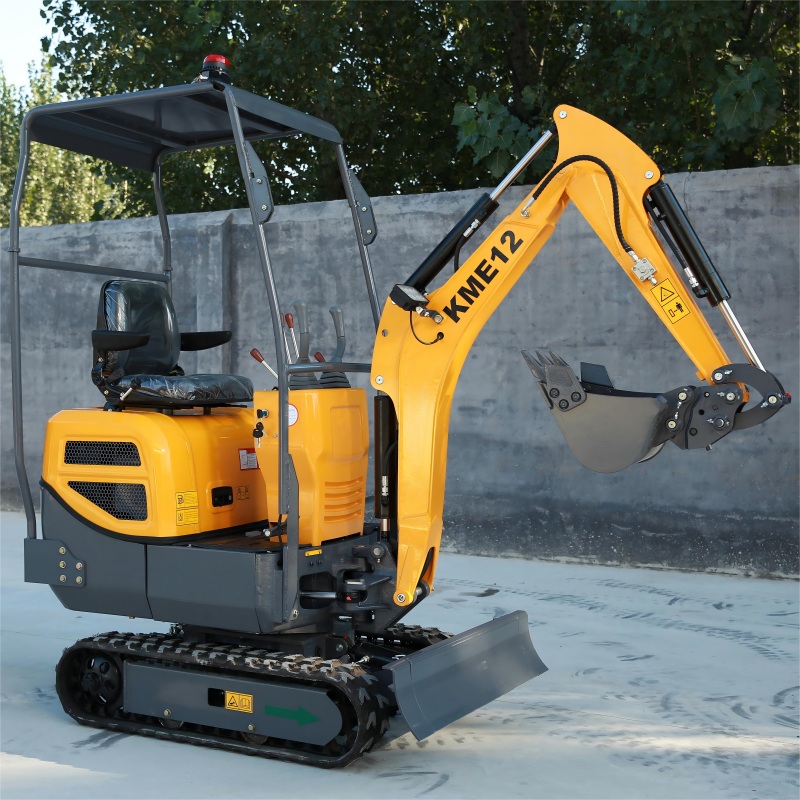

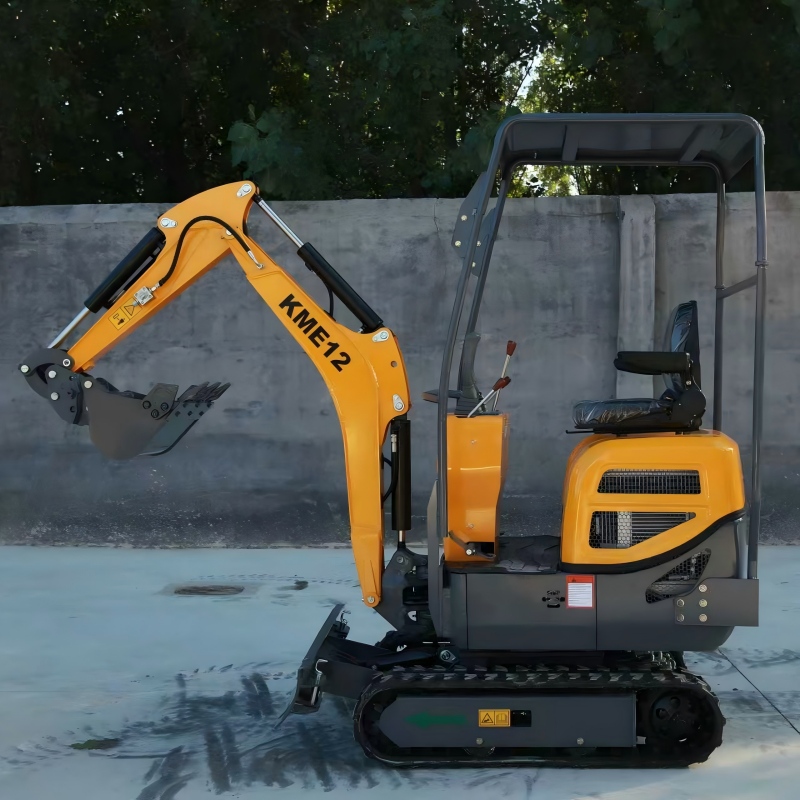

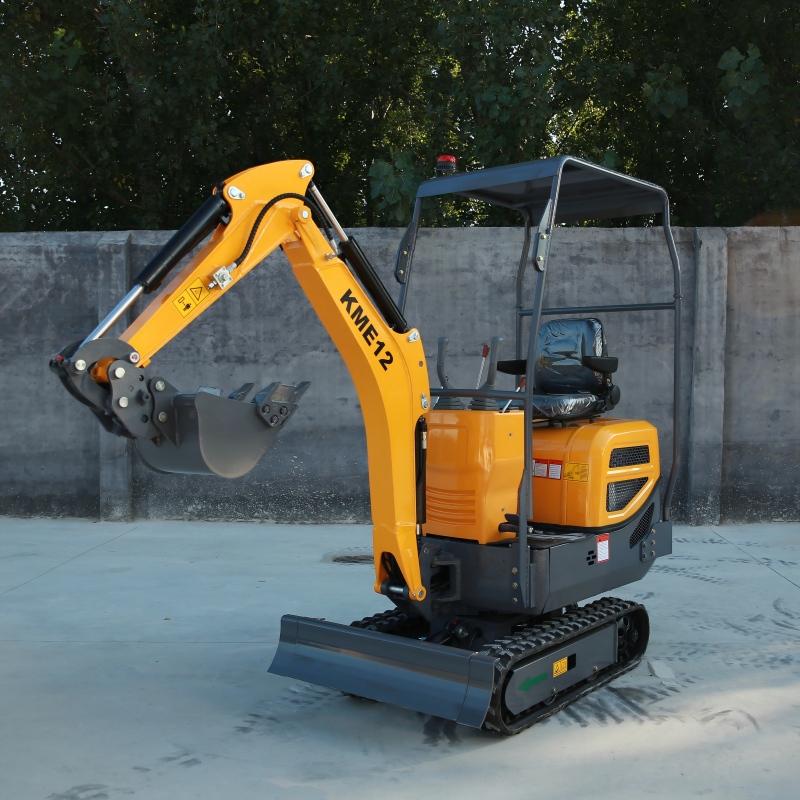

The KME12 compact excavator is powered by the Japanese Yanmar 3TNV70 engine, delivering stable performance with a space-saving design. Its short tail swing and offset boom allow operators to work safely around walls, fences, and other obstacles. With a user-friendly engine hood and well-positioned service points, daily inspections and maintenance can be carried out quickly and conveniently.

Micro Excavator

Product advantages

Yanmar Euro 5/EPA 4 Engine
Delivers strong horsepower with low fuel usage, offering high performance while being more eco-friendly.

Swing Boom
The integrated casting structure, swing mechanism, and reinforced boom ends enhance both machine stability and service life.

Counterweight
A solid, thickened iron counterweight ensures excellent balance and stability during operation.

Casting Components
Cast construction in key areas such as the frame, swing section, and arm ends provides superior durability and longevity.

Boom Cylinder
Positioned on top of the boom to prevent potential damage and extend operational lifespan.

Radiator
The hydraulic oil radiator boosts efficiency, prolongs system life, stabilizes hydraulic performance, lowers energy consumption, and improves operator comfort — a key strength of the KME12.

Safety Lock
A hydraulic safety lock system prevents unintentional operation, ensuring operator protection.

Engine Hood
Fully liftable engine hood allows quick and easy access for daily maintenance and inspections.

Extendable Track
Adjustable track width enables the excavator to navigate tight spaces while maintaining superior stability during digging.

Dual Speed Function
High speed boosts productivity and shortens job duration, while low speed enhances traction, power output, and safety on challenging terrain.

Wide Range of Attachments
Turn your excavator into a multifunctional tool with KIMA's extensive selection of compatible accessories.

Product parameters

Type of cab		Canopy
Bucket capacity		m3	0.03
Bucket width, std.		mm	400
Machine weight		kg	1200
Dimensions	Overall length	mm	3050
	Overall height	mm	2588
	Overall width	mm	880
	Ground clearance	mm	120
Engine	Brand	Yanmar
	Model	3TNV70
	Displacement	L	0.854
	Output	kW/rpm	10.0/2200
Working ranges	Max Digging height	mm	3018
	Max Dumping height	mm	2039
	Max digging depth	mm	1809
	Max. Digging radius	mm	3390
	Min .swing radius	mm	1591
	Max digging force (Arm)	kN	6.2
	Max digging force (Bucket）	kN	8
Track	Type		Rubber track
Track	Rubber shoe width	mm	180
Undercarriage	Track length	mm	1296
	Traveling speed	km/h	2
	Gradeability	deg	58/30°
Swing speed		rpm	13
Ground pressure		kpa	30
Dozer size	Width	mm	840
	Height	mm	240
	Lifting capacity (Height/Depth)	mm	150/200
Hydraulic pumps	Type		Gear pump
	Flow rate	L/min	20.4
	Hydraulic pressure	Mpa	18
Swing motor			RMR-315
Travel motor			R6K-310
Fuel tank capacity		L	15
Hydraulic oil tank capacity		L	13
