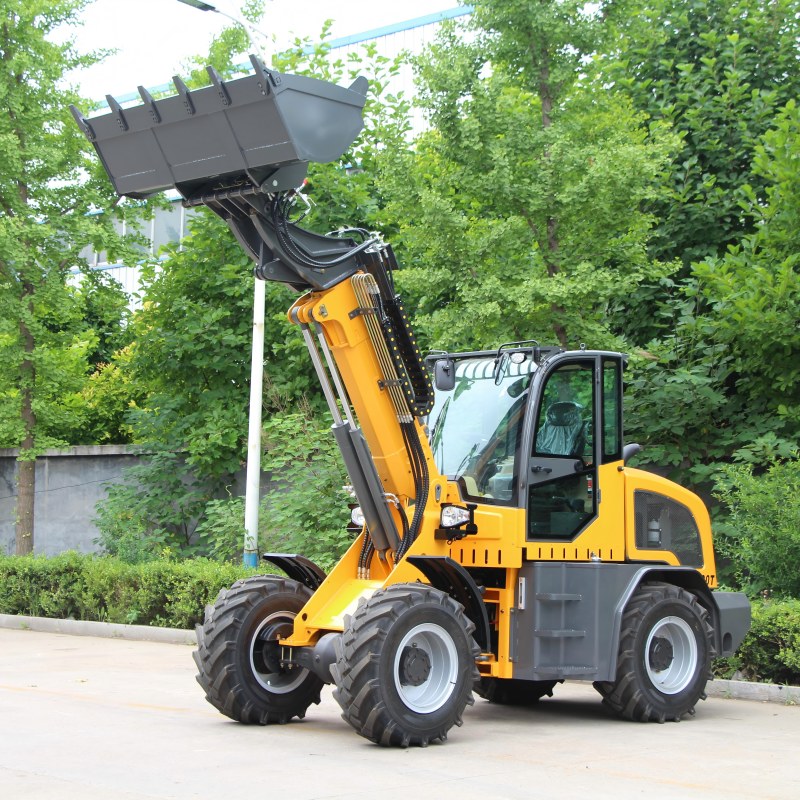

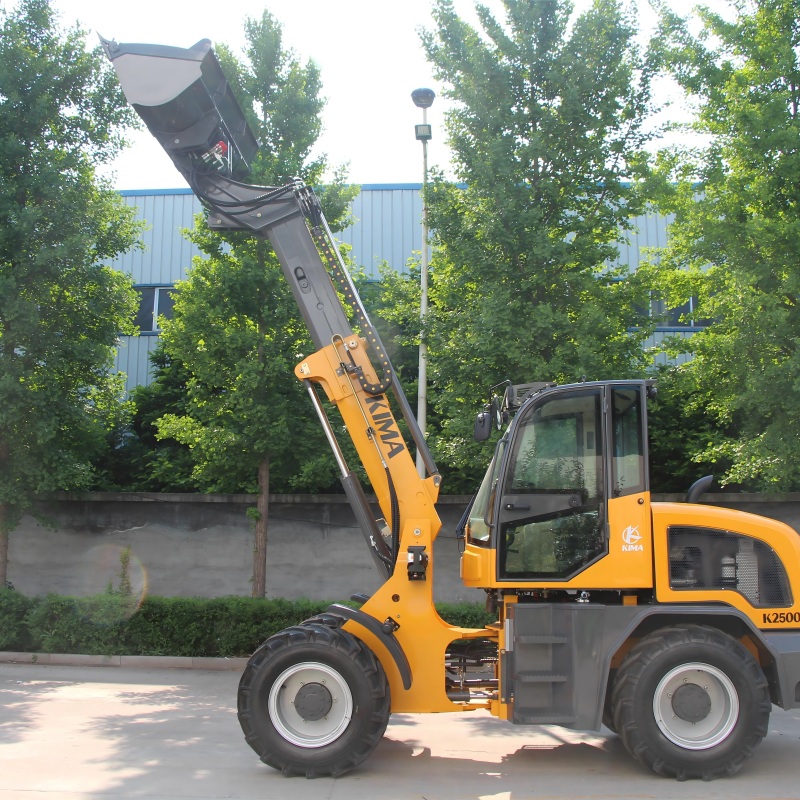

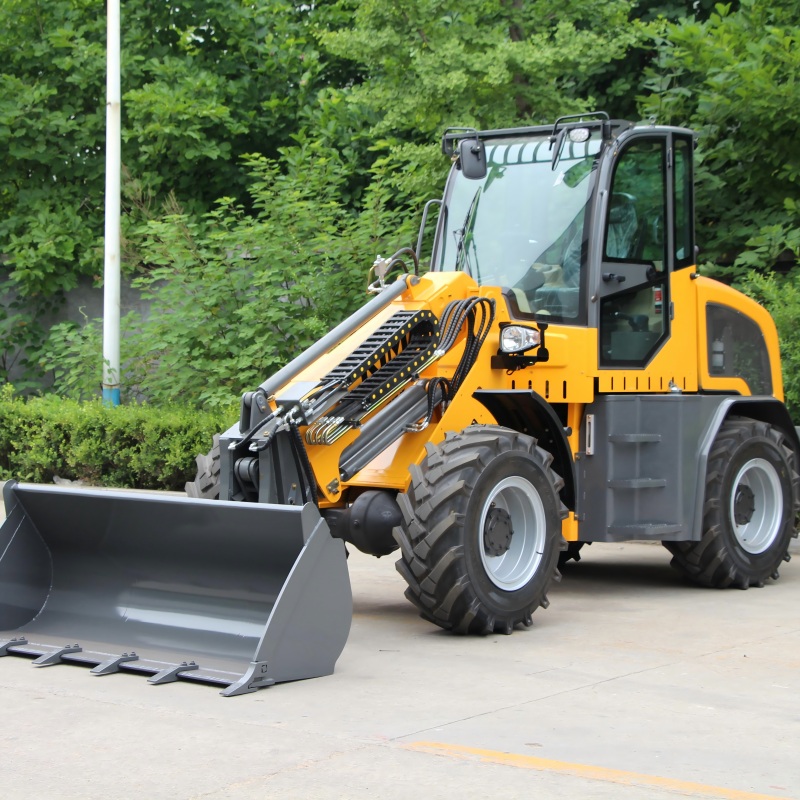

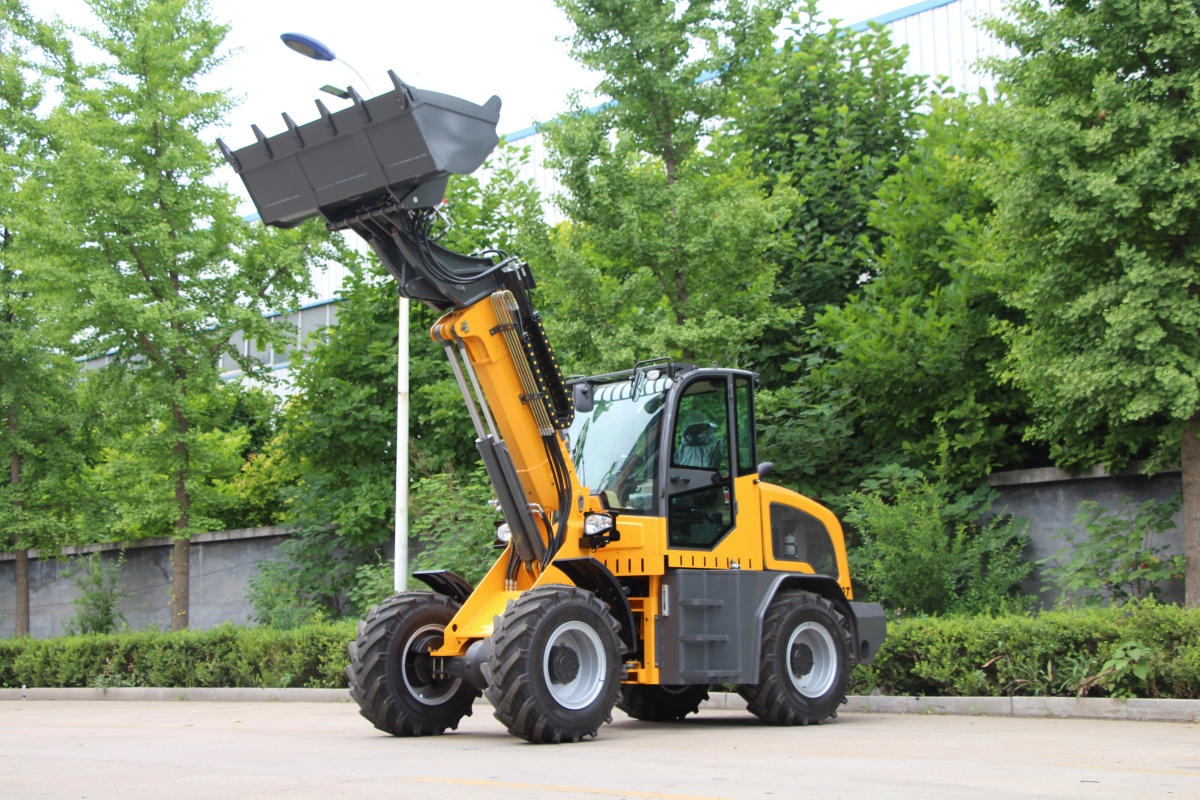

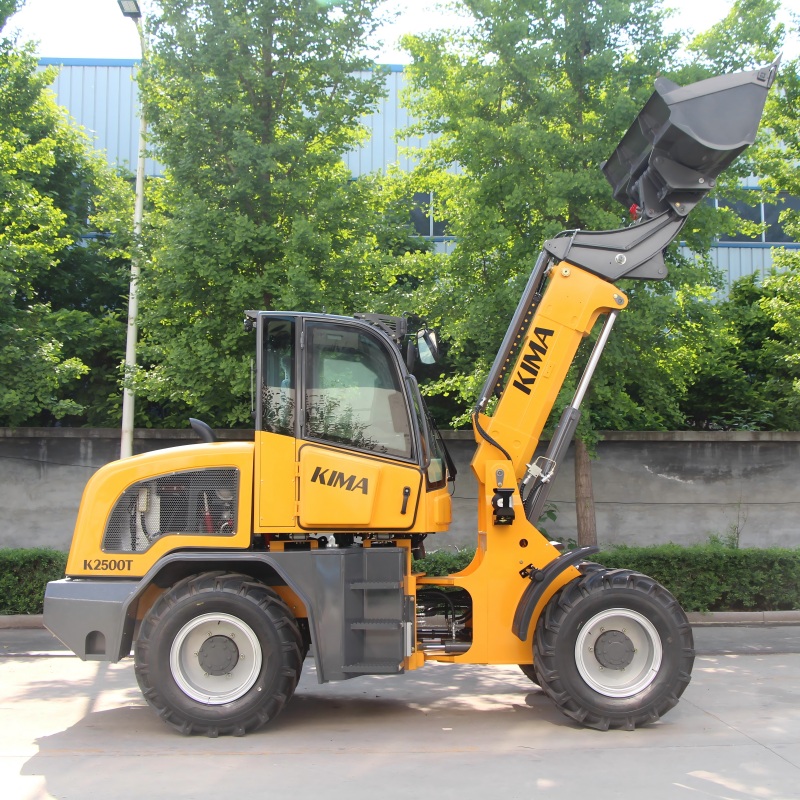

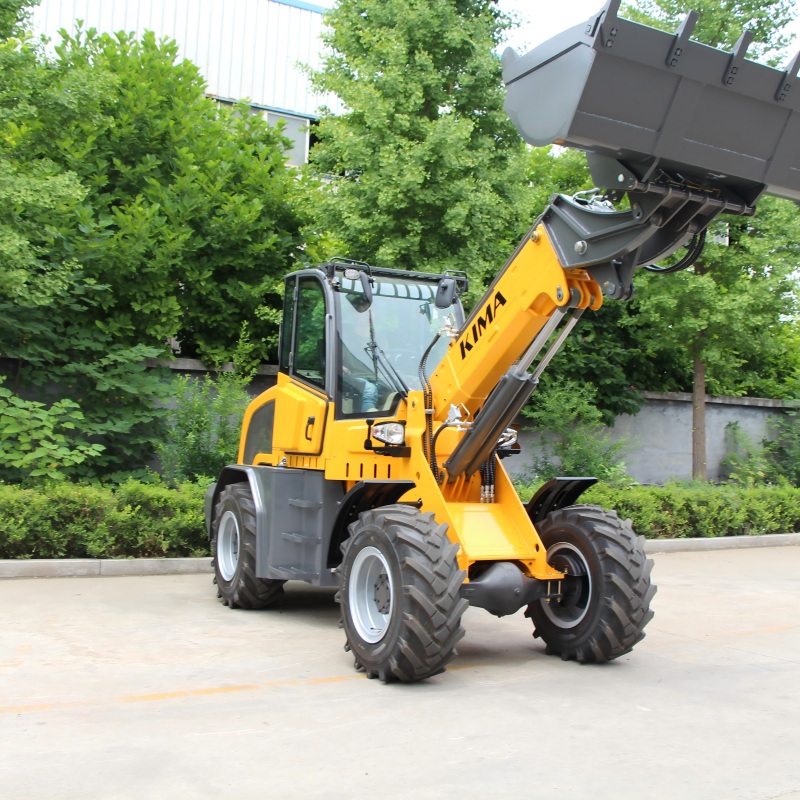

Telescopic Loader

1. Rated load: 2500kgs.

2. Wheel reducer axle

3. Sturdy telescopic arm

4. Bucket capacity:0.67m³

5. Tire Size:16/70-20

6. Hydraulic quick hitch

Contact Now E-Mail Telephone WhatsApp

Product Details

K2500T represents the next evolution in telescopic loaders, meticulously enhanced to deliver superior performance and adaptability for a wide range of professional users. Whether deployed in demanding agricultural settings or complex construction environments, this model offers increased power and operational efficiency to maximize productivity.

Telescopic Loader

Product advantages

Euro 5 exhaust emission standard
We have pioneered a Stage V-compliant solution for our equipment, specifically engineered to meet and exceed the stringent environmental standards of the European market. This achievement not only ensures immediate market access but also reflects our long-term commitment to sustainable innovation and leadership in eco-conscious engineering.
Luxury cabin and comfortable seat
The human-centric cabin is designed around the operator. It features an ergonomic seat with an armrest, a high-capacity ventilation system, and an efficient heating system. This integrated approach creates a superior working environment that minimizes fatigue and enhances focus.

Telescopic arm
The robust telescopic arm delivers exceptional strength and reach, effortlessly meeting demands for deeper excavation and higher lifting.

Easy-to-open engine hood
Designed for unparalleled serviceability, the entire engine bay is engineered for quick access. The hood can be effortlessly opened and fully removed in just a few simple motions, presenting a unified point of access for all key maintenance points—including the hydraulic oil tank, air cleaner, oil fill, dipstick, and cooling system.

High-quality powder coating
Quality creates added value. The powder coating is a key feature of the KlMA quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

Short hydraulic hose lengths

KIMA's segmented hose design is the smarter solution. It enables swift, targeted replacements that get you back to work faster and save you money on both labor and parts.

Product parameters

Performance	Rated loading (kg)	2500
	Overall weight (kg)	5100
	Rated bucket capacity (m³)	0.67
	Maximum tractive force (kN)	35
	Maximum breakout force (kN)	25
	Maximum grade ability (°)	25
	Maximum lifting height of small boom (mm)	5413
	Maximum dump height of main boom (mm)	2768
	Maximum dump height of small boom (mm)	3766
	Maximum dump reach (mm)	1012
	Overall dimension (L×W×H) (mm)	563118702736
	Minimum turning radius (outside of wheels) (mm)	5068
	Maximum steering angle	40°
	Oscillation angle	5°
Transmission system	Torque converter	265
	Gearbox mode	Power shift is normally engaged in the straight gear
	Gear shift	Mechanical, 2forward shift 2 reverse shift
	Maximum speed	21km/h
Drive axles	Main reducing mode	Bevel gear grade l reduction
	Wheel base (mm)	2568
	Wheel tread(mm)	1470
	Ground clearance(mm)	358
Hydraulic system	System working pressure (Mpa)	20
	Boom lifting time (s)	7.2
	Total time (s)	12.9
	Fuel tank capacity (L)	94
Brake system	Service brake	Air-assist hydraulic brake, disc brake
Brake system	Parking brake	Manual disc brake
Tyre	Type specification	16/70-20
	Front tire pressure (kPa)	350
	Rear tire pressure (kPa)	350
