Skid Loaders For Sale

1. Pull-Type Emergency Stop Switch – Immediate Shutdown of Hazards

2. Openable Engine Hood – Convenient Routine Inspection & Maintenance

3. Electric Hydraulic Parking Brake – Safe Slope Stopping, No Rollback Risk

4. Rectangular LED Headlights – Clear Night Vision, Enhanced Operation Safety

5. Dust-Proof Travel Motor – Longer Service Life in Harsh Environments

6. Reinforced Structural Design – Higher Durability Against Impact

7. Foldable Footrest – Space-Saving, Reduces Transportation Length

Contact Now E-Mail Telephone WhatsApp

Product Details

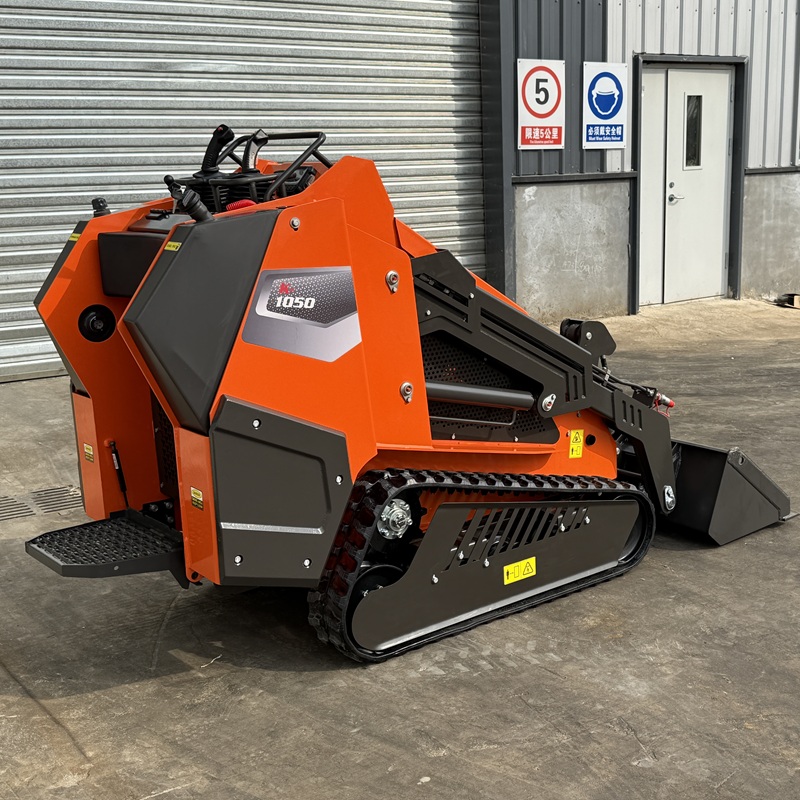

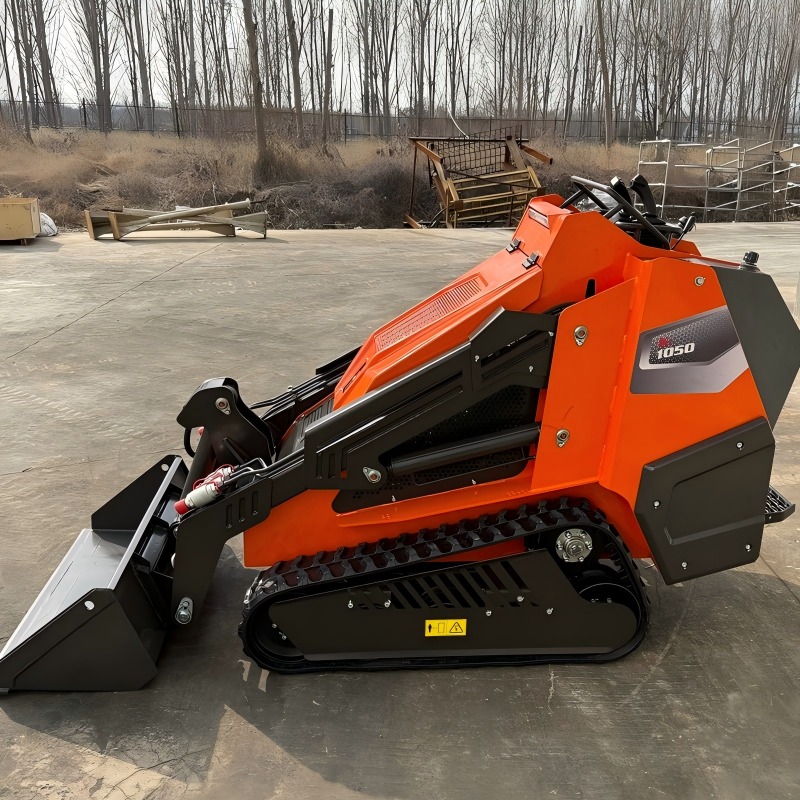

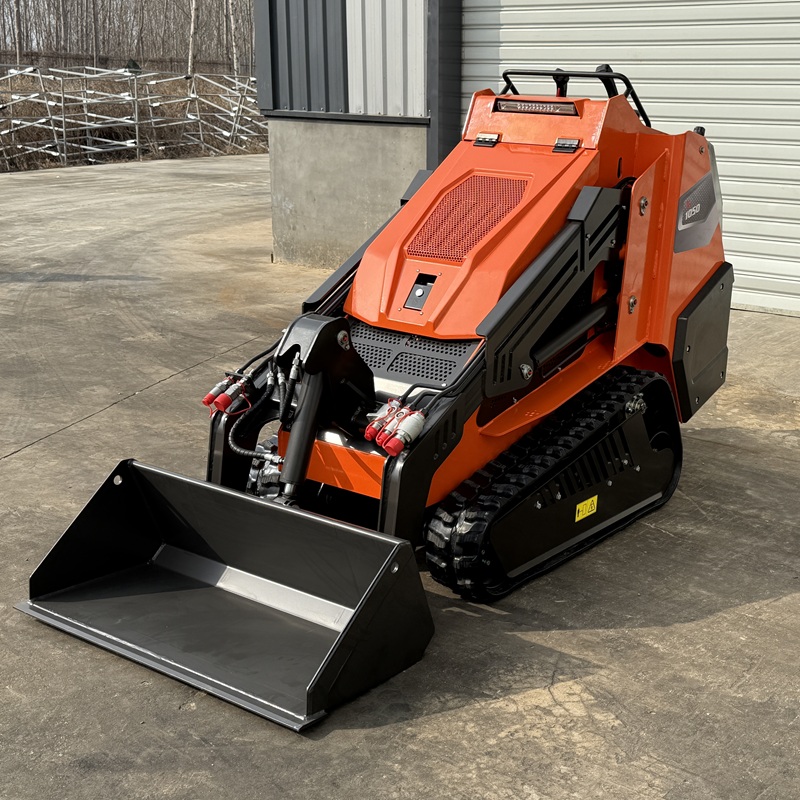

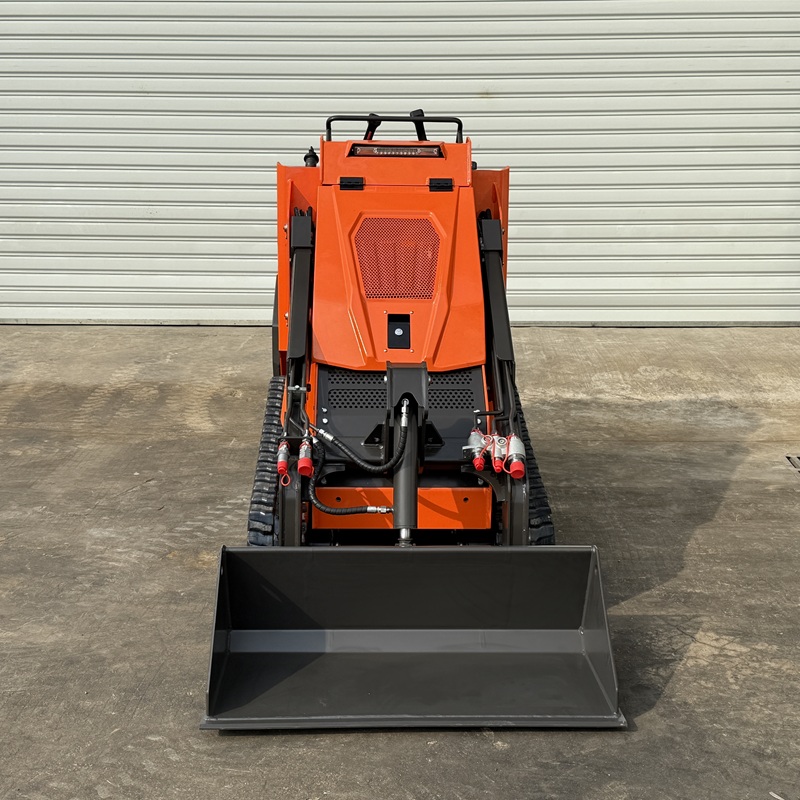

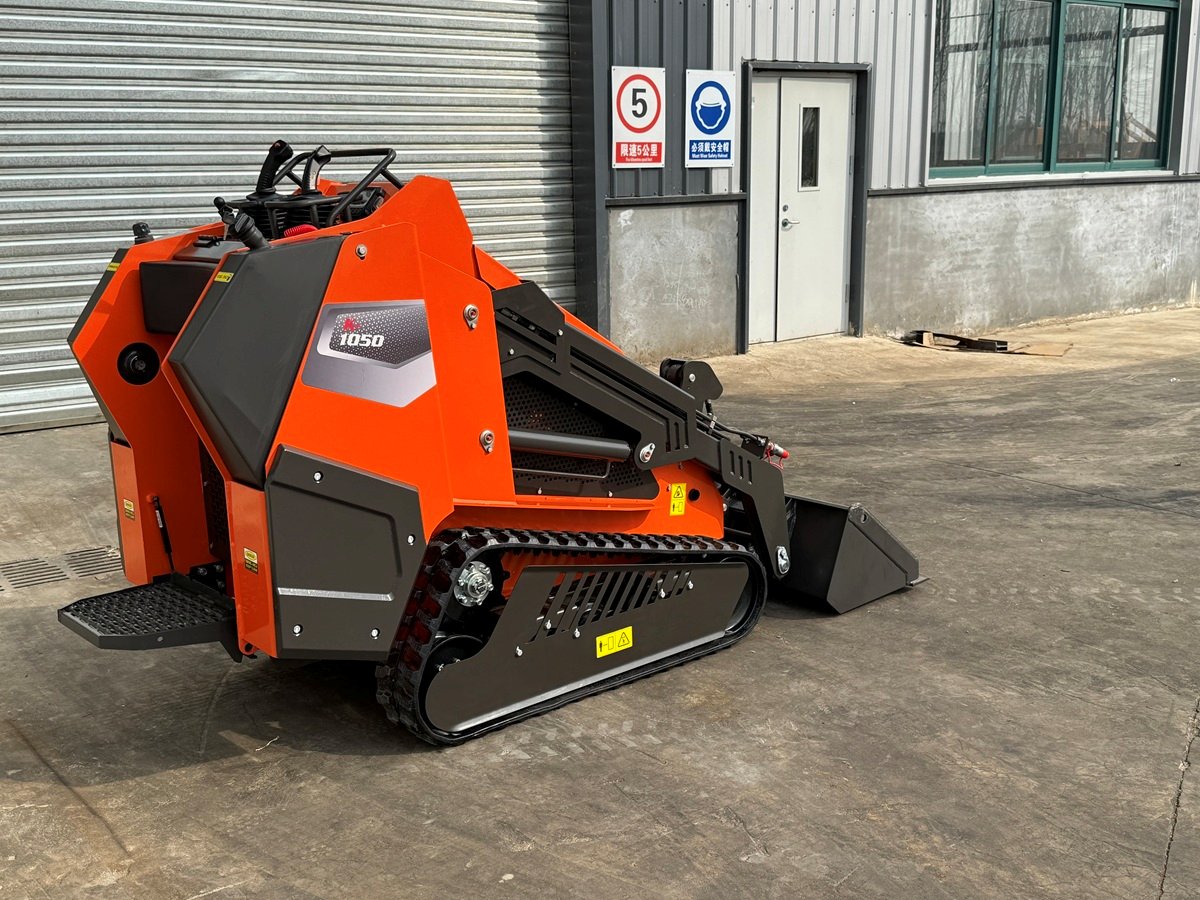

The K1050 skid-steer loader is a nimble taskmaster, designed to conquer challenging jobs without compromising on maneuverability. Compact in design, it excels in tight spaces like indoor demolition sites or backyard renovations, while its high-performance core ensures it handles heavy loads and rugged terrain with ease. As a stand-on model, it also offers operators exceptional visibility and control for all-around efficiency.

Skid Loaders For Sale

Product advantages

1. The folding footrest minimizes the machine's transport length and storage footprint.

2. An electro-hydraulic parking brake provides secure slope holding, eliminating roll-back risks.

3. Attachment control is integrated into the main joystick, enabling combined and more efficient operation.

4. A quick-attach coupling plate compatible with DINGO attachments is fitted as standard.

5. Rectangular LED headlights deliver superior nighttime illumination for safer operation after dark.

6. A high-flow hydraulic pump, custom-built by Italy's Bondioli & Pavesi, meets diverse operational demands.

7. The standard power plant is a high-torque, high-horsepower Kubota engine imported from Japan.

8. Two cup holders are conveniently located on the console's sides for beverages.

9. The hinged engine hood behind the control panel grants easy access for inspection and maintenance.

10. Dual pressure test ports for the pilot and work systems allow for straightforward pressure checks.

11. Two auxiliary hydraulic circuits are provided, offering significant potential for attachment expansion.

12. A pull-type emergency stop switch ensures immediate machine shutdown for operator safety.

Product parameters

Dimensions	Angle of Departure	29°
	Carry Position	190 mm
	Dump Angle @Maximum Height	36°
	Dump Height with Standard Bucket	1610 mm
	Dump Reach @Maximum Height	615 mm
	Ground Clearance	110 mm
	Ground Clearance under the platform	266 mm
	Height to Bucket Hinge Pin	2100mm
	Height	1640mm
	Length without Attachment	2310 mm
	Length with Standard Bucket	2845 mm
	Operating Height	2420 mm
	Rollback @carryPosition	43°
	Rollback Fully Raised @Maximum Height	79°
	Ground Contact Length	1065 mm
	Turning Radius with Standard Bucket	1610 mm
	Width	1035 mm
	Wheel Tread(over tracks)	835m
	Width with Bucket	1140 mm
Performance	Operating Capacity(35%)/(50%)	343kg/490kg
	Tipping Capacity	980kg
	Weight(no attachment)	1580kg
	Engine Oil with Filter	5.1L
Hydraulic System	Auxiliary Pump Capacity	47.6L/min@3000 RPM
	Auxiliary pump relief	230 Bar
	Ground drive pump capacity	61.6L/min@3000 RPM
	Ground drive pump relief	210Bar
Engine/Electrical	Make/Model	KUBOTA//D1105-EF02
	Horsepower(SAE Gross)	18.2 kW
	Maximum Governed RPM	3000 RPM
	Torque @2200 RPM(SAE Net)	71.5 Nm
	Number of Cylinders	3
	Displacement	1.1L
	Bore/Stroke	78mm/78.4 mm
	Fuel Consumption	6.1 L/h
