Electric Loader
Operating weight: 1140 kg, with a rated load of 500 kg.
AC battery system provides zero emissions for environmentally friendly operation.
Rated power: 60V; optional 120Ah or 150Ah batteries available.
Maintenance-free lead-acid or lithium batteries can be selected.
Tire size: 6.00-12 / 23x8.5-12.
TUV-certified, ensuring reliable quality and safety.
4-wheel-drive equipped with dual AC motors.

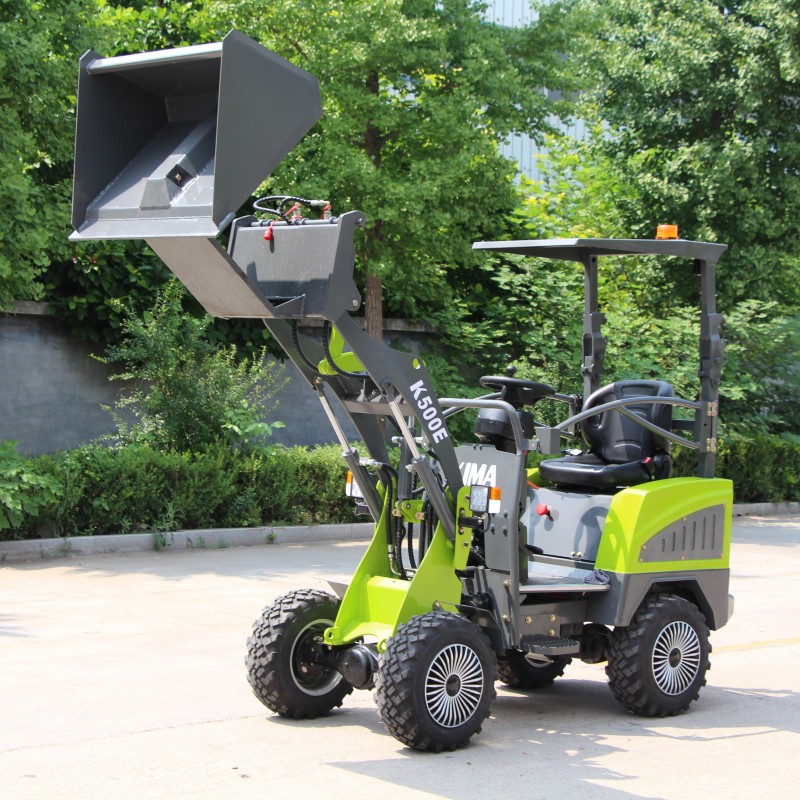

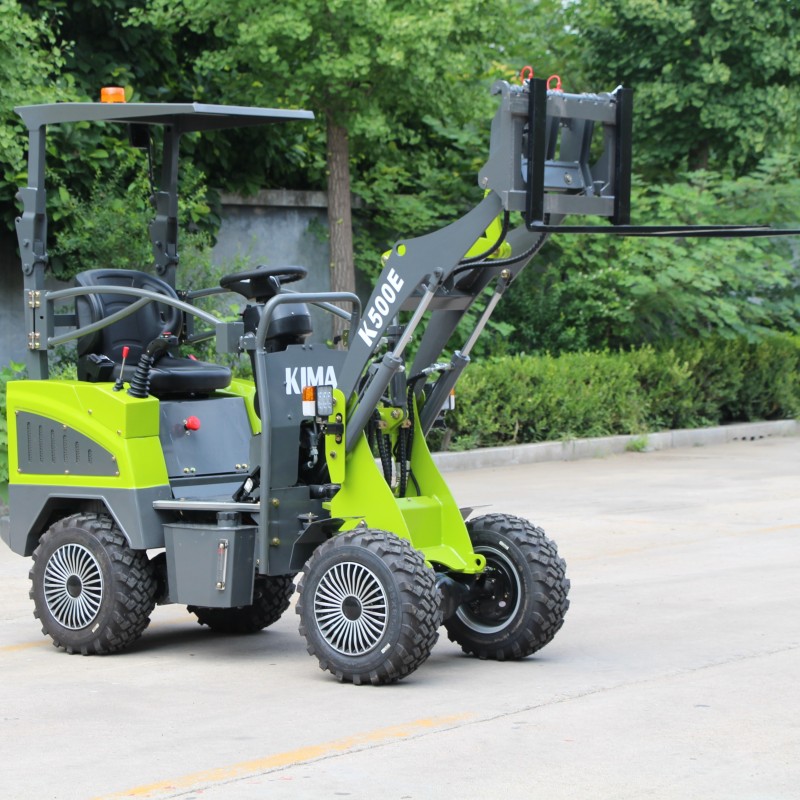

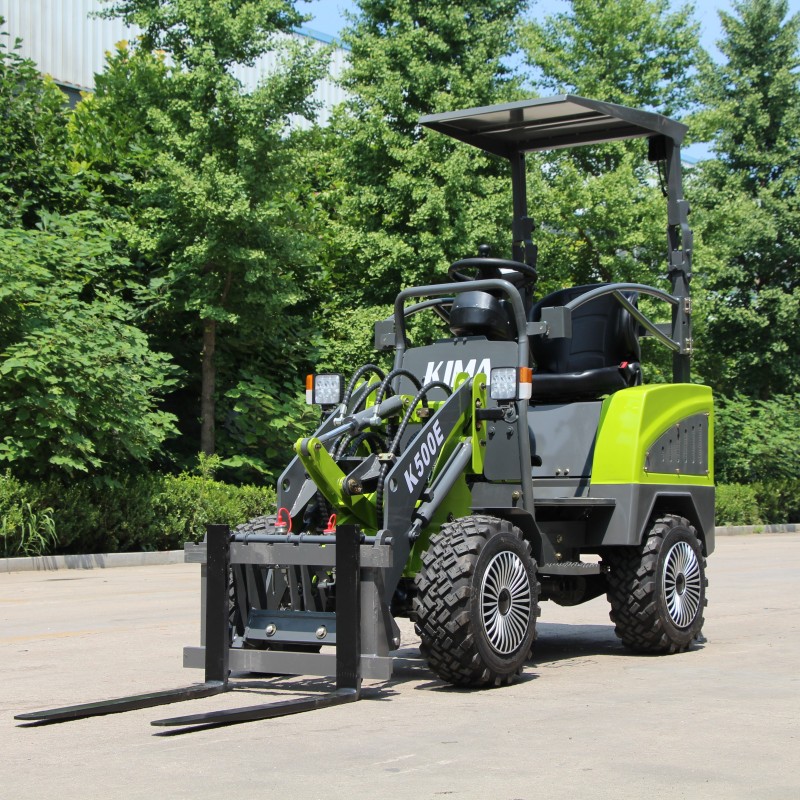

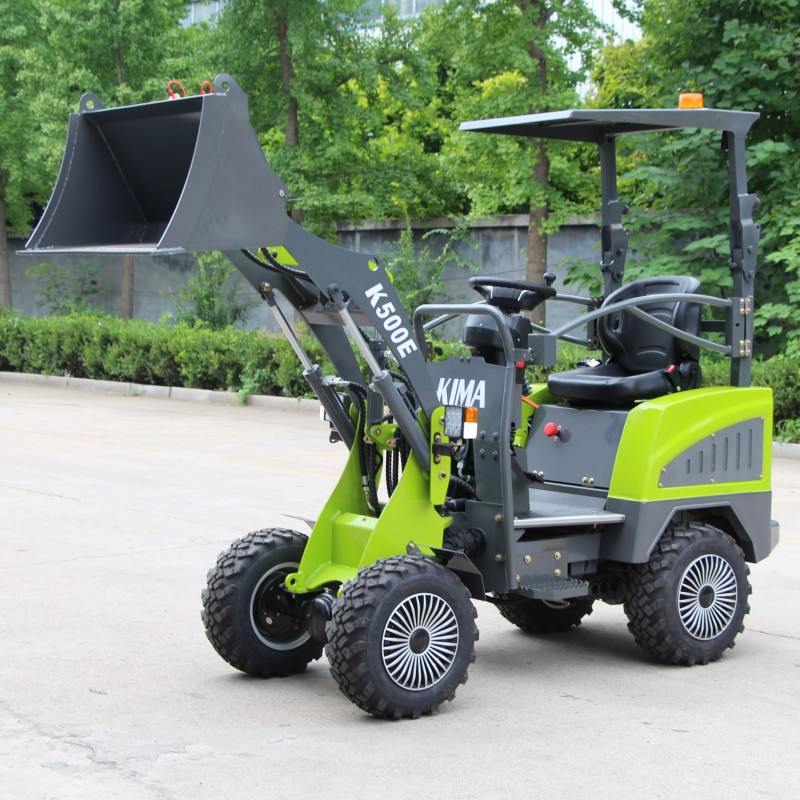

The K500E Wheel Loader is a compact and versatile all-electric loader, ideal for small garden tasks. Its zero-emission design makes it environmentally friendly and suitable for indoor use, garages, or other enclosed areas. Optional 120Ah or 150Ah AC battery systems are available to extend its working time.
Advantages
TUV CE Certified & Easy to Use
The K500E has passed TUV CE quality certification and comes standard with a quick hitch and electric joystick for simplified operation. Its AC battery system ensures zero emissions, and maintenance-free batteries make long-term use safer and more convenient. Compact in size, it operates efficiently in tight spaces and supports multiple attachment options.
Eco-Friendly
The K500E produces no exhaust emissions, achieving zero pollution and aligning with modern energy-saving and emission-reduction standards.
Quiet Operation
Equipped with electric drive technology, the K500E operates quietly, reducing noise pollution at the worksite and minimizing impact on the operator.
Lower Maintenance Costs
Electricity costs are more stable than fuel, and the electric drive system has a simple design that requires less upkeep, eliminating regular oil or filter replacements and lowering maintenance expenses.
Responsive & Flexible
The electric drive system provides fast response and smooth operation, allowing the K500E to complete various tasks efficiently and adapt to complex working conditions.
Wide Range of Attachments
The K500E can serve as a multifunctional machine with a broad selection of attachments to meet different operational needs.
Parameters
Operating weight | 1140kg | Net weight | 1060kg |
Max.loading | 500kg | Bucket capacity | 0.2m³ |
Max.lifting weight | 550kg | Max. Turning angle | 25° |
Max.lifting height(fork) | 1640mm | Power | 1800W |
Battery capacity | 120Ah | Working hours | 8 hours |
Battery capacity | 150Ah | Working hours | 10 hours |
Voltage | 60V | Charging time | 8 hours |
Quantity of battery | 5 pcs | Dimension (L*W*H) | 2560*1050*2200mm |
Max.speed on low station | 10km/h | Max.speed on low station | 18km/h |
Standard tire | 6.00-12 | Tire optional | 23*8.5-12 |
System pressure | 16Mpa | Hydraulic tank | 12L |
Working brake | Drum oil brake | Hand brake | Drum hand brake |
Transmission System: | AC | Driving motor quantity | 2pcs |
Attachments Display
 |  |
Grapple bucket | Standard bucket |
 |  |
High dump bucket | Sweeper with dustbin and tank |
 |  |
4 in 1 bucket | Pallet fork |
Details
Delivery
Factory
Linyi KIMA Machinery Co., Ltd. is an experienced manufacturer of mini excavators and compact wheel loaders, with over 12 years in production and international exports. Most of our equipment has passed TÜV Rheinland inspections and holds TÜV and EU CE certifications, meeting European TOPS, ROPS, and FOPS safety standards. Our products are distributed through more than 40 dealers across Europe, North and South America, and Oceania, receiving widespread recognition and positive feedback.
