Wheel Loaders

1. Rated loading: 600 kg

2. Kubota EuroV/ EPA4 Engine

3. Italy DA Hydrostatic System

4. 4 Wheel Driving Motor

5. Telescopic Arm

6. Tire Size: 26*12-12.

7. Meet your different usage needs: Folded Canopy/Enclosed Cabin

Contact Now E-Mail WhatsApp WhatsApp

Product Details

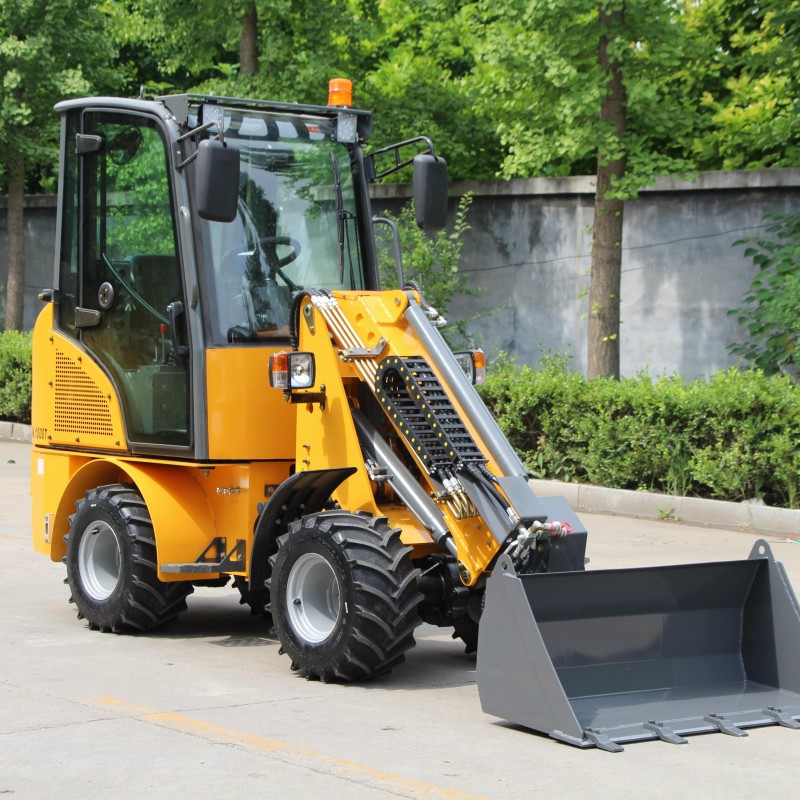

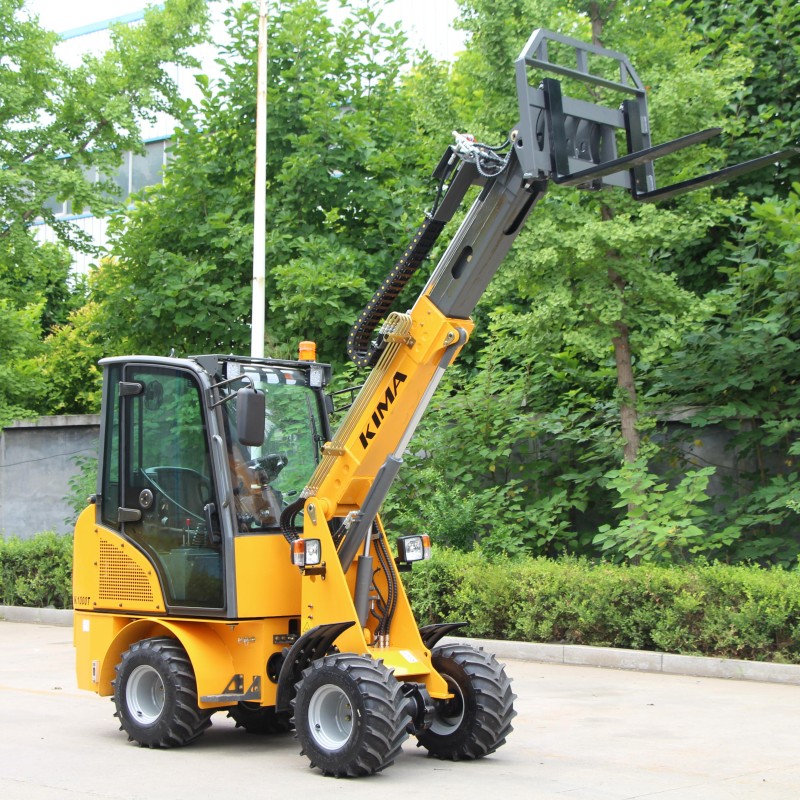

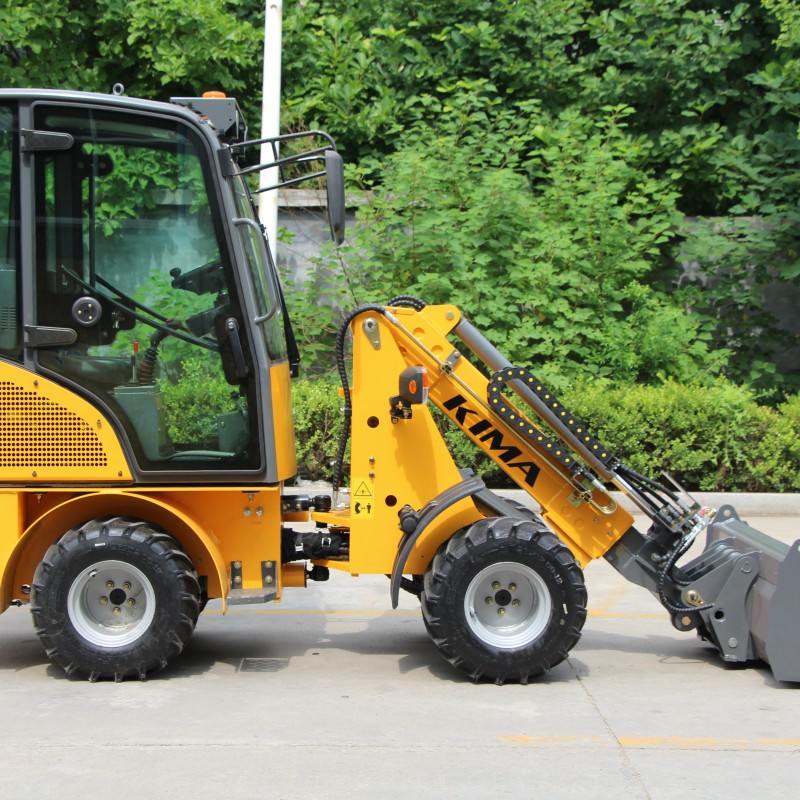

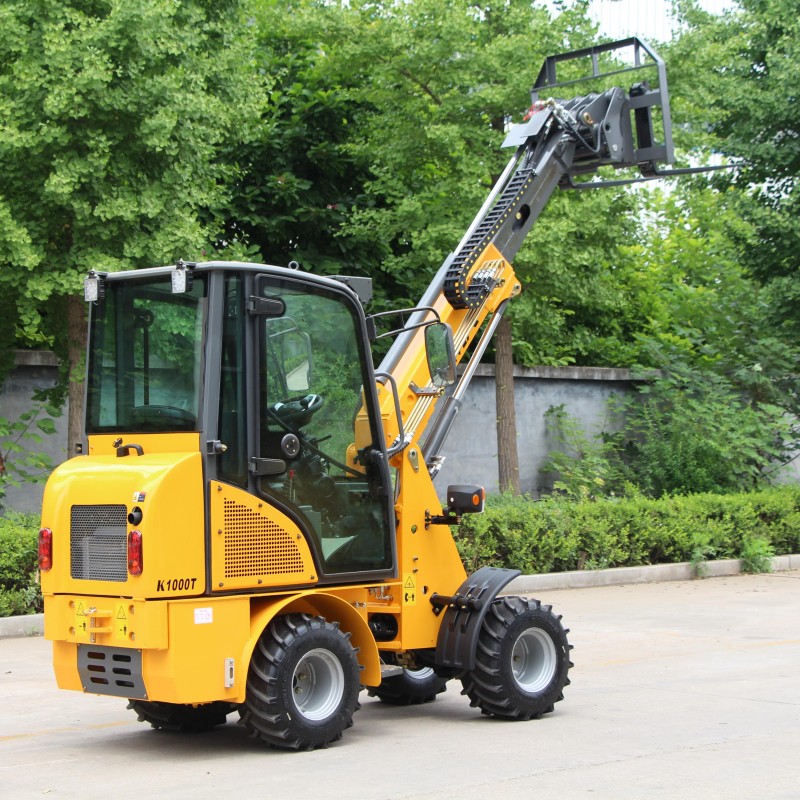

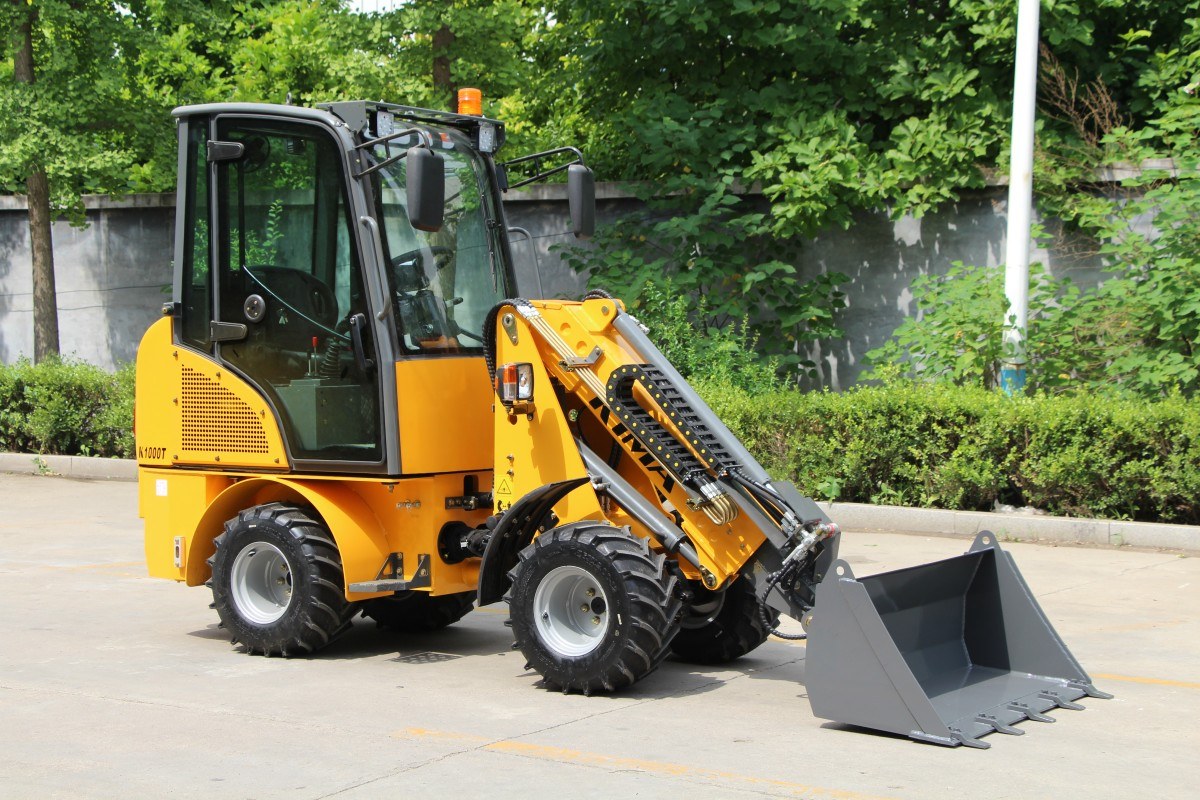

The K1100T is a compact telescopic loader featuring a lifting height of 3,846 mm and a rated load of 600 kg. Powered by a Kubota engine compliant with both Euro 5 and EPA Tier 4 emission regulations, it offers clean, reliable performance. Its small, efficient frame makes it ideal for confined job sites such as farms, gardens, livestock operations, warehouses, factories, landscaping projects, and various construction tasks.

Wheel Loaders

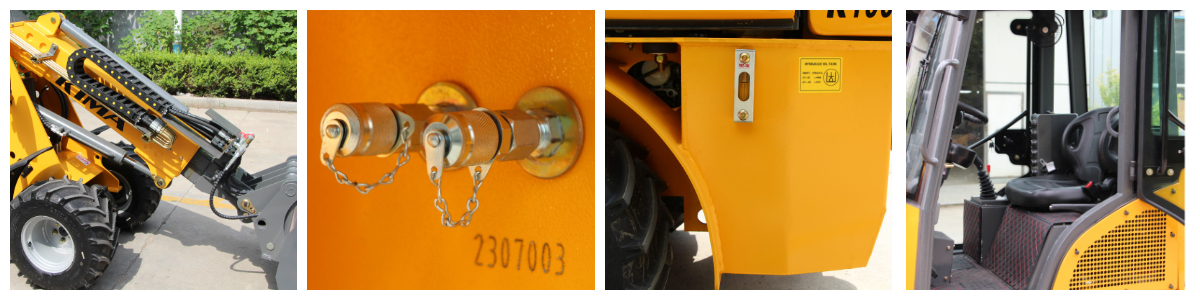

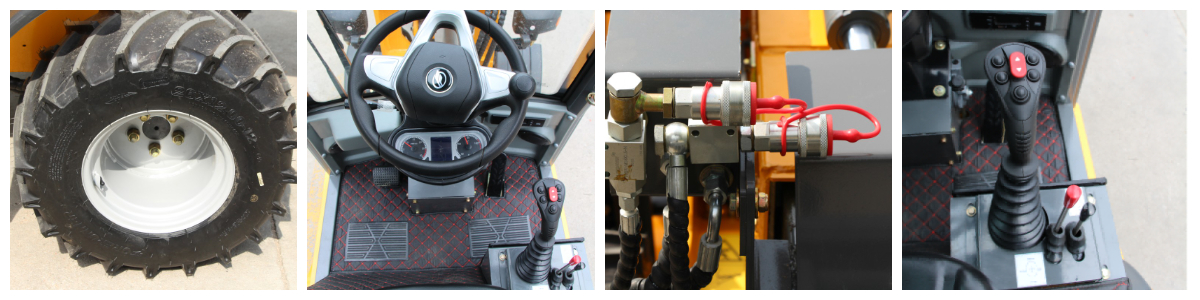

Product advantages

Durable powder-coat finish

Powder coating is a major component of KIMA’s quality standards, delivering outstanding resistance to corrosion. Compared with conventional wet paint, it significantly extends machine longevity while improving efficiency and reducing environmental impact.

Convenient lubrication access

All grease points on KIMA equipment are positioned for quick, straightforward maintenance.

Optimized hydraulic hose layout

The machines use short, segmented hydraulic hoses. When a hose section requires replacement, you only change the damaged portion instead of the entire line. This reduces downtime and lowers service costs.

Wide variety of attachment tools

Turn your loader into a versatile work partner—KIMA offers an extensive catalog of attachments to suit different applications.

Fast attachment replacement

The hydraulic quick-coupler system allows implements to be swapped easily and safely. This keeps the loader ready for work immediately, improving daily efficiency and output.

Robust telescopic boom

The KIMA telescopic boom is engineered for strength and stability. Its parallel lift function is hydraulically controlled, and key hydraulic components are housed internally for protection. Adjustable boom length enhances versatility, enabling higher reach and extended working range.

Product parameters

Specification	Rated load (kg)		600
	Bucket Capacity(m³)		0.26
	Max.Lifiting Height of main boom(mm)		3330
	Max.Dumping height of main boom(mm)		2026
	Max.Dumping distance of main boom(mm)		587
	Loding capacity of main boom(kg)		600
	Max.Lifting Height of small boom(mm)		3846
	Max.Dumping height of small boom(mm)		2618
	Max.Dumping distance of small boom(mm)		1076
	Loding capacity of small boom (mm)		400
	Max.Speed (km/h)	Forward 1	12
		Reverse 1	12
	Max.tractive force (kn)		16.66
	Max.gradeability		25°
	Max.steering angle		35°
Dimession	Overall dimension (L×W×H) (mm)		396013202330
	Wheel base (mm)		1507
	Tread (mm)		890
	Min.ground clearance (mm)		220
	Operating weight (kg)		2180
Engine	Cooling model		D1105-EF02
	Emission		Euro5/EPA4
	Rated power (kw)		18.2
	Rated Speed (r/min )		2200
	Max.torque (n.m)		98.7
	Max.speed of max.torque(r/min）		1320
	Cylinder		3
	Bore*stroke (mm)		88*90
	Displacement (L)		1.642
	Max.oil consumption (g/kw.h)		≦230
	Cooling model		Water-cooling
Transmission	Hydrostatic system	Model	28
		Manufacturerd by	Italy
		Model	Plunger pump
		Working pressure (Mpa)	28MPa
	4WD
	Model
	Tire	Type	26*1200-12
		Pressure（mpa)	0.25
		Numbers	4
Steering	Steering system	Full hydraulic steering
	Pressure (mp)	16
	Pump	Gear pump
	Diameter of steering pump (mm)	63
	Working stroke (mm)	171
	Number	1
Brake system	Brake type		Caliper brake

	Disc diameter (mm）		300
	Hand brake		Drum brake
	Drum diameter（mm)		160/210
Working hydraulic system	Working pump	Model
		Flow（ml/r)	13.8
	Working pressure		16
	Working distribution pump	Model
		Type	Double stem type
	Dump oil cylinder-diameter*stroke		ø80*318
	Lifting oil cylinder-diameter*stroke		ø80*395
