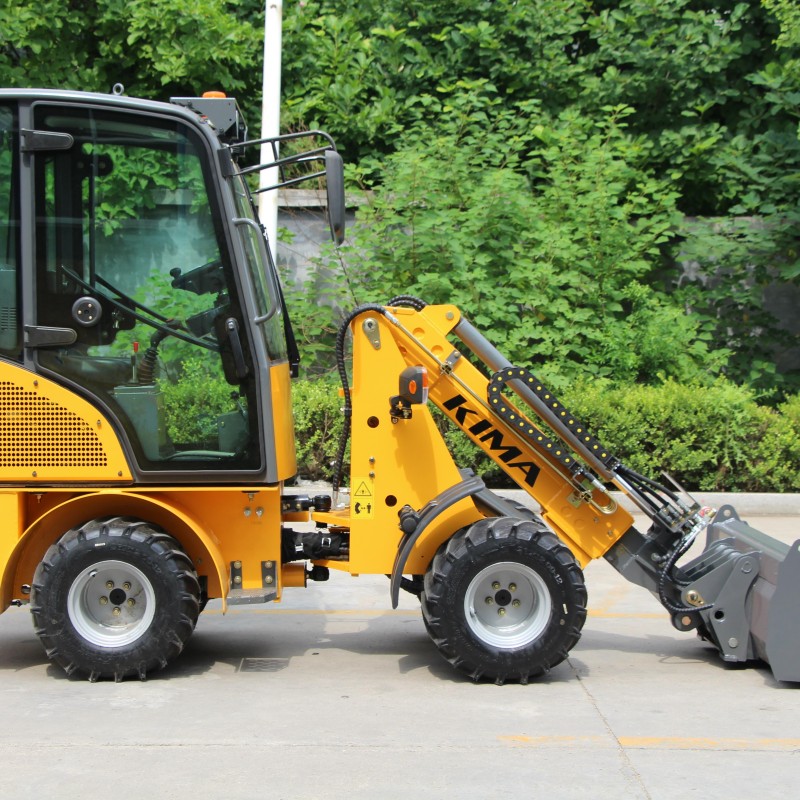

Telescopic Wheel Loaders

Rated Load: 600 kg
Kubota engine compliant with Euro V / EPA Tier 4
Italian DA hydrostatic drive system
Four-wheel drive motors
Telescopic boom
Tire size: 26×12-12
Options: folding canopy or enclosed cab

Contact Now E-Mail WhatsApp WhatsApp

Product Details

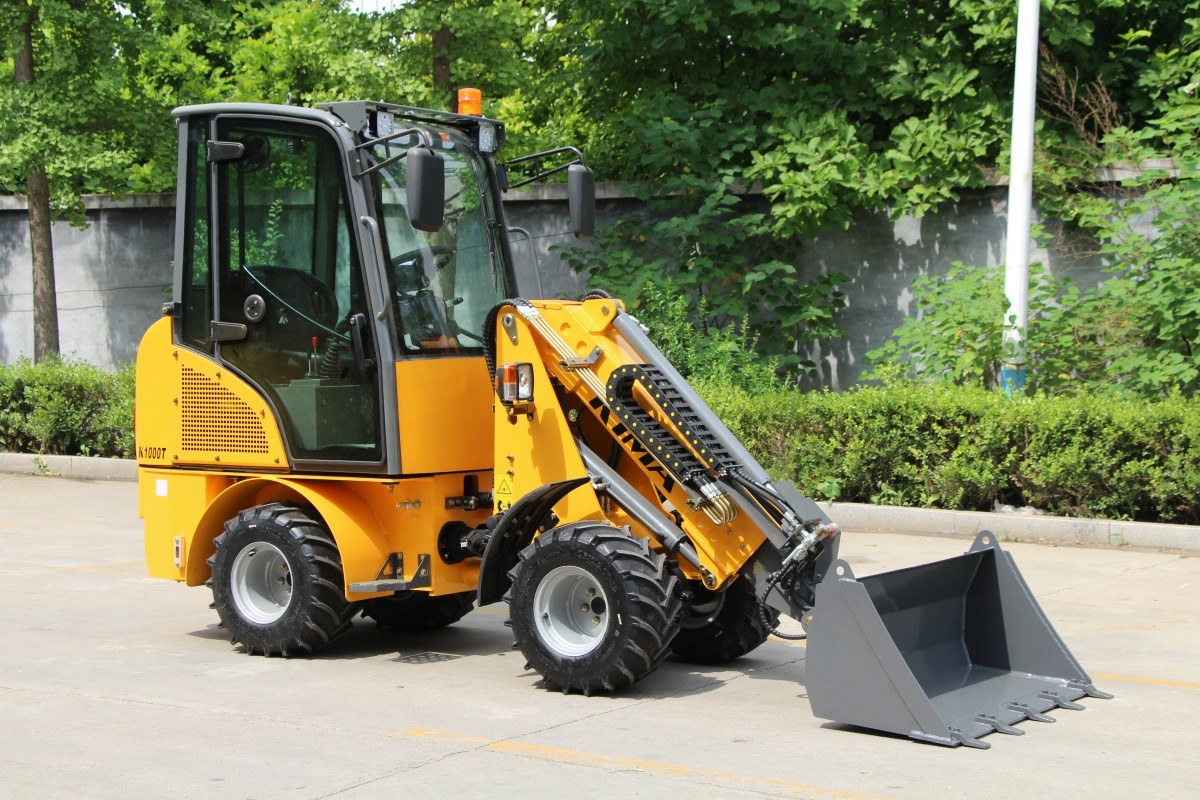

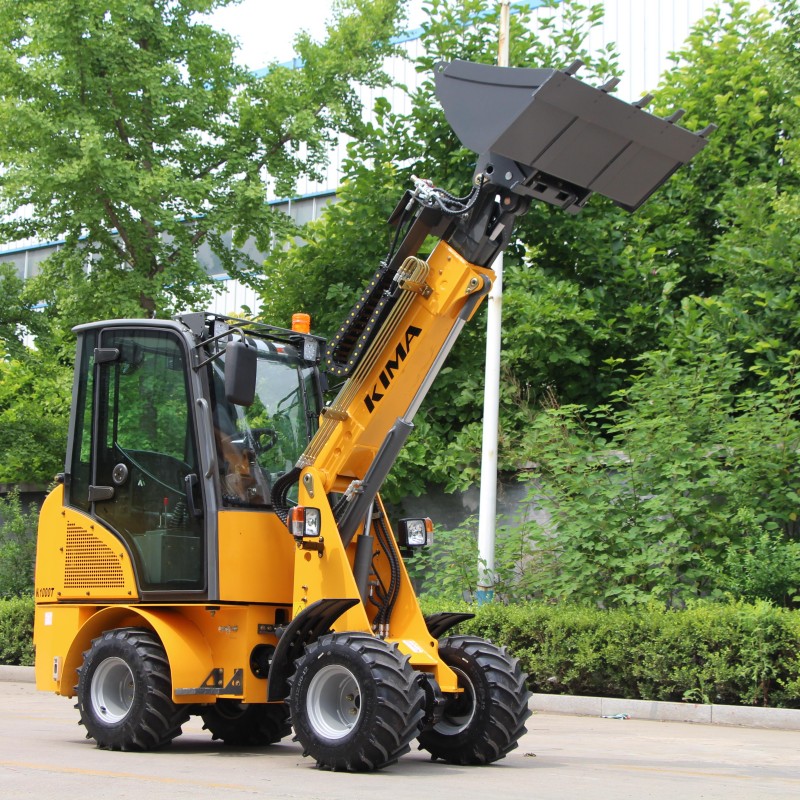

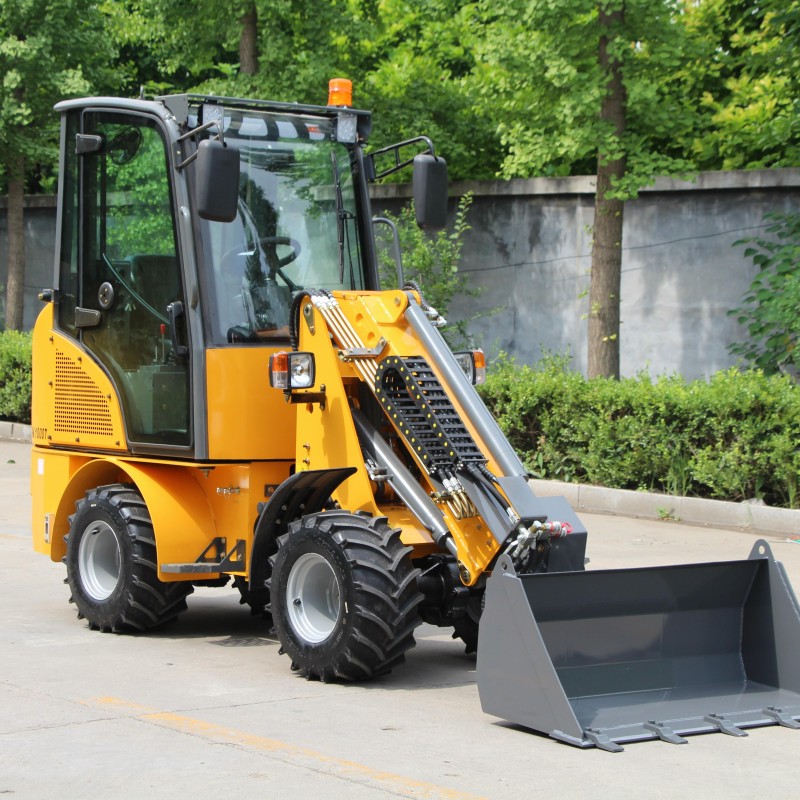

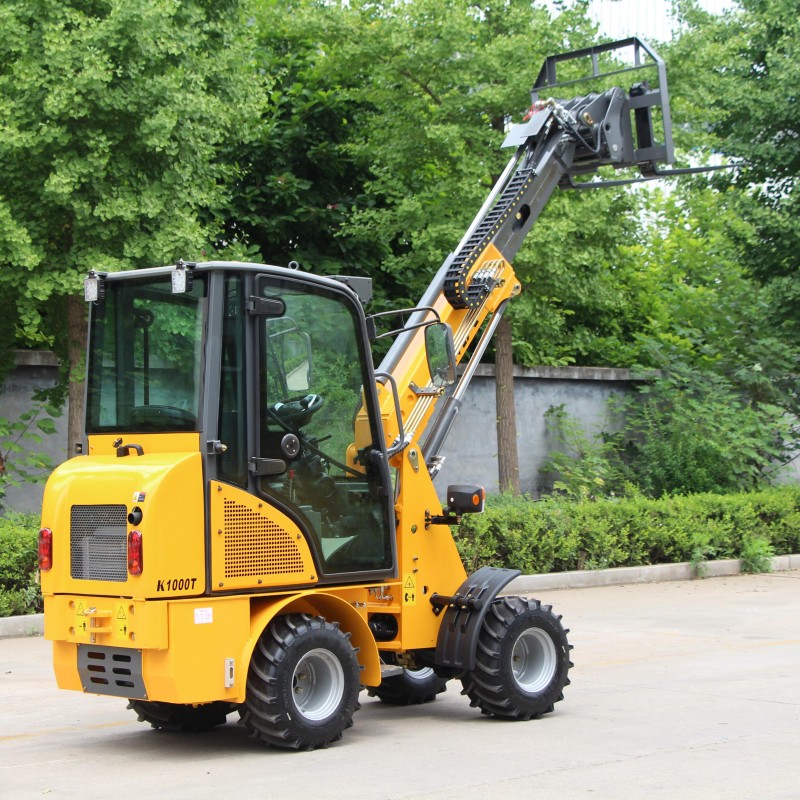

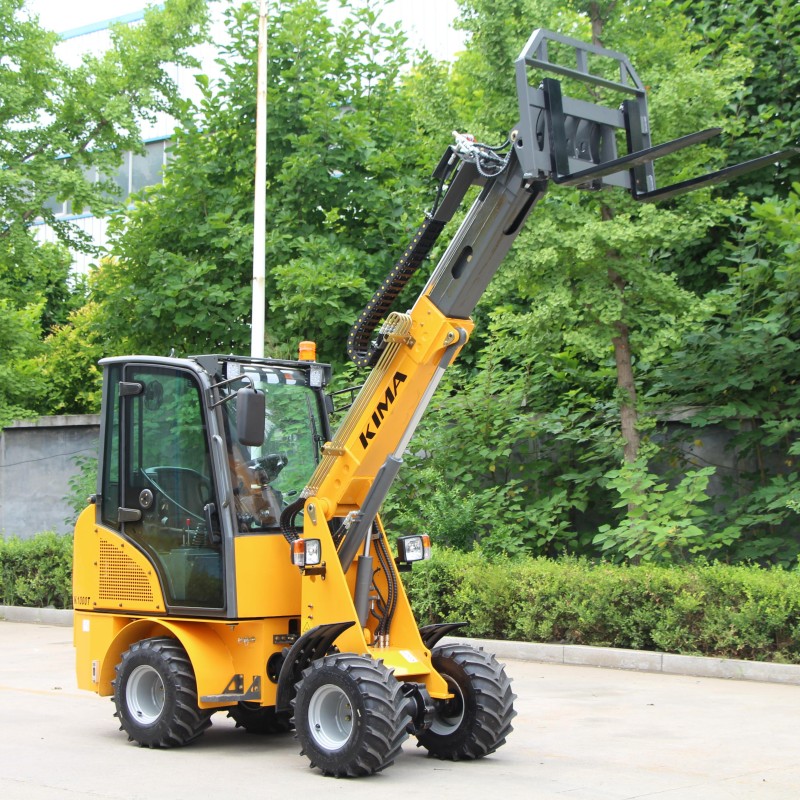

The K1100T is a compact telescopic loader with a maximum lift height of 3,846 mm and a 600 kg rated capacity. It is driven by a Kubota engine that meets Euro 5 and EPA Tier 4 emission standards, delivering efficient and dependable power. Thanks to its space-saving design, the machine is well-suited for restricted working environments, including farms, gardens, livestock facilities, warehouses, factories, landscaping applications, and a wide range of construction projects.

Wheel Loaders

Product advantages

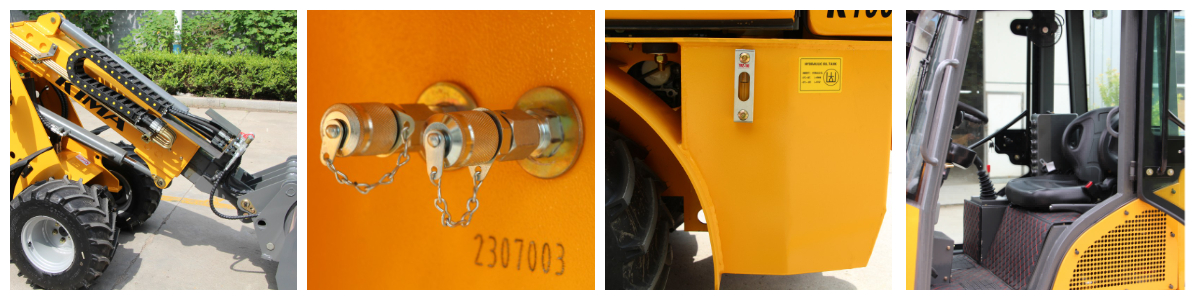

Easy Engine Access Design

The engine hood opens effortlessly and can be detached in seconds, simplifying daily maintenance. Essential service points—including the hydraulic oil reservoir, air filter, engine oil filling point, dipstick, and coolant—are all arranged for fast and convenient access, improving service efficiency and operator convenience.

Extensive Attachment Options

Expand the capabilities of your loader with a broad selection of compatible tools and working implements available from KIMA.

High-Durability Powder-Coated Finish

As part of KIMA’s quality standards, powder coating is applied to deliver superior corrosion protection. Compared with traditional paint, it significantly enhances machine longevity while improving production efficiency and reducing environmental impact.

Precision-Designed P-Kinematics

The specially contoured lift arm is engineered for high strength and excellent torsional rigidity. Each model features a kinematic setup tailored to its size, ensuring balanced power transfer and precise parallel movement across the full lifting range.

Efficient Hydraulic Hose Arrangement

KIMA loaders utilize a segmented hydraulic hose design. In the event of servicing, only the damaged section requires replacement rather than the entire hose assembly, minimizing downtime and lowering maintenance expenses.

Product parameters

Specification	Rated load (kg)		600
	Bucket Capacity(m³)		0.26
	Max.Lifiting Height of main boom(mm)		3330
	Max.Dumping height of main boom(mm)		2026
	Max.Dumping distance of main boom(mm)		587
	Loding capacity of main boom(kg)		600
	Max.Lifting Height of small boom(mm)		3846
	Max.Dumping height of small boom(mm)		2618
	Max.Dumping distance of small boom(mm)		1076
	Loding capacity of small boom (mm)		400
	Max.Speed (km/h)	Forward 1	12
		Reverse 1	12
	Max.tractive force (kn)		16.66
	Max.gradeability		25°
	Max.steering angle		35°
Dimession	Overall dimension (L×W×H) (mm)		396013202330
	Wheel base (mm)		1507
	Tread (mm)		890
	Min.ground clearance (mm)		220
	Operating weight (kg)		2180
Engine	Cooling model		D1105-EF02
	Emission		Euro5/EPA4
	Rated power (kw)		18.2
	Rated Speed (r/min )		2200
	Max.torque (n.m)		98.7
	Max.speed of max.torque(r/min）		1320
	Cylinder		3
	Bore*stroke (mm)		88*90
	Displacement (L)		1.642
	Max.oil consumption (g/kw.h)		≦230
	Cooling model		Water-cooling
Transmission	Hydrostatic system	Model	28
		Manufacturerd by	Italy
		Model	Plunger pump
		Working pressure (Mpa)	28MPa
	4WD
	Model
	Tire	Type	26*1200-12
		Pressure（mpa)	0.25
		Numbers	4
Steering	Steering system	Full hydraulic steering
	Pressure (mp)	16
	Pump	Gear pump
	Diameter of steering pump (mm)	63
	Working stroke (mm)	171
	Number	1
Brake system	Brake type		Caliper brake

	Disc diameter (mm）		300
	Hand brake		Drum brake
	Drum diameter（mm)		160/210
Working hydraulic system	Working pump	Model
		Flow（ml/r)	13.8
	Working pressure		16
	Working distribution pump	Model
		Type	Double stem type
	Dump oil cylinder-diameter*stroke		ø80*318
	Lifting oil cylinder-diameter*stroke		ø80*395
