Good Compact Wheel Loader

2460 kg strength, 900 kg rated load

Zero-emission AC battery system

Optional 72V / 200Ah high-performance power

Lead-acid or lithium battery – your choice

Heavy-duty 29×12.5–15 tires

TUV certified for proven safety & quality

Contact Now E-Mail Telephone WhatsApp

Product Details

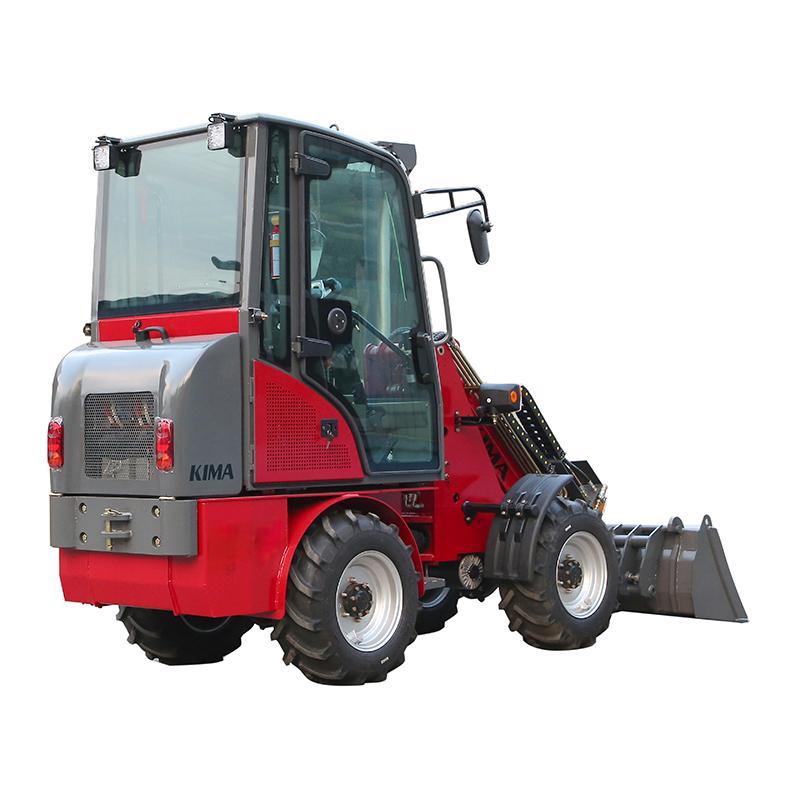

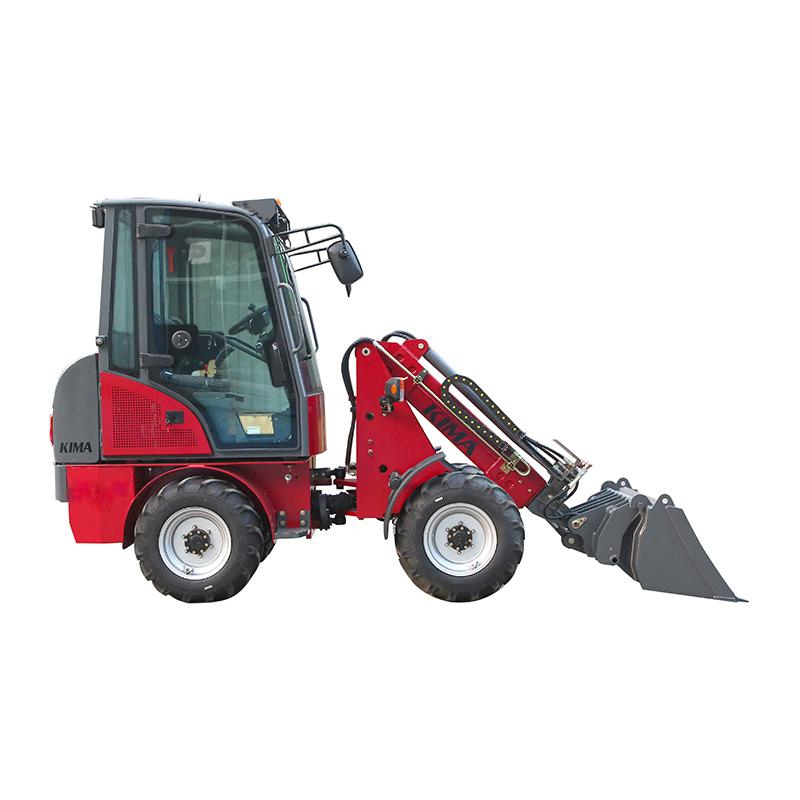

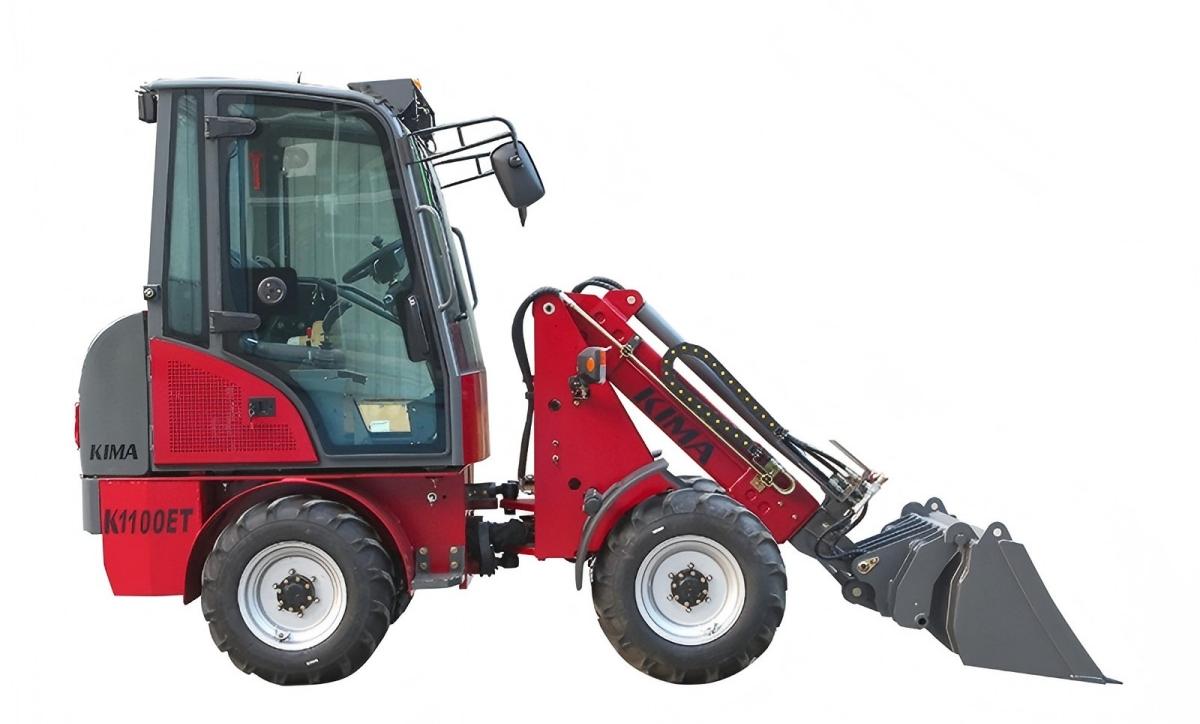

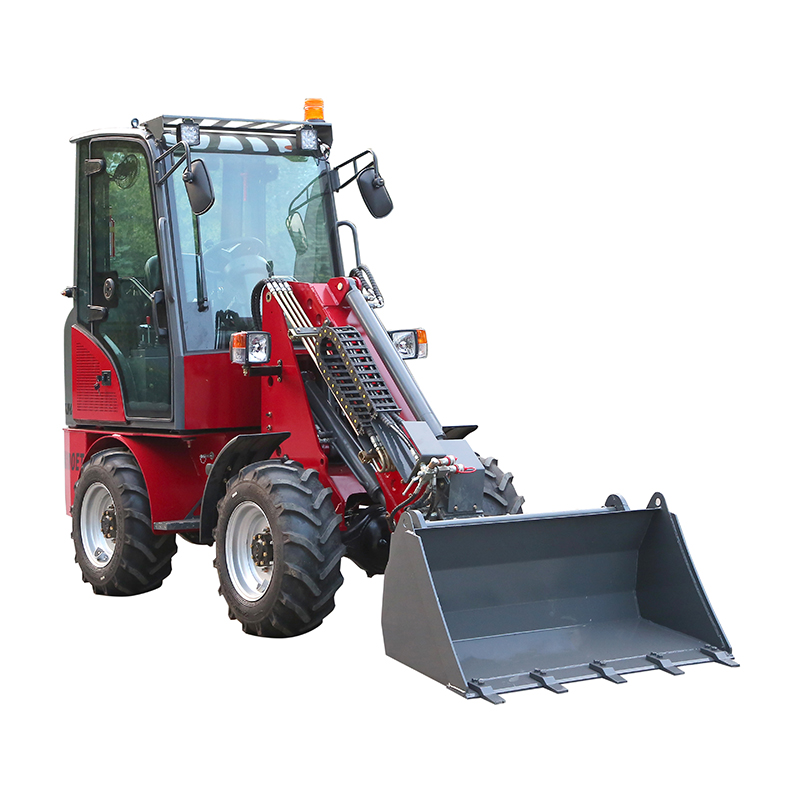

Discover the K1000ET – the next-generation upgrade of the K1000E.
With a rated load of 900kg and powered by a durable, maintenance-free lead-acid battery, this electric telescopic loader is designed to deliver outstanding performance. Choose between an open canopy or a fully enclosed cabin to suit your working conditions.

Its smart, compact design and low center of gravity ensure stability, while the eco-friendly, low-noise motors create a cleaner, quieter work environment. Equipped with an intuitive electric joystick, precise hydraulic steering, and three independent control systems, the K1000ET offers faster, safer, and more responsive operation – helping you achieve maximum efficiency with every task.

Good Compact Wheel Loader

Key Product Advantages

Internationally Certified Quality

Fully compliant with TÜV CE standards, guaranteeing safety, durability, and peace of mind.

Effortless Operation

The standard package includes a quick coupler and electronic joystick, making attachments and handling smoother, faster, and more intuitive.

Zero-Emission Power System

Driven by an AC electric battery, delivering sustainable, eco-friendly performance without pollution or harmful emissions.

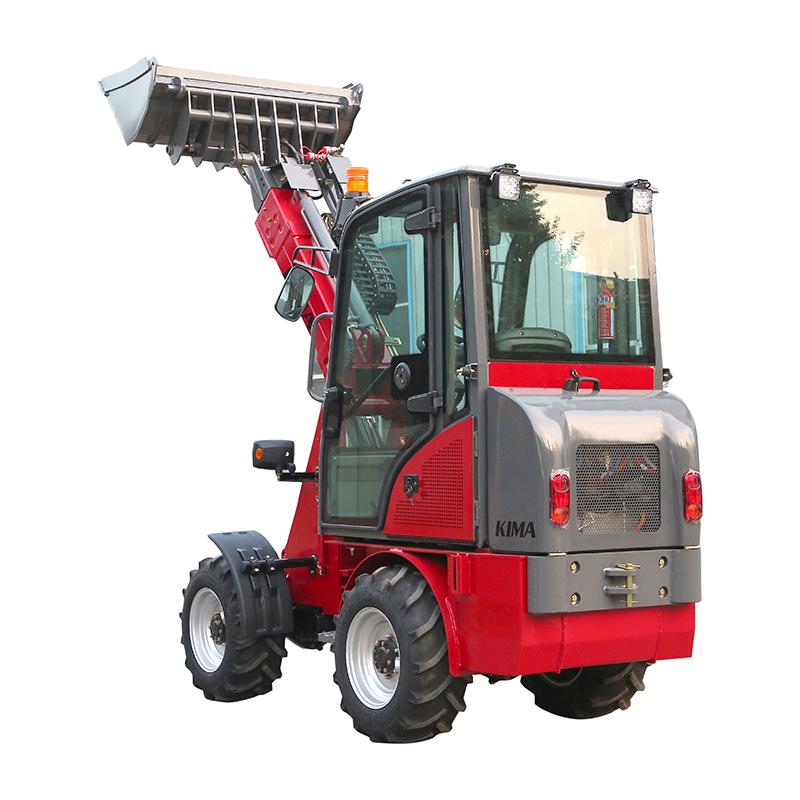

High-Performance Telescopic Boom

The extendable arm ensures superior outreach and lifting capacity, enabling greater efficiency across multiple applications.

Ultra-Quiet Technology

Featuring advanced electric drive, the K1000ET operates at low noise levels—reducing worksite disturbances and providing a more comfortable driving environment.

Independent Drive & Work Control

Equipped with separate motor groups for driving and working, ensuring reliable, precise, and efficient operation.

Reinforced Cast-Steel Axle

Designed with heavy-duty cast steel, the axle offers exceptional load-bearing strength, stability, and resilience against heavy impacts.

Innovative Ball Joint Design

A lightweight, flexible ball joint allows smooth rotation, easy disassembly, and simple replacement.

Its optimized structure reduces assembly costs while improving maneuverability and work accuracy.

Product parameters

Specification	Model		K1000ET
	Rated load (kg)		900
	Bucket Capacity(m³)		0.26
	Max. Lifting Height of main boom(mm)		3340
	Max. Dumping height of main boom(mm)		2066
	Max. Dumping distance of main boom(mm)		547
	Max. Loading capacity of main boom(kg)		900
	Max. Lifting Height of small boom(mm)		3886
	Max. Dumping height of small boom(mm)		2658
	Max. Dumping distance of small boom(mm)		1036
	Max. Loading capacity of small boom (mm)		600
	Max.Speed (km/h)	Forward 1	12
		Reverse 1	12
	Max.digging depth(mm)		65
	Max. gradeability		25°
	Max.steering angle		35°
Dimension	Full length (bucket on ground position) (mm)		396013202390
	Wheel base (mm)		1100
	Tread (mm)		890
	Min.ground clearance (mm)		220
	Net weight(kg)		2460
Battery	Battery Model No.		3-EVF-200A
	rated capacity（3hr)		200Ah
	No.of battery groups		12
	Rated Voltage		72
	Working hours（h）		4h
Transmission System	Hydraulic System	Motor No.	YQP5.72AF.48P
		Voltage	72V
		Power	5000W
		Displacement（ml/r)	14
	Tyres	Type	29*12.50-15
		working pressure（mpa)	0.3
		Qty	4
Steering System	Type of Steering Hydraulic System	Full Hydraulic Steering System
	System Pressure（mpa)	16
	Type of Steering Pump	External Gear Pump
	Steering Cylinder Bore（mm)	Ø65
	Qty（pc）	1
Braking System	Service Brake		Drum Brake

	Brake Drum（mm)		240
	Parking Brake		Drum Brake
Oil Capacity	Hydraulic Oil Tank（L)		40
	Brake Fluid（L)		0.8
