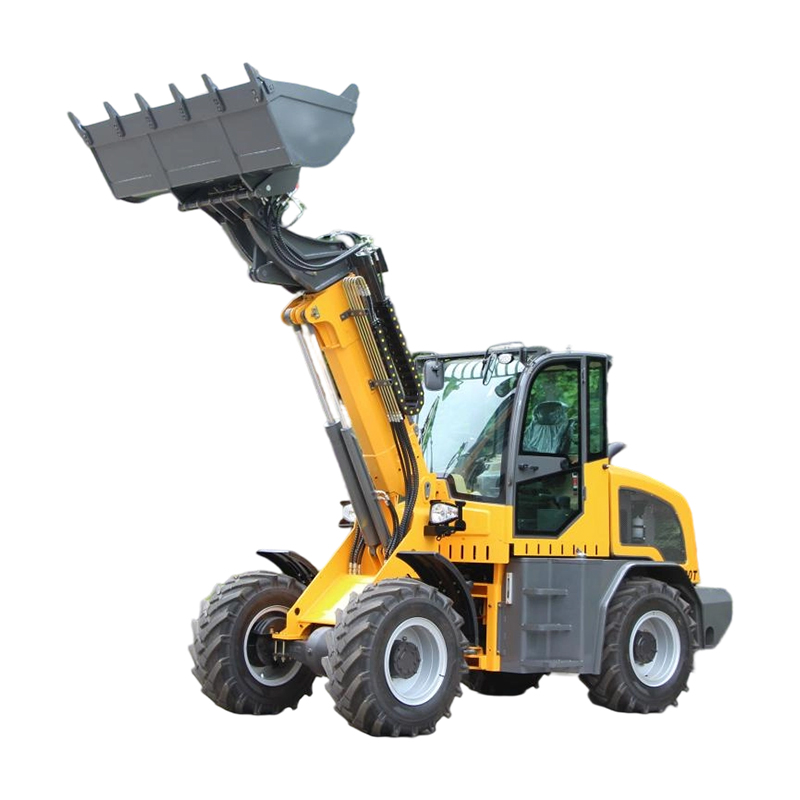

Loader Machinery
1. Operating weight: 5100kg, Rated load: 2500kgs.
2. Euro 5 exhaust emission standard.
3. Telescopic arm
4. Four wheel drive
5. Tire Size:16/70-20
6. Ergonomic joystick. The control is sturdy and sensitive at the same time.

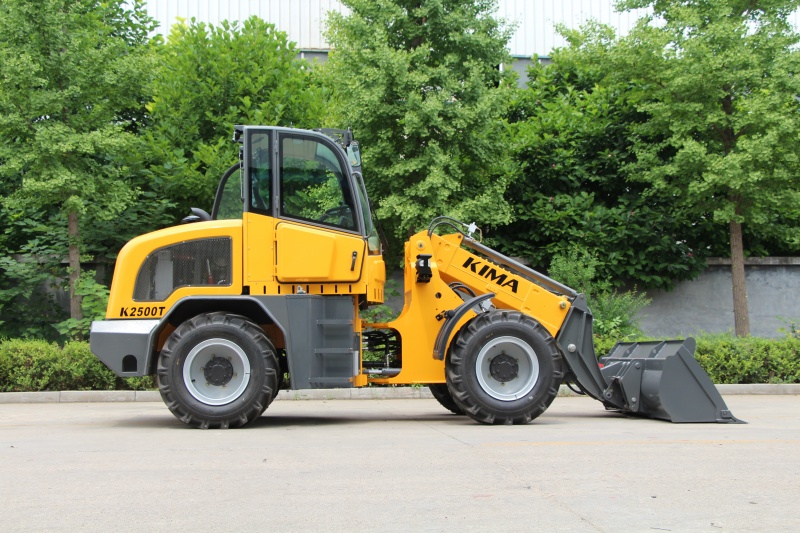

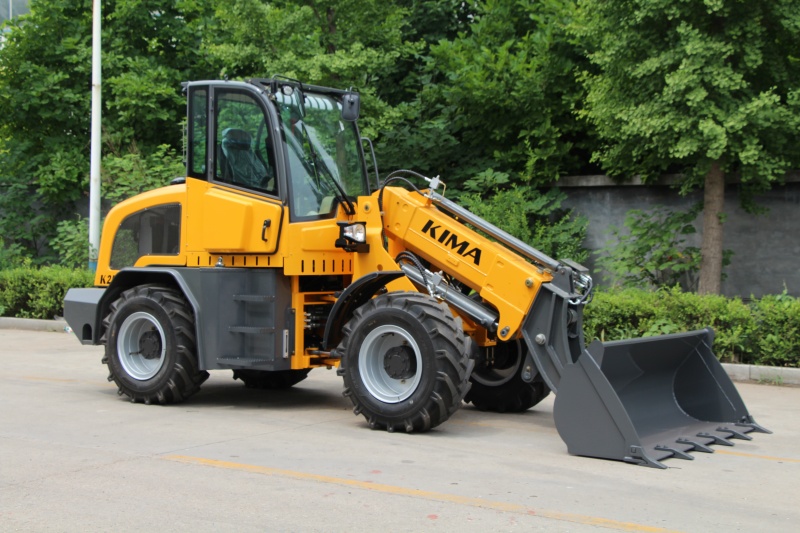

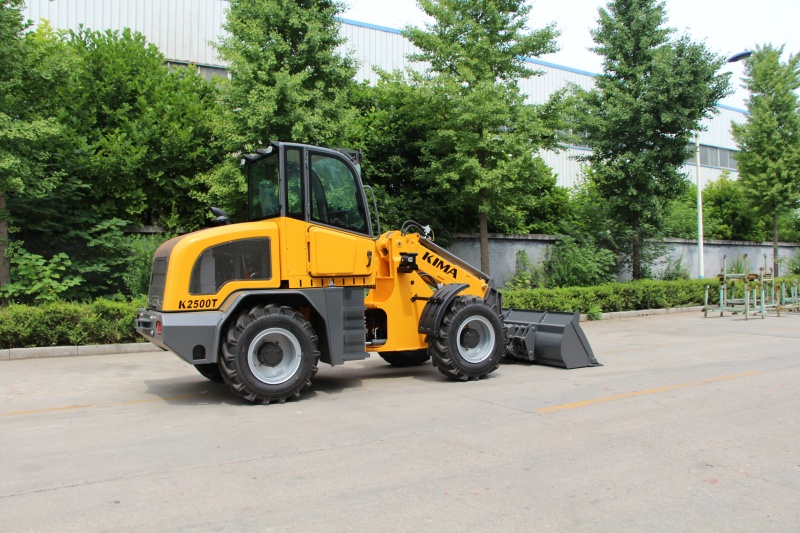

Loader Machinery (K2500T) is a telescopic loader upgraded to be more suitable for users.Whether you're working on a farm or in a building, it's more powerful and efficient. Kima's loaders have CE and EPA and are particularly suitable for European and North American markets.
Advantages
Euro 5 exhaust emission standard
We have already completed stage V for pollutant reduction to meet the European market.
Luxury cabin and comfortable seat
The luxurious cabin, comfortable seat with arm rest, good ventilation system efficient heating system provide a comfortable working environment while ensuring operator safety.

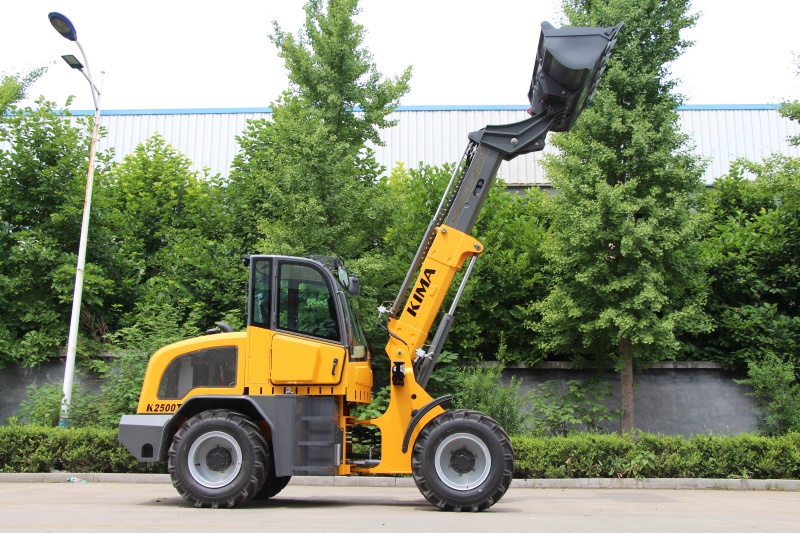

Telescopic arm
The sturdy telescopic am makes it easier to meet deeper and higher working requirements. Hydraulic lines are placed internally in an orderly manner to avoid damage.
Easy-to-open engine hood
The engine hood can be opened easily and removed in a few hand movements for regular service and maintenance work. The hydraulic oil tank, air cleaner, engine oil fil opening, oil dipstick and cooling water are therefore quickly and easily accessible -real added comfort.
High quality powder coating
Quality creates added value. The powder coating is a key feature of the KlMA quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.
Short hydraulic hose lengths
KIMA machines have short hydraulic hose lengths - the hoses are split in several places. if a hydraulic hoseneeds to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged but rather justthe affected part. This speeds up work enormously and saves money.
Parameters
Performance | Rated loading (kg) | 2500 |
Overall weight (kg) | 5100 | |
Rated bucket capacity (m³) | 0.67 | |
Maximum tractive force (kN) | 35 | |
Maximum breakout force (kN) | 25 | |
Maximum grade ability (°) | 25 | |
Maximum lifting height of small boom (mm) | 5413 | |
Maximum dump height of main boom (mm) | 2768 | |
Maximum dump height of small boom (mm) | 3766 | |
Maximum dump reach (mm) | 1012 | |
Overall dimension (L×W×H) (mm) | 5631*1870*2736 | |
Minimum turning radius | 5068 | |
Maximum steering angle | 40° | |
Oscillation angle | 5° | |
Transmission system | Torque converter | 265 |
Gearbox mode | Power shift normally engaged straight gear | |
Gear shift | Mechanical, | |
Maximum speed | 21km/h | |
Drive axles | Main reducing mode | Bevel gear grade l reduction |
Wheel base (mm) | 2568 | |
Wheel tread(mm) | 1470 | |
Ground clearance(mm) | 358 | |
Hydraulic system | System working pressure (Mpa) | 20 |
Boom lifting time (s) | 7.2 | |
Total time (s) | 12.9 | |
Fuel tank capacity (L) | 94 | |
Brake system | Service brake | Air-assist hydraulic brake, disc brake |
Parking brake | Manual disc brake | |
Tyre | Type specification | 16/70-20 |
Front tyre pressure (kPa) | 350 | |
Rear tyre pressure (kPa) | 350 |
Attachments
 |  |

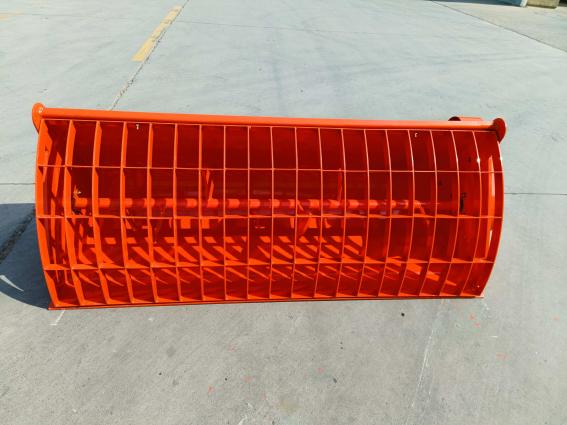

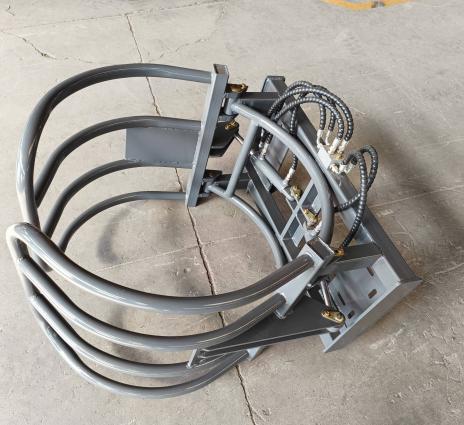

| Barrel Clamp | Mixer Bucket |
 |  |

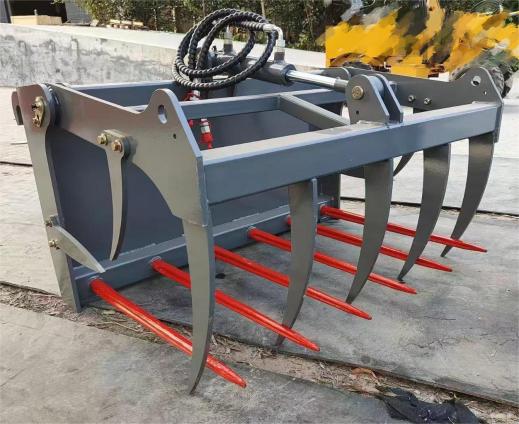

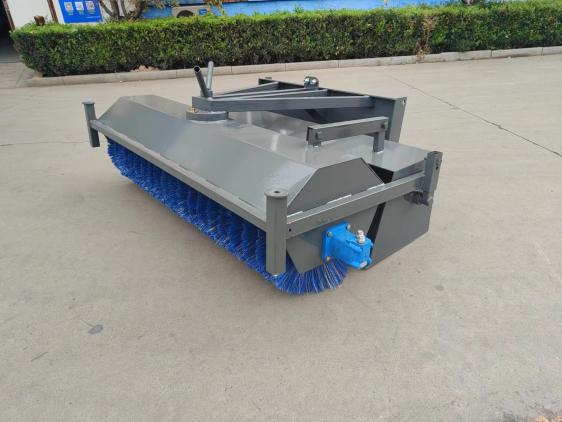

| European grass fork | Sweeper |
 |  |

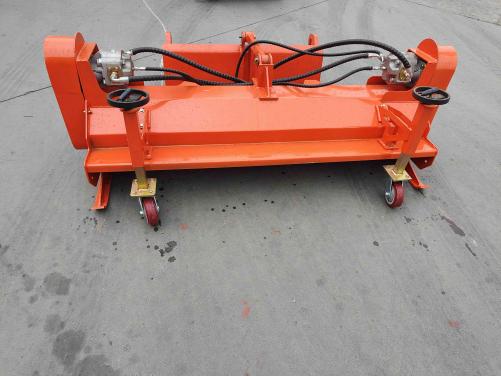

| Gross cutter | Pallet fork |

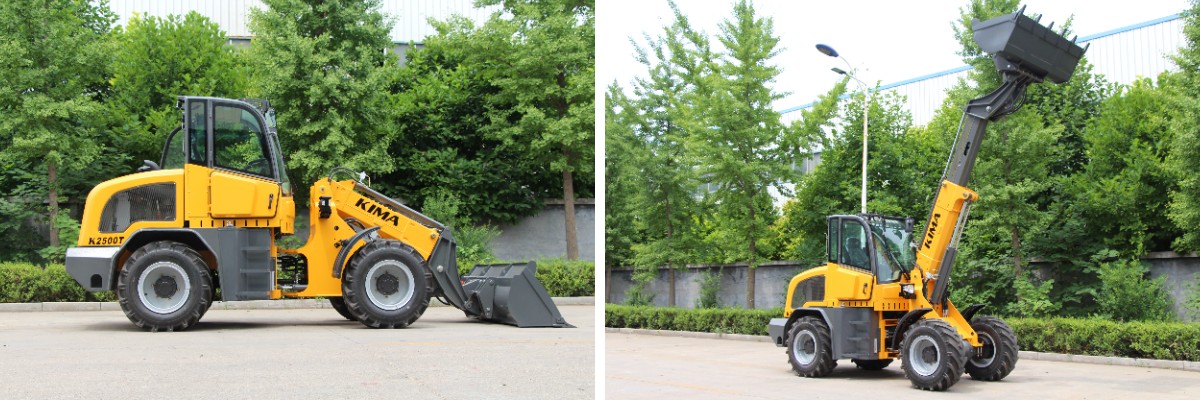

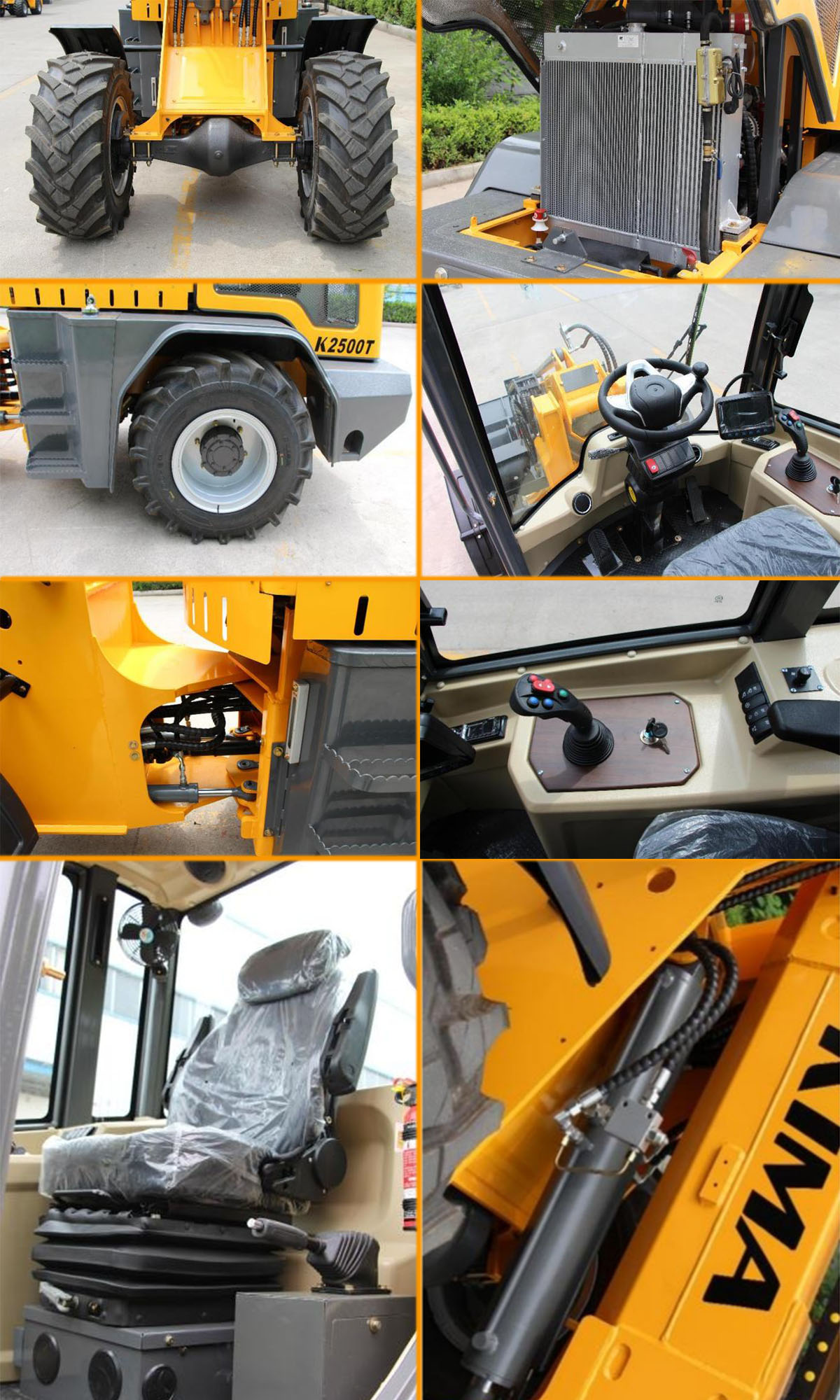

Details
About us

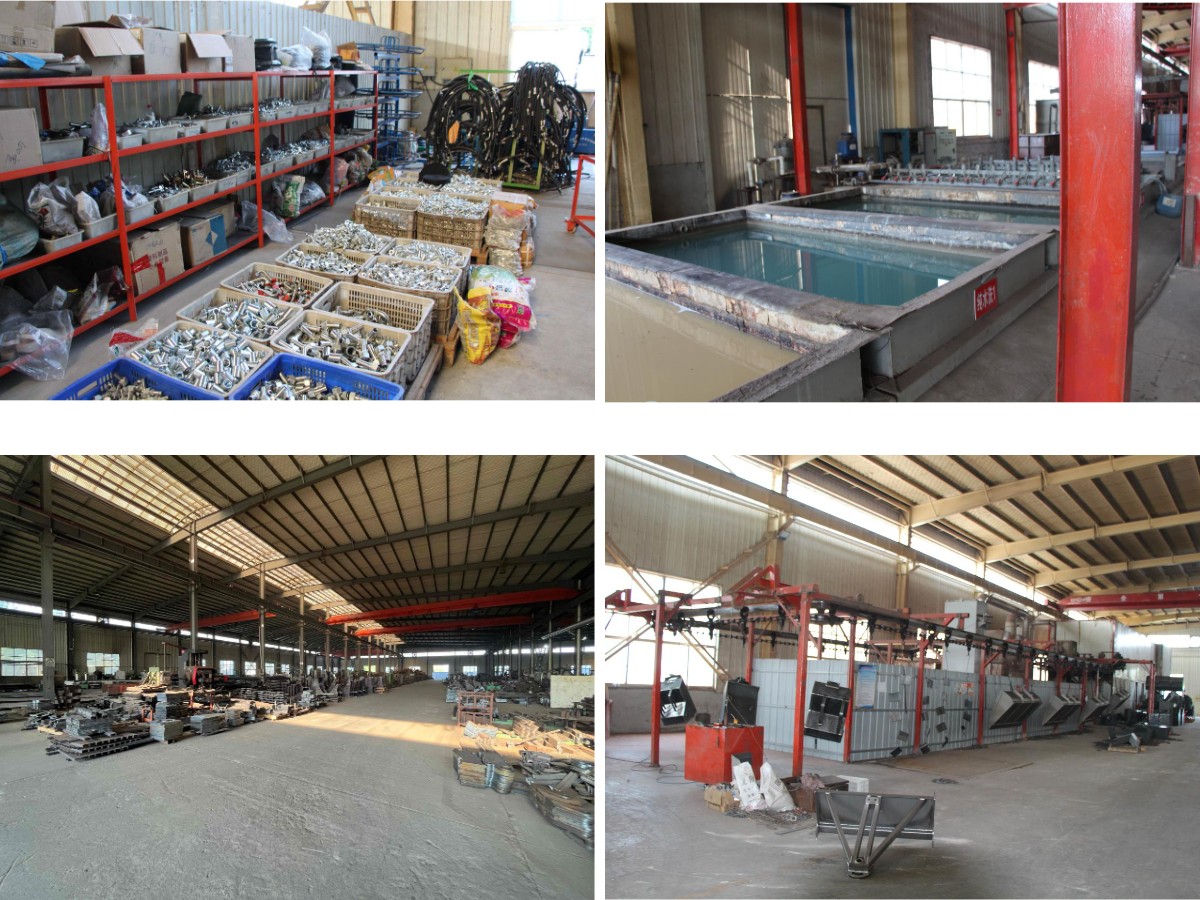

Linyi KIMA Machinery Co., Ltd. is a professional manufacturer of mini excavators and small wheel loaders, with over 12 years of experience in both production and international trade. Most of our equipment has successfully passed TÜV Rheinland testing, achieving TÜV and EU CE certifications, and fully meeting European TOPS, ROPS, and FOPS safety standards. Our products are distributed to more than 40 dealers across Europe, North America, South America, and Oceania, and have earned wide recognition and praise from customers.
KIMA is dedicated to building the “KIMA” brand by providing safe, energy-efficient, and high-performance products, while continuously developing new models based on market needs and customer feedback. At the same time, we deliver patient, professional, and enthusiastic after-sales support. With a skilled and committed team, a responsible work attitude, and a win-win business philosophy, these values have always been key to KIMA’s success in the past and remain so today. Looking ahead, KIMA will stay true to its mission and continue to advance. We sincerely look forward to establishing strong, long-term partnerships with you—Linyi KIMA Machinery will always progress together with you!
Delivery

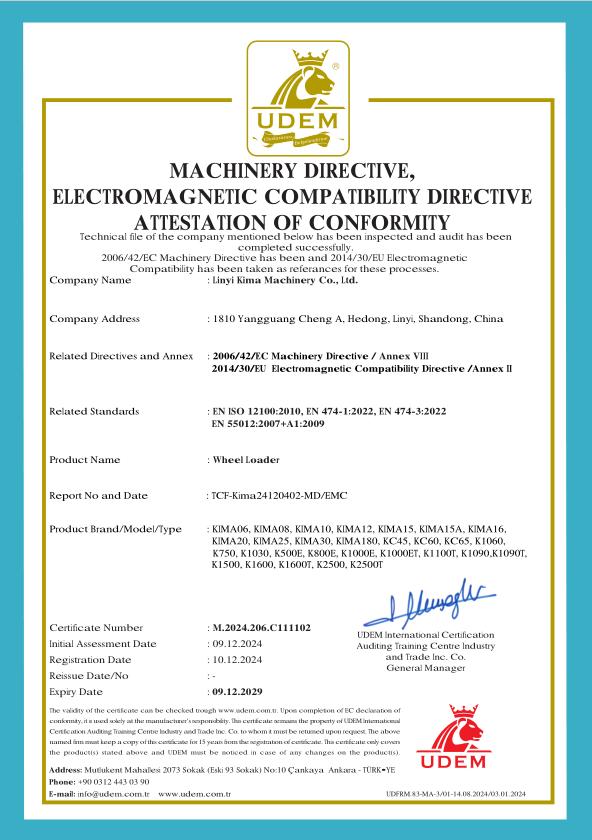

Qualification CE
