Mini Wheel Loader For Sale

Robust Performance: Operating weight of 2460 kg with a strong rated load capacity of 900 kg, built for heavy-duty applications.

Eco-Friendly Power: Advanced AC battery system delivering zero emissions, supporting a cleaner and greener work environment.

Flexible Energy Options: Standard 72V power supply, with optional 200Ah upgrade for extended operation.

Battery Choices: Available with maintenance-free lead-acid or high-efficiency lithium battery to meet diverse needs.

Durable Design: Fitted with 29 × 12.5 – 15 tires for stability and reliable performance on various terrains

Proven Reliability: TUV certified for safety, quality, and long-term dependability.

Contact Now E-Mail Telephone WhatsApp

Product Details

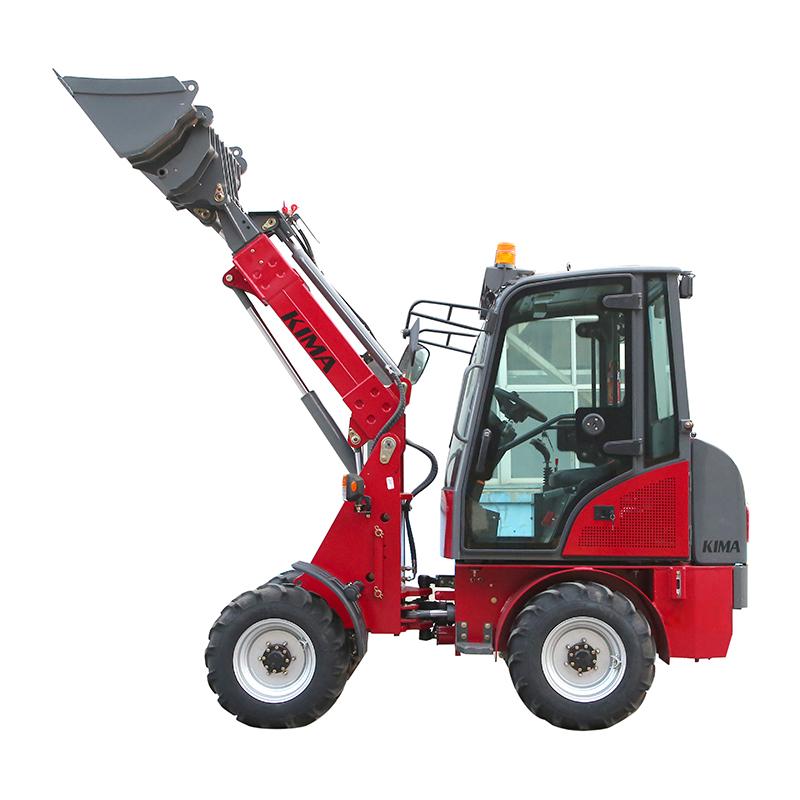

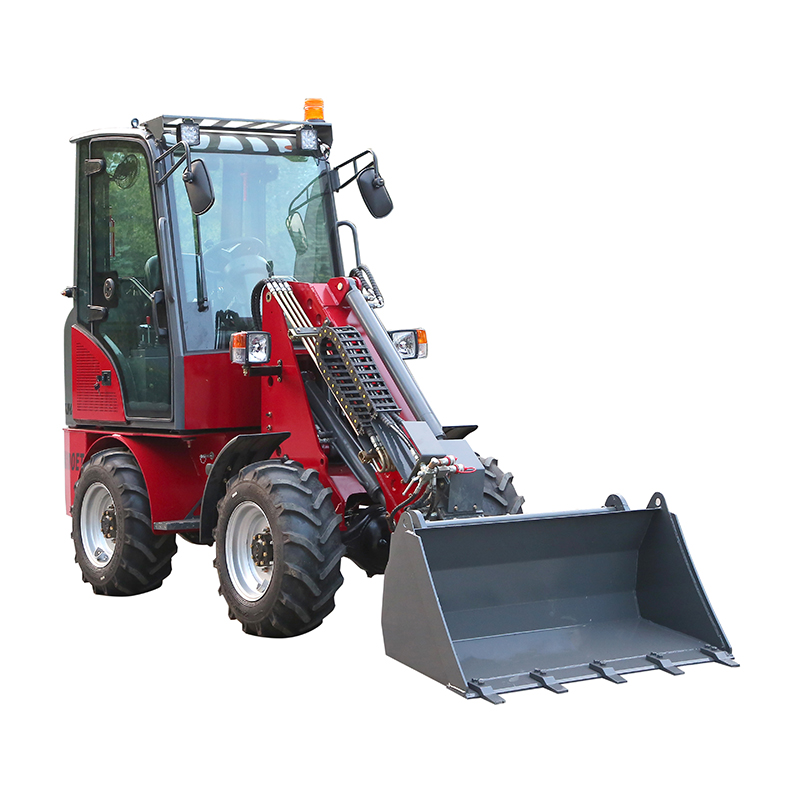

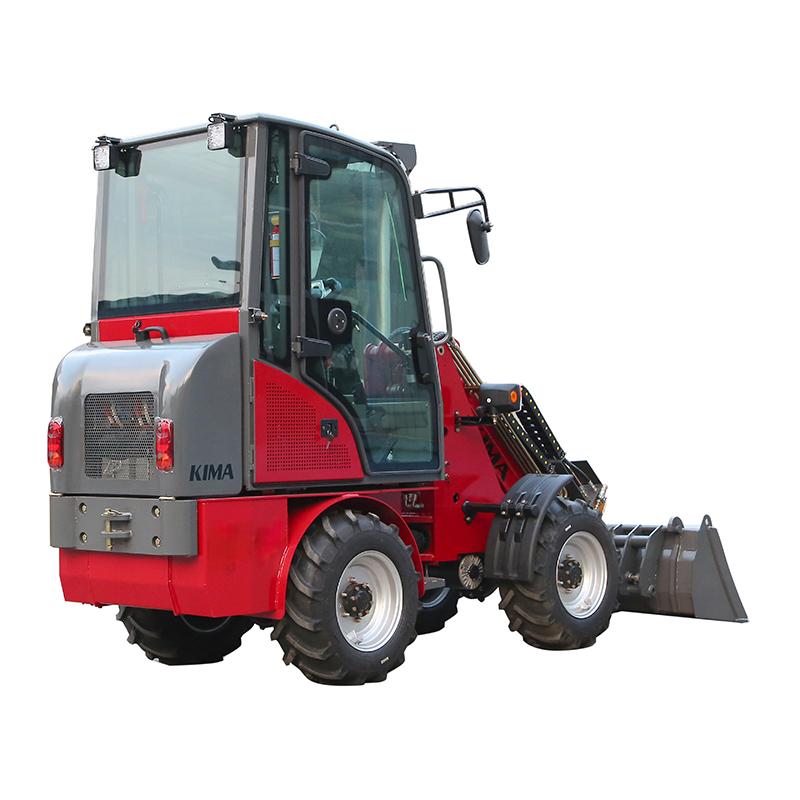

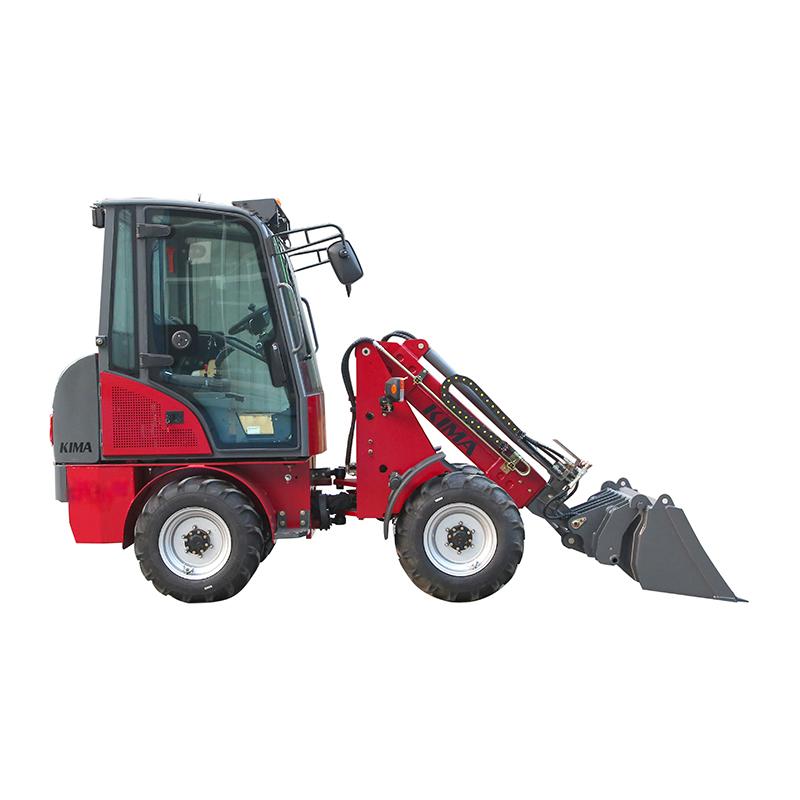

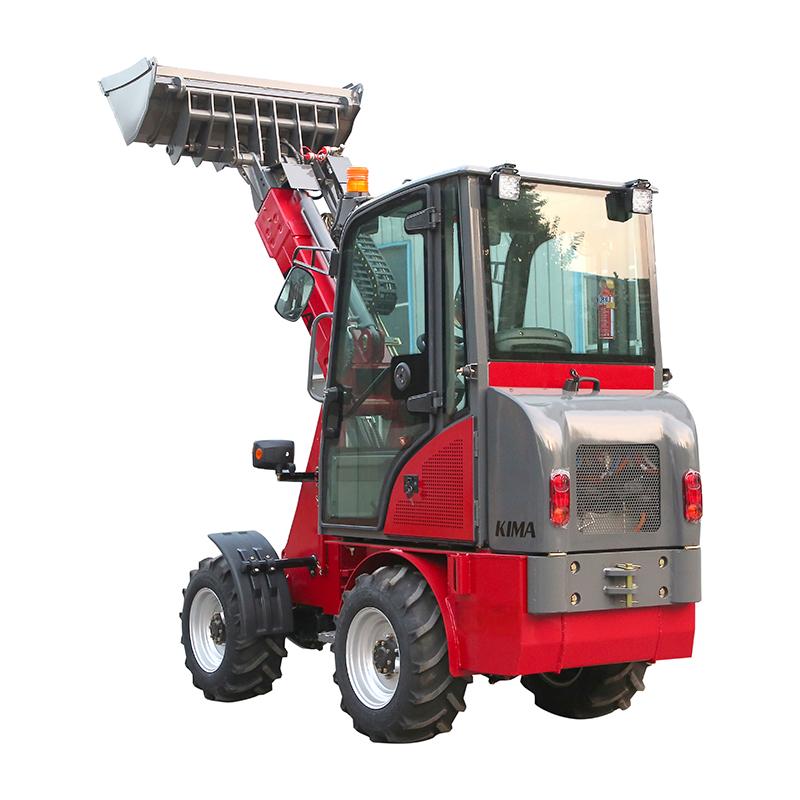

The K1000ET, an enhanced evolution of the K1000E, is a 900kg-capacity electric telescopic loader powered by a maintenance-free lead-acid battery. Available with either canopy or cabin, it adapts perfectly to diverse jobsite needs. Its compact build and low center of gravity deliver outstanding stability. Featuring eco-friendly, low-noise motors, an intuitive electric joystick, and a responsive hydraulic steering system, it ensures smooth, precise handling. Three independent control units operate separately, boosting productivity while making every task quicker, safer, and more effortless.

Mini Wheel Loader For Sale

Why Choose the K1000ET?

Certified Quality You Can Trust

Officially approved by TUV CE, guaranteeing safety, durability, and reliable performance.

Effortless Operation

Comes standard with a quick coupler and electric joystick, making every task simpler and faster.

Green Power, Zero Emissions

Equipped with an advanced AC battery system—eco-friendly, efficient, and completely pollution-free.

Extended Reach & Greater Lifting Power

The telescopic arm delivers outstanding outreach and lifting capacity, perfect for demanding jobs.

Whisper-Quiet Performance

Thanks to electric drive technology, the K1000ET operates with ultra-low noise, reducing jobsite disturbances and creating a more comfortable experience for operators.

Precision Control System

Three dedicated motor groups ensure smooth coordination between driving and working functions.

Heavy-Duty Cast Steel Axle

Engineered from high-strength cast steel for maximum load capacity, exceptional stability, and the ability to withstand heavy impact.

Smart Ball Joint Design

Flexible, easy to replace, and built for efficiency. Its lightweight construction lowers assembly costs while smooth rotation ensures higher accuracy on the job.

Product parameters

Specification	Model		K1000ET
	Rated load (kg)		900
	Bucket Capacity(m³)		0.26
	Max. Lifting Height of main boom(mm)		3340
	Max. Dumping height of main boom(mm)		2066
	Max. Dumping distance of main boom(mm)		547
	Max. Loading capacity of main boom(kg)		900
	Max. Lifting Height of small boom(mm)		3886
	Max. Dumping height of small boom(mm)		2658
	Max. Dumping distance of small boom(mm)		1036
	Max. Loading capacity of small boom (mm)		600
	Max.Speed (km/h)	Forward 1	12
		Reverse 1	12
	Max.digging depth(mm)		65
	Max. gradeability		25°
	Max.steering angle		35°
Dimension	Full length (bucket on ground position) (mm)		396013202390
	Wheel base (mm)		1100
	Tread (mm)		890
	Min.ground clearance (mm)		220
	Net weight(kg)		2460
Battery	Battery Model No.		3-EVF-200A
	rated capacity（3hr)		200Ah
	No.of battery groups		12
	Rated Voltage		72
	Working hours（h）		4h
Transmission System	Hydraulic System	Motor No.	YQP5.72AF.48P
		Voltage	72V
		Power	5000W
		Displacement（ml/r)	14
	Tyres	Type	29*12.50-15
		working pressure（mpa)	0.3
		Qty	4
Steering System	Type of Steering Hydraulic System	Full Hydraulic Steering System
	System Pressure（mpa)	16
	Type of Steering Pump	External Gear Pump
	Steering Cylinder Bore（mm)	Ø65
	Qty（pc）	1
Braking System	Service Brake		Drum Brake

	Brake Drum（mm)		240
	Parking Brake		Drum Brake
Oil Capacity	Hydraulic Oil Tank（L)		40
	Brake Fluid（L)		0.8
