600 kg Mini Excavator
1. Dependable Performance in Confined Areas
2. Efficient Cooling System Maintains Consistent Operation
3. Small Size, Big Capability for Demanding Projects
4. Smooth Controls Reduce Operator Fatigue and Boost Productivity
5. Compact Excavator Ready for Urban and Garden Works
6. Strong and Reliable Even in Tight Spots

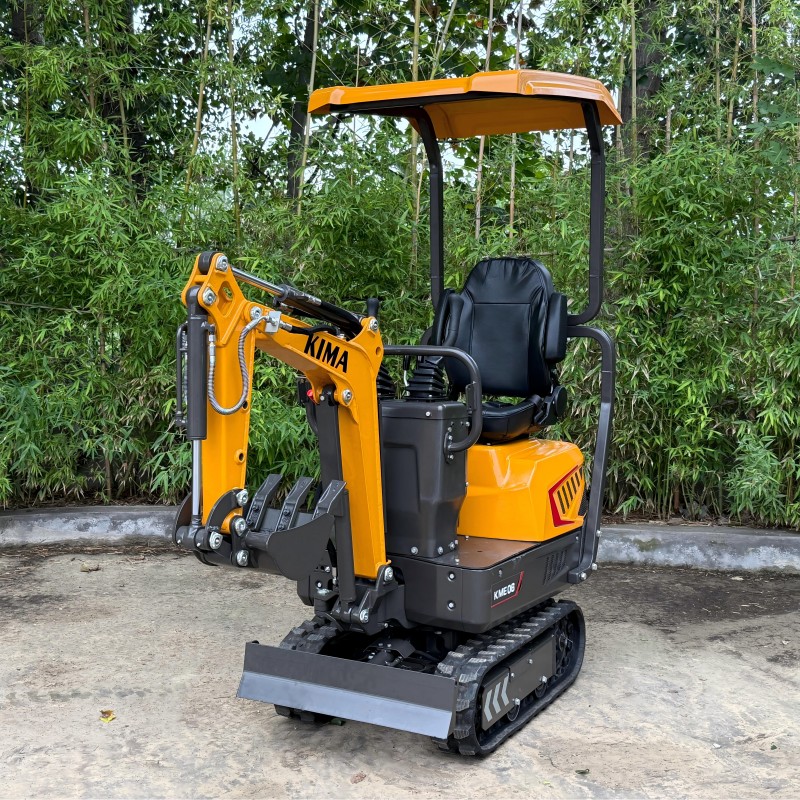

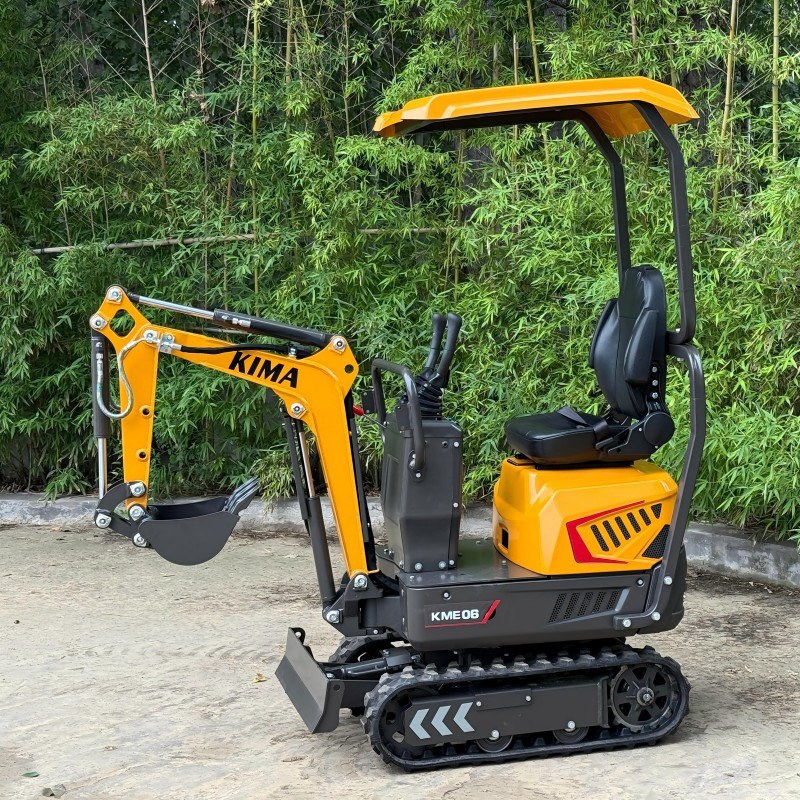

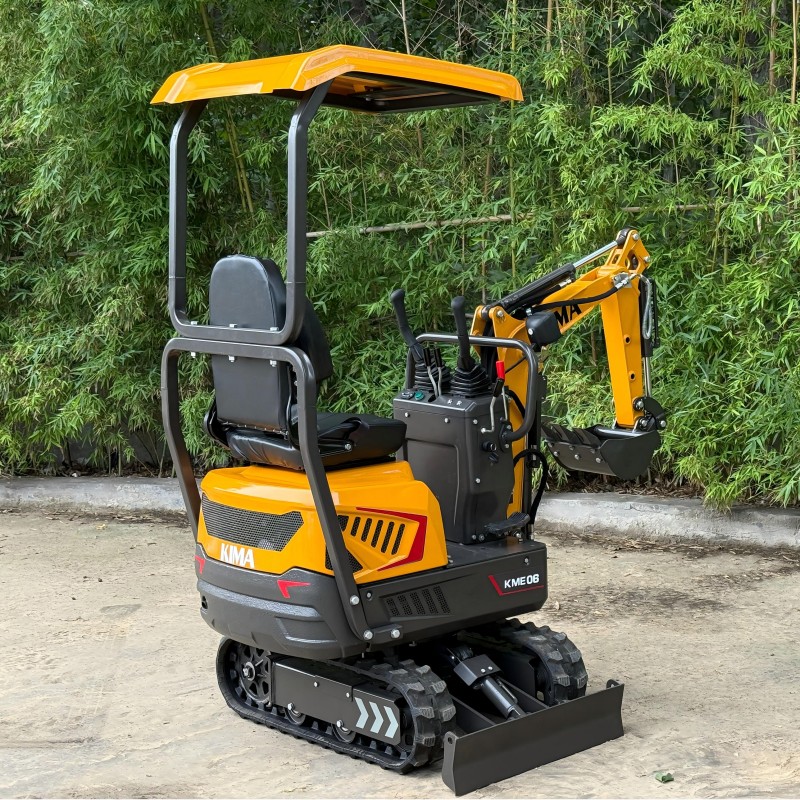

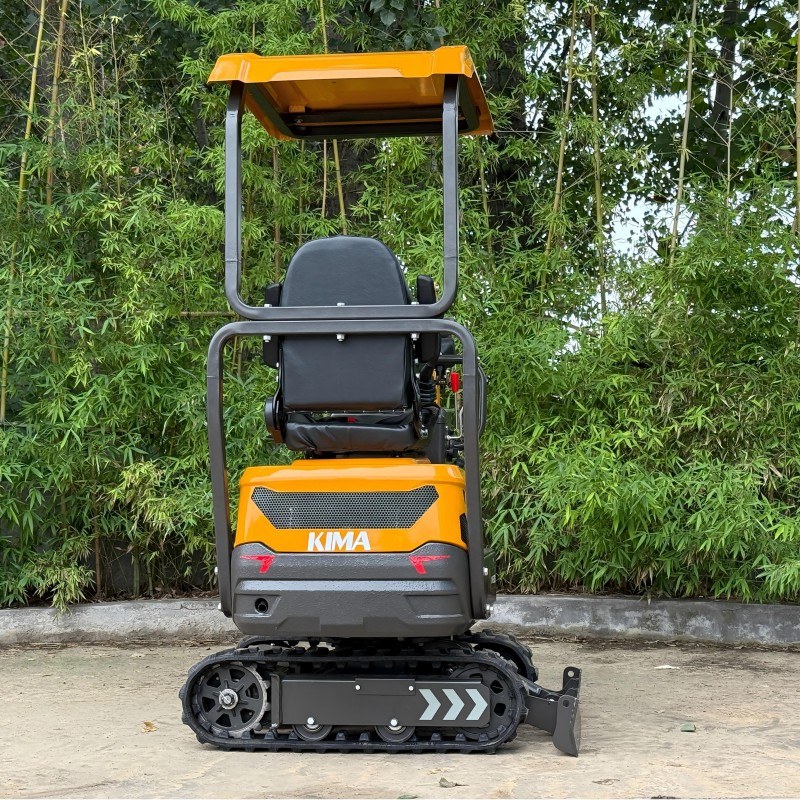

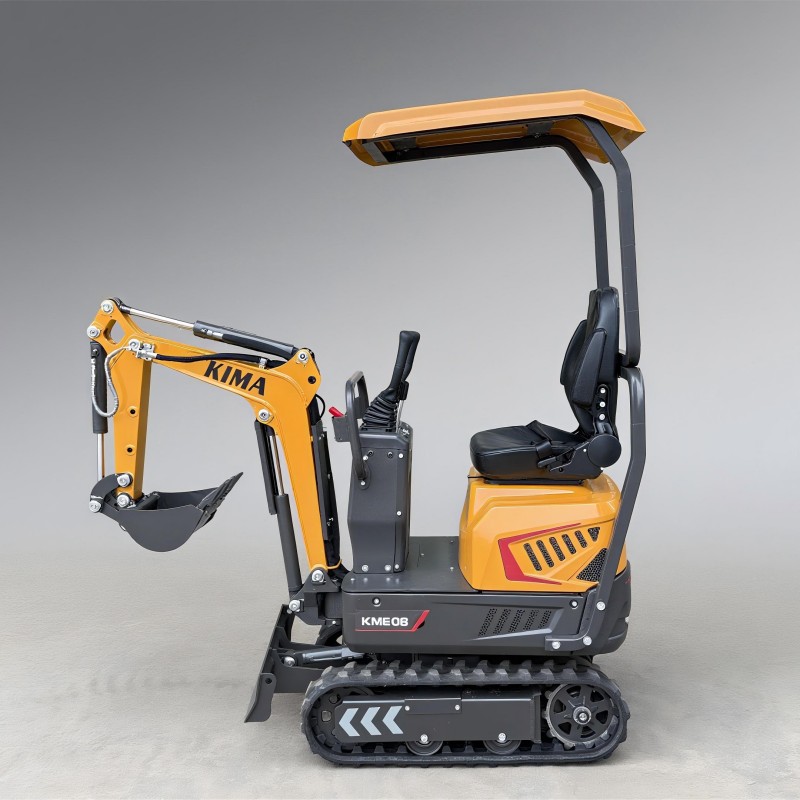

KME06 Mini Excavator – Proven Reliability
Designed for precision and strength, the KME06 mini excavator brings power into a smaller package. Its minimal footprint allows it to work inside narrow alleys and confined plots, while its durable build sustains rigorous tasks. Thanks to its advanced hydraulics and efficient cooling, operators enjoy smooth control and consistent performance. From urban landscaping to foundation trenches, it’s the go-to machine for demanding projects.
Verified Excellence
CE & TÜV certifications for trusted safety and quality.
Durable Build
Rugged structure with reinforced components for heavy-duty performance.
Efficient Hydraulics
Smooth operation and precise control with optimized hydraulic layout.
Low Maintenance Design
Accessible service points reduce downtime and simplify servicing.
Machine pictures
Detail pictures
Attachments
Specification
Operating weight | Kg | 640 | |
Bucket capacity | m³ | 0.01 | |
Engine | Model | / | Loncin G300FA |
Rated power/speed | kw/rpm | 6.8kW/3600rpm | |
Maximum torque/speed | N.m | 20.3N.m/2500rpm | |
Displacement | L | 0.302 | |
Main performance | Swing speed | r/min | 12 |
Grade-ability | % | 35 | |
Bucket digging force | kN | 7.45 | |
Arm digging force | kN | 4.5 | |
Maximum tractive force | kN | 3.8*2 | |
Rated flow of main pump | L/min | 19.4 | |
Main safety valve pressure | MPa | 20 | |
Undercarriage | Travel speed（H/L) | km/h | 1.8 |
Ground pressure | kPa | 18.5 | |
Track number | / | 35 | |
Oil Capacity | Fuel tank capacity | L | 5.5 |
Hydraulic tank capacity | L | 8 | |
Engine oil capacity | L | 0.95 | |
| Overall length | mm | 2235 |
Overall width | mm | 700 | |
Overall height(Boom top) | mm | 1619 | |
Overall height(cab top) | mm | 2117 | |
Counterweight clearance | mm | 376 | |
Min.ground clearance | mm | 160/52 | |
Min.tail swing radius | mm | 619 | |
Track ground length | mm | 773 | |
Track length | mm | 1081 | |
Track gauge | mm | 550 | |
Track width | mm | 150 | |
Track shoes width(std) | mm | 150 | |
Turn-able width | mm | 700 | |
| Max.digging height | mm | 1863 |
Max.dumping height | mm | 1257 | |
Max.digging depth | mm | 978 | |
Max.vertical wall digging depth | mm | 601 | |
Max.digging reach | mm | 2260 | |
Max.digging reach at ground level | mm | 2174 | |
Min.swing radius | mm | 1110 | |
Min.height at min.swing radius | mm | 2117/1619 | |
Counterweight height | mm | 376 | |
Ground length(Transportation) | mm | 2183 | |
| Length of boom | mm | 1010 |
Length of arm | mm | 545 | |
