Great 0.6 ton Mini Digger
1. KME06 Mini Excavator – Compact Yet Powerful for Tight Spaces
2. Agile and Strong, KME06 Tackles Narrow Job Sites
3. Precision Engineering Meets Small Footprint with KME06
4. Robust Hydraulics Ensure Smooth Digging and Lifting
5. Ideal for Construction, Landscaping, and Utility Work
6. Narrow Chassis, Maximum Maneuverability

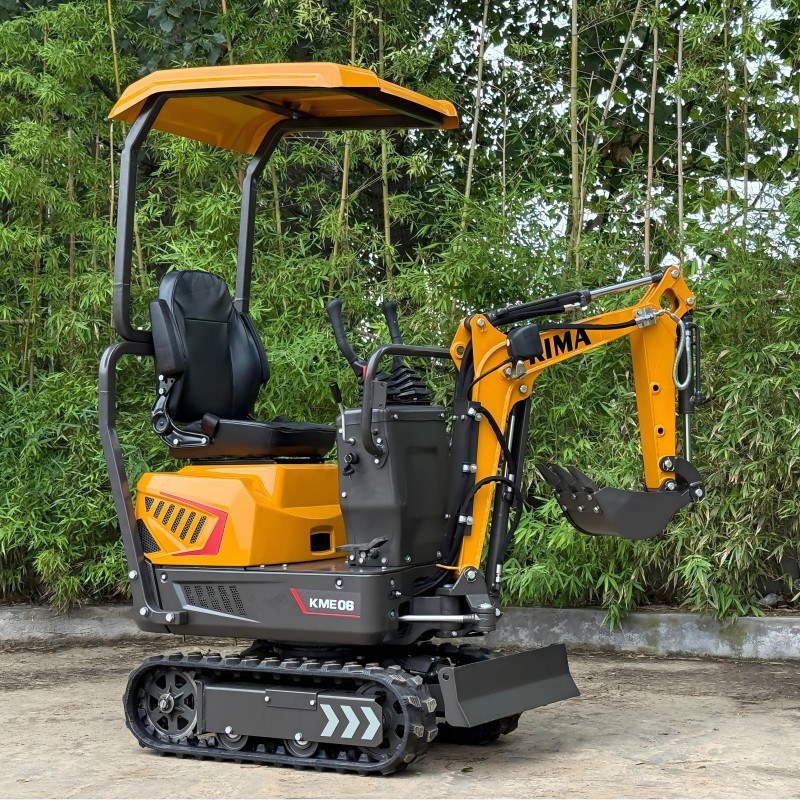

KME06 Mini Excavator
The KME06 mini excavator blends compactness with dependable muscle, making it an ideal choice for tight job sites. With its slim frame and agile maneuverability, it reaches where larger machines can’t. Though small in size, it delivers impressive digging and lifting performance thanks to its robust hydraulic system. Built for professionals in construction, landscaping, and utilities, it offers efficiency, stability, and control in every operation.
CE & TÜV Certified
Complies with CE standards and TÜV-certified for reliable performance.

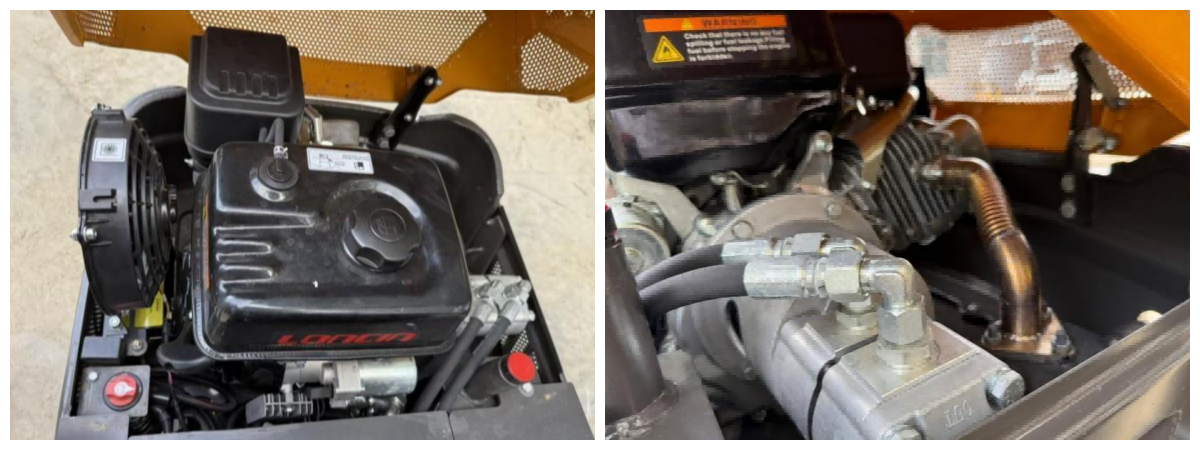

Loncin G300FA Engine
EPA & Euro 5 compliant, ensuring low emissions and dependable output.
Cast Swing Head
Strong cast design enhances durability and service life.
Cooling Fan System
Better heat dissipation for stable engine performance.

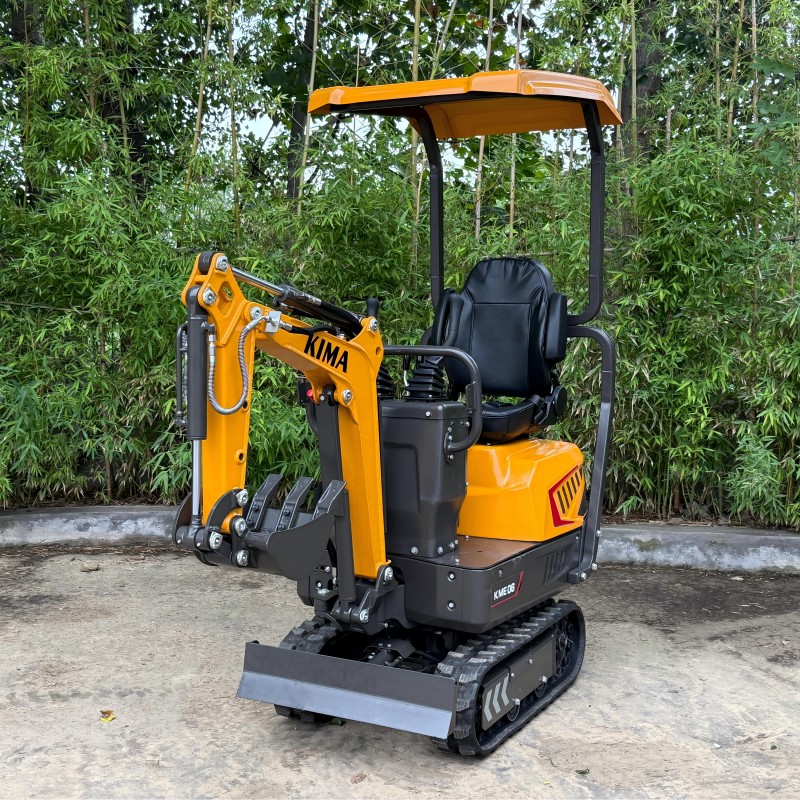

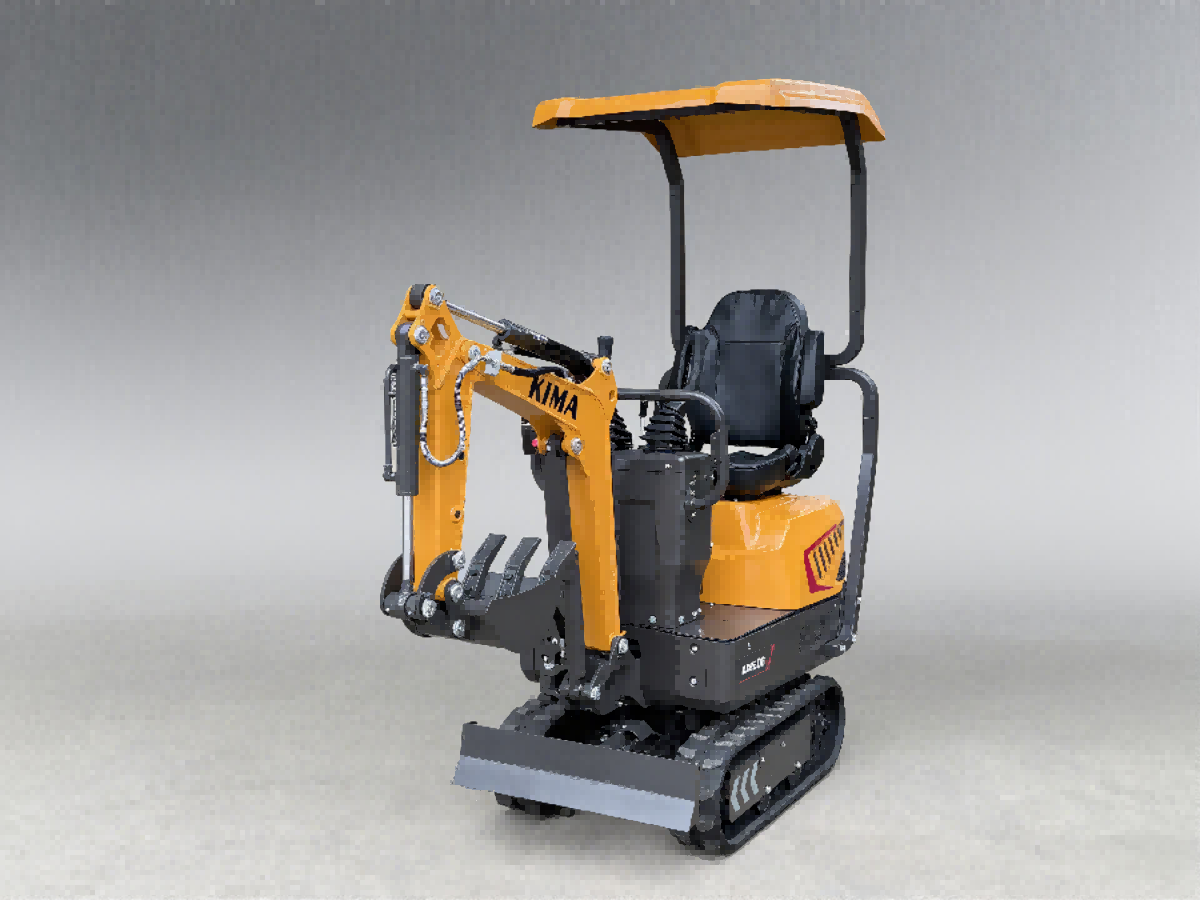

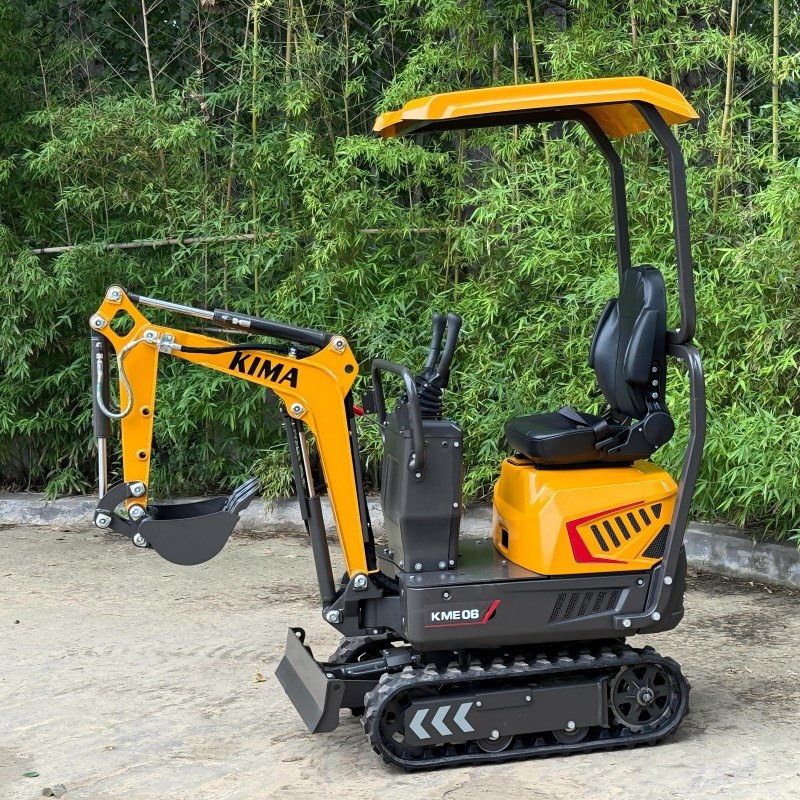

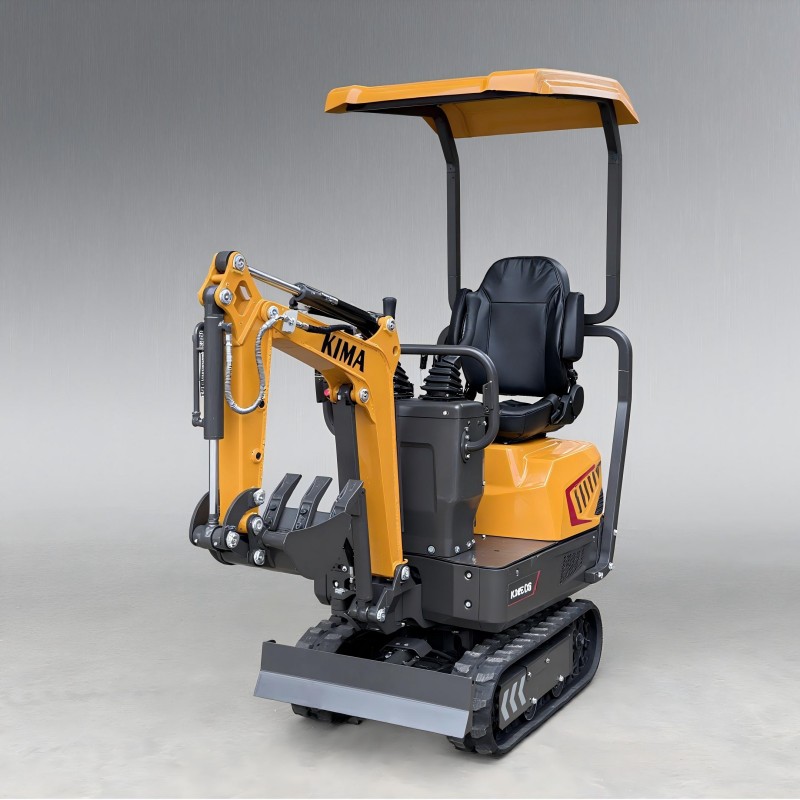

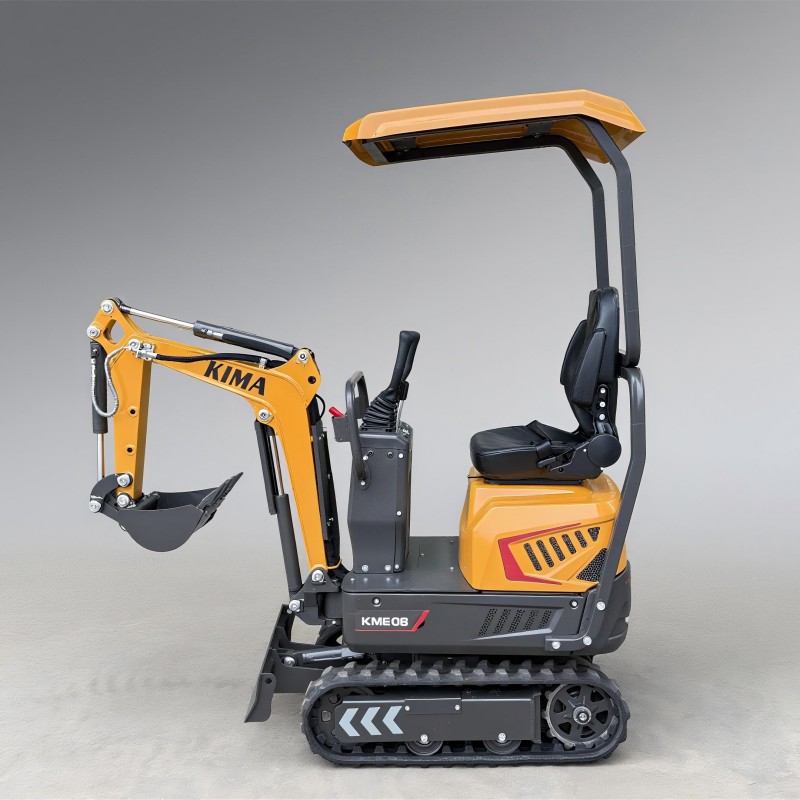

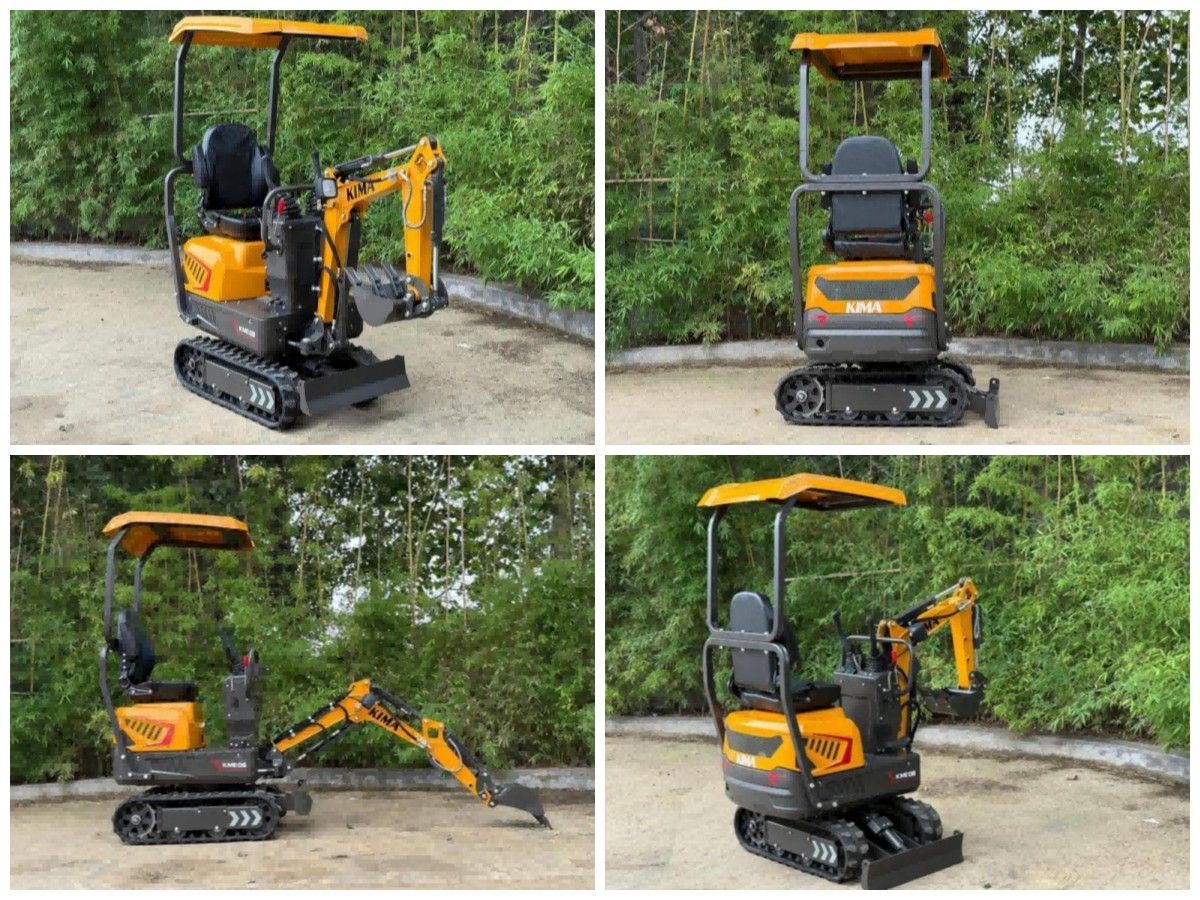

Machine pictures

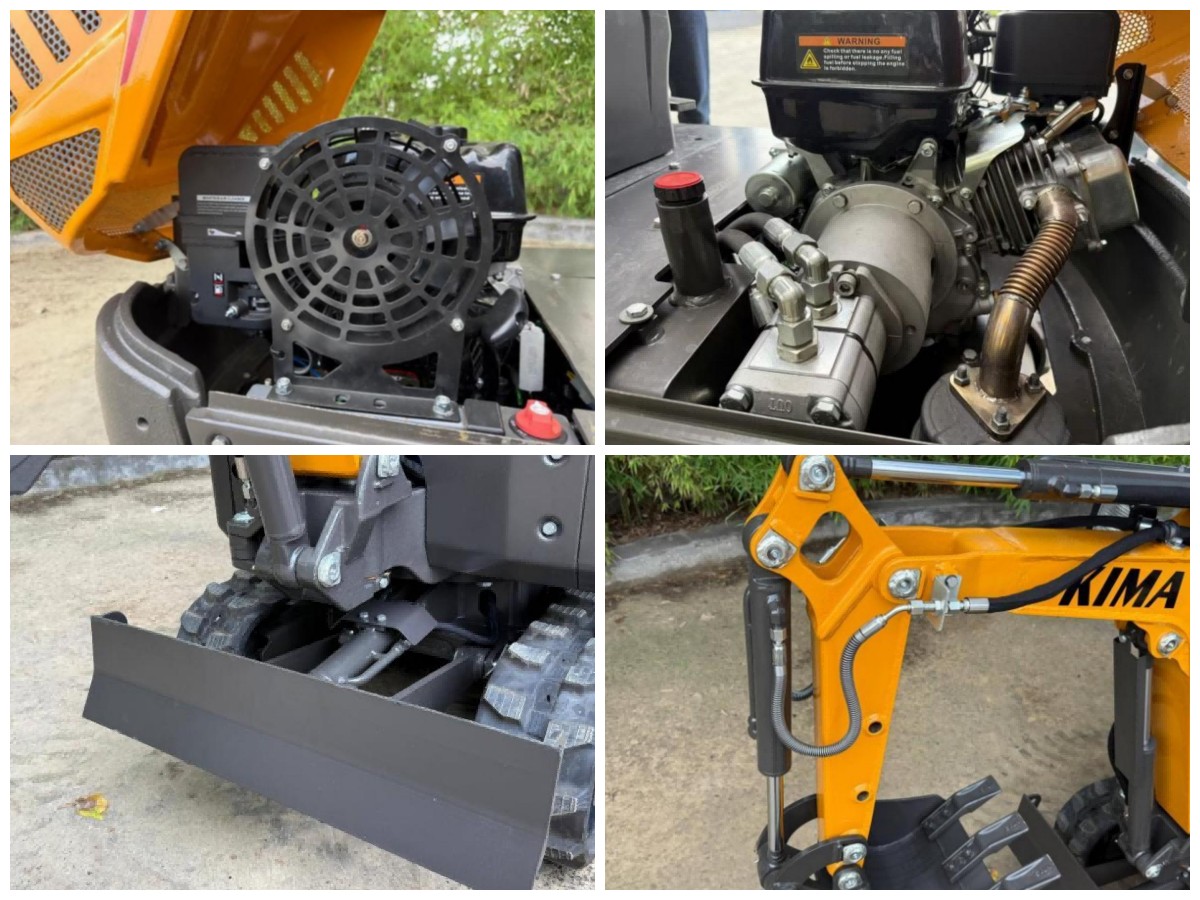

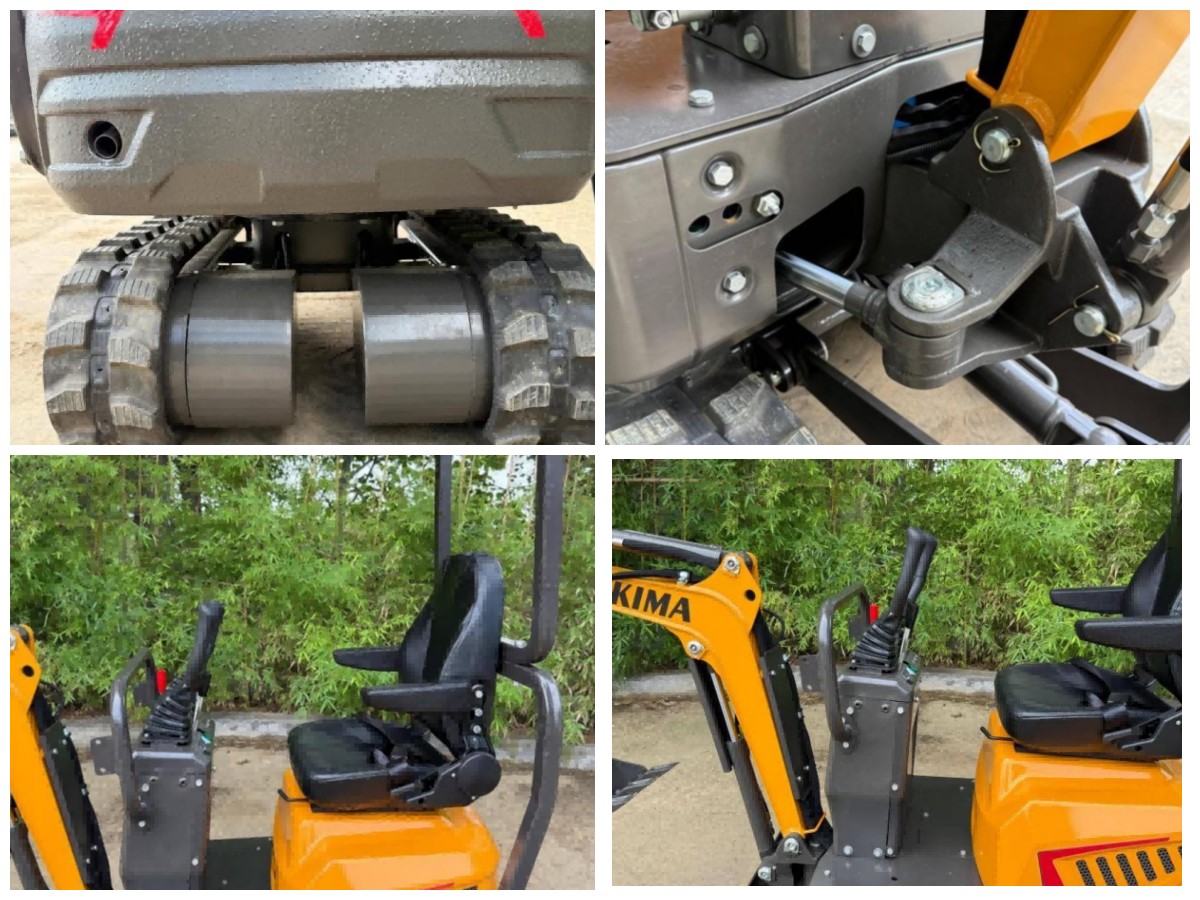

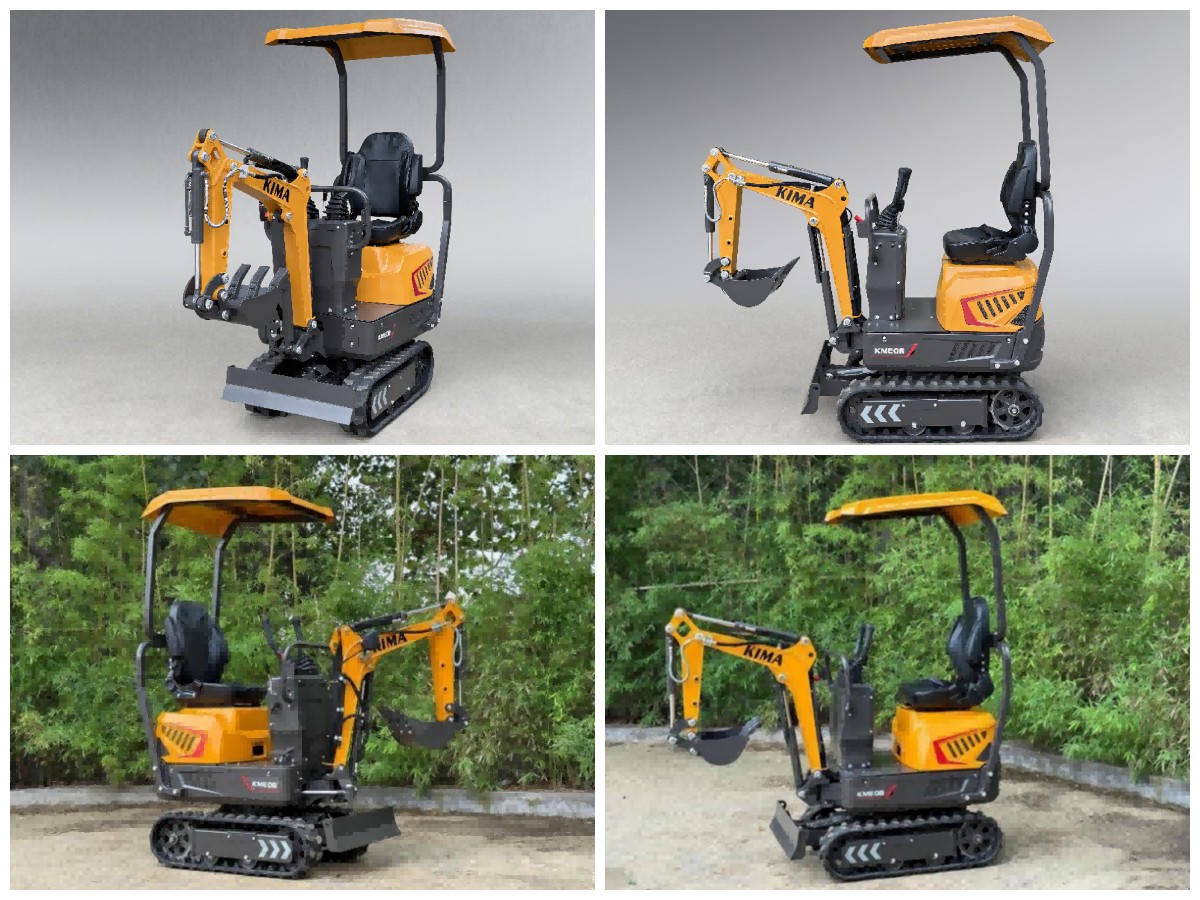

Detail pictures

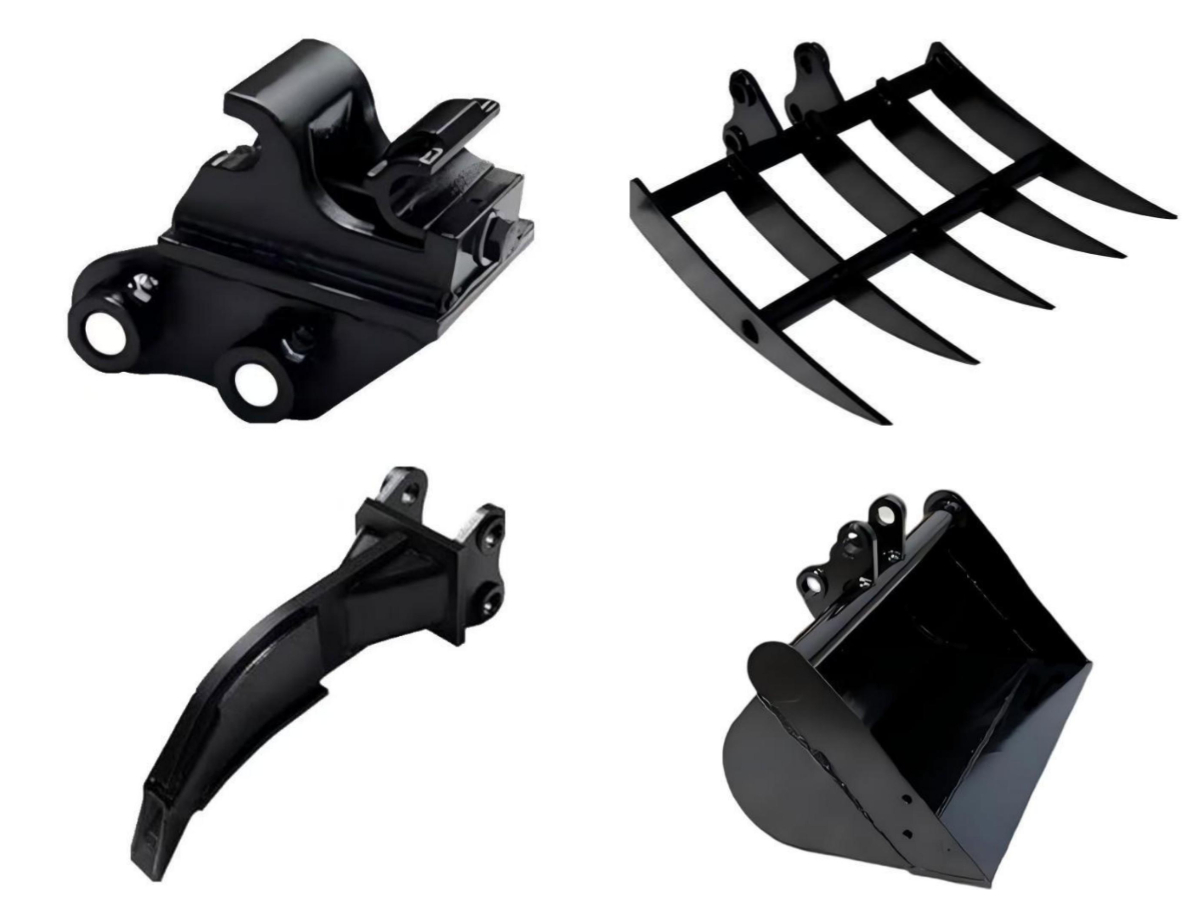

Attachments
Specification
Operating weight | Kg | 640 | |
Bucket capacity | m³ | 0.01 | |
Engine | Model | / | Loncin G300FA |
Rated power/speed | kw/rpm | 6.8kW/3600rpm | |
Maximum torque/speed | N.m | 20.3N.m/2500rpm | |
Displacement | L | 0.302 | |
Main performance | Swing speed | r/min | 12 |
Grade-ability | % | 35 | |
Bucket digging force | kN | 7.45 | |
Arm digging force | kN | 4.5 | |
Maximum tractive force | kN | 3.8*2 | |
Rated flow of main pump | L/min | 19.4 | |
Main safety valve pressure | MPa | 20 | |
Undercarriage | Travel speed（H/L) | km/h | 1.8 |
Ground pressure | kPa | 18.5 | |
Track number | / | 35 | |
Oil Capacity | Fuel tank capacity | L | 5.5 |
Hydraulic tank capacity | L | 8 | |
Engine oil capacity | L | 0.95 | |
| Overall length | mm | 2235 |
Overall width | mm | 700 | |
Overall height(Boom top) | mm | 1619 | |
Overall height(cab top) | mm | 2117 | |
Counterweight clearance | mm | 376 | |
Min.ground clearance | mm | 160/52 | |
Min.tail swing radius | mm | 619 | |
Track ground length | mm | 773 | |
Track length | mm | 1081 | |
Track gauge | mm | 550 | |
Track width | mm | 150 | |
Track shoes width(std) | mm | 150 | |
Turn-able width | mm | 700 | |
| Max.digging height | mm | 1863 |
Max.dumping height | mm | 1257 | |
Max.digging depth | mm | 978 | |
Max.vertical wall digging depth | mm | 601 | |
Max.digging reach | mm | 2260 | |
Max.digging reach at ground level | mm | 2174 | |
Min.swing radius | mm | 1110 | |
Min.height at min.swing radius | mm | 2117/1619 | |
Counterweight height | mm | 376 | |
Ground length(Transportation) | mm | 2183 | |
| Length of boom | mm | 1010 |
Length of arm | mm | 545 | |

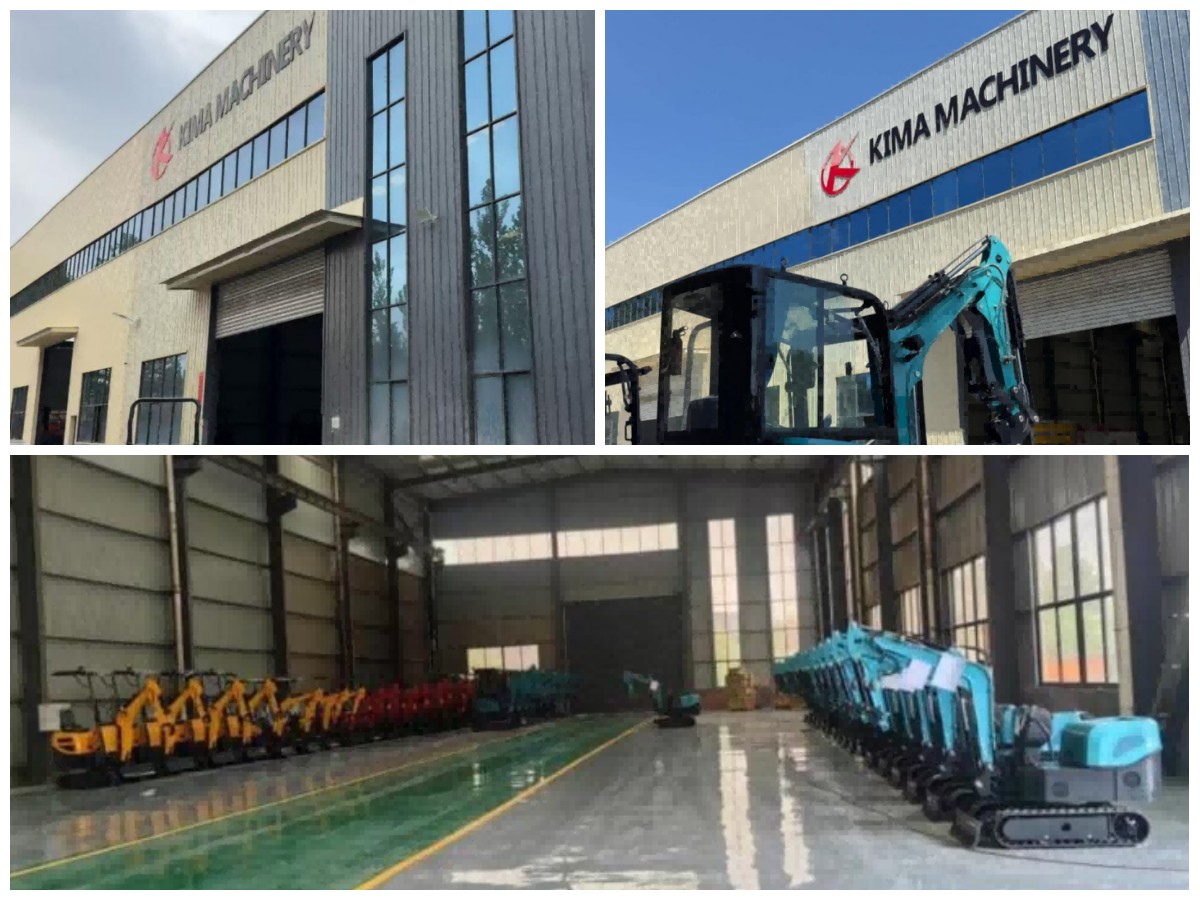

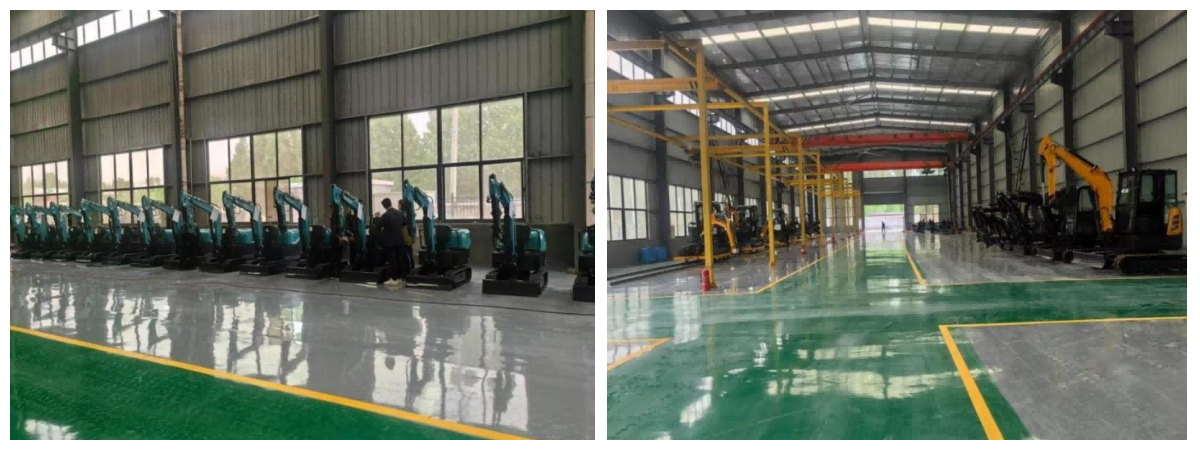

Factory:
