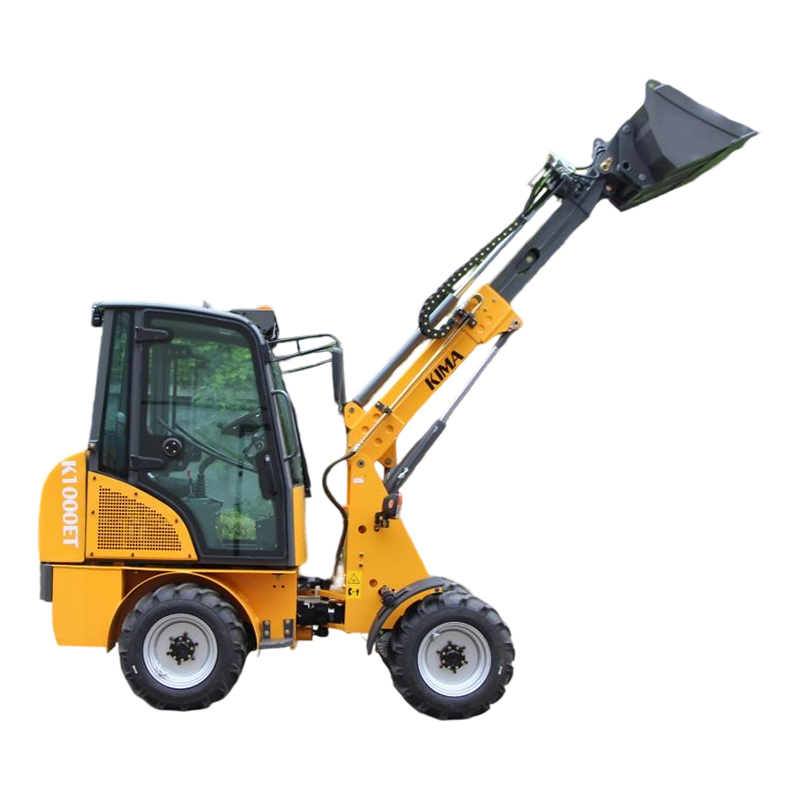

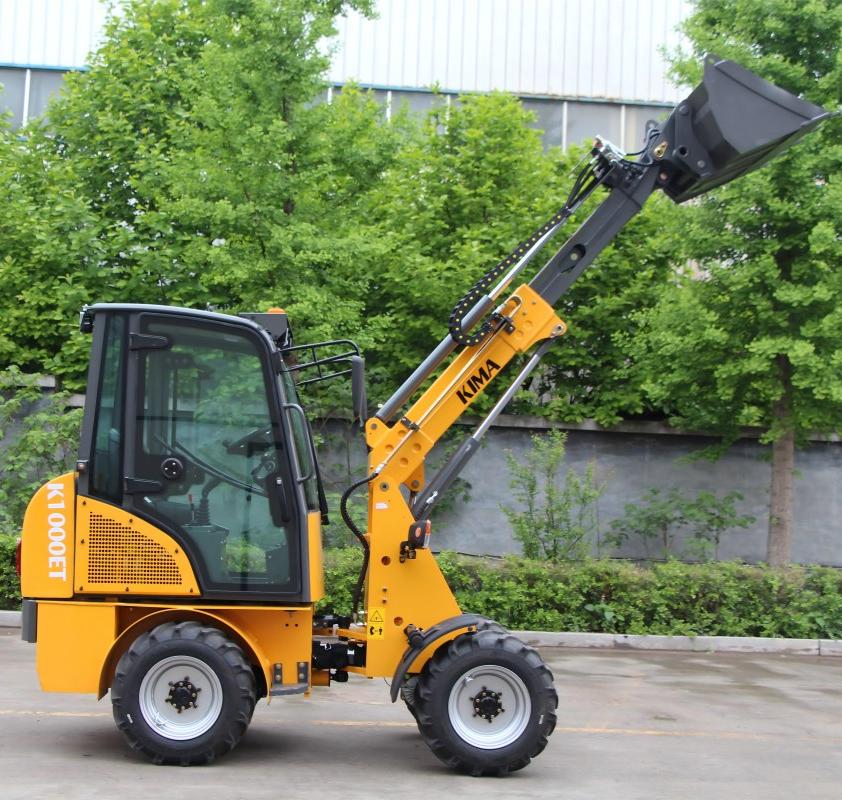

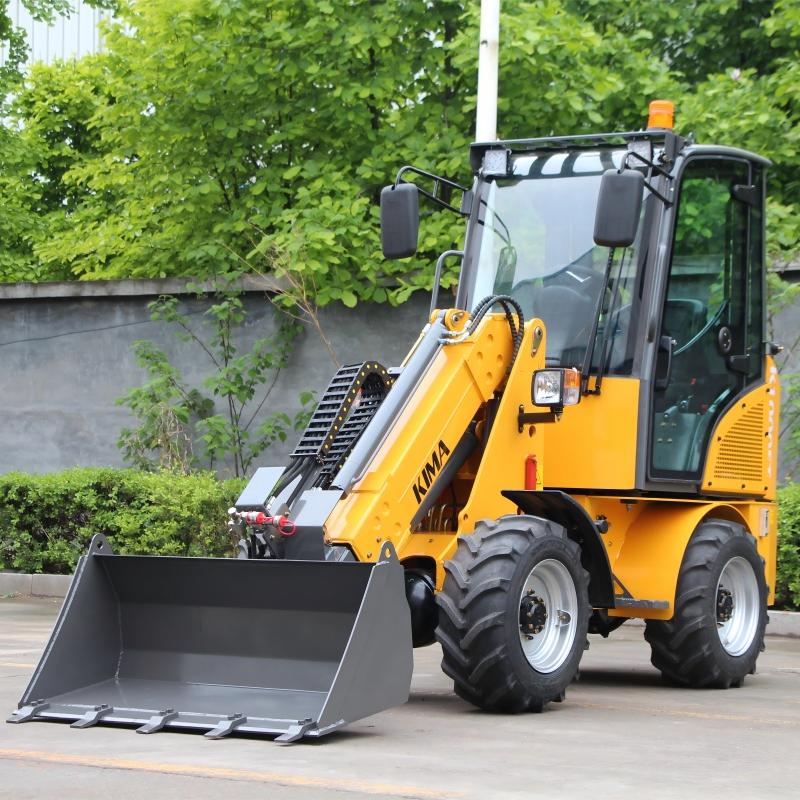

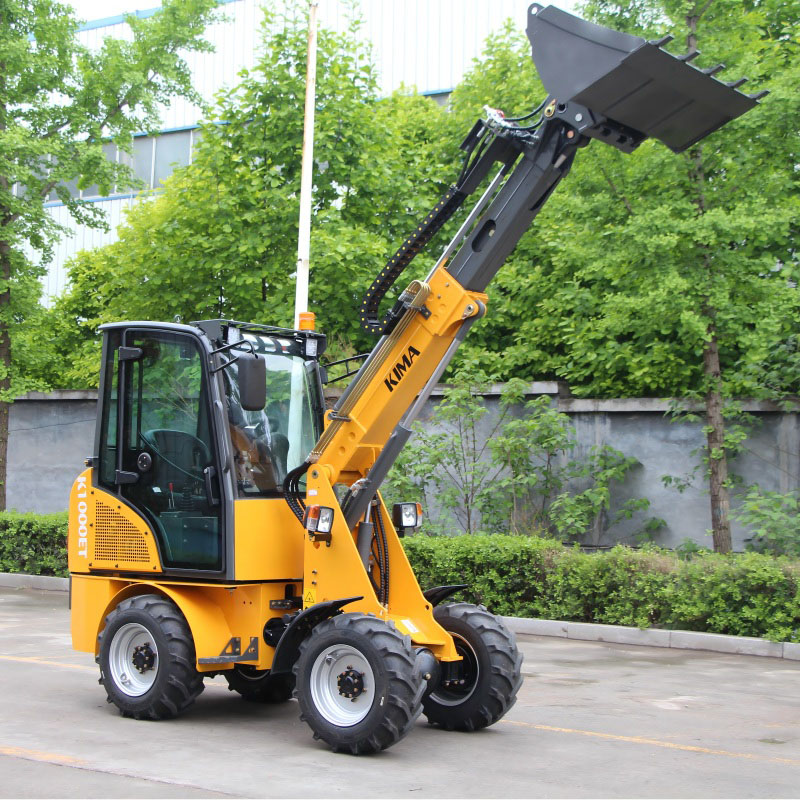

Electric Front Loader
1. Operating weight: 2460kg, Rated load: 900kgs.
2. AC battery system, zero-pollution.
3. Rated Power:72V. 200Ah are optional.
4. Maintenance free lead-acid battery or lithium battery can be optional.
5. Tire Size: 29*12.5-15
6. TUV certification passed
Electric Front Loader, upgraded based on K1000E, is a 900kg rated electric telescopic loader with a maintenance-free lead-acid battery. There are canopy and cabin for you to choose. Compact design, low center of gravity, motors with low pollution and noise, electric joystick, hydraulic steering system, three groups of controllers work separately, make the work faster, safer, more efficient and sensitive.
Advantages
Passed TUV CE quality certification
The standard setup comes with a quick hitch and electric joystick, making it more straightforward to use.
Zero-pollution alternating current (AC) battery system.

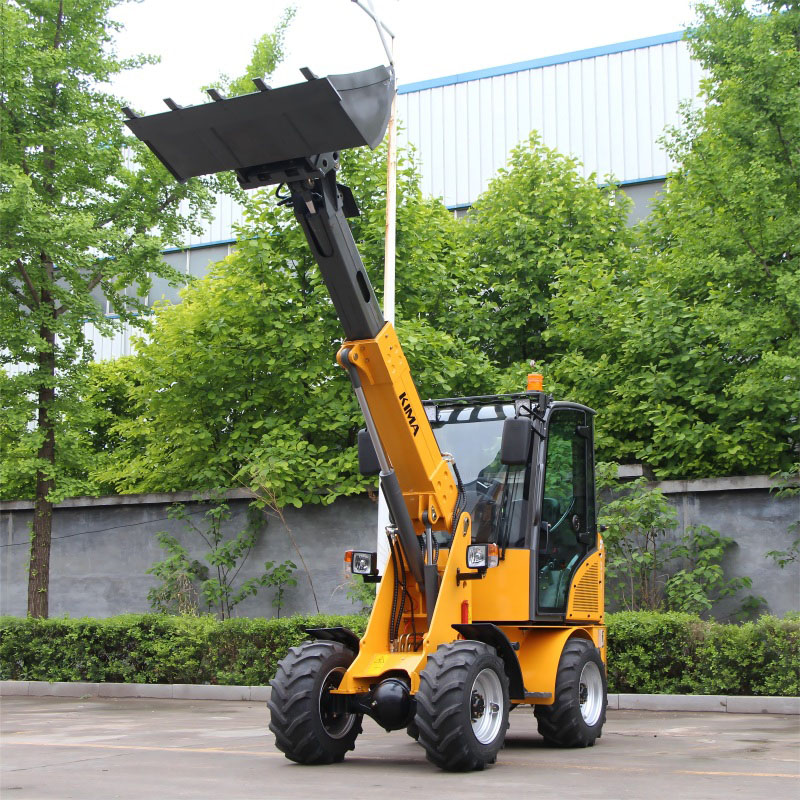

Telescopic arm
The telescopic arm makes it possible to have an excellent outreach and lift capacity.
Low noise
Equipped with electric drive technology, the K1000ET delivers low-noise operation, effectively cutting down on construction site noise pollution and mitigating noise-related impacts on the driver.
Three sets of controller
Three groups of motors control work and travel respectively.

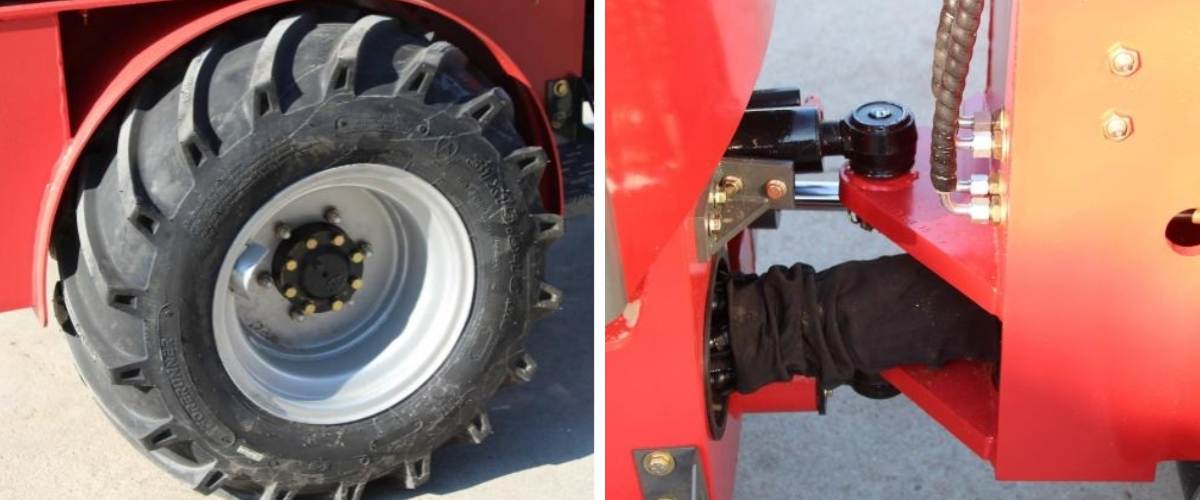

Casting steel weighted axle
Made of high-strength casting steel material,it has high bearing capacity and stability, so it can withstand large impact forces.
Unique ball joint
The ball joint has a certain degree of flexibility and is easy to disassemble and replace.
Relatively lightweight, reducing assembly costs. Flexible movement and smooth rotation improve work accuracy.
Parameters
Specification | Model | K1000ET | |
Rated load (kg) | 900 | ||
Bucket Capacity(m³) | 0.26 | ||
Max. Lifting Height of main boom(mm) | 3340 | ||
Max. Dumping height of main boom(mm) | 2066 | ||
Max. Dumping distance of main boom(mm) | 547 | ||
Max. Loading capacity of main boom(kg) | 900 | ||
Max. Lifting Height of small boom(mm) | 3886 | ||
Max. Dumping height of small boom(mm) | 2658 | ||
Max. Dumping distance of small boom(mm) | 1036 | ||
Max. Loading capacity of small boom (mm) | 600 | ||
Max.Speed (km/h) | Forward 1 | 12 | |
Reverse 1 | 12 | ||
Max.digging depth(mm) | 65 | ||
Max. gradeability | 25° | ||
Max.steering angle | 35° | ||
Dimension | Full length (bucket on ground position) (mm) | 3960*1320*2390 | |
Wheel base (mm) | 1100 | ||
Tread (mm) | 890 | ||
Min.ground clearance (mm) | 220 | ||
Net weight(kg) | 2460 | ||
Battery | Battery Model No. | 3-EVF-200A | |
rated capacity（3hr) | 200Ah | ||
No.of battery groups | 12 | ||
Rated Voltage | 72 | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | YQP5.72AF.48P |
Voltage | 72V | ||
Power | 5000W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 29*12.50-15 | |
working pressure（mpa) | 0.3 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | Ø65 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 240 | ||
Parking Brake | Drum Brake | ||
Oil Capacity | Hydraulic Oil Tank（L) | 40 | |
Brake Fluid（L) | 0.8 | ||

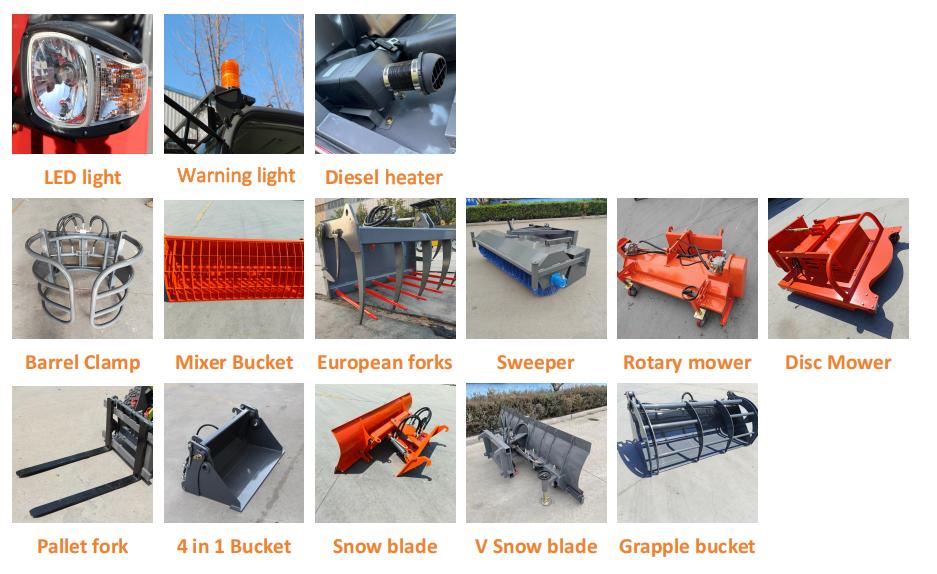

Attachments

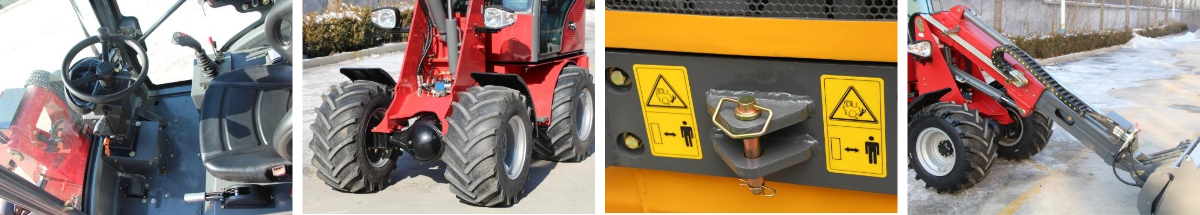

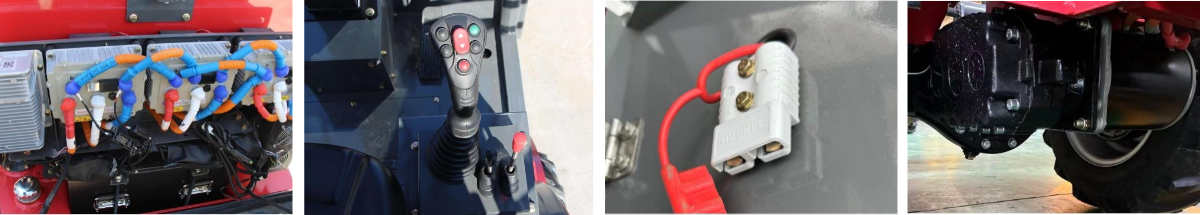

Details
