Front End Loader

1. Operating weight: 5100kg, Rated load: 2500 kg.

2. Euro 5 exhaust emission standard.

3. Telescopic arm

4. Four Wheel Drive

5. LED light

6. Floating functions

Contact Now E-Mail Telephone WhatsApp

Product Details

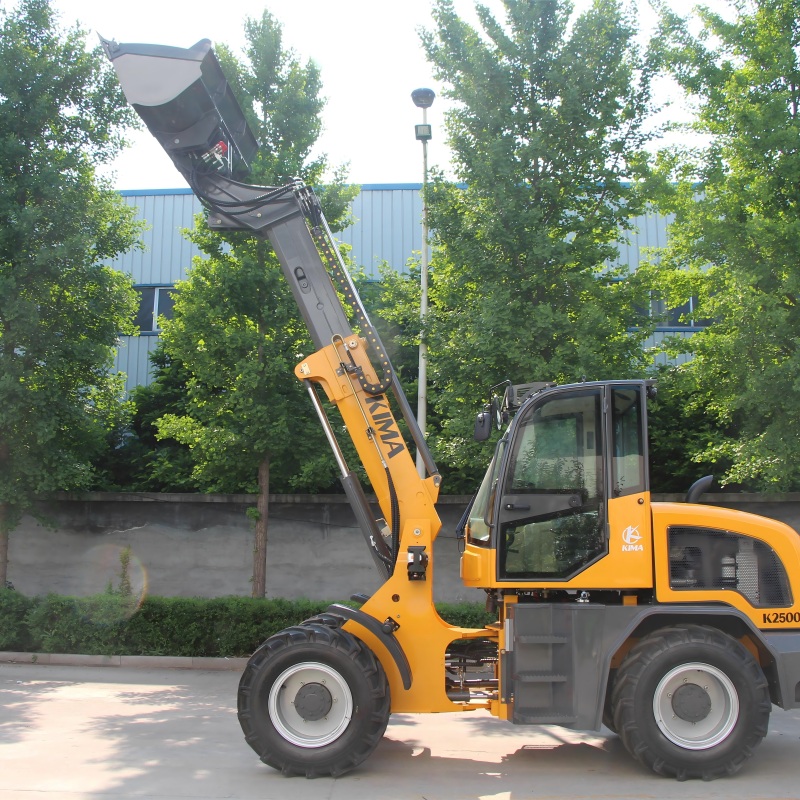

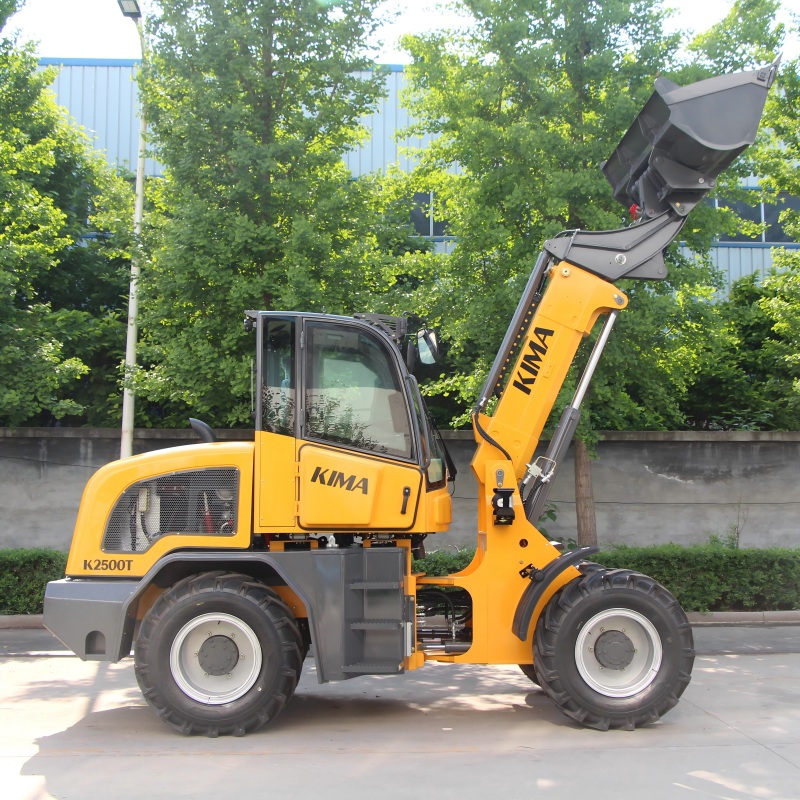

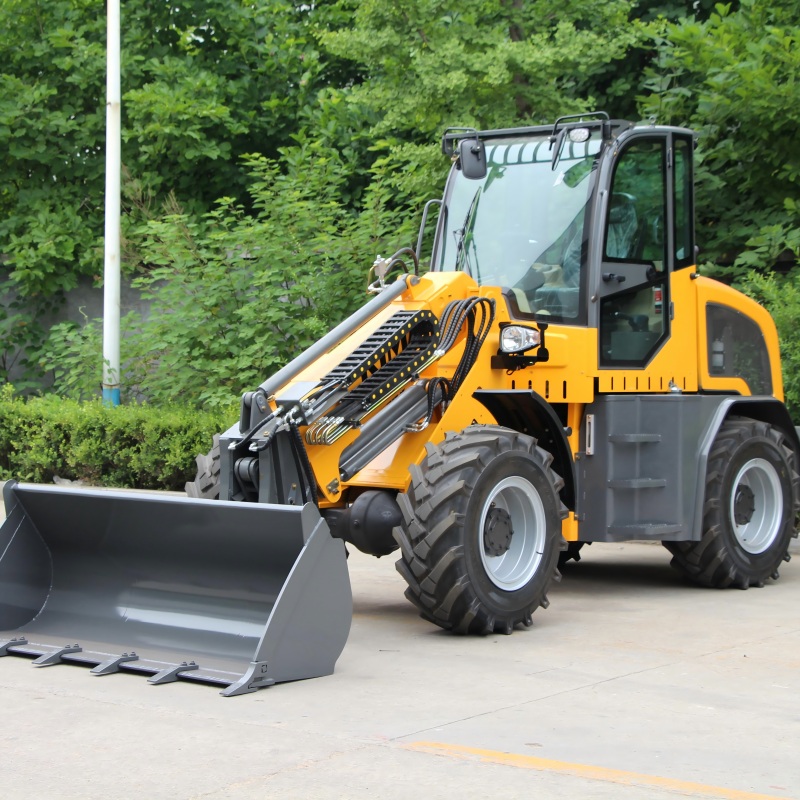

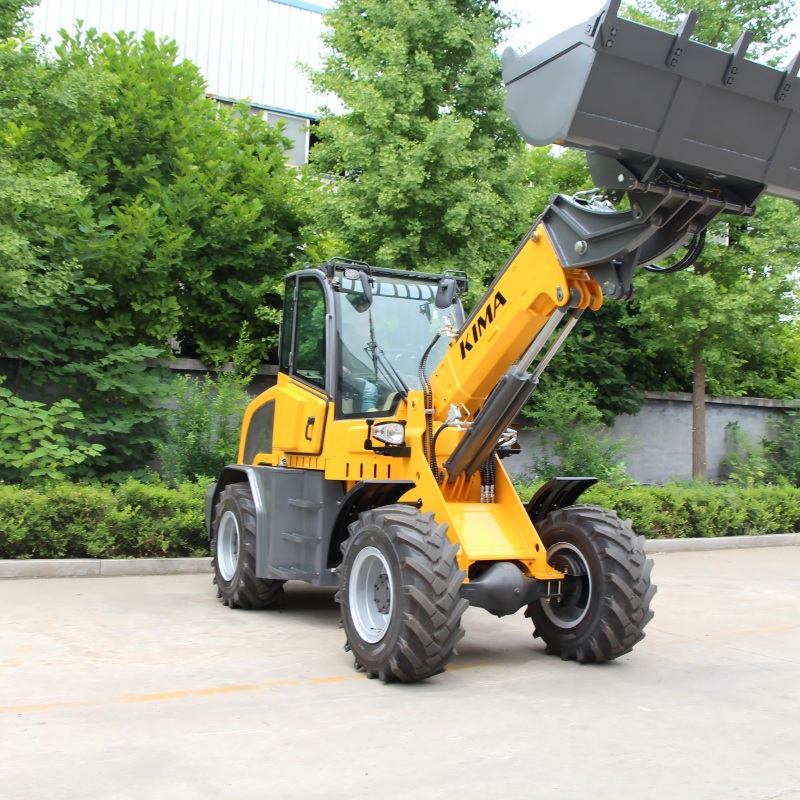

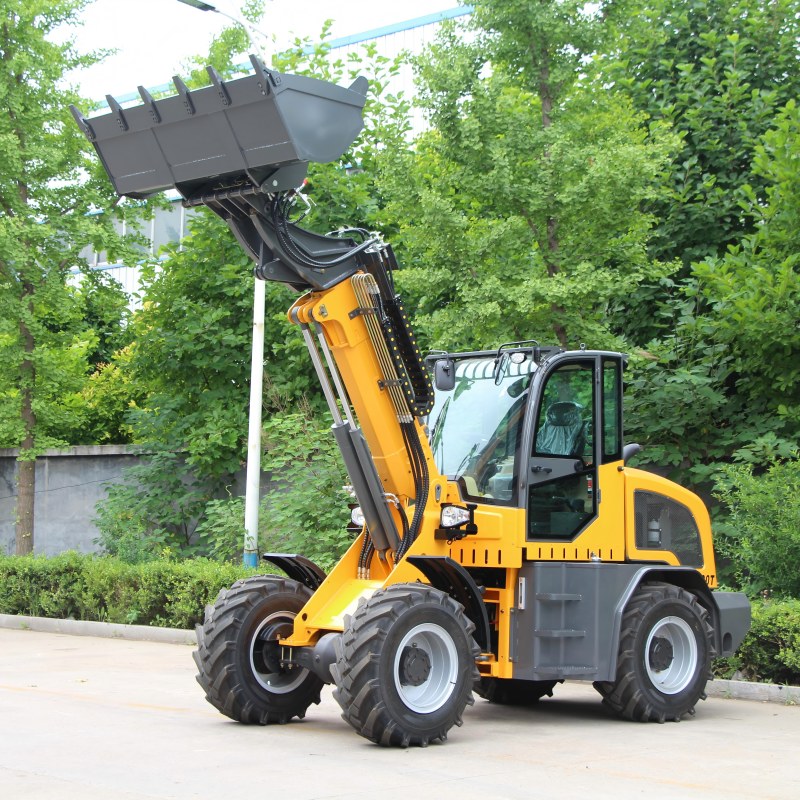

K2500T telescopic loader engineered for peak performance across farming and construction applications. It's built to be more powerful and efficient, helping you tackle diverse tasks with greater speed and reliability. Backed by CE and EPA certifications, Kima loaders like the K2500T are fully compliant and optimized for success in Europe and North America, ready to boost your productivity from the ground up.

Front End Loader

Product advantages

Euro 5 exhaust emission standard
We have integrated advanced Stage V emission control technologies across our portfolio. This technical accomplishment underscores our focus on developing powerful yet clean machinery, delivering exceptional performance while preserving environmental integrity for our customers.
Luxury cabin and comfortable seat
By providing a pleasant and fatigue-free experience, the cab's welcoming driving environment with an adjustable seat helps operators maintain high levels of alertness and precise decision-making throughout the work cycle.
Telescopic arm
Engineered to conquer challenging applications, the machine's heavy-duty telescopic arm delivers the power and range for extreme vertical and horizontal reach.

Easy-to-open engine hood
The engine hood can be opened easily and removed in a few hand movements for regular service and maintenance work. The hydraulic oil tank, air cleaner, engine oil filter opening, oil dipstick, and cooling water are therefore quickly and easily accessible -a real added comfort.

High-quality powder coating
We go beyond promises by implementing superior processes like powder coating, a hallmark of the KIMA standard. This technology outperforms conventional wet painting by delivering a tougher, longer-lasting finish.

Short hydraulic hose lengths

Engineered for service efficiency, the hydraulic systems in KIMA machines utilize strategically segmented hoses. This design allows for precision maintenance—when a hose fails, only the affected segment requires replacement.

Product parameters

Performance	Rated loading (kg)	2500
	Overall weight (kg)	5100
	Rated bucket capacity (m³)	0.67
	Maximum tractive force (kN)	35
	Maximum breakout force (kN)	25
	Maximum grade ability (°)	25
	Maximum lifting height of small boom (mm)	5413
	Maximum dump height of main boom (mm)	2768
	Maximum dump height of small boom (mm)	3766
	Maximum dump reach (mm)	1012
	Overall dimension (L×W×H) (mm)	563118702736
	Minimum turning radius (outside of wheels) (mm)	5068
	Maximum steering angle	40°
	Oscillation angle	5°
Transmission system	Torque converter	265
	Gearbox mode	Power shift is normally engaged in the straight gear
	Gear shift	Mechanical, 2forward shift 2 reverse shift
	Maximum speed	21km/h
Drive axles	Main reducing mode	Bevel gear grade l reduction
	Wheel base (mm)	2568
	Wheel tread(mm)	1470
	Ground clearance(mm)	358
Hydraulic system	System working pressure (Mpa)	20
	Boom lifting time (s)	7.2
	Total time (s)	12.9
	Fuel tank capacity (L)	94
Brake system	Service brake	Air-assist hydraulic brake, disc brake
Brake system	Parking brake	Manual disc brake
Tyre	Type specification	16/70-20
	Front tire pressure (kPa)	350
	Rear tire pressure (kPa)	350
