Mini Excavator Price

1. Machine weight: 3810kg, 0.12m³bucket capacity.

2. Kubota 18.5 kW powerful Engine

3. Full hydraulic pilot operation system.

4. Cabin and air conditioner.

5. Zero-tail swing. Two speeds. Steel track.

6. Sensitive operation and a wide range of attachments.

Contact Now E-Mail Telephone WhatsApp

Product Details

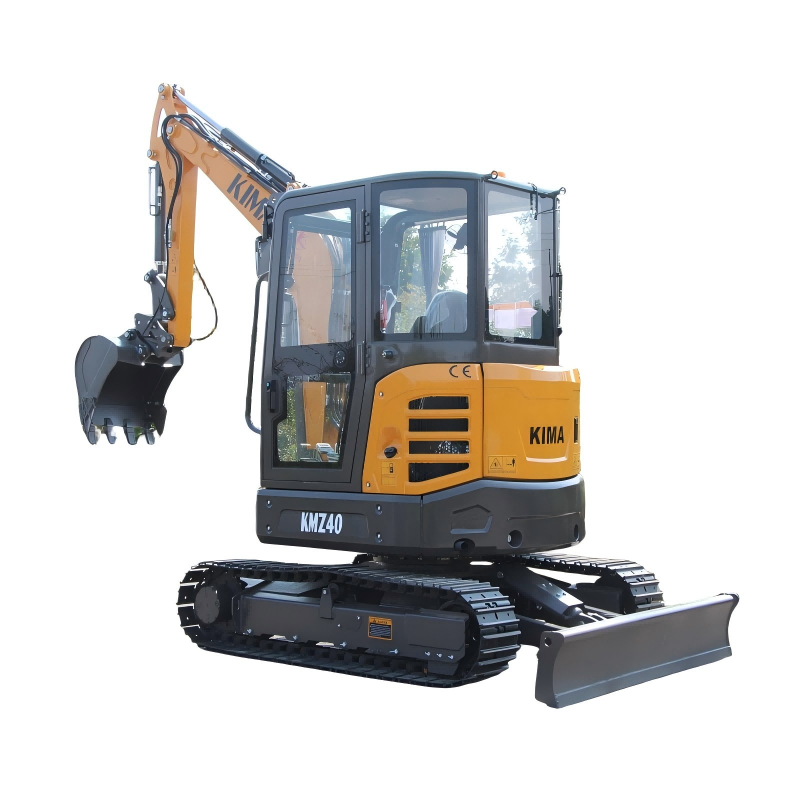

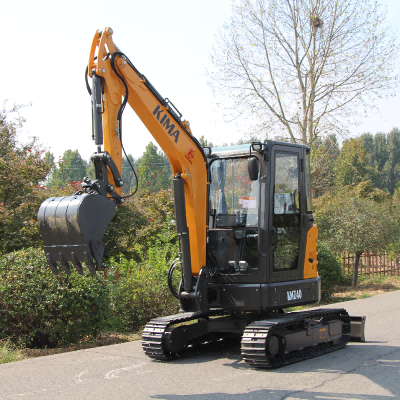

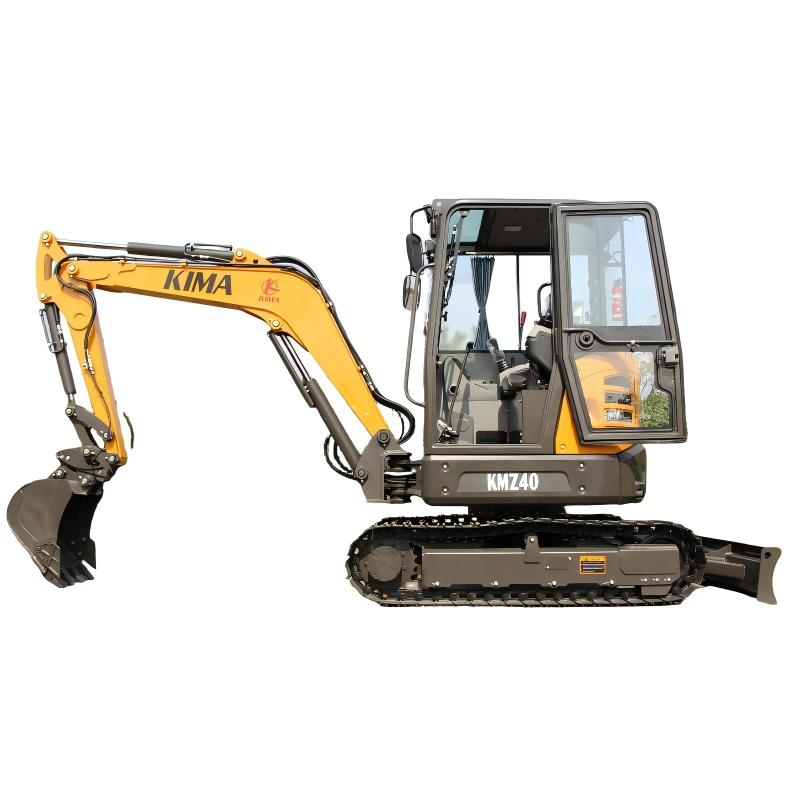

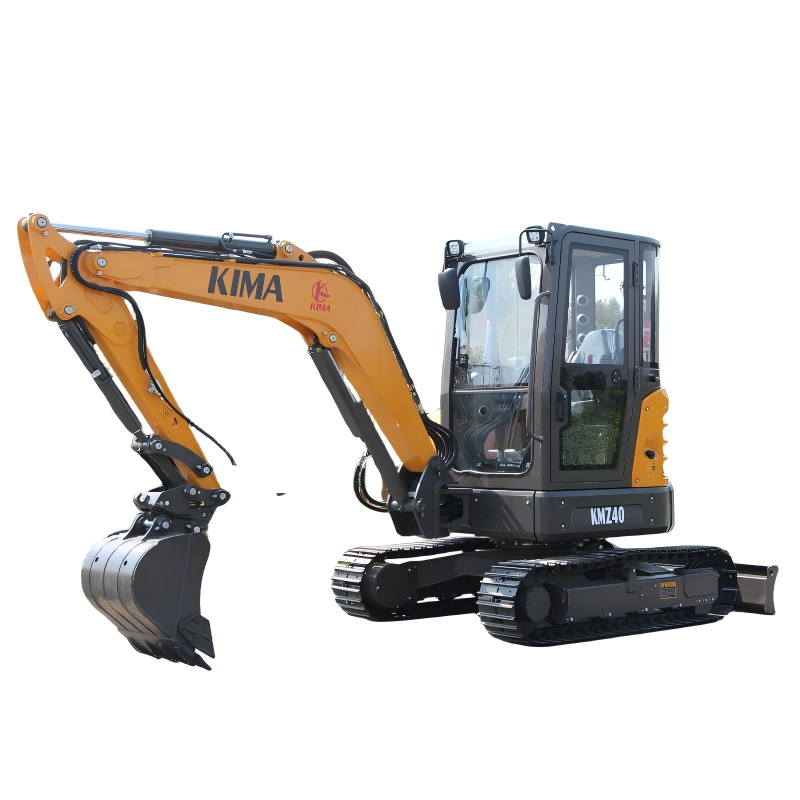

The KMZ40 is engineered to be one of the most comprehensive excavators available, defined by three key advantages:
• Unmatched Capability: Combines superior strength, versatility, and high performance for demanding tasks.
• Advanced Eco-Technology: Incorporates industry-leading features that minimize noise, lower emissions, and include an Eco Mode.
• Proven Cost Savings: Eco Mode can reduce fuel consumption by up to 20%, delivering significant operational economies.

Mini Excavator Price

Product advantages

Comfortable working environment

Engineered for long-term reliability, the robust cab provides a comfortable and secure environment. It includes a durable seat with armrests, a dependable ventilation and AC system, and an efficient heater, all working in concert to support the operator's well-being and safety.

Complete hydraulic pilot

Through its precise management of hydraulic pressure, flow, and direction, the pilot control system ensures reliable and pinpoint control. This high level of accuracy is fundamental to the machine's consistent performance.

Spacious flat foot space

Deluxe interior with spacious flat foot space to enhance comfort with more leg room for the operator.

LED dashboard

The LED dashboard can be used for a multi-functional display, which is convenient for oil level monitoring, fault checking, and work statistics. It improves the intelligence of the excavator and makes the work more stable, reliable, and efficient.

Track

Customers are offered a choice between two track types. The standard steel track is ideal for applications where wear resistance is paramount. For operations requiring low noise, maximum durability, and flexibility across various surfaces, the optional rubber track is the optimal solution.

Openable windshield

Not only can it be ventilated, but it also allows the operator to have a wider field of vision. Additionally, it can serve as an emergency escape hatch.

Tailless structure

This flexible control system unlocks superior agility, enabling the excavator to tackle both small sites and complex landscapes. It operates efficiently in the tightest quarters, making it renowned for its exceptional maneuverability.

Proportional solenoid valve joysticks

Available as an option, the proportional valve joystick supports a broader array of attachments and delivers more accurate, flexible control over their movements.

Product parameters

		Cabin
Bucket capacity		m³	0.12
Standard bucket width		mm	570
Machine weight		kg	3810
Dimensions	Overall length	mm	4915
	Overall height	mm	2525
	Overall width	mm	1720
	Ground clearance	mm	295
Engine	Brand	Kubota
	Model	D1703
	Output	kW	18.2
Working ranges	Max.digging height	mm	4800
	Max.dumping height	mm	3406
	Max.digging depth	mm	3208
	Max.digging radius	mm	5480
	Min.swing radius	mm	2530
	Deflection angle (left/right)	。	55/65
	Swing radius at tail	mm	860
	Swing radius at front	mm	2530
	Max digging force (arm)	kN	18.2
	Max digging force (bucket)	kN	30.4
Track	Type		Rubber track
	Track grounding length	mm	1670
	Track length	mm	2154
	Track gauge	mm	1420
Dozer size	Height	mm	350
	Maximum lifting height	mm	365
	Maximum cutting depth	mm	385
Traveling speed		km/h	2.4/4.4
Gradeability		deg	58%/30°
Swing speed		r/min	12
Ground pressure		kPa	32
Hydraulic pressure		MPa	22.5
Fuel tank capacity		L	40
Hydraulic oil tank capacity		L	44
