Best Small Wheel Loader

1. Total weight: 1.46 tons, with a maximum load capacity of 800 kg.

2. Uses a pure electric propulsion system, ensuring zero emissions and eco-friendly performance.

3. Standard 60V voltage configuration paired with a 150Ah large-capacity lithium battery.

4. Features a robust, long-life battery module requiring no routine maintenance.

5. Outfitted with 23×8.5-12 tires, ensuring smooth and balanced operation.

6. Driven by a 2,500-watt AC motor delivering reliable power and efficiency.

7. Incorporates four-wheel drive and 45-degree steering for enhanced agility and control on uneven surfaces.

Contact Now E-Mail Telephone WhatsApp

Product Details

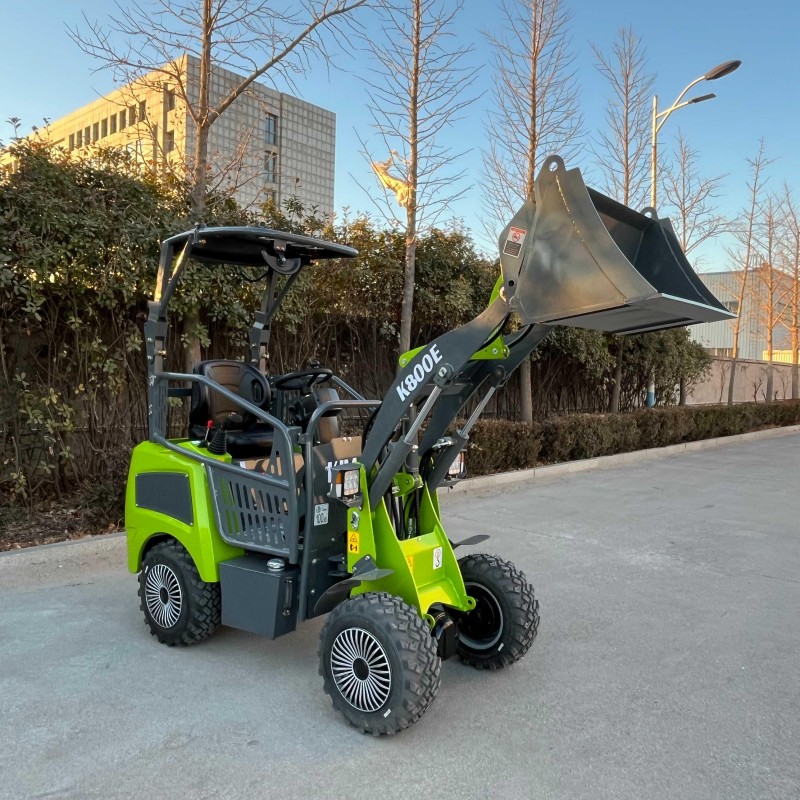

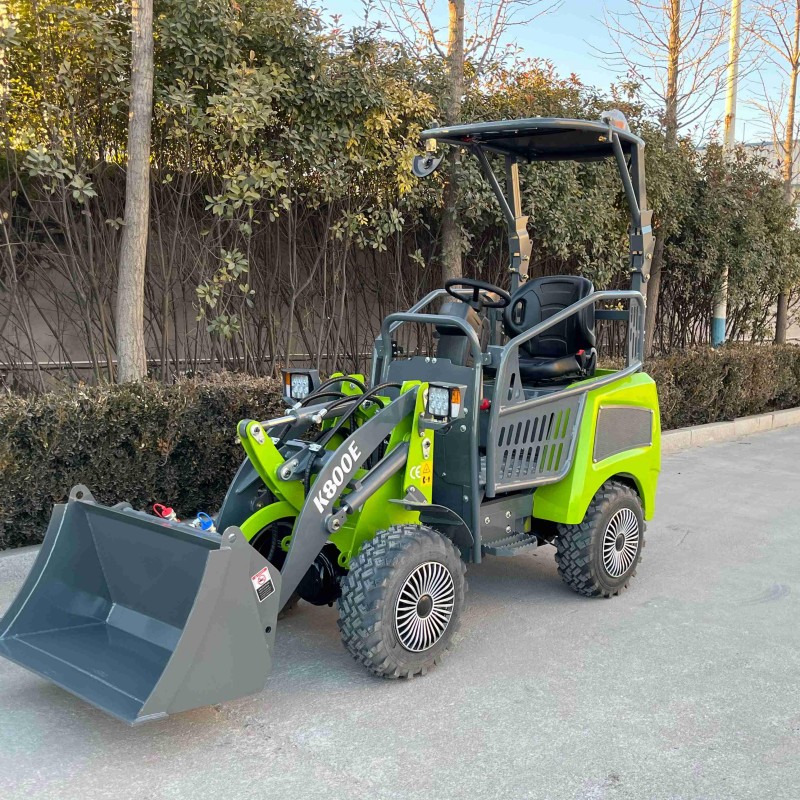

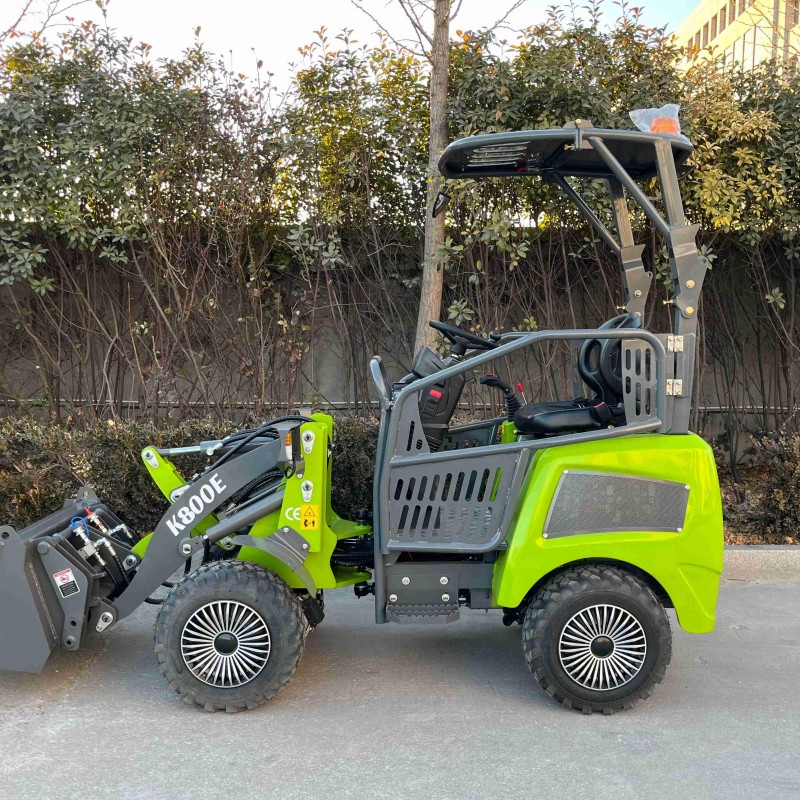

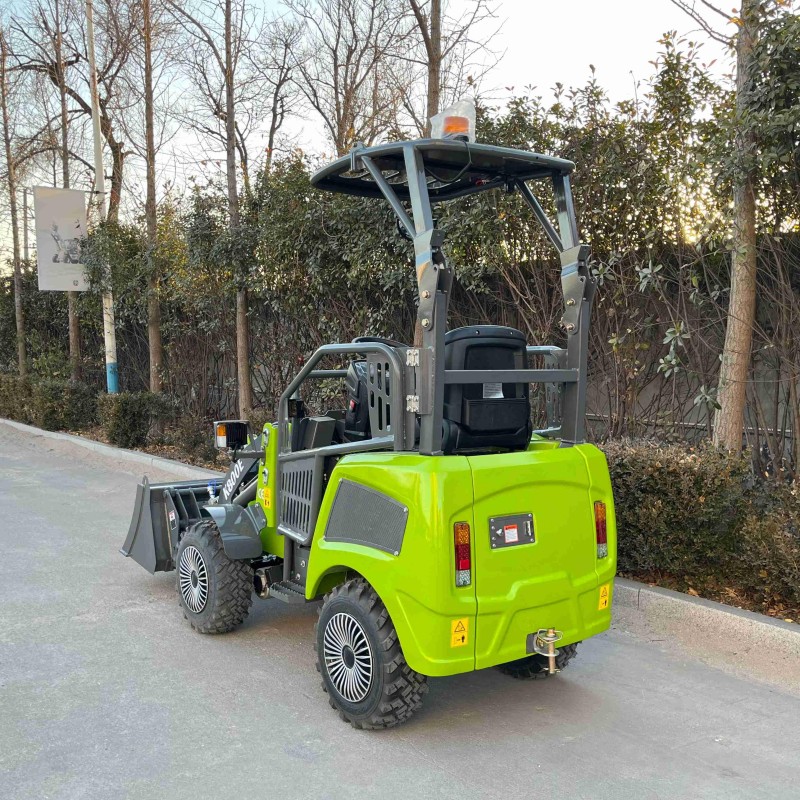

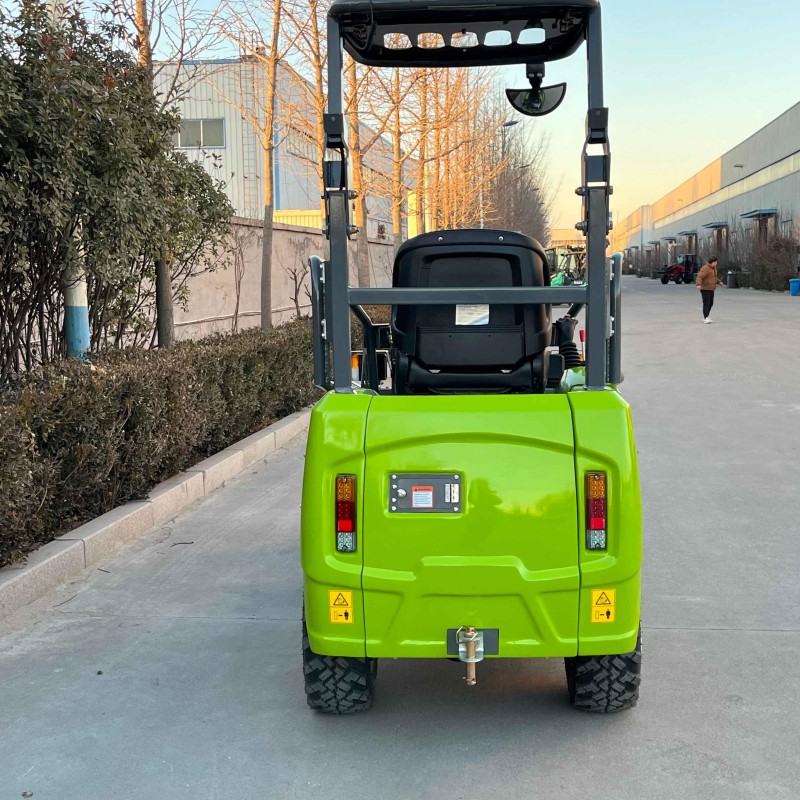

KIMA's new-generation K800E electric wheel loader delivers fast power response, precise handling, and excellent efficiency. Despite its compact size, it provides strong performance in tight locations such as urban job sites, warehouses, ports, and other space-limited operations.

Small Wheel Loader For Sale

Product advantages

Eco-friendly performance

With a fully electric system, the K800E produces zero emissions and eliminates exhaust pollution, aligning perfectly with today’s focus on green energy and carbon reduction.

Quiet and comfortable

The advanced electric motor design ensures low operating noise, minimizing disturbance on-site and creating a more comfortable working environment for the operator.

Reduced operating costs

Electric power is generally more stable and economical than fuel. The simplified structure of the electric drive requires less servicing — no need for oil or filter changes — effectively cutting maintenance expenses.

Highly responsive operation

Thanks to its instant torque and smooth control, the K800E reacts quickly to commands and easily handles varied, demanding working conditions.

Versatile attachment options

Transform the loader into a multi-functional tool carrier with a broad range of attachments designed for different applications.

Product parameters

DIMENSIONS
Max. Lifting Height	1798 mm
Max. Dumping Height	1217 mm
Max. Dumping Reach	593 mm
Dumping Angle	43°
Overall Length	3052 mm
Overall Width	1052 mm
Overall Height	2239 mm
Wheel Base	1425 mm
Min. Ground Clearance	198 mm
Max. Turning Radius	2982 mm
Max. Turning angle	45°
PERFORMANCE
Max. Speed	15 km/h
Max. Lifting Weight	800 kg
Max. Excavation Force	10 KN
Max. Grade Ability	25°
Net Weight	1460 kg
Battery Type	6 - EVEJ - 150
Battery Capacity	150 Ah
Voltage	60 V
No. of Batteries	5
Working Hours	4 - 5 h
Charging Hours	8 h
Motor Type	IM150802S
Power	2500 W
Operating Pressure	20Mpa
Flow Rate	1580kg
Type	23*8.5 - 12
Tank Capacity	15.2L
Service Brake	Drum Brake
Parking Brake	Drum Brake
Bucket Capacity	0.15 m³
