Compact Electric Wheel Loader for Landscaping

Net machine mass reaches 1,460 kg, offering dependable balance during daily loading operations.
Built with an eco-friendly electric powertrain that works quietly without producing exhaust gases.
Incorporates a 60V electrical platform matched with a 150Ah lithium battery for stable energy output.
The long-life battery system requires minimal routine servicing, helping reduce maintenance expenses.
Heavy-duty 23×8.5-12 pneumatic tires provide excellent grip and confident travel across different ground conditions.
A 2.5 kW alternating-current motor delivers responsive torque for efficient loading and transport tasks.
Four-wheel drive and a 45° articulated steering angle ensure flexible handling in narrow workspaces.

Contact Now E-Mail WhatsApp WhatsApp

Product Details

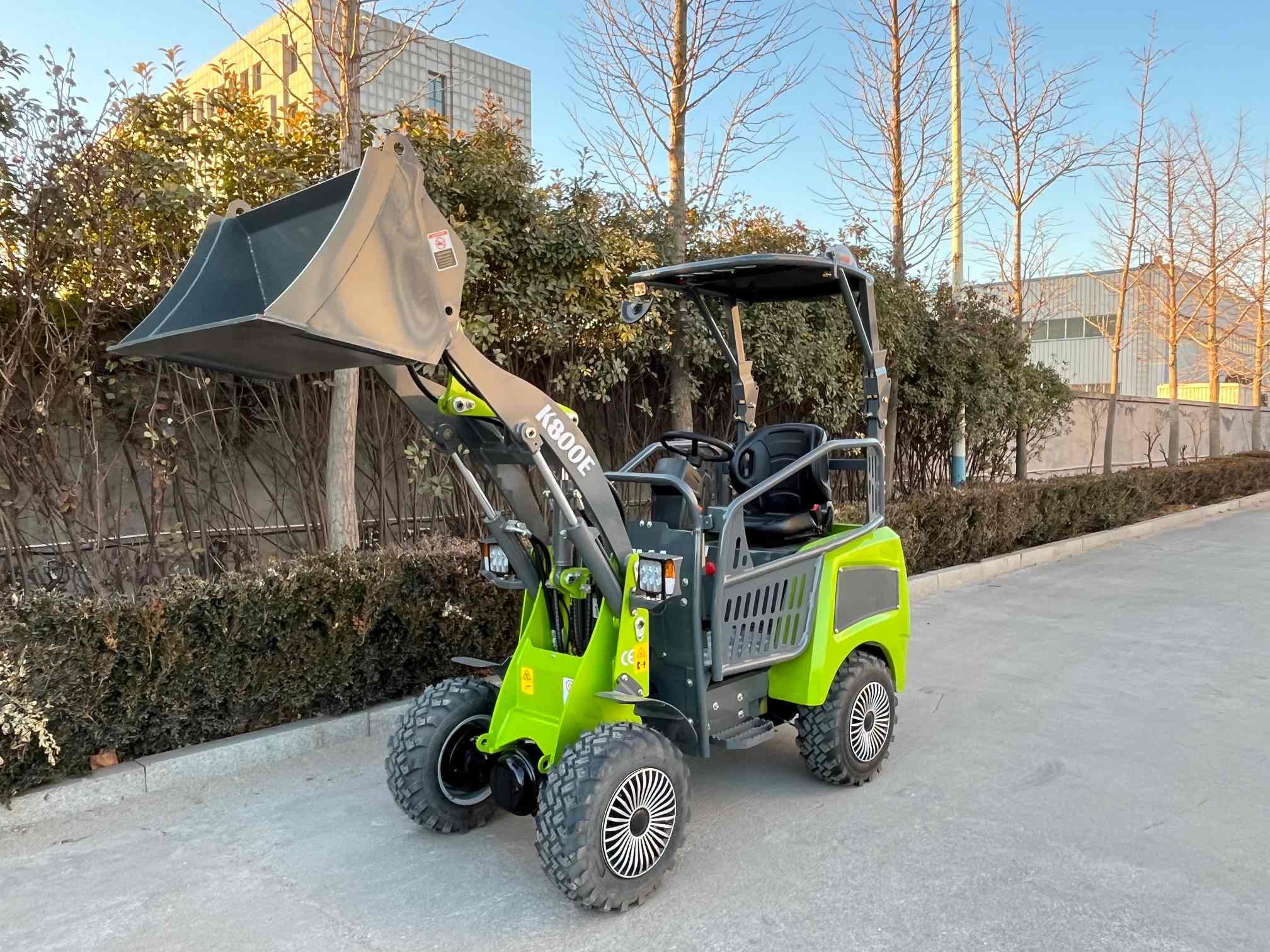

Engineered for efficient material handling, the K800E electric wheel loader offers stable power delivery, flexible operation, and reliable performance. Its compact structure makes it an excellent choice for industrial facilities, agricultural applications, distribution yards, and other workplaces with limited operating space.


Product Advantages

Clean Energy Solution

Powered entirely by electricity, the K800E operates without producing harmful exhaust gases. It supports environmentally responsible working practices while helping businesses meet increasingly strict environmental regulations.

Comfortable Working Experience

The electric powertrain delivers smooth and quiet operation, creating a more pleasant workplace by lowering noise levels for both operators and people nearby.

Lower Ownership Expenses

Compared with fuel-powered equipment, the K800E benefits from predictable electricity costs and a simplified drivetrain. Fewer wearable components mean less routine servicing and reduced long-term operating expenses.

Excellent Maneuverability

Instant electric power delivery and accurate hydraulic coordination allow the loader to react quickly during operation. This improves handling efficiency when working in confined or demanding job environments.

Multi-Application Capability

A variety of compatible work tools can be installed on the K800E, allowing one machine to perform different loading, lifting, cleaning, and material-handling tasks across multiple industries.

Product parameters

DIMENSIONS
Max. Lifting Height	1798 mm
Max. Dumping Height	1217 mm
Max. Dumping Reach	593 mm
Dumping Angle	43°
Overall Length	3052 mm
Overall Width	1052 mm
Overall Height	2239 mm
Wheel Base	1425 mm
Min. Ground Clearance	198 mm
Max. Turning Radius	2982 mm
Max. Turning angle	45°
PERFORMANCE
Max. Speed	15 km/h
Max. Lifting Weight	800 kg
Max. Excavation Force	10 KN
Max. Grade Ability	25°
Net Weight	1460 kg
Battery Type	6 - EVEJ - 150
Battery Capacity	150 Ah
Voltage	60 V
No. of Batteries	5
Working Hours	4 - 5 h
Charging Hours	8 h
Motor Type	IM150802S
Power	2500 W
Operating Pressure	20Mpa
Flow Rate	1580kg
Type	23*8.5 - 12
Tank Capacity	15.2L
Service Brake	Drum Brake
Parking Brake	Drum Brake
Bucket Capacity	0.15 m³
