1000kg Mini Digger
1. Compact Design
960 kg lightweight structure with 2876×880×2220 mm dimensions, ideal for narrow spaces.
2. Reliable Engine
KOOP KD192F-1 engine with 7.0 kW power for efficient operation.
3. Strong Digging Capability
Max. digging depth 1715 mm and radius 3065 mm for versatile applications.
4. Efficient Bucket
400 mm bucket with 0.022 m³ capacity for small-scale excavation work.
5. Durable Tracks
180 mm rubber tracks provide stability and smooth movement.
6. Stable Undercarriage
Strong structure ensures reliable performance on different terrains.

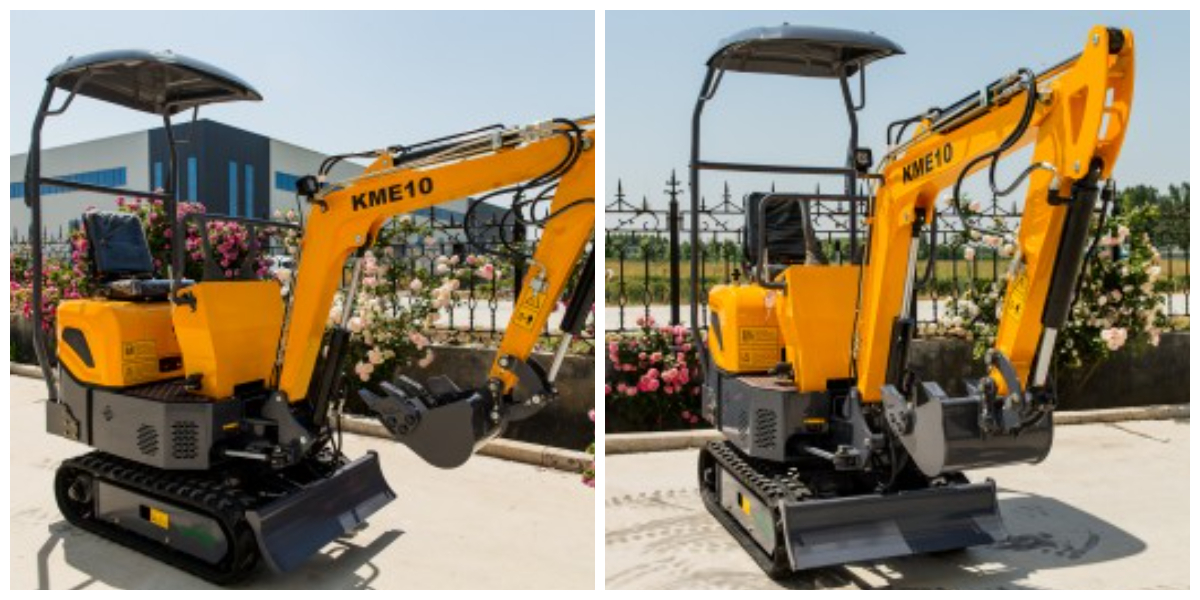

The KIMA KME10 mini excavator is a well- proven compact machine built to deliver solid flexibility and reliable performance. Thanks to its tight overall build, short tail- swing radius and swing boom setup, it handles jobs really well in tight spaces and close-quarter work around barriers. The engine bay is simple to get into, and key service points are thoughtfully laid out. This lets operators knock out regular maintenance fast and without hassle, helping keep productivity high on site.
Product Advantages
1. Compact & Flexible Design
Its small physical size and slim width make the KME10 a practical pick for landscaping, construction work and jobs where working space is limited.
2. Engine Options
Choose between the Koop Euro 5 and Briggs & Stratton EPA4 engines. Both deliver solid horsepower output with lower fuel use, while meeting stricter emission standards for better environmental performance.
3. Flexible Swing Boom Design
The swing boom lets you dig right up against walls and other obstacles. It makes a real difference when you have limited room to move around on the job.
4. Reinforced Counterweight Structure
A heavy solid- iron counterweight keeps the machine properly balanced. You get much better stability while digging or lifting materials on site.
5. Efficient Hydraulic System
It comes with high- grade hydraulic parts. Operators will notice smooth, predictable controls and solid power for everyday working conditions.
6. Durable Hydraulic Pump
The gear pump runs at 18 L/min flow and 16 MPa pressure. It supplies consistent hydraulic power so the machine moves efficiently through all kinds of tasks.
7. Strong Digging Capability
The KME10 can dig down to 1715 mm at its deepest, with a digging radius of 3065 mm. These specs give it real digging strength for earth- moving work.
8. Durable Track & Undercarriage System
Rubber tracks plus a heavy- duty undercarriage deliver solid stability and good traction. The machine handles all sorts of different ground conditions with ease.
Product parameters
Type of cab | Canopy | ||
Bucket capacity | m3 | 0.022 | |
Bucket width, std. | mm | 400 | |
Machine weight | kg | 960 | |
Dimensions | Overall length | mm | 2876 |
Overall height | mm | 2220 | |
Overall width | mm | 880 | |
Ground clearance | mm | 132 | |
Engine | Brand | KOOP | |
Model | KD192F-1 | ||
Displacement | L | 0.499 | |
Output | kW/rpm | 7.0/3000 | |
Working ranges | Max Digging height | mm | 2600 |
Max Dumping height | mm | 1830 | |
Max digging depth | mm | 1715 | |
Max. Digging radius | mm | 3065 | |
Min .swing radius | mm | 1483 | |
Max digging force (Arm) | kN | 4.6 | |
Max digging force (Bucket） | kN | 7.2 | |
Track | Type | Rubber track | |
Rubber shoe width | mm | 180 | |
Undercarriage | Track length | mm | 1233 |
Traveling speed | km/h | 2 | |
Gradeability | deg | 58/30 | |
Swing speed | rpm | 13 | |
Ground pressure | kpa | 20 | |
Dozer size | Width | mm | 840 |
Height | mm | 240 | |
Lifting capacity (Height/Depth) | mm | 150/200 | |
Hydraulic pumps | Type | 1 Gear pump | |
Flow rate | L/min | 18 | |
Hydraulic pressure | Mpa | 16 | |
Swing motor | Cycloidr motor | ||
Travel motor | Cycloidr motor | ||
Fuel tank capacity | L | 7 | |
Hydraulic oil tank capacity | L | 14.5 | |

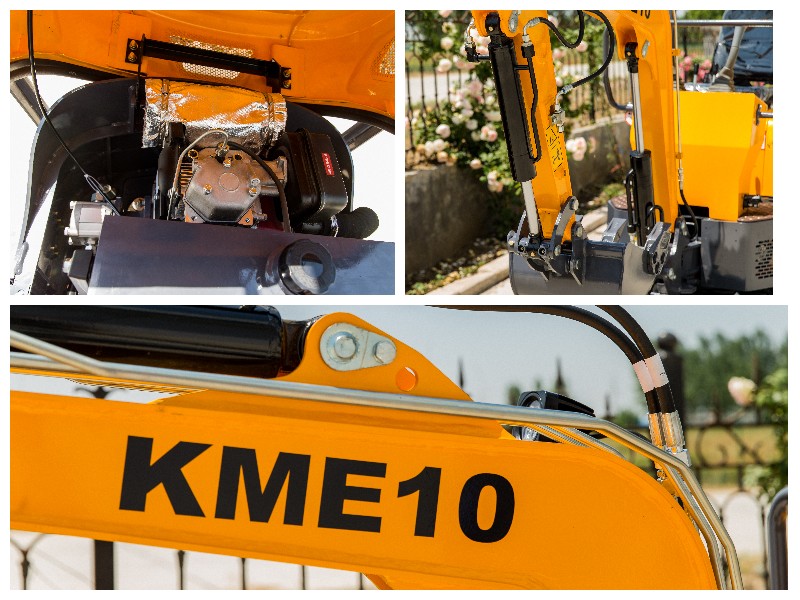

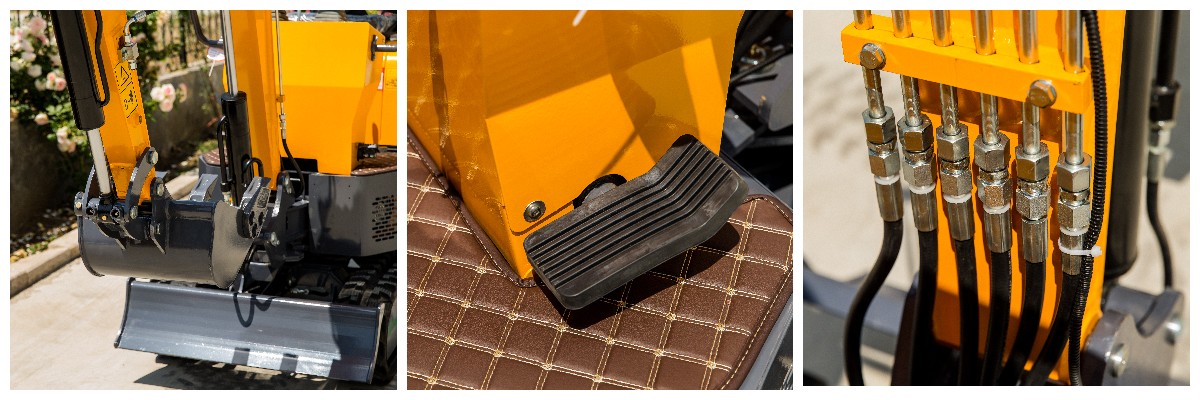

Detailed Photos

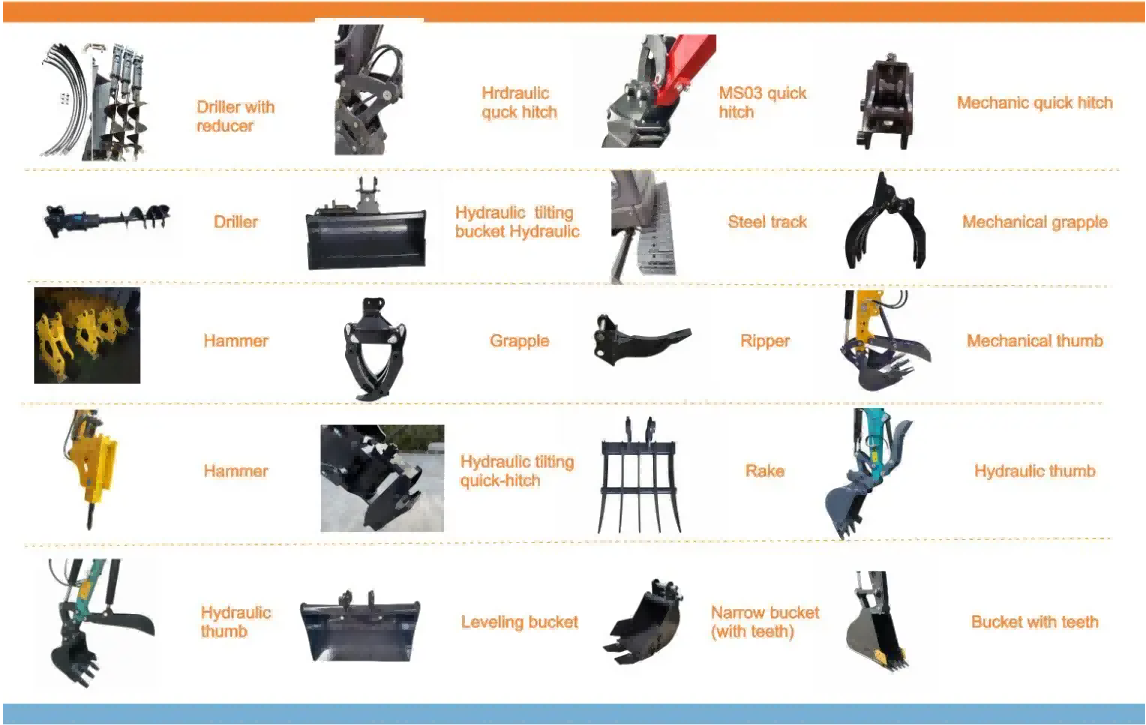

Attachments

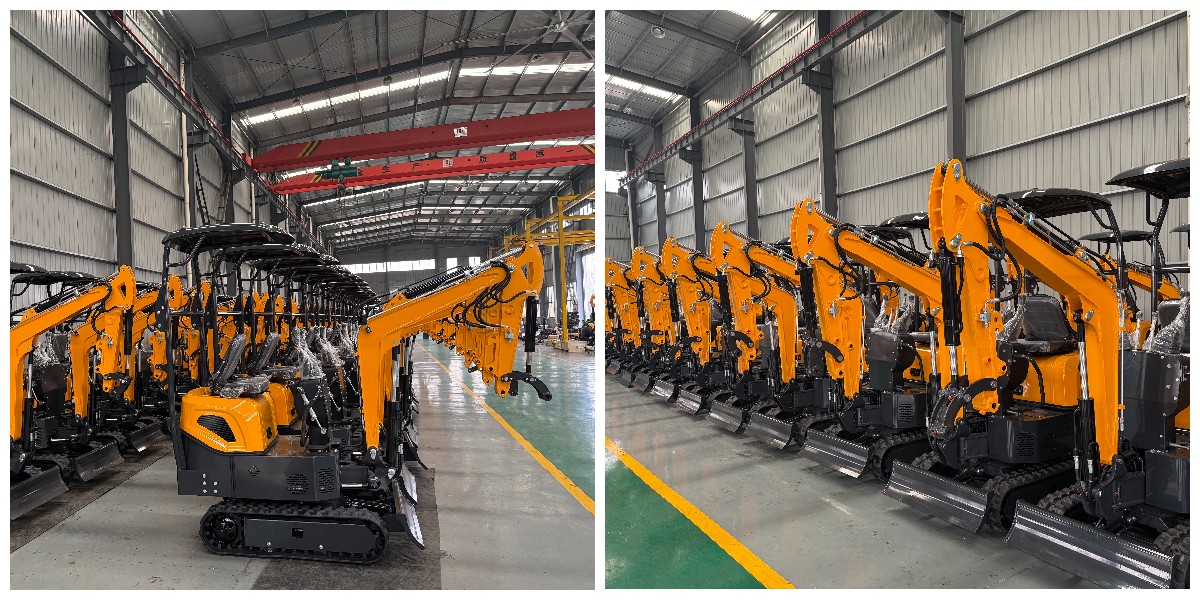

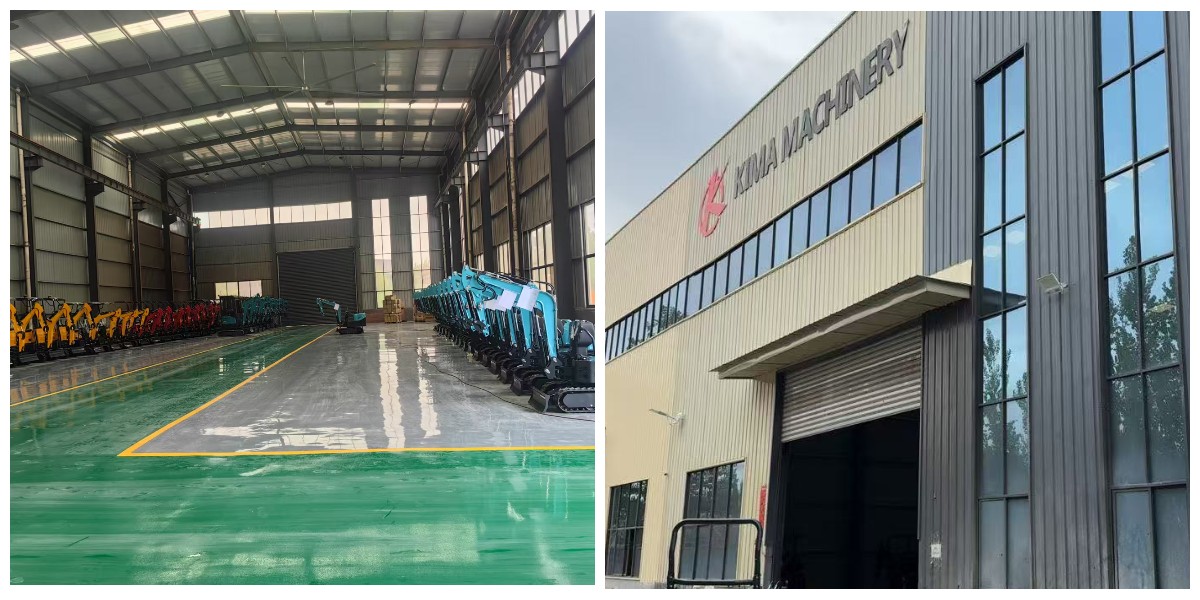

Factory
Certification
