Front Loader For Sale

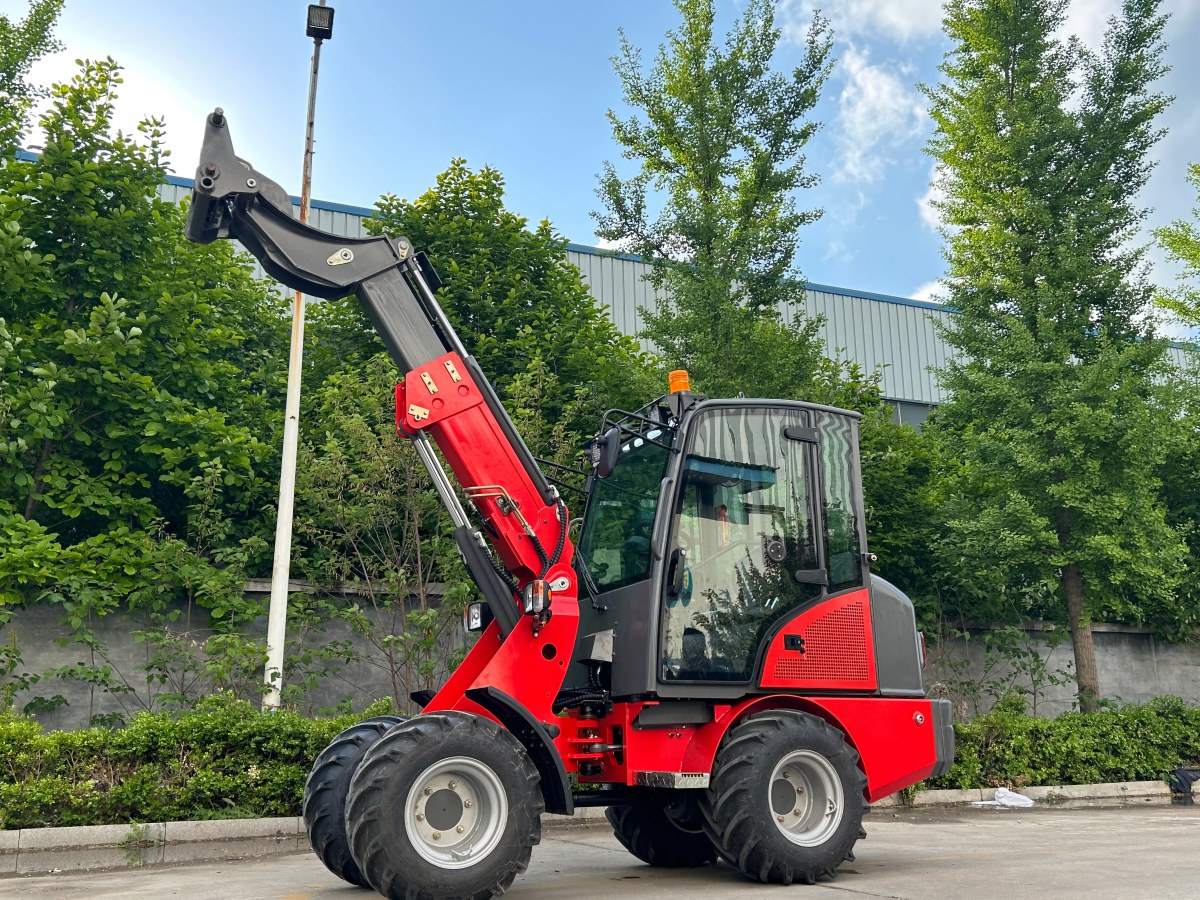

1. Practical telescopic arm
2. Italian BONDIOLI&PAVESI hydrostatic system
3. Four-way valve
4. Enlarged balance cylinder
5. Electric joystick
6. Adjustable Steering System

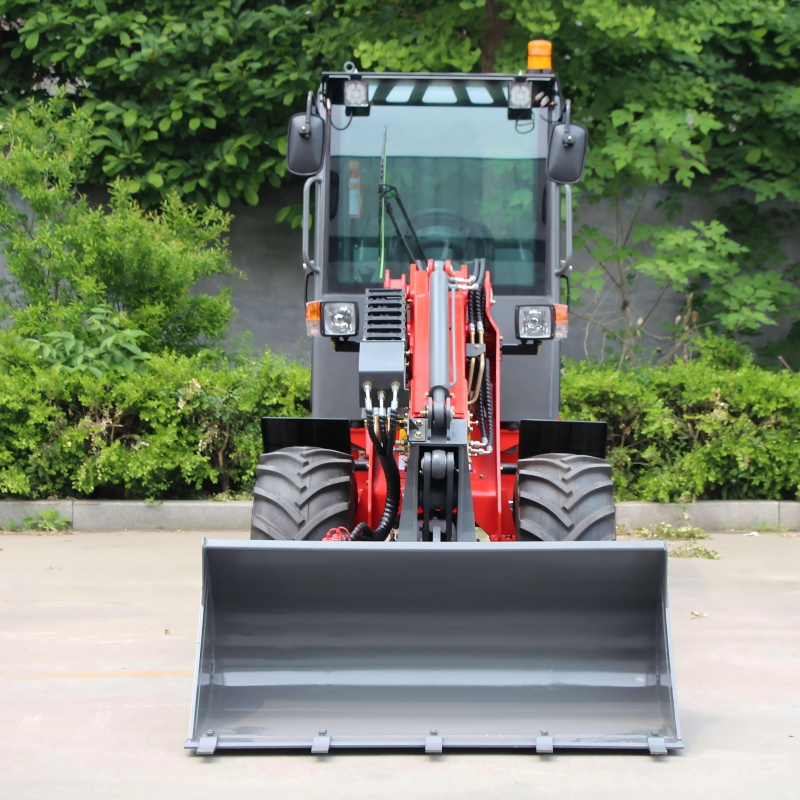

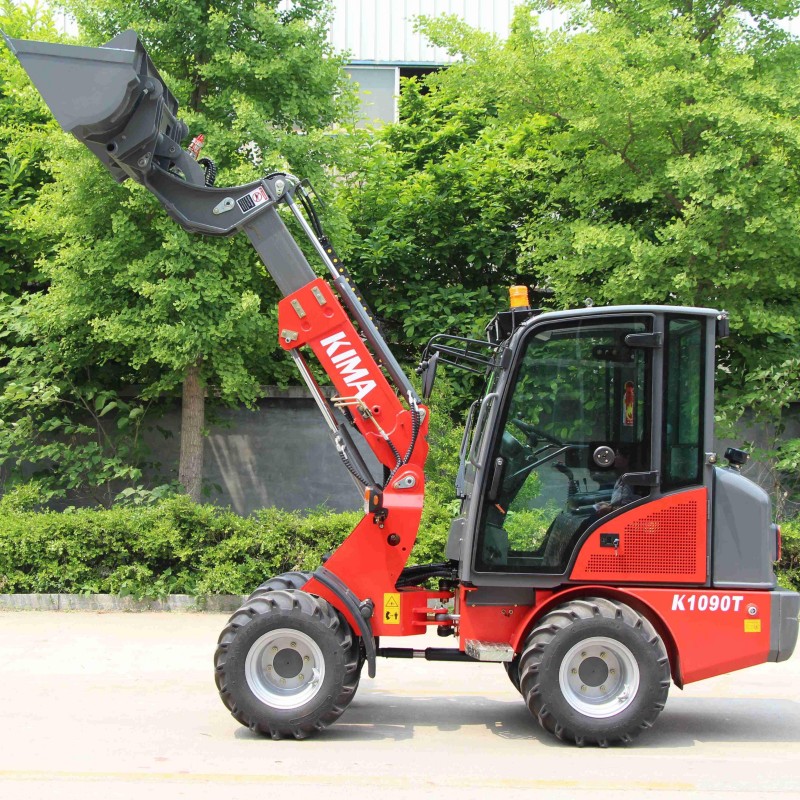

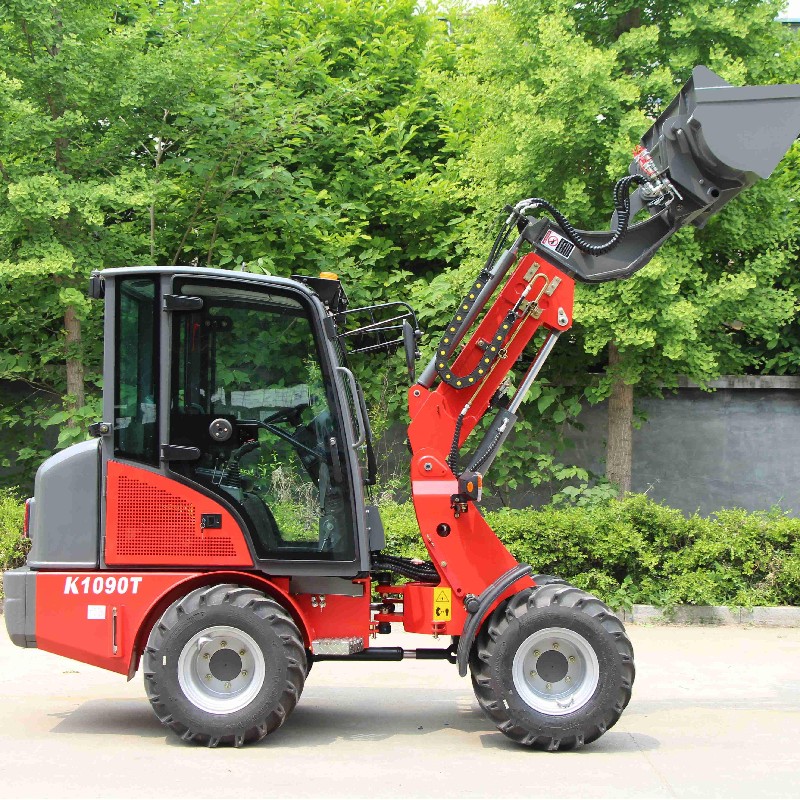

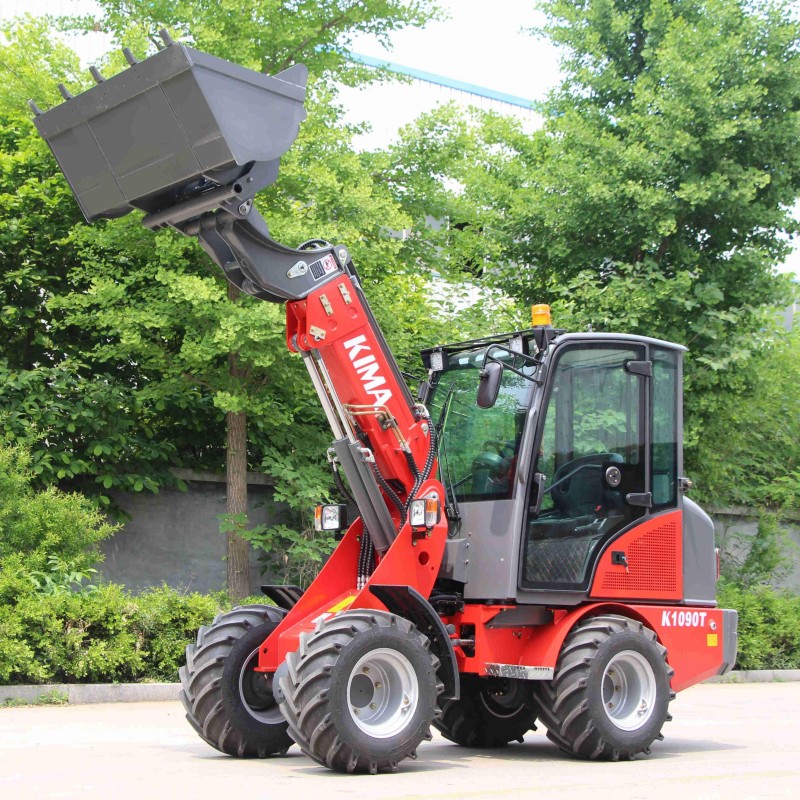

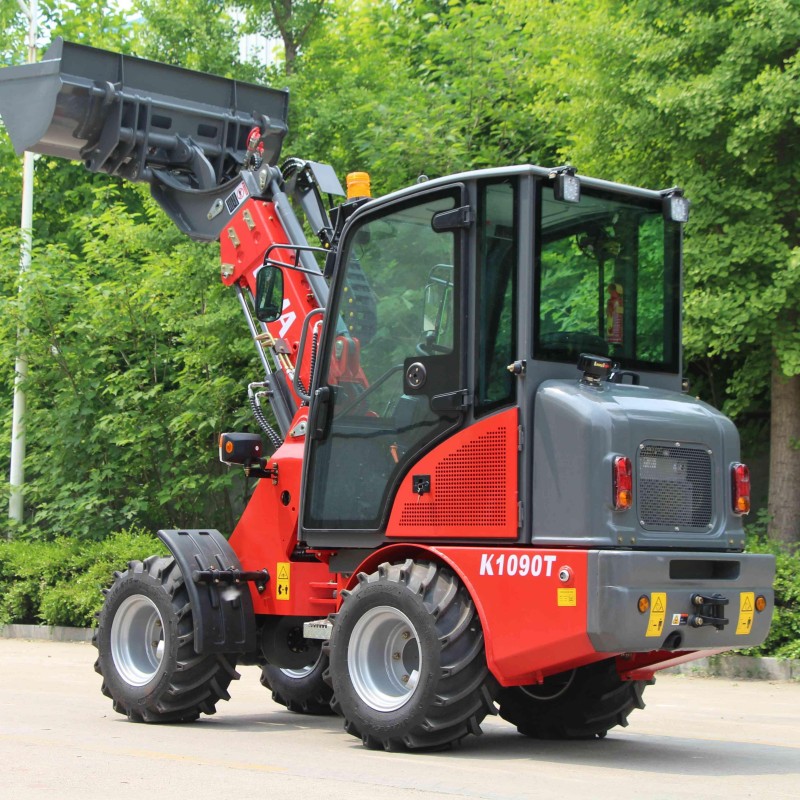

The K1090T is a high-performance telescopic boom loader engineered for exceptional reach, power, and versatility. At its heart lies a reliable and fuel-efficient Kubota diesel engine, providing the robust power needed for the most demanding tasks while ensuring lower emissions and operating costs.
Product Advantages
Kubota Euro V and EPA4 engine
For robust and dependable performance, the loader is powered by an 18.2 kW Kubota 4-cylinder engine. This power plant complies with both Euro V and EPA Tier 4 regulations, delivering exceptional power.
Advanced hydrostatic transmission system
Using Italian BONDIOLI&PAVESI's hydrostatic system to improve the stability and work efficiency of the system.
Drum brakes
The axle is fitted with drum brakes, delivering more responsive braking and superior stopping power.
Axle with differential lock
In muddy road conditions, when the wheels on one side lose grip, the differential lock will transfer driving force to the wheels on the other side with remaining grip, ensuring that the vehicle will not stall.
Flexible steering system
The loader is equipped with a flexible steering system to improve maneuverability and adapt to various working environments.
Excellent loading capacity
With an excellent load capacity of 1300kg, it can help customers complete diverse and demanding tasks.
Safety features
Taking the safety of the driver into full consideration, safety is the first factor. This loader is equipped with a seat belt, emergency stop switch, and an anti-rollover Canopy.
Durability and Long Life
The K1090T is built with high-quality materials and components to withstand heavy-duty use. Its sturdy frame enhances the loader's endurance and service life.
Humanized cab design
The operator benefits from a cabin/canopy designed for comfort and low fatigue, ensuring a better working environment and sustained productivity.
High-strength structural design
The use of high-strength materials results in a solid body framework, which boosts the equipment’s durability and ensures long-term reliability.
Specification
Performance | Rated loading (kg) | 1300 |
Maximum loading (kg) | 1500 | |
Overall weight (kg) | 2760 | |
Rated bucket capacity (CBM) | 0.38 | |
Maximum tractive force (kN) | 17 | |
Maximum breakout force (kN) | 20 | |
Maximum grade ability (°) | 20 | |
Maximum dump height of main boom (mm) | 2080 | |
Maximum dump reach of main boom (mm) | 897 | |
Maximum dump height of small boom (mm) | 2400 | |
Maximum dump reach of small boom (mm) | 1227 | |
Overall dimension (L×W×H) (mm) | 4324*1570*2369 | |
Minimum turning radius (outside of wheels) (mm) | 2948 | |
Maximum steering angle | 40° | |
Oscillation angle | 8° | |
Engine | Model | KUBOTA V1505 |
Type | lnline water cooled, four stroke | |
No. of cylinder-bore/stroke (mm) | 4—78×78.4 | |
Displacement (L) | 1.813 | |
Rated power (kW) | 18.2 | |
Idel speed (r/min) | 1100-1200 | |
Rated speed (r/min) | 2300 | |
Maximum torque (N.m @speed r/min) | 92.6@1700 | |
Transmission | Driving pump type | Closed piston pump |
Driving motor type | Piston | |
Gear shift | 2,Electric, Stepless | |
Speeds | 7/18km/h | |
Drive axles | Main reducing mode | Bevel gear grade l reduction |
Base (mm) | 1630 | |
Wheel tread (mm) | 955 | |
Ground clearance (mm) | 260 | |
Hydraulic | System working pressure (Mpa) | 18 |
Boom lifting time (s) | 3 | |
Total time (s) | 7.4 | |
Fuel tank capacity (L) | 40 | |
Function of leveling automatically | yes | |
Brake system | Service brake | Drum brake |
Parking brake | Manual drum brake | |
Tyre | Type specification | 31*15.5-15 |
Front tyre pressure (kPa) | 310 | |
Rear tyre pressure (kPa) | 310 |

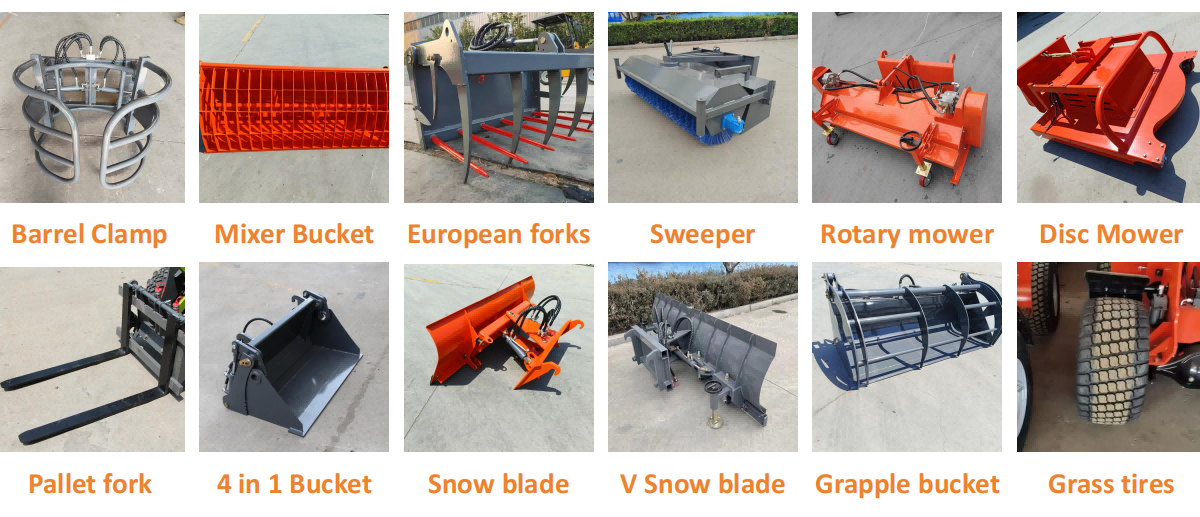

Attachments display

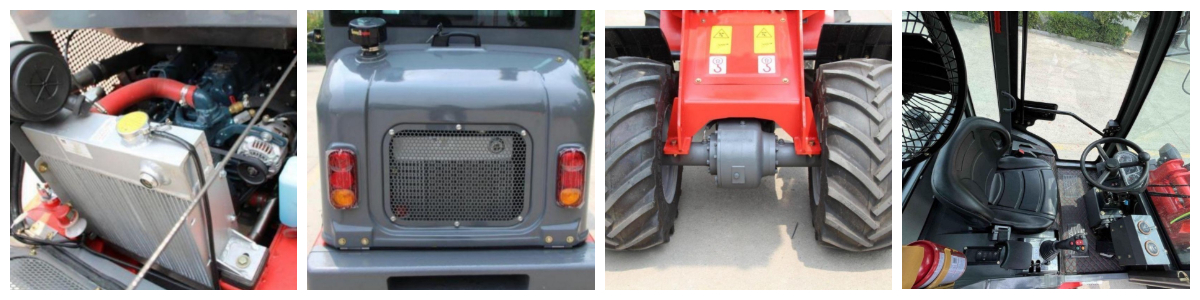

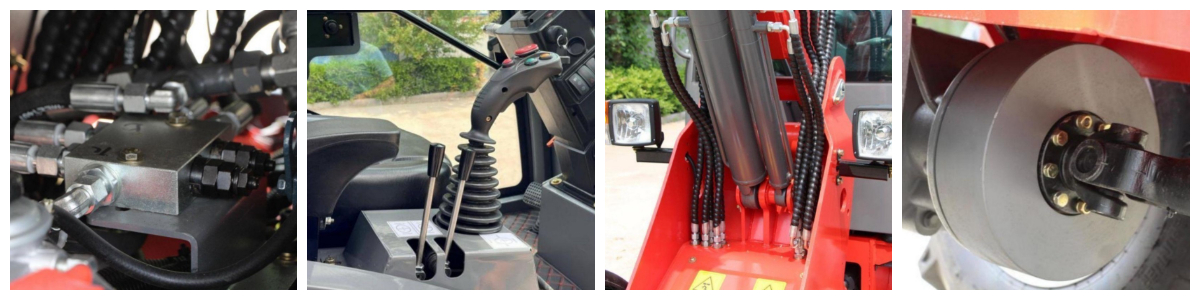

Details picture

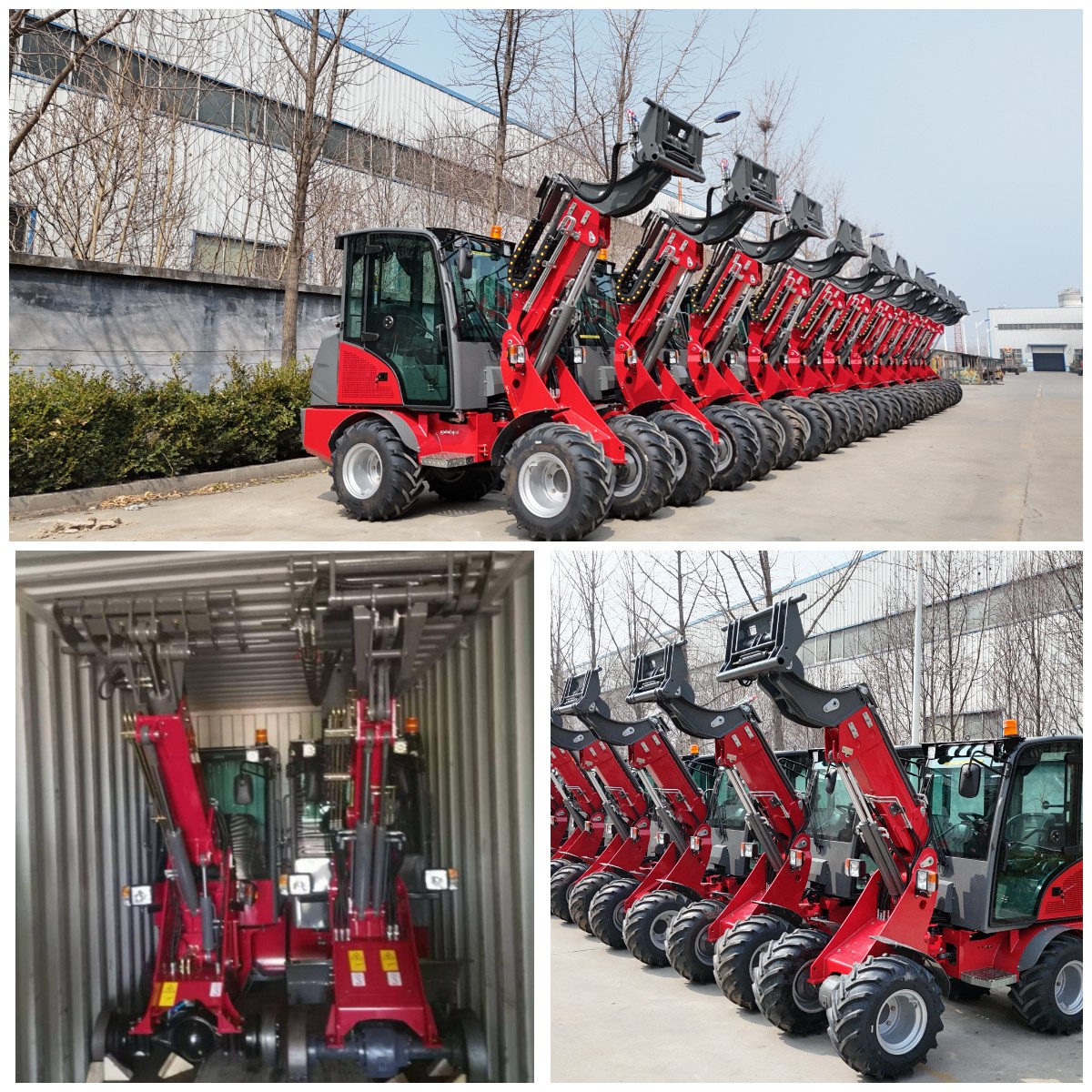

Delivery pictures
Factory
Bauma Germany Exhibition
Qualification
