Micro Digger for Sale

1. Kubota D722 engine (10.2 kW/2500 rpm).

2. Compact and agile: measuring 2965 × 750–990 mm with a zero-tail layout and 55° boom swing.

3. Equipped with a cast-iron counterweight, adjustable crawler width.

4. Maintenance-friendly.

5. Finished with anti-corrosive powder coating, fitted with a Shimadzu hydraulic pump.

Contact Now E-Mail Telephone WhatsApp

Product Details

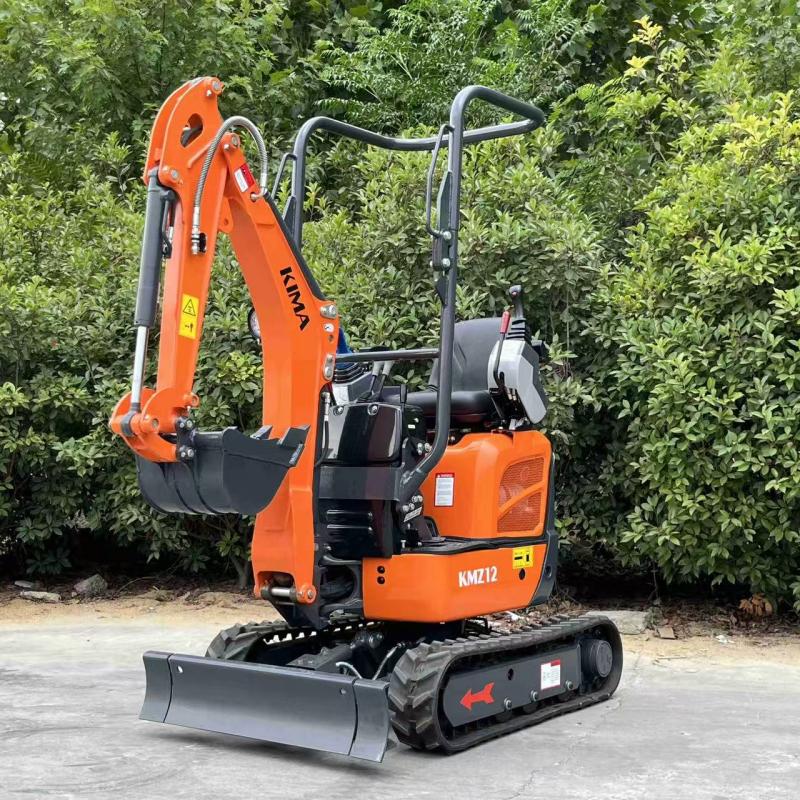

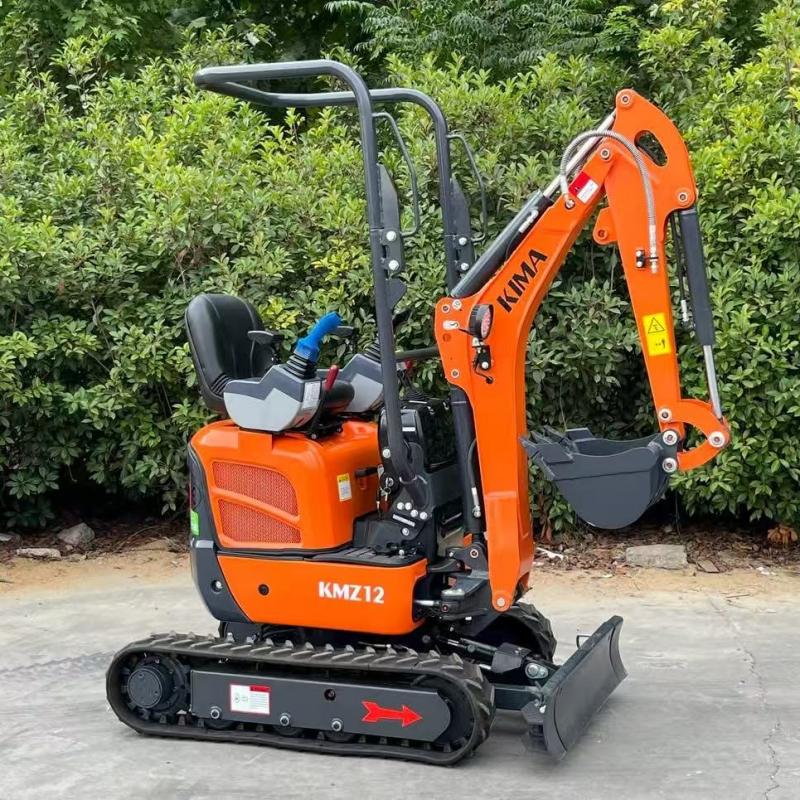

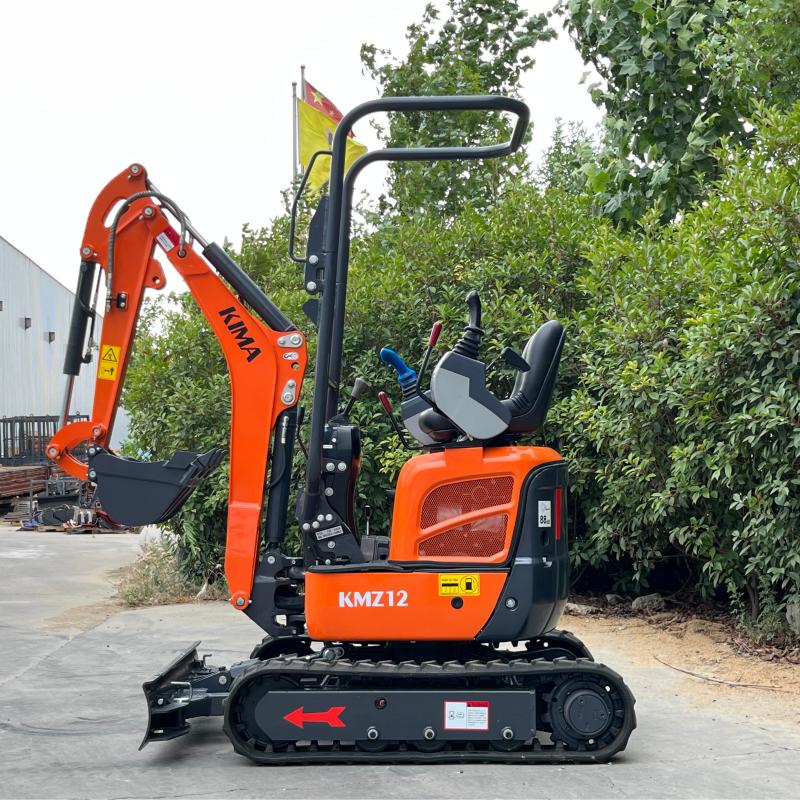

The KMZ12 excavator features a highly compact, zero-tail design, allowing it to operate safely and efficiently in confined or restricted areas without risk of collision or damage. Powered by a reliable Japanese Kubota D722 engine and equipped with a responsive hydraulic joystick, it ensures smooth control and enhanced work efficiency across various job environments.

Micro Digger for Sale

Product advantages

Premium Hydraulic Pump
Equipped with a Japanese Shimadzu pump, this machine delivers powerful, efficient, and consistent hydraulic performance for maximum productivity.

Compact Tailless Structure
The zero-tail design enhances flexibility and safety, making it ideal for daily operations in confined or narrow workspaces.

Dual Speed Modes
High speed boosts efficiency and reduces operation time, while low speed increases traction and power output, ensuring stability and safety on the job.

Durable Powder Coating
Advanced powder coating offers superior corrosion resistance and extends the machine’s lifespan, providing a more durable and eco-friendly finish compared to conventional paint.

Convenient Maintenance
A fully opening upper hood allows quick and easy access for regular inspection and servicing.

Multiple Attachment Options
Transform your KIMA into a multi-functional machine with a wide range of compatible attachments for different working needs.

Product parameters

Type of cab			Canopy
Bucket capacity			m3	0.024
Bucket width, std.			mm	398
Machine weight			kg	1200
Dimensions	Overall length		mm	2965
	Overall height		mm	2230
	Overall width		mm	750/990
	Ground clearance		mm	140
Engine	Brand		Kubota
	Model		D722
	Displacement		CC	719
	Output		kW/rpm	10.2/2500
Working ranges	Max Digging height		mm	3079
	Max Dumping height		mm	2225
	Max digging depth		mm	1805
	Max. Digging radius		mm	3390
	Min .swing radius		mm	1273
	Max digging force (Arm)		kN	5.4
	Max digging force (Bucket）		kN	10.4
Track	Type			Rubber track
	Rubber shoe width		mm	180
Undercarriage	Track length		mm	1310
	Traveling speed		km/h	4
	Gradeability		deg	58/30
Swing speed			rpm	8.3
Boom swing angle (left / right)			deg	55/55
Ground pressure			kpa	29
Dozer size	Width		mm	750/990
	Height		mm	200
	Lifting capacity (Height/Depth)		mm	215/190
Hydraulic pumps	Type			Gear pump
	P1	Flow rate		L/min	21
		Hydraulic pressure		Mpa	17.2
	P2	Flow rate		L/min	3.1
		Hydraulic pressure		Mpa	3.9
Swing motor				Plunger motor
Travel motor				Plunger motor
Fuel tank capacity			L	12
Hydraulic oil tank capacity			L	12.6

Attachments display


Bucket with teeth	Driller with reducer	MS03 quick hitch

Mechanic quick hitch	Steel track	Rake

Hydraulic quick hitch	Hydraulic tilt quick hitch	Hydraulic thumb

Mechanical thum	Hydraulic tilting bucket	Leveling bucket

Narrow bucket	Mechanical grapple	Driller

Grapple	Ripper	Hammer
