High Power Wheel Loader

1. Machine weight: 2650 kg, Lifting capacity: 1300 kg

2. Powered by Kubota Euro V / EPA4 engine

3. Fitted with 31*15.50-15 tires

4. Axle equipped with a differential lock for better traction

5. Hydraulic quick coupler for efficient attachment changes

6. Italian hydrostatic transmission system for stable performance

7. Upgraded balance cylinder for enhanced working stability

Contact Now E-Mail Telephone WhatsApp

Product Details

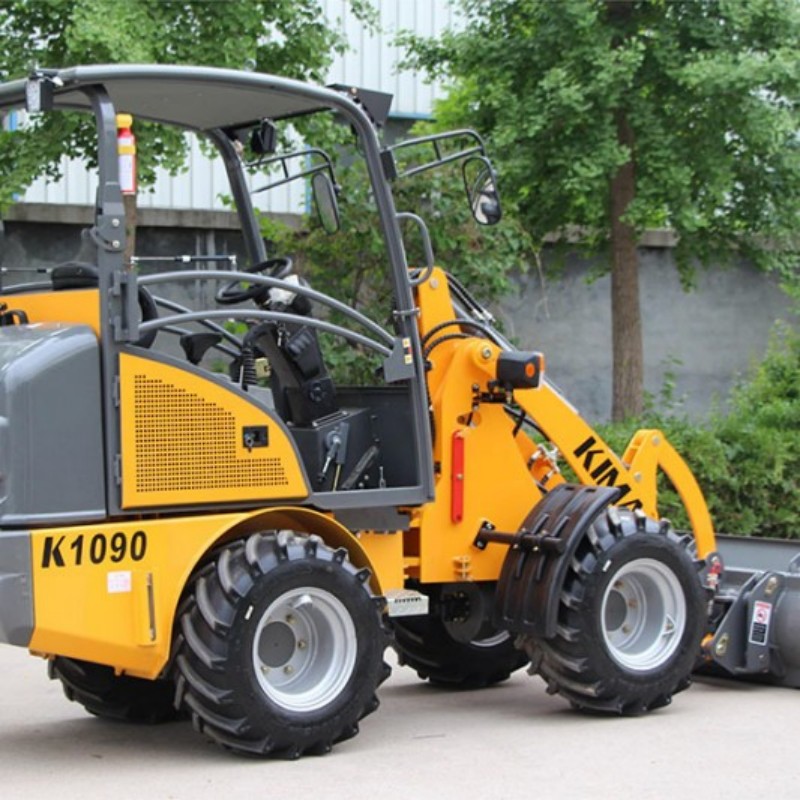

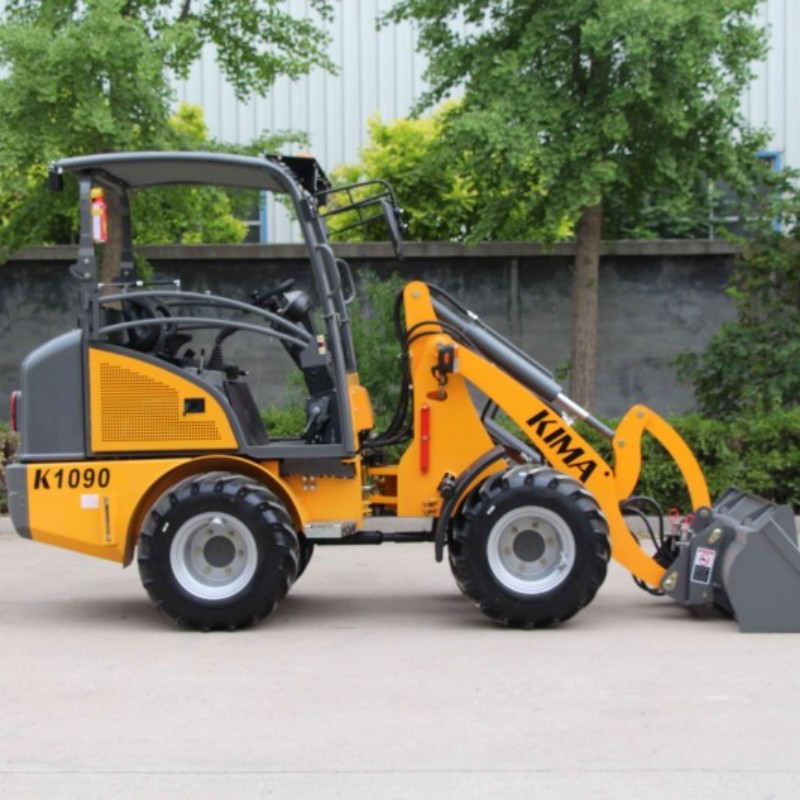

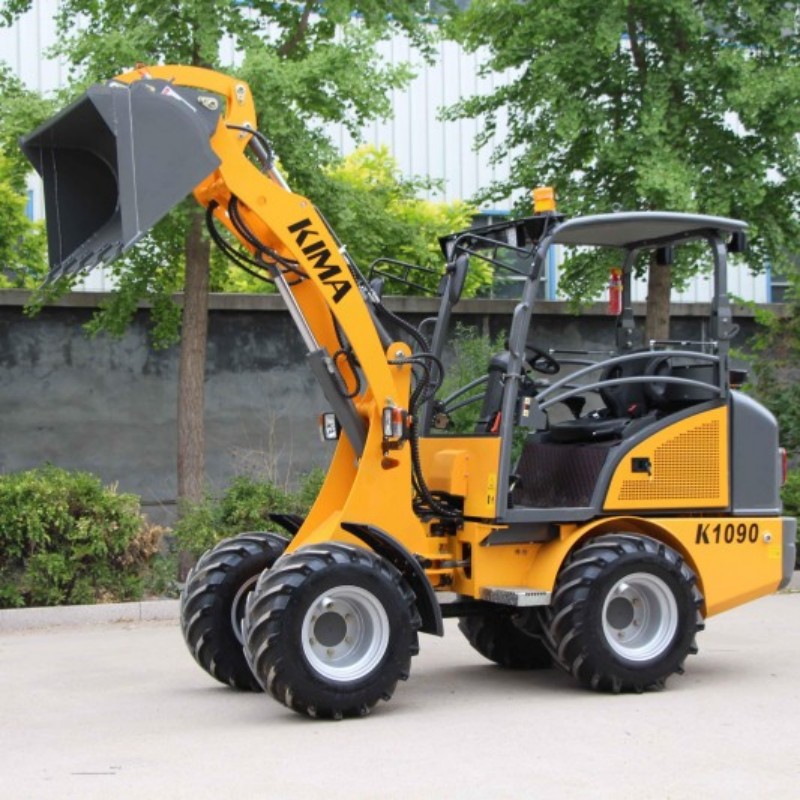

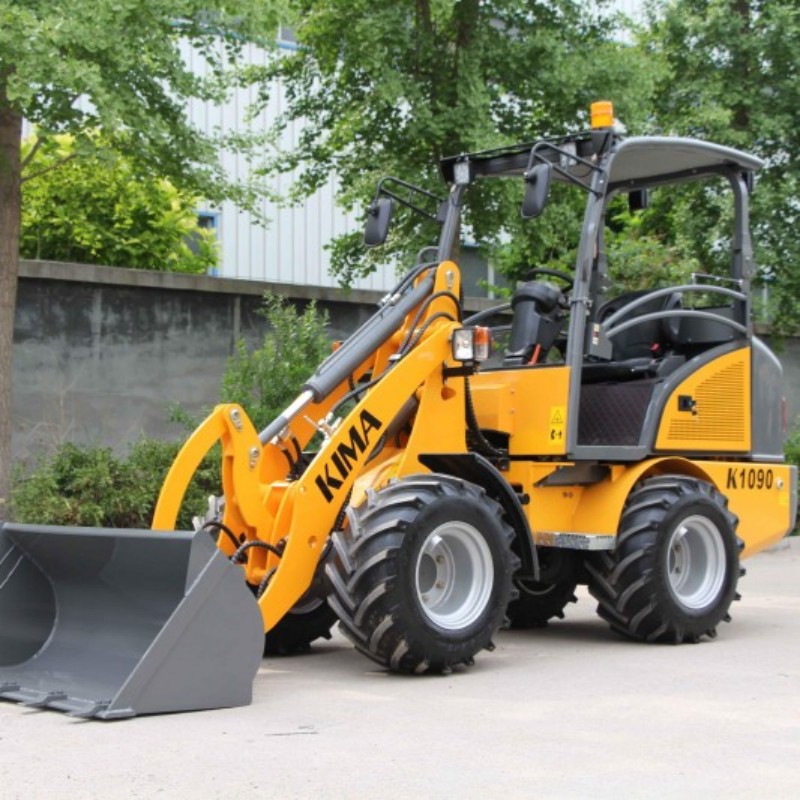

K1090 front wheel loader from KIMA factory with Kubota engine, 4WD loader.

Equipped with a Kubota V1505 Euro5 engine and Italian hydrostatic technology, the K1090 loader delivers excellent performance compared with machines in the same tonnage range. Buyers can customize attachments and machine colors to match their needs. Designed to be efficient and adaptable, the K1090 easily handles a wide spectrum of working environments.

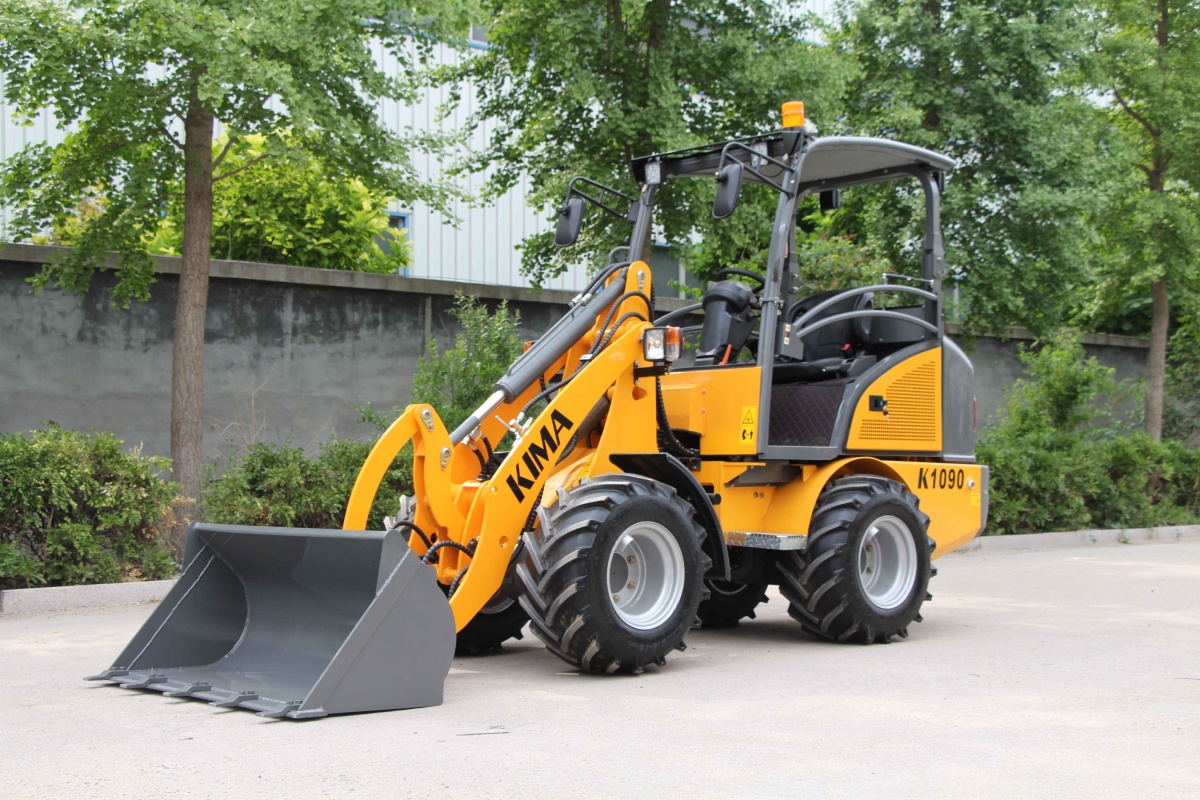

Wheel Loader Mini

Product advantages

Kubota Engine Power

18.2kW Euro V / EPA4 engine ensures consistent and powerful output.

Italian Hydrostatic Transmission

Boosts operating efficiency and guarantees smooth performance.

Compact Body Layout

Perfectly suited for jobs in tight or narrow spaces.

Versatile Control System

Provides flexible and precise control for multiple applications.

Excellent Load Capacity

1.2-ton rated loading capacity supports heavy-duty demands.

Comfortable Cabin Design

Driver-friendly interior helps minimize fatigue during long shifts.

Reinforced Structural Build

Made with strong, high-quality materials for superior reliability.

Adaptability Across Jobs

Handles varying ground and work conditions with ease.

Responsive Steering

Flexible steering mechanism improves maneuverability.

Stable Support

Wide-base tires add extra stability and safety during operations.

Comprehensive Safety Features

Includes ROPS, seat belts, and emergency stop systems.

Longevity & Reliability

Durable design with reliable hydraulic parts ensures long-term use and reduces maintenance costs.

Product parameters

Performance	Rated loading (kg)	1300
	Overall weight (kg)	2650
	Rated bucket capacity (CBM)	0.38
	Maximum tractive force (kN)	17
	Maximum breakout force (kN)	19
	Maximum grade ability (°)	20
	Maximum dump height (mm)	2029
	Maximum dump reach (mm)	608
	Overall dimension (L×W×H) (mm)	421013102316
	Minimum turning radius (outside of wheels) (mm)	3336
	Oscillation angle	8°
Engine	Model	KUBOTA V1505
	Rated power (kW)	18.2kw /2200rpm
Transmission system	Driving pump type	Closed piston pump
	Driving motor type	Piston
	Gear shift	2, Electric, Stepless
	Speeds	7/18km/h
Drive axles	Main reducing mode	Bevel gear grade l reduction
	Wheel base (mm)	1550
	Wheel tread (mm)	930
	Ground clearance (mm)	240
Hydraulic system	Working gear pump	18mL/r
	Max flow	35L/min
	System working pressure (Mpa)	18
	Boom lifting time (s)	3.2
	Total time (s)	6.3
	Fuel tank capacity (L)	40
	Function of leveling automatically	yes
Brake system	Service brake	Drum brake
	Parking brake	Manual drum brake
Tyre	Type specification	31*15.50-15
