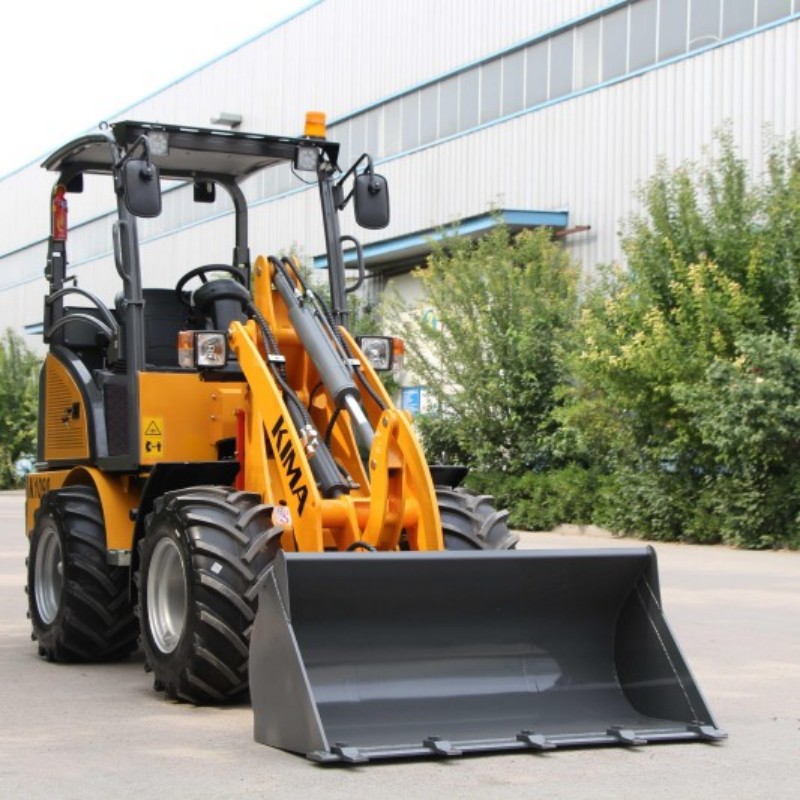

Small Articulating Loader

1. Total weight: 2650 kg, Nominal load: 1300 kg

2. Engine option: Kubota Euro V / EPA4

3. Tire specification: 31*15.50-15

4. Differential lock axle for greater adaptability

5. Quick hydraulic hitch for easy attachment swaps

6. Premium Italian hydrostatic drive system

7. Reinforced balance cylinder for improved durability

Contact Now E-Mail Telephone WhatsApp

Product Details

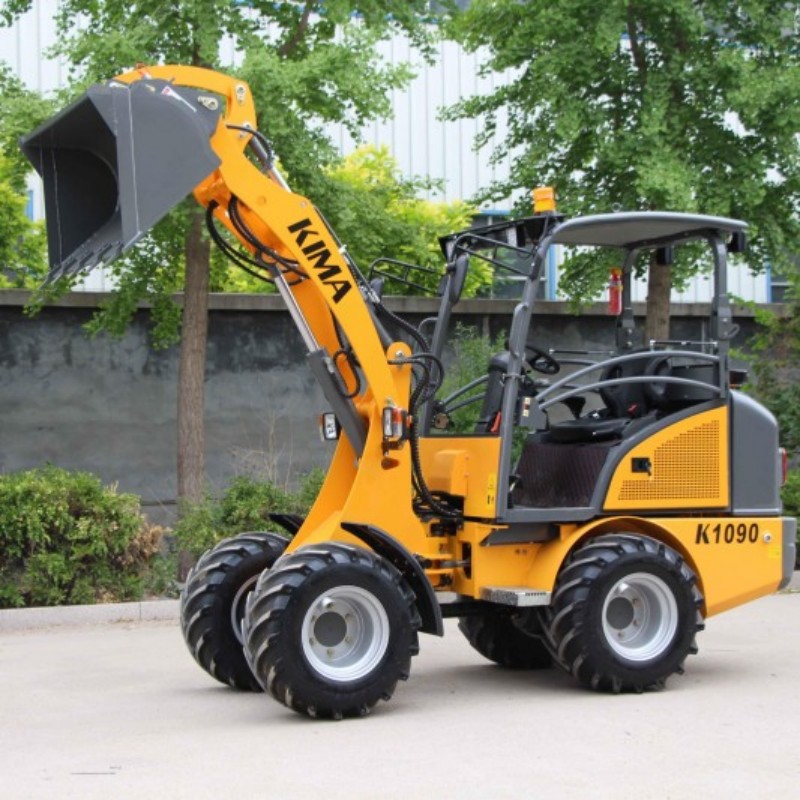

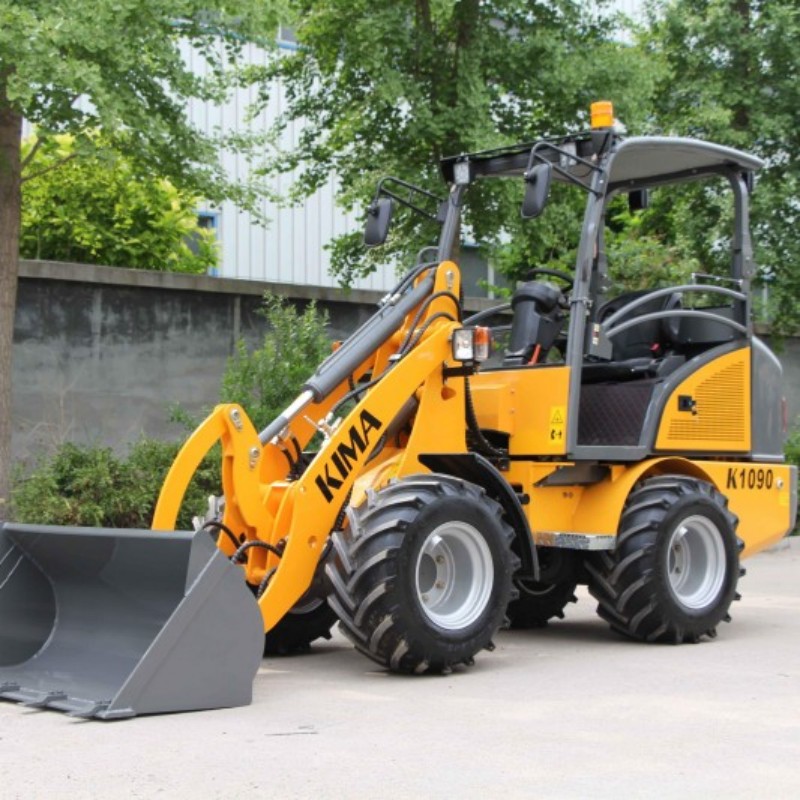

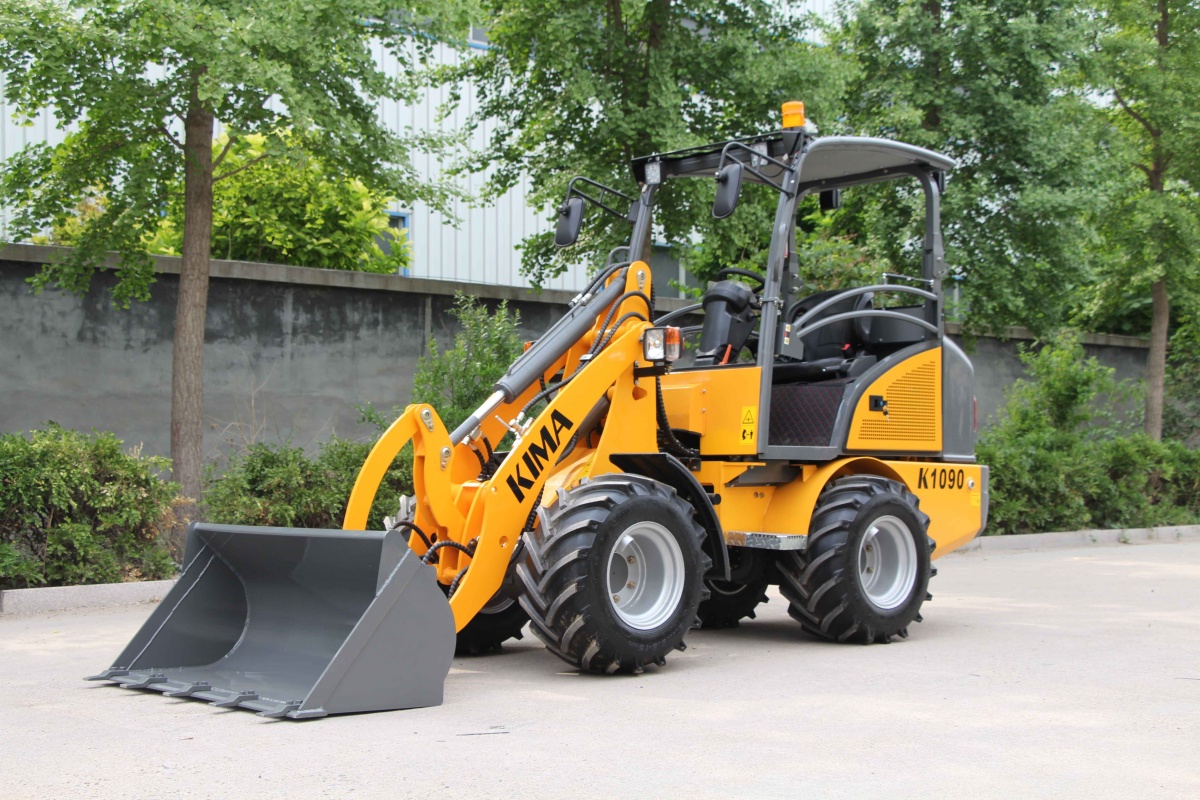

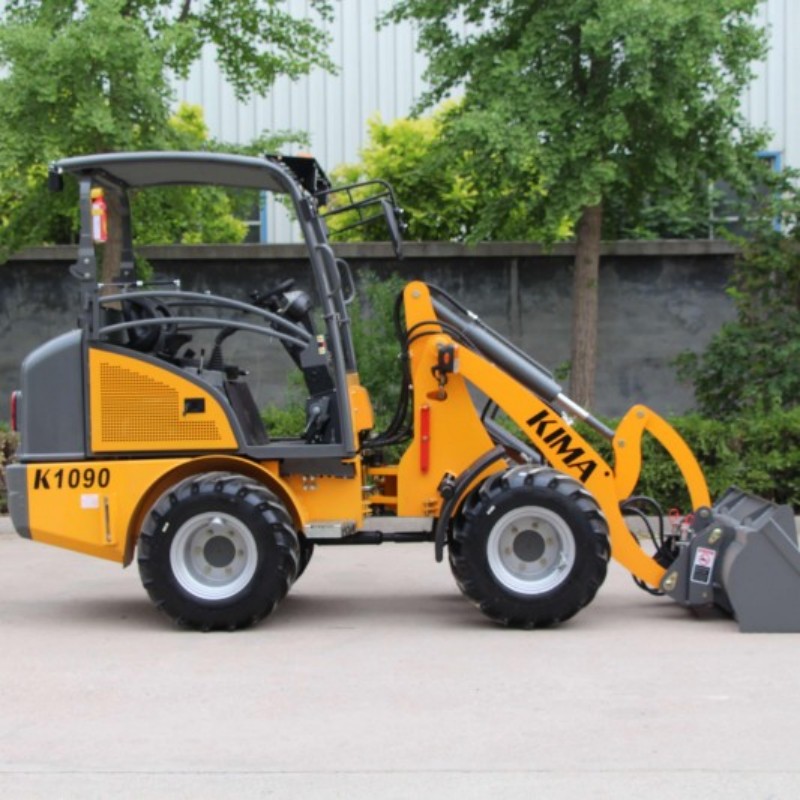

K1090 wheel loader with 4 4-cylinder Kubota engine from KIMA Machinery

The K1090 is powered by a Kubota V1505 Euro5 engine and adopts an advanced hydrostatic system from Italy, making it stand out among loaders in its category. To satisfy different demands, it offers a wide selection of attachments and color choices. With its compact yet efficient design, the K1090 adapts well to different work sites and delivers reliable results.

Small Articulating Loader

Product advantages

Reliable Engine Performance

Equipped with a Kubota Euro V / EPA4 engine (18.2kW), offering steady power.

Premium Hydrostatic System

Italian hydrostatic drive enhances stability and improves productivity.

Compact & Flexible Design

Small footprint, ideal for confined or restricted areas.

Advanced Multi-Function Operation

Ensures accurate, smooth, and flexible control for the operator.

High Loading Ability

Supports up to 1.2 tons of capacity, boosting work efficiency.

Driver-Oriented Cabin

Comfortable design reduces stress and provides a better working atmosphere.

Reinforced Body Frame

Built with high-strength materials for durability and safety.

Excellent Adaptability

Capable of meeting multiple site requirements and varied workloads.

Agile Handling

The flexible steering system allows easy maneuvering in complex conditions.

Stable Ground Grip

Wide tires increase traction and improve machine balance.

Comprehensive Safety Setup

Features like ROPS, safety belts, and emergency stop protect the operator.

Long Service Life

Heavy-duty structure and reliable hydraulic parts ensure reduced downtime and maintenance.

Product parameters

Performance	Rated loading (kg)	1300
	Overall weight (kg)	2650
	Rated bucket capacity (CBM)	0.38
	Maximum tractive force (kN)	17
	Maximum breakout force (kN)	19
	Maximum grade ability (°)	20
	Maximum dump height (mm)	2029
	Maximum dump reach (mm)	608
	Overall dimension (L×W×H) (mm)	421013102316
	Minimum turning radius (outside of wheels) (mm)	3336
	Oscillation angle	8°
Engine	Model	KUBOTA V1505
	Rated power (kW)	18.2kw /2200rpm
Transmission system	Driving pump type	Closed piston pump
	Driving motor type	Piston
	Gear shift	2, Electric, Stepless
	Speeds	7/18km/h
Drive axles	Main reducing mode	Bevel gear grade l reduction
	Wheel base (mm)	1550
	Wheel tread (mm)	930
	Ground clearance (mm)	240
Hydraulic system	Working gear pump	18mL/r
	Max flow	35L/min
	System working pressure (Mpa)	18
	Boom lifting time (s)	3.2
	Total time (s)	6.3
	Fuel tank capacity (L)	40
	Function of leveling automatically	yes
Brake system	Service brake	Drum brake
	Parking brake	Manual drum brake
Tyre	Type specification	31*15.50-15
