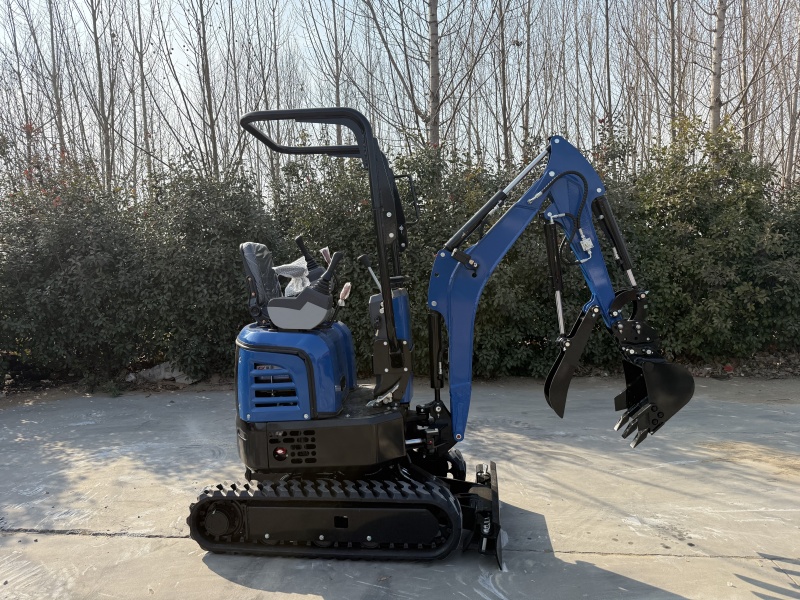

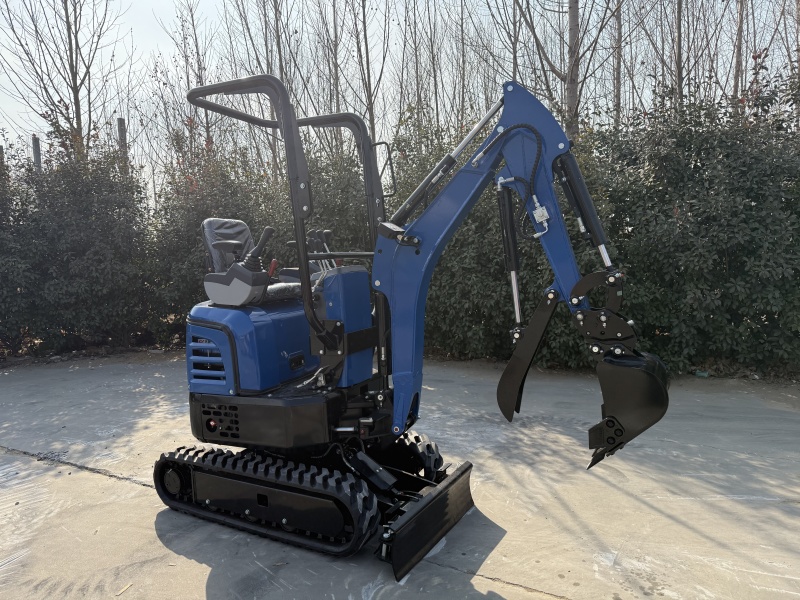

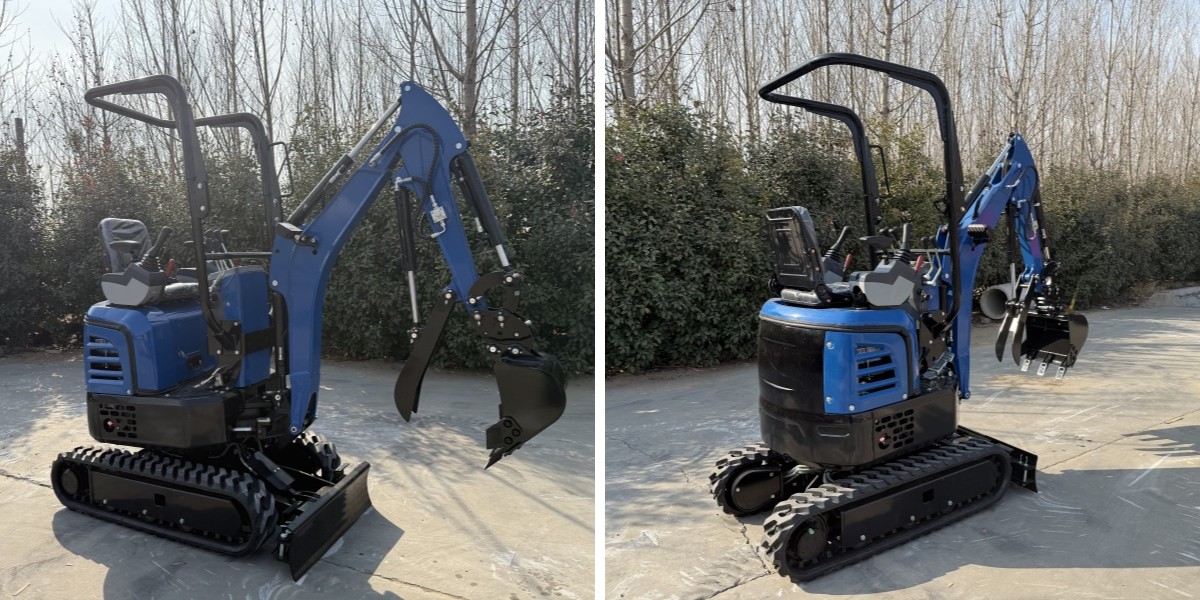

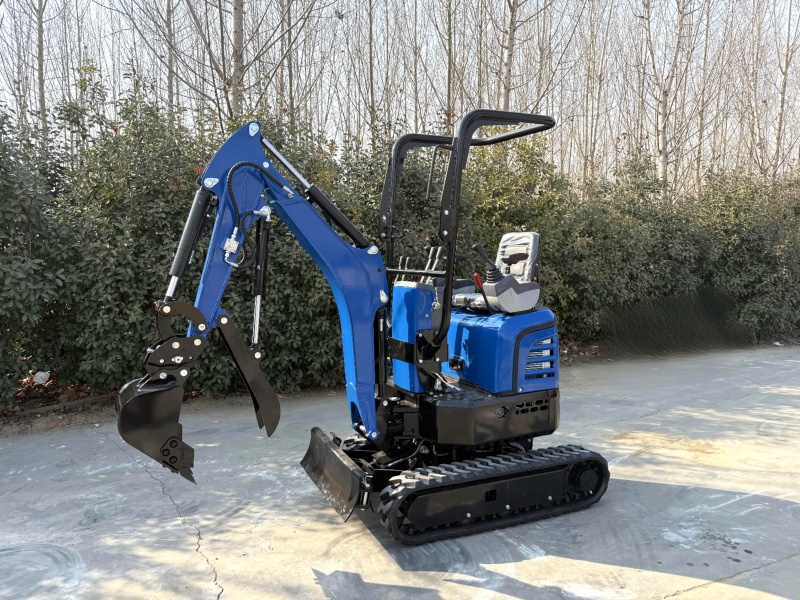

Compact Excavator for Sale

1. Machine weight1200kg

2. TUV certification passed

3.YANMAR 3TNV70 EPA4 Euro5/YANMAR 3TNV74 EPA4 engine

4. Dimension: 3070*850/1100*2323mm(L*W*H)

5. Standard bucket: 0.03m³

6. Extra hydraulic hammer pipe

Contact Now E-Mail Telephone WhatsApp

Product Details

The Compact Excavator for Sale (KME12U) features a load-sensing hydraulic system and pilot joysticks for precise, efficient control. An efficient oil cooler ensures stable operation. The expandable track chassis (850/1100 mm) offers both flexibility and stability, while the intelligent dual-speed system allows quick switching between travel and digging, meeting the demands of complex jobsites.

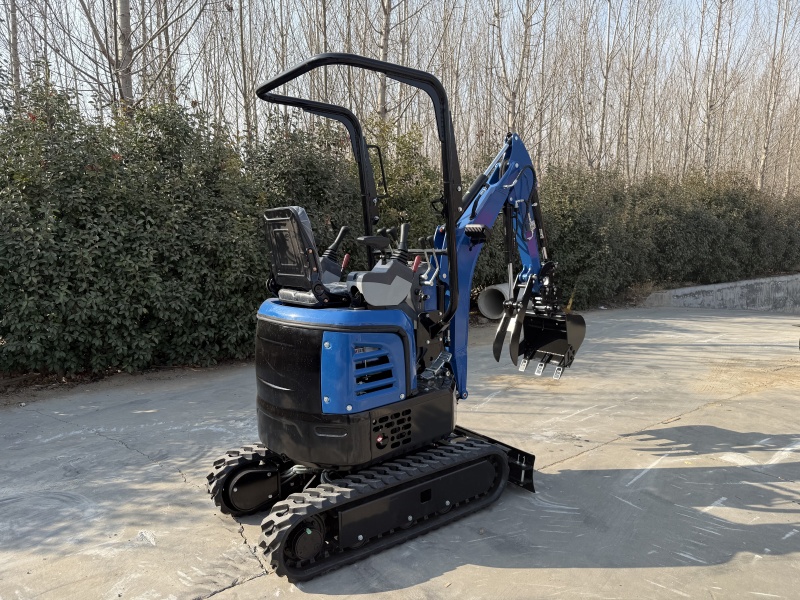

Compact Excavator for Sale

Advantage

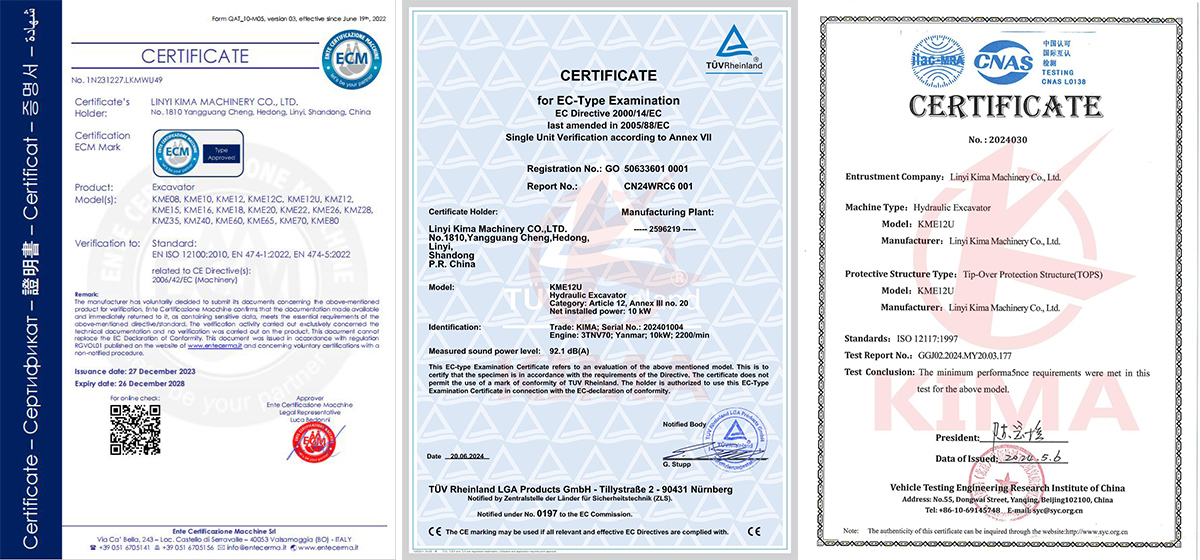

Certified Quality
Successfully passed TÜV and CE quality certifications.
Advanced Hydraulic System
Equipped with a load-sensing multi-valve and hydraulic joystick, delivering precise and efficient control. The system automatically adjusts power output, effectively lowering fuel consumption.
Hydraulic Oil Radiator
Features a high-efficiency cooling radiator to reduce oil temperature, ensuring stable and reliable performance of the hydraulic system.
Expandable Undercarriage (850/1100mm)
The adjustable track width allows the machine to easily pass through narrow spaces while maintaining excellent stability during excavation work.

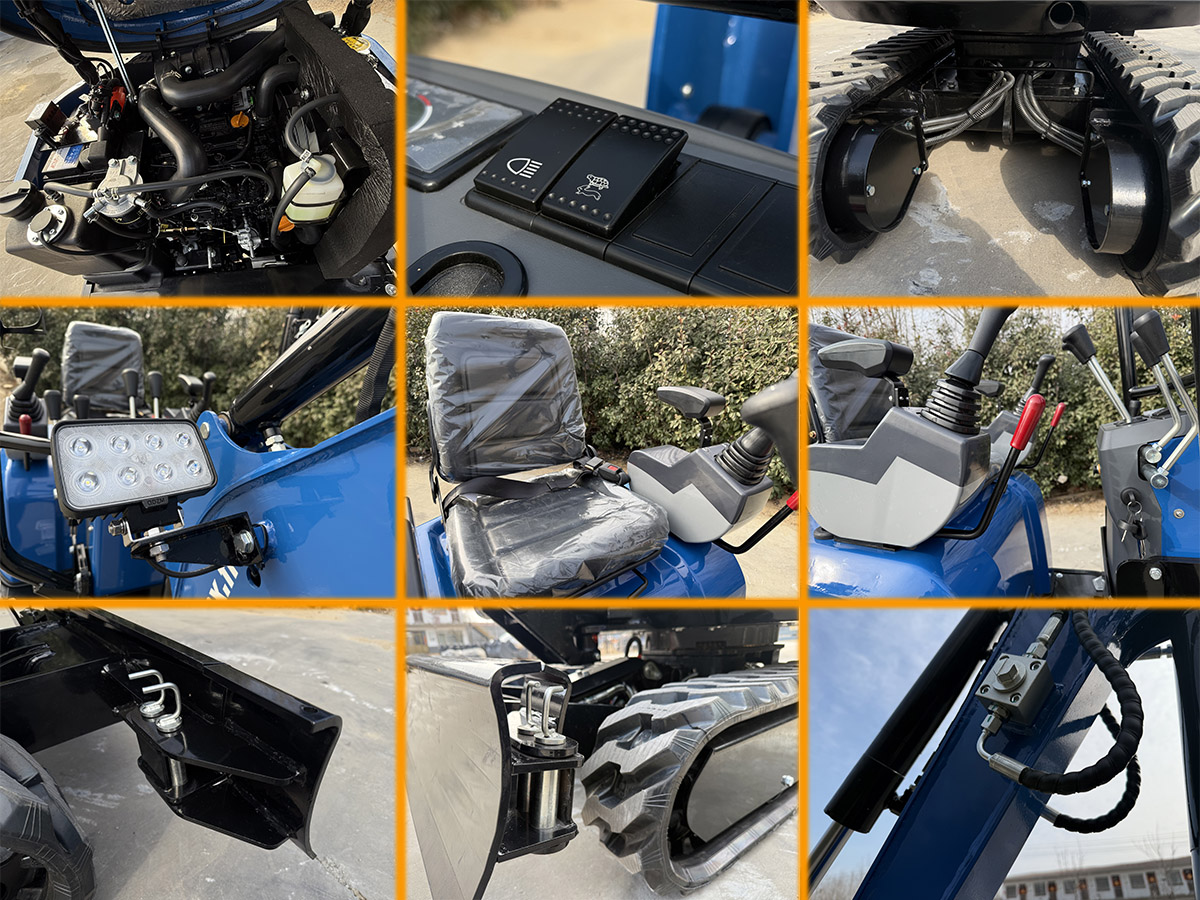

Details

Parameters

KME12U
Type of cab		Canopy
Bucket capacity		m3	0.03
Machine weight		kg	1200
Dimensions	Overall length	mm	3070
	Overall height	mm	2323
	Overall width	mm	850/1100
	Ground clearance	mm	130
	Tail swing radius	mm	550
Engine	Brand	YANMAR
	Model	3TNV70
	Displacement	L	0.854
	Output	kW/rpm	10/2200
Working ranges	Max Digging height	mm	3062
	Max Dumping height	mm	2075
	Max digging depth	mm	1830
	Max digging distance	mm	3542
	Max digging force (Arm)	KN	6.5
	Max digging force (Bucket）	KN	11
Track	Type		Rubber track
	Rubber shoe width	mm	180
	Track length	mm	1404
	Track grounding length	mm	1080
	Track gauge	mm	670/920
	Track width	mm	850/1100
	Grade ability		58%/30
Boom deflection angle left/right			50°/70°
Traveling speed		km/h	1.3/2.5
Swing speed		rpm	10
Ground pressure		kpa	31
Hydraulic pumps	Flow rate	L/min	19.2
Hydraulic pumps	Hydraulic pressure	Mpa	18
Fuel tank capacity		L	13
Hydraulic oil tank capacity		L	13

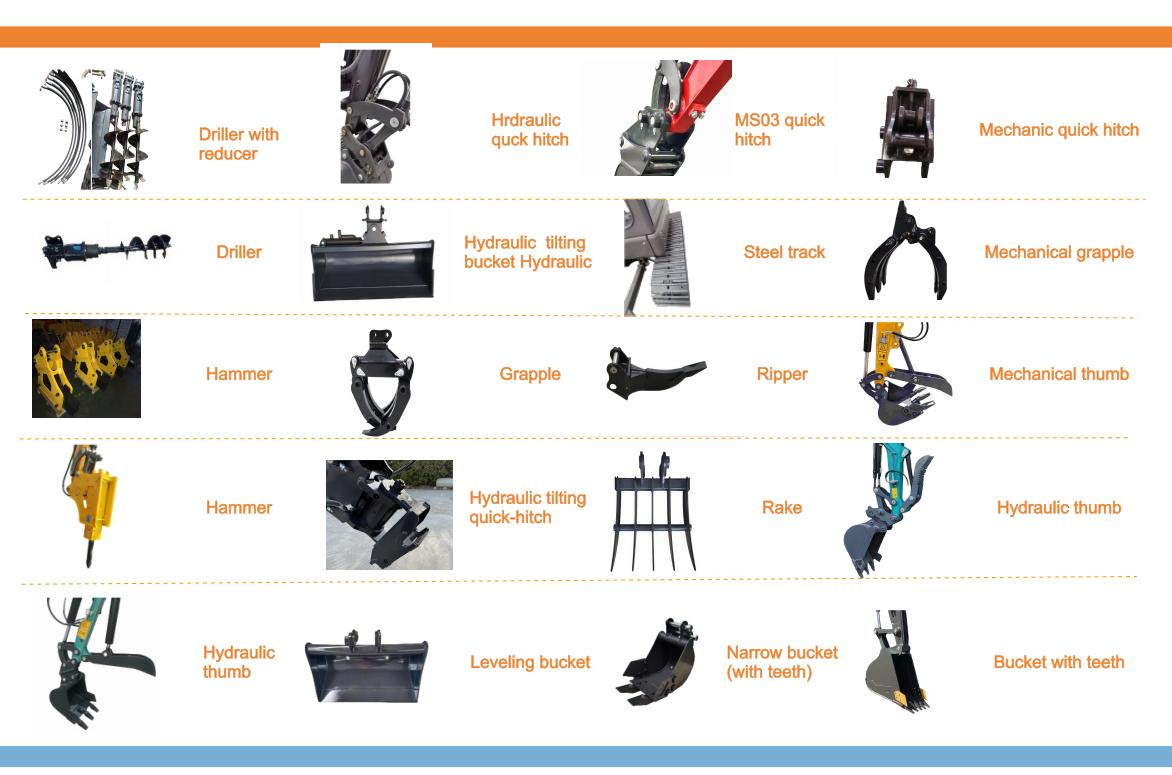

Attachments

Compact Excavator for Sale

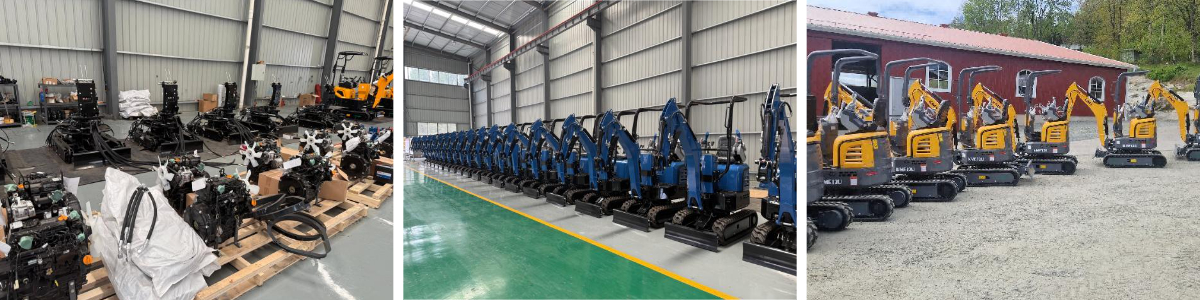

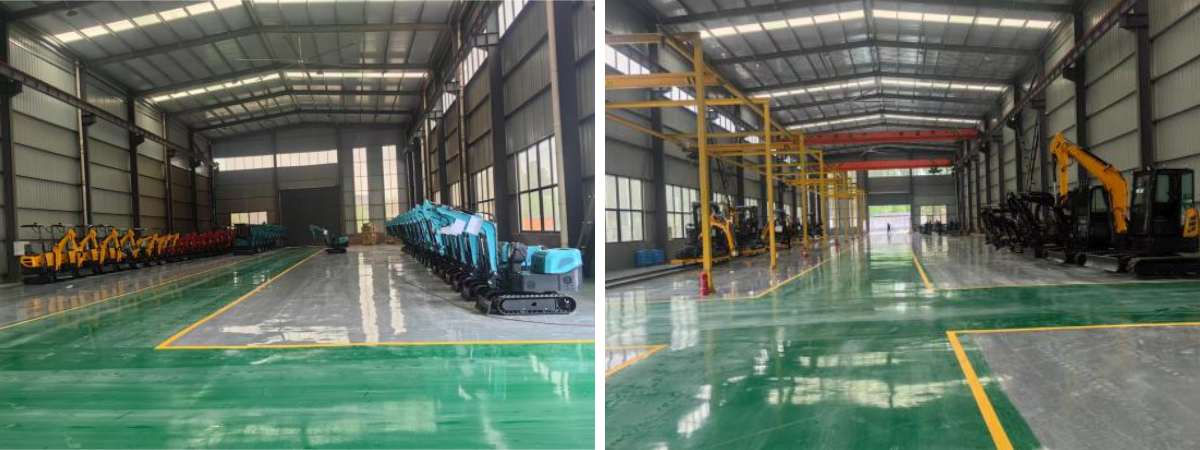

Factory
Linyi KIMA Machinery Co., Ltd. has been dedicated to producing mini excavators and small wheel loaders for more than 12 years, gaining rich experience in both manufacturing and international trade. Most of our equipment has passed TÜV Rheinland testing and obtained TÜV and EU CE certifications, fully in line with European ROPS and FOPS safety standards. Today, our machines are exported to over 40 dealers in multiple European countries and regions, as well as to North America, South America, and Oceania, where they have earned broad recognition and strong customer trust.
