Highly Efficient Mini Digger Price

1. Weight: 1880 kg, bucket volume 0.04 m³

2. Powered by Kubota D902 Euro 5/EPA engine, 11.8 kW

3. Equipped with load-sensing hydraulic technology

4. Eddie brand travel & swing motors

5. Expandable undercarriage

6. Certified by TUV standards

7. Zero-tail design, strong digging performance, two-speed drive & heating system

Contact Now E-Mail Telephone WhatsApp

Product Details

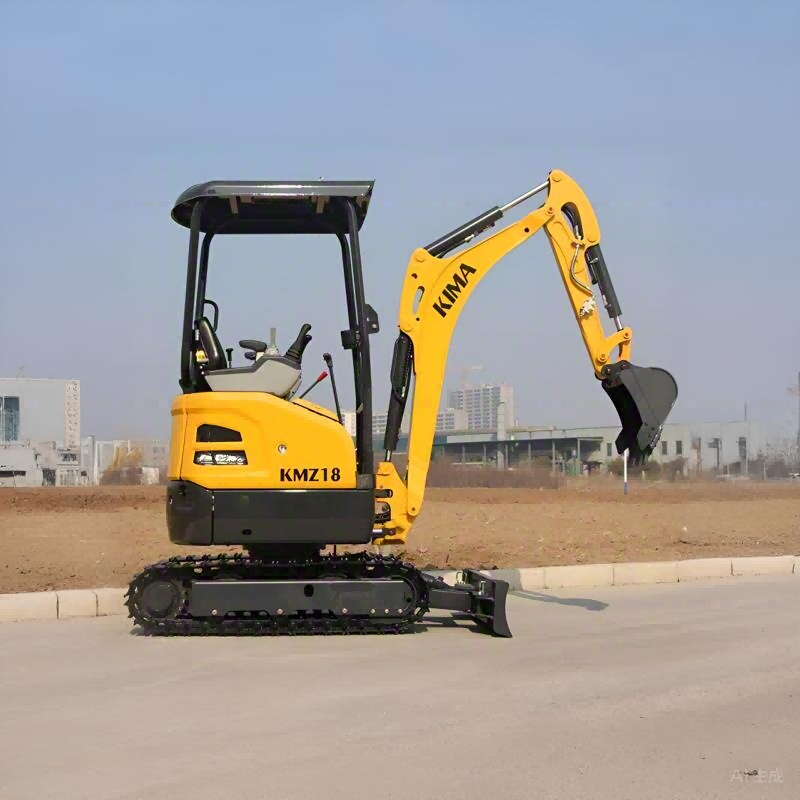

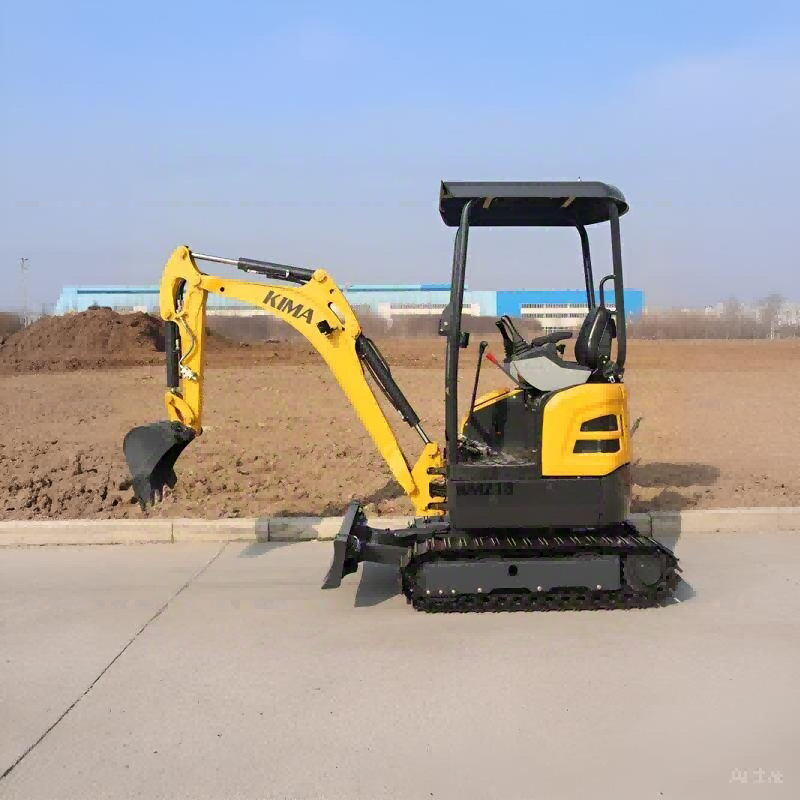

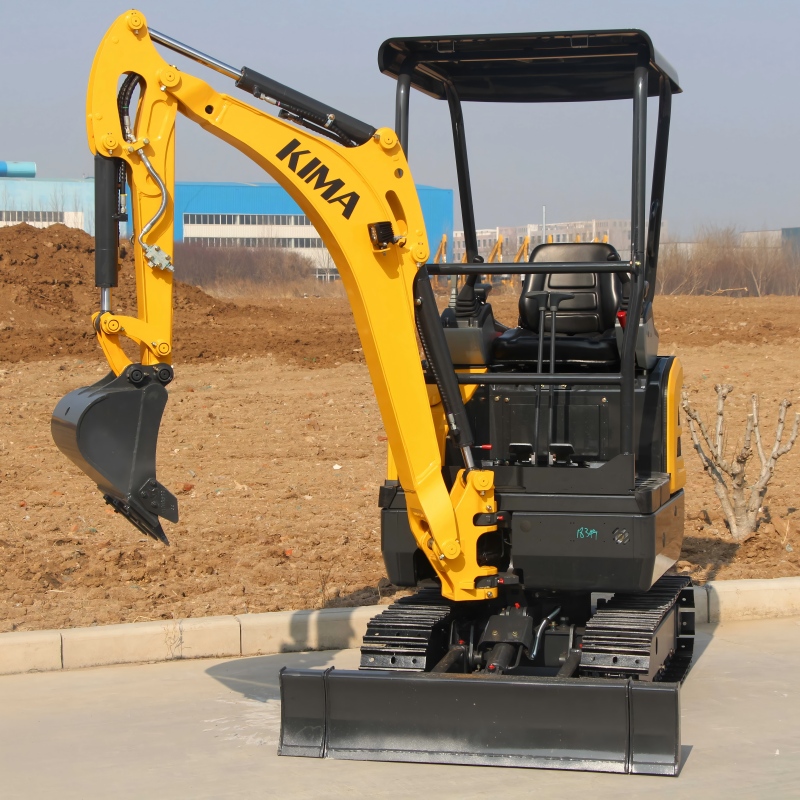

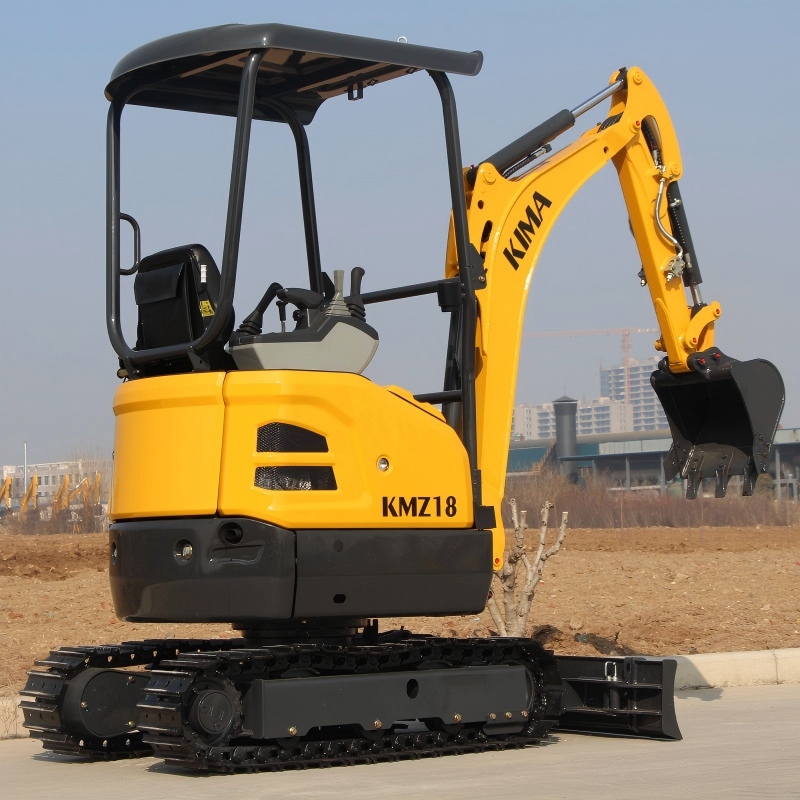

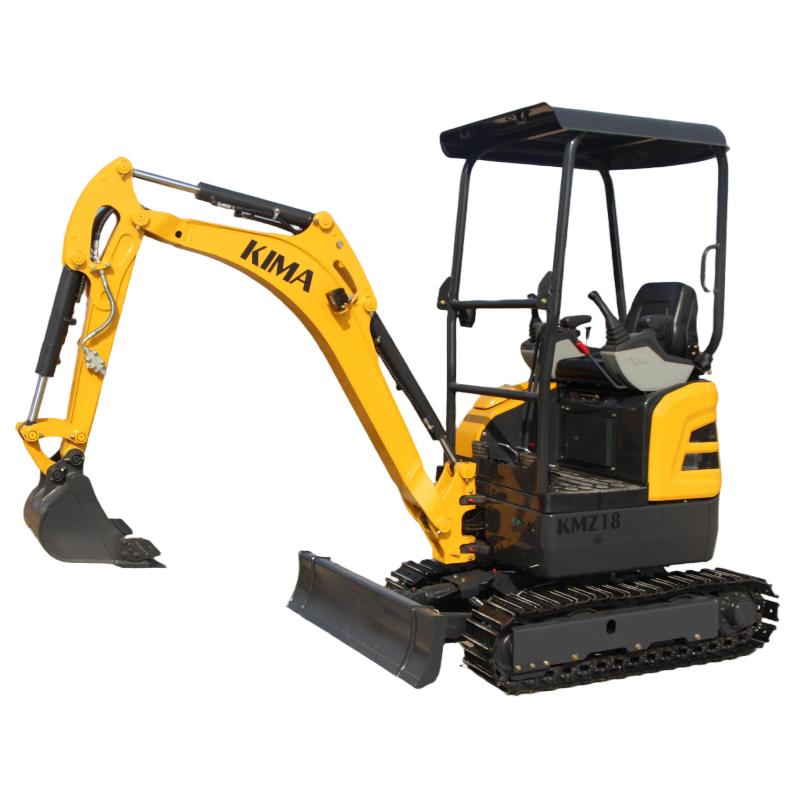

The KMZ18 excavator is designed with an extremely compact and tailless structure, making it ideal for working in various narrow spaces without the risk of damage. Equipped with the Japanese Kubota D902 engine and hydraulic joystick to improve efficiency.

Construction Equipment For Sale

Product advantages

Kubota Euro5/EPA4 engine
Low fuel consumption, high horsepower output, and more environmentally friendly.
Swing boom
It can make the excavator work more flexibly in the narrow spaces and avoid wasting time and energy in the secondary excavation.
Casting counterweight
Solid, thickened iron counterweight greatly improves the working stability.
Expandable undercarriage
The extension track allows the machine to pass through narrow spaces and maintain good stability during excavation.
Hydraulic pilot
Hydraulic pilot control can accurately control the liquid pressure, flow, and direction, so as to realize high precision control.
Boom cylinder on the top
This kind of installation can prevent the boom cylinder from colliding.
Large selection of accessories
Use your machine as a multi-tool -- you have a wide range of accessories to choose from KIMA.
Two speed
High speed can improve work efficiency and shorten working time. Low speed can enhance the traction and power output of the excavator and ensure work safety.
High-quality powder coating
A key feature of KIMA's quality standards is the powder coating, which provides excellent corrosion protection. Compared with traditional wet coating, it greatly increases the service life of the machine, so it is more efficient and more environmentally friendly.
Tailless structure
It has flexible control, can operate in small construction sites and complex terrain, can turn and operate in narrow spaces, and has the characteristics of maneuverability and flexibility.
Load-sensing system
A full hydraulic system and load-sensing system make the operation more sensitive.

Product parameters

Type of cab		Canopy
Bucket capacity		m3	0.04
Operating weight		kg	1880
Dimensions	Overall length	mm	3575
	Overall height	mm	2405
	Overall width	mm	990/1300
	Min. Ground clearance	mm	145
	Tail swing radius	mm	650
Engine	Brand	Kubota
	Model	D902
	Output	kW/rpm	11.8/2300
Working ranges	Max Digging height	mm	3570
	Max Dumping height	mm	2480
	Max digging depth	mm	2270
	Max. Digging radius	mm	3910
	Min. swing radius	mm	1440
	Max digging force (Arm)	kN	9.5
	Max digging force (Bucket）	kN	16
Track	Type		Rubber track
Track	Rubber shoe width	mm	230
Undercarriage	Track length	mm	1593
	Traveling speed	km/h	2.2/4.3
	Grade ability	deg	58%
	Maximum Dozer Lift Height	mm	280
	Maximum Dozer Dig Depth	mm	190
Swing speed		rpm	9.5
Ground pressure		kpa	29
Hydraulic pumps	Type		Axial piston-variable displacement
Hydraulic pumps	Flow rate	L/min	64
Swing motor			Cycloidal motor
Travel motor			Axial piston motor
Fuel tank capacity		L	19
Hydraulic oil tank capacity		L	13.7
