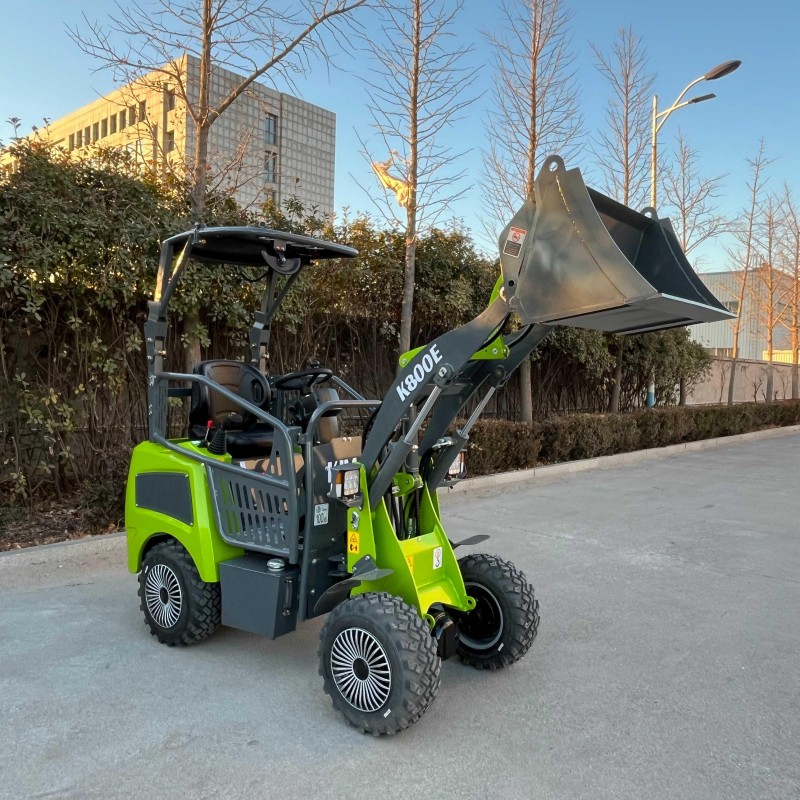

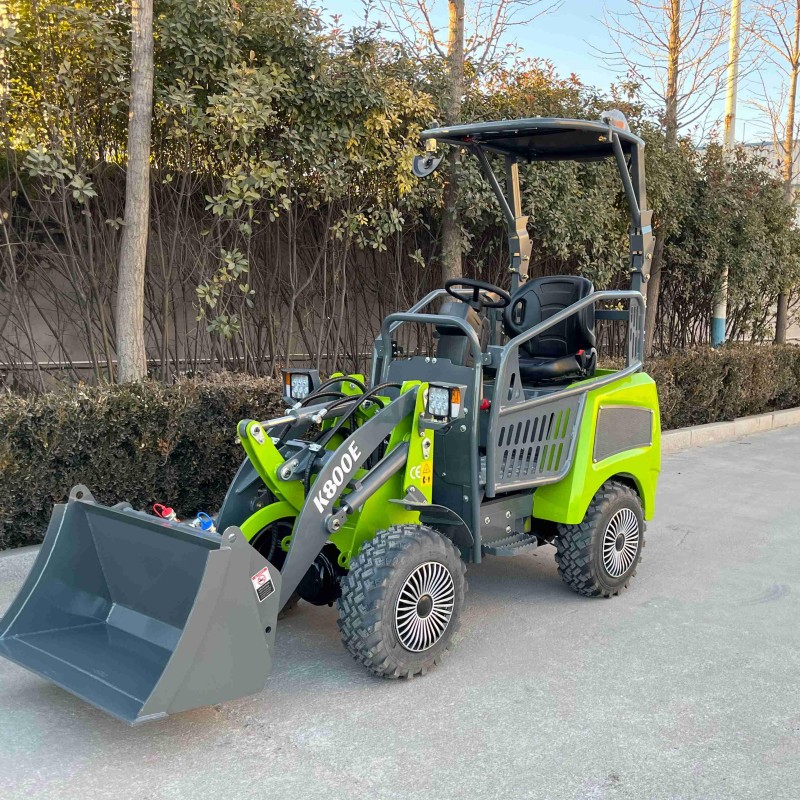

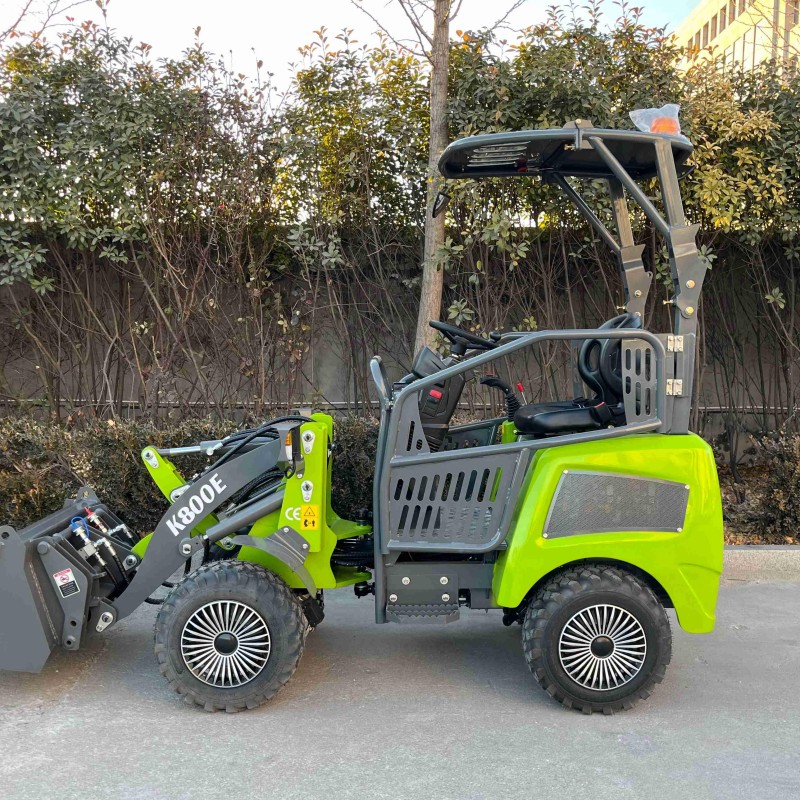

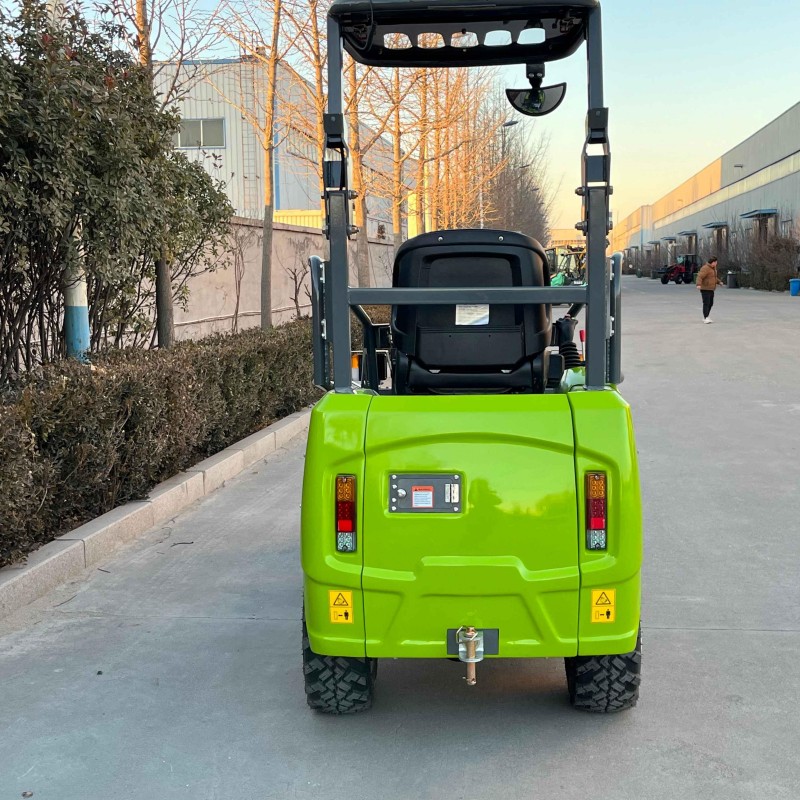

Battery Powered Loader

Operating weight: 1,460 kg.
Fully electric system ensures clean, zero-emission operation.
Comes with a standard 60V power system and 150Ah battery.
Features a durable, maintenance-free battery unit.
Equipped with 23×8.5-12 tires for reliable stability.
Powered by a robust 2.5 kW AC motor.
4-wheel drive with a 45° steering capability for flexible maneuvering.

Contact Now E-Mail Telephone WhatsApp

Product Details

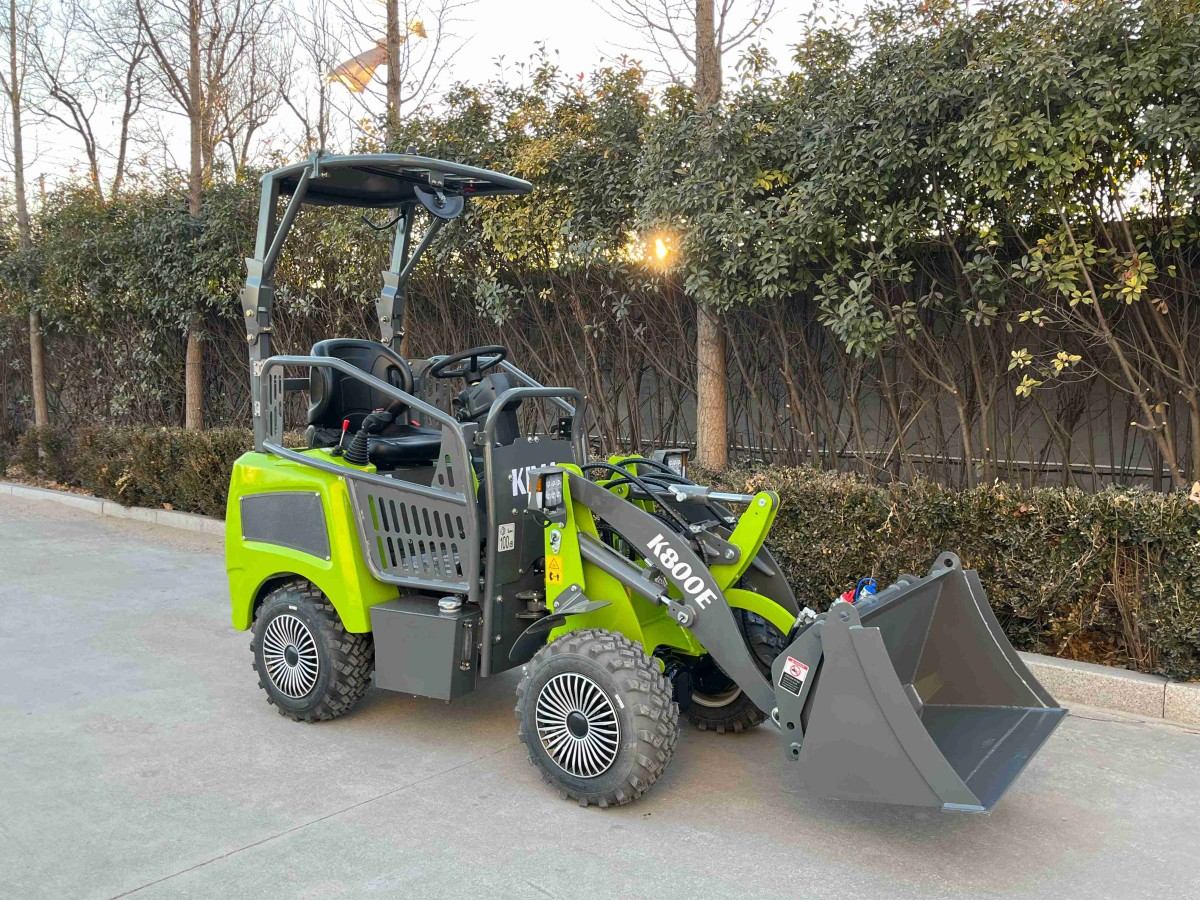

The K800E, KIMA's newest electric loader, features rapid motor response, precise control, and high efficiency. Its compact design delivers strong performance, making it ideal for tight spaces such as urban construction sites, warehouses, docks, and other areas with limited room.

Battery Powered Construction Equipment

Product advantages

Eco-Friendly
The K800E produces zero exhaust emissions, ensuring environmentally friendly operation that aligns with modern standards for energy efficiency and emission reduction.

Quiet Operation
Thanks to its electric drive system, the K800E operates with minimal noise, reducing sound pollution on-site and lessening the impact on the operator.

Cost-Effective Maintenance
Electricity costs are generally more stable than fuel, and the simple electric drive design makes maintenance easier. There is no need for regular oil or filter replacements, lowering overall upkeep expenses.

Responsive & Versatile
The electric drive system provides fast response and smooth control, enabling the K800E to complete tasks efficiently and adapt to various challenging work environments.

Wide Range of Attachments
The K800E can be equipped with numerous attachments, transforming it into a versatile multi-purpose machine to suit different job requirements.

Product parameters

DIMENSIONS
Max. Lifting Height	1798 mm
Max. Dumping Height	1217 mm
Max. Dumping Reach	593 mm
Dumping Angle	43°
Overall Length	3052 mm
Overall Width	1052 mm
Overall Height	2239 mm
Wheel Base	1425 mm
Min. Ground Clearance	198 mm
Max. Turning Radius	2982 mm
Max. Turning angle	45°
PERFORMANCE
Max. Speed	15 km/h
Max. Lifting Weight	800 kg
Max. Excavation Force	10 KN
Max. Grade Ability	25°
Net Weight	1460 kg
Battery Type	6 - EVEJ - 150
Battery Capacity	150 Ah
Voltage	60 V
No. of Batteries	5
Working Hours	4 - 5 h
Charging Hours	8 h
Motor Type	IM150802S
Power	2500 W
Operating Pressure	20Mpa
Flow Rate	1580kg
Type	23*8.5 - 12
Tank Capacity	15.2L
Service Brake	Drum Brake
Parking Brake	Drum Brake
Bucket Capacity	0.15 m³
