Small Excavator for Sale

1. Compliant & Powerful Engine:

Features Kubota engine meeting Euro V and EPA4 standards, delivering 10.2kW power. Ensures legal operation in strict emission areas while maintaining strong performance for heavy tasks.

2. Superior Maneuverability:

Compact build with tailless structure and 55° left/right boom swing. Navigates narrow spaces (e.g., basements) easily and avoids collisions during rotation.

3. Robust Stability:

Equipped with thick cast iron counterweight and adjustable crawler chassis. Low 29kPa ground pressure protects soft terrain, ideal for farm or lawn projects.

4. User-Friendly Design:

Pilot-controlled hydraulics for precise operation. Top-mounted boom cylinders reduce damage risks; fully open upper hood simplifies maintenance.

5. Long-Lasting & Multi-Use:

High-quality powder coating resists corrosion. Compatible with Shimadzu hydraulic pump and various attachments (breakers, grapples), boosting durability and versatility.

Contact Now E-Mail Telephone WhatsApp

Product Details

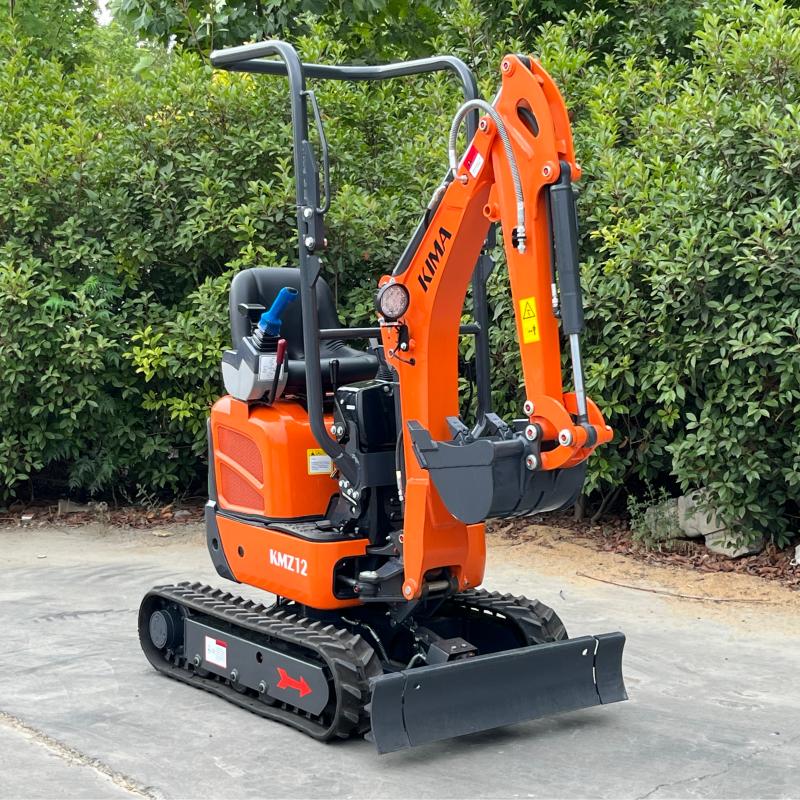

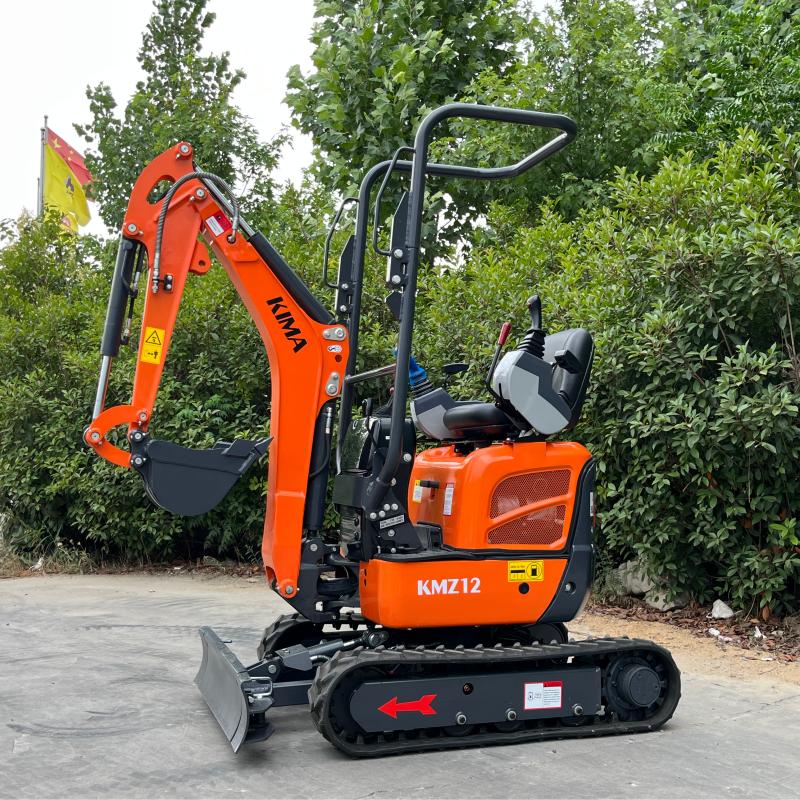

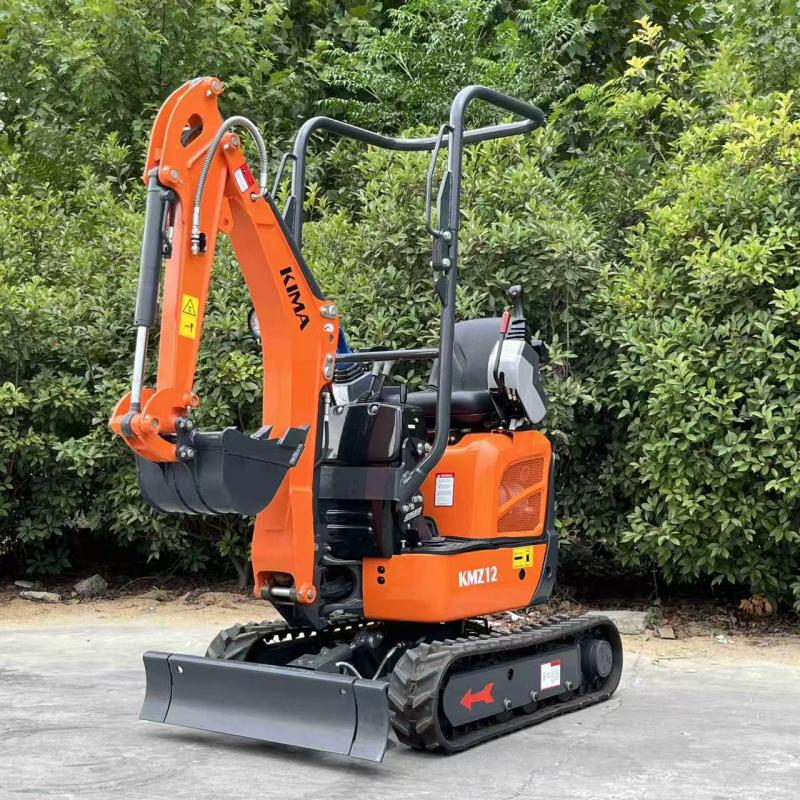

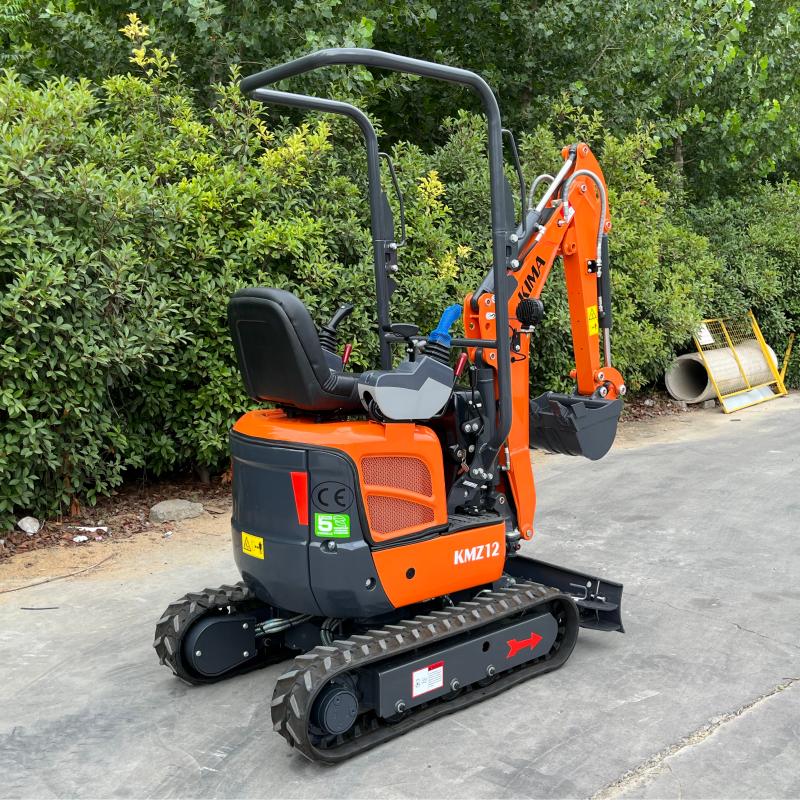

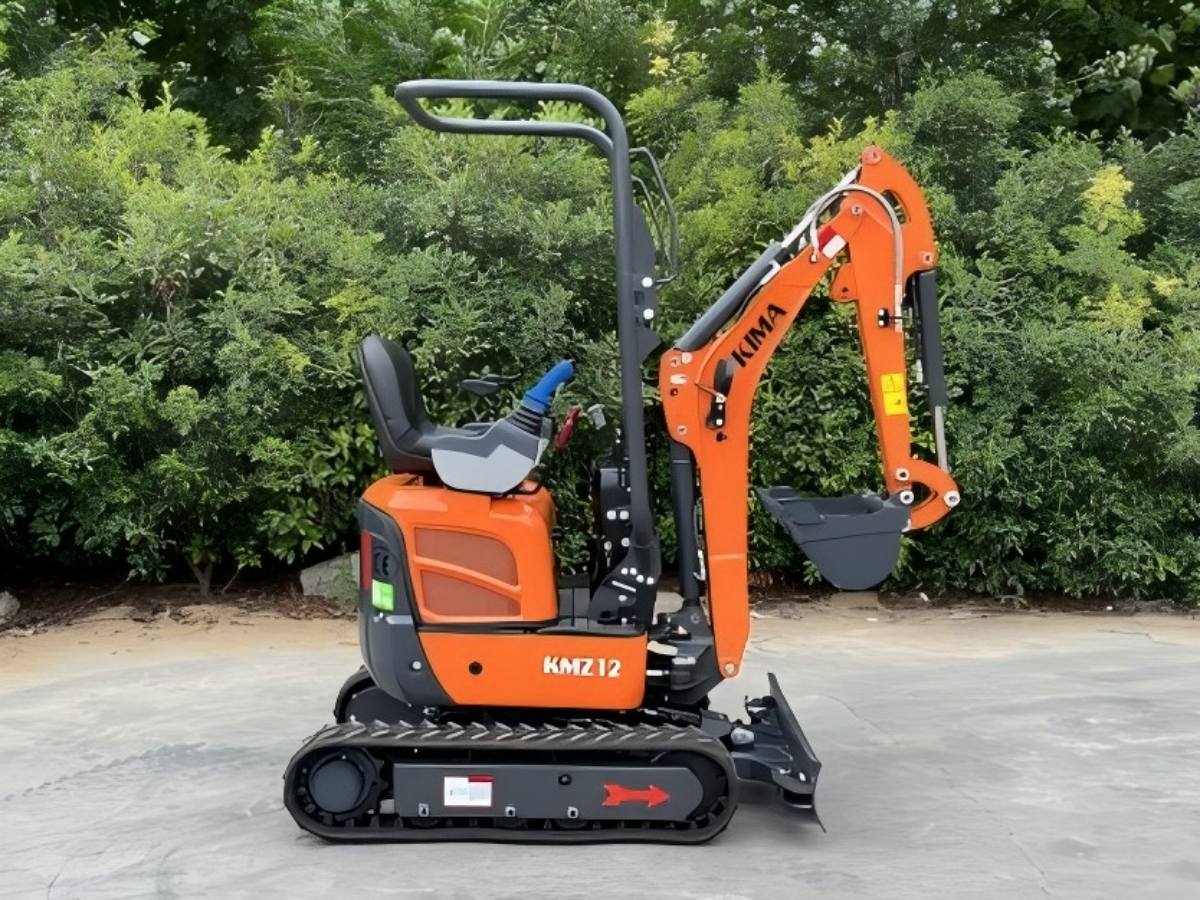

Mini Excavator Model: KMZ12

As a scenario-specific mini crawler excavator launched by Linyi Kima Machinery Co., Ltd., the KMZ12 is engineered to solve pain points in urban micro-construction, indoor renovation, and small-scale landscaping—fields where full-size excavators are restricted by space, and low-power equipment fails to meet efficiency demands. It integrates "space adaptability, regulatory compliance, and scenario versatility" into a compact 1.2-ton frame, becoming a core equipment for small-project contractors, property maintenance teams, and urban renewal enterprises.

Small Excavator for Sale

Product advantages

1. Compliant & Powerful Engine: Features Kubota engine meeting Euro V and EPA4 standards, delivering 10.2kW power. Ensures legal operation in strict emission areas while maintaining strong performance for heavy tasks.

2. Superior Maneuverability: Compact build with tailless structure and 55° left/right boom swing. Navigates narrow spaces (e.g., basements) easily and avoids collisions during rotation.

3. Robust Stability: Equipped with thick cast iron counterweight and adjustable crawler chassis. Low 29kPa ground pressure protects soft terrain, ideal for farm or lawn projects.

4. User-Friendly Design: Pilot-controlled hydraulics for precise operation. Top-mounted boom cylinders reduce damage risks; fully open upper hood simplifies maintenance.

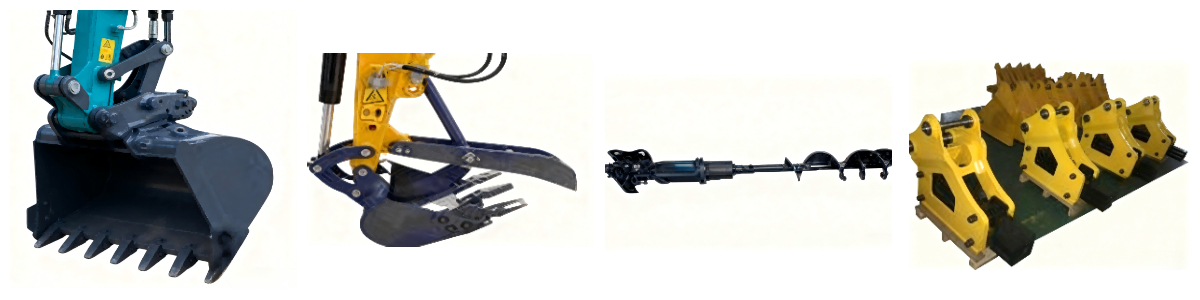

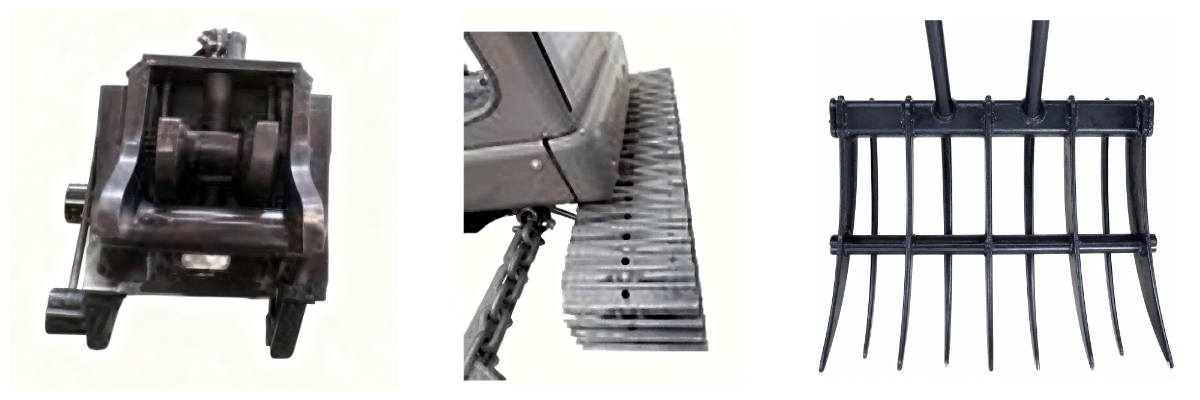

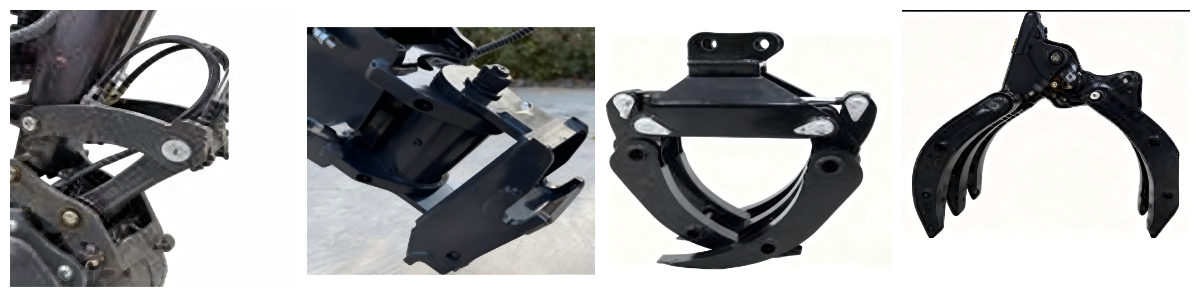

5. Long-Lasting & Multi-Use: High-quality powder coating resists corrosion. Compatible with Shimadzu hydraulic pump and various attachments (breakers, grapples), boosting durability and versatility.

Product parameters

Type of cab			Canopy
Bucket capacity			m3	0.024
Bucket width, std.			mm	398
Machine weight			kg	1200
Dimensions	Overall length		mm	2965
	Overall height		mm	2230
	Overall width		mm	750/990
	Ground clearance		mm	140
Engine	Brand		Kubota
	Model		D722
	Displacement		CC	719
	Output		kW/rpm	10.2/2500
Working ranges	Max Digging height		mm	3079
	Max Dumping height		mm	2225
	Max digging depth		mm	1805
	Max. Digging radius		mm	3390
	Min .swing radius		mm	1273
	Max digging force (Arm)		kN	5.4
	Max digging force (Bucket）		kN	10.4
Track	Type			Rubber track
	Rubber shoe width		mm	180
Undercarriage	Track length		mm	1310
	Traveling speed		km/h	4
	Gradeability		deg	58/30
Swing speed			rpm	8.3
Boom swing angle (left / right)			deg	55/55
Ground pressure			kpa	29
Dozer size	Width		mm	750/990
	Height		mm	200
	Lifting capacity (Height/Depth)		mm	215/190
Hydraulic pumps	Type			Gear pump
	P1	Flow rate		L/min	21
		Hydraulic pressure		Mpa	17.2
	P2	Flow rate		L/min	3.1
		Hydraulic pressure		Mpa	3.9
Swing motor				Plunger motor
Travel motor				Plunger motor
Fuel tank capacity			L	12
Hydraulic oil tank capacity			L	12.6
