Highly Efficient Excavator

1. Operating weight: 1980 kg, bucket capacity 0.04 m³

2. Driven by Kubota D902 Euro 5/EPA compliant engine, 11.8 kW output

3. Advanced load-sensing hydraulic system for smooth control

4. Adjustable undercarriage for better stability

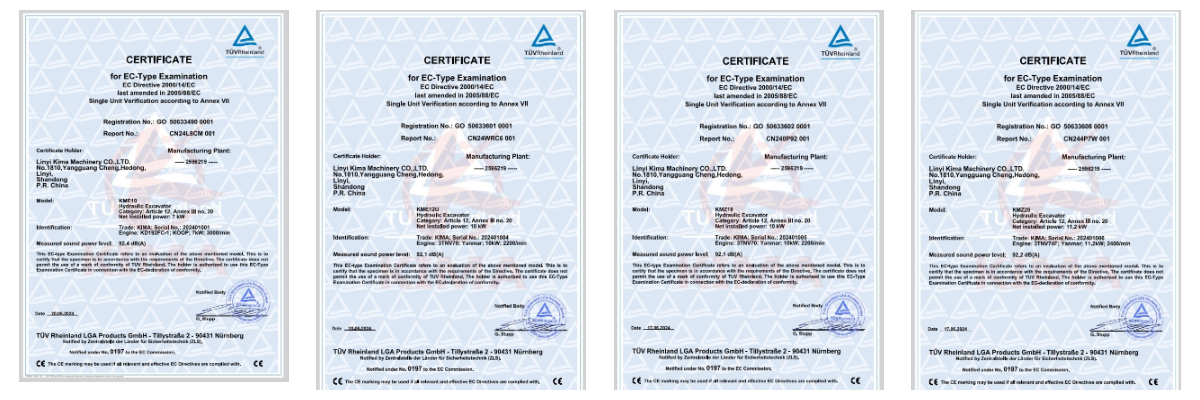

5. Certified to TUV safety and quality standards

6. Compact zero-tail structure with powerful digging force, dual-speed travel, and heating function

Contact Now E-Mail Telephone WhatsApp

Product Details

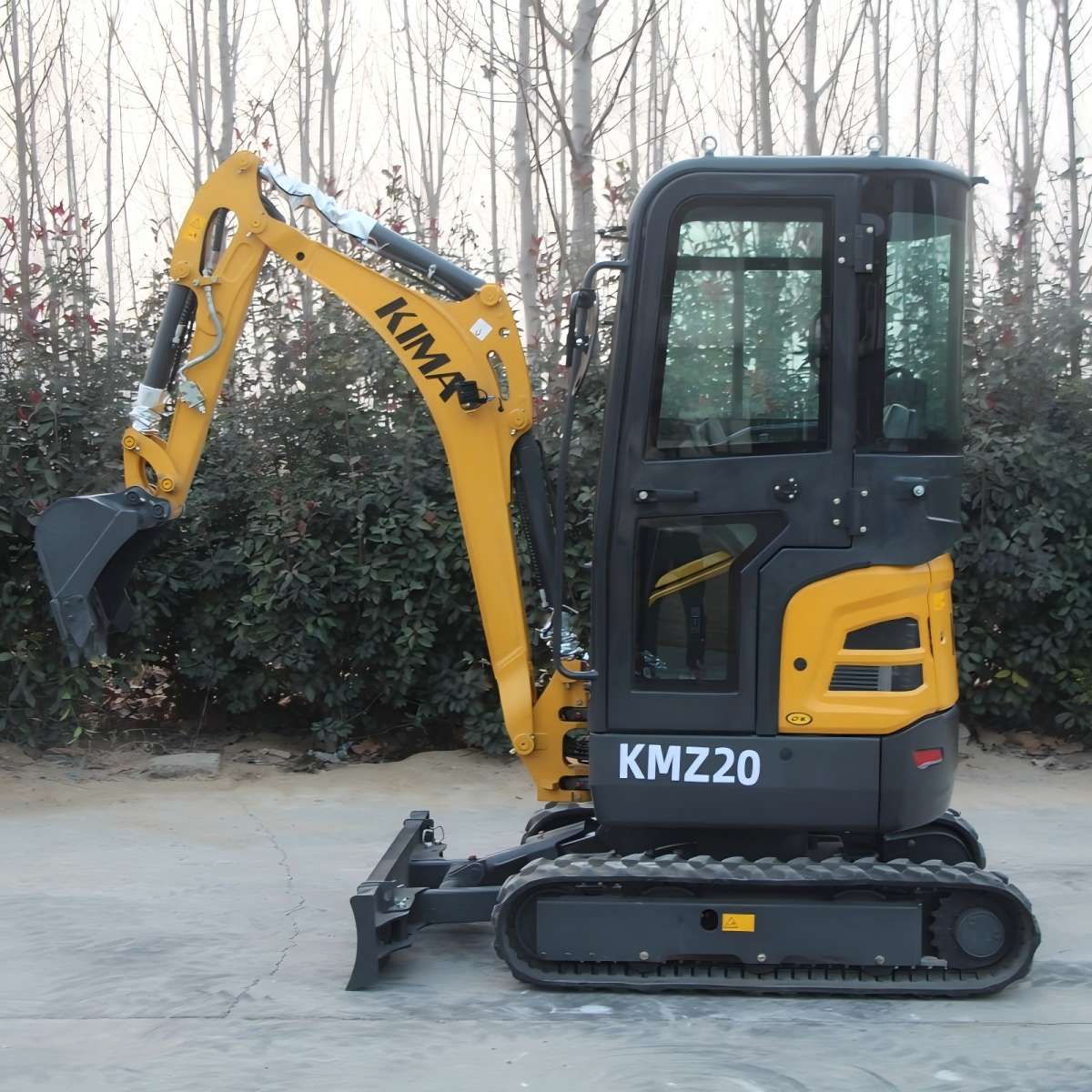

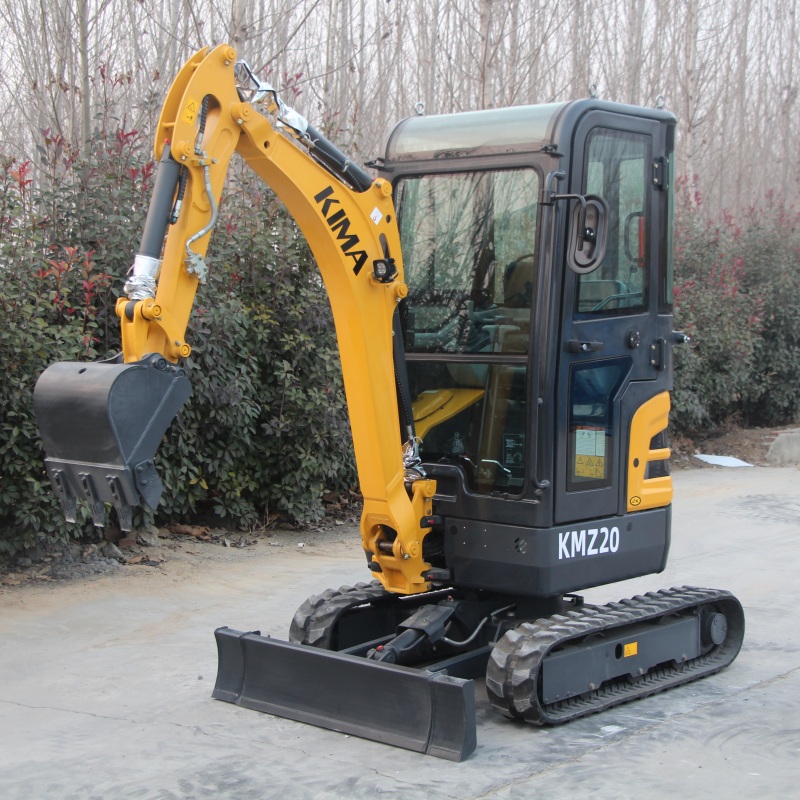

The KMZ20 excavator features an ultra-compact, zero-tail design, allowing it to operate safely and efficiently in confined areas without the risk of collision. It offers versatile performance and can handle a wide range of tasks. Powered by a reliable Japanese Kubota D902 engine and equipped with a hydraulic joystick, it ensures enhanced operating efficiency and smooth control.

Excavator

Product advantages

Kubota Euro5/EPA4 Engine
Equipped with a Kubota engine that meets Euro 5 and EPA 4 standards, it delivers high horsepower with low fuel consumption while being environmentally friendly.

Swing Boom
The swing boom design enhances operational flexibility in confined areas, minimizing unnecessary time and energy spent on secondary excavation.

Casting Counterweight
A robust, thickened cast-iron counterweight significantly boosts stability and ensures safer operation.

Expandable Undercarriage
The adjustable track width allows the excavator to pass through tight passages while maintaining excellent balance during digging.

Hydraulic Pilot Control
This system precisely regulates hydraulic pressure, flow, and direction, enabling highly accurate and smooth machine control.

Top-Mounted Boom Cylinder
The boom cylinder is positioned on top to prevent collision and reduce potential damage during operation.

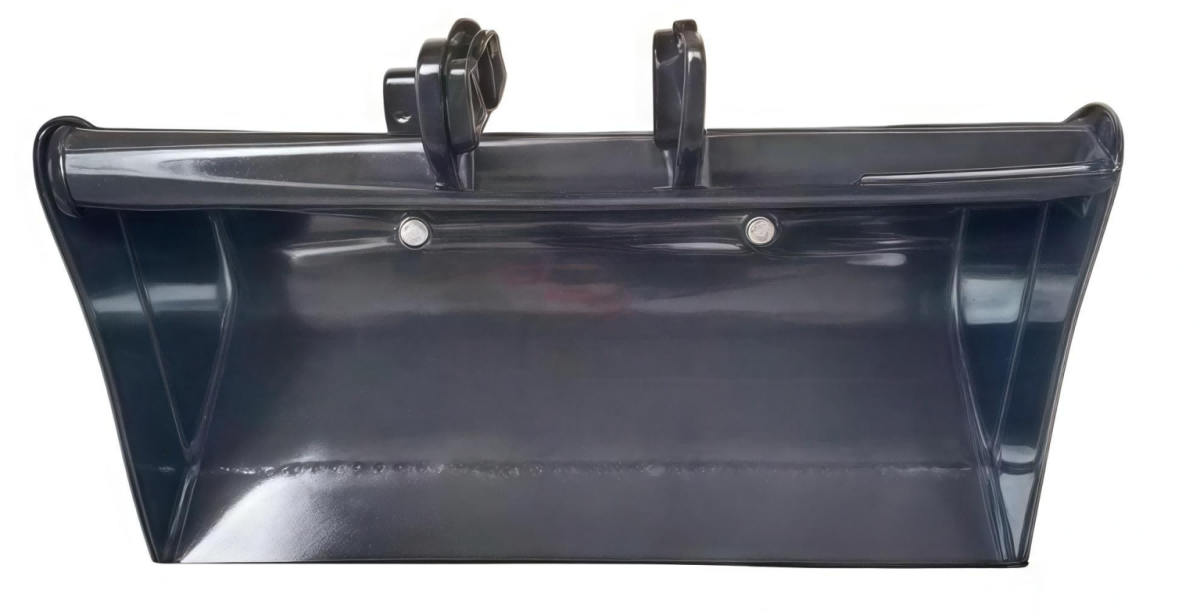

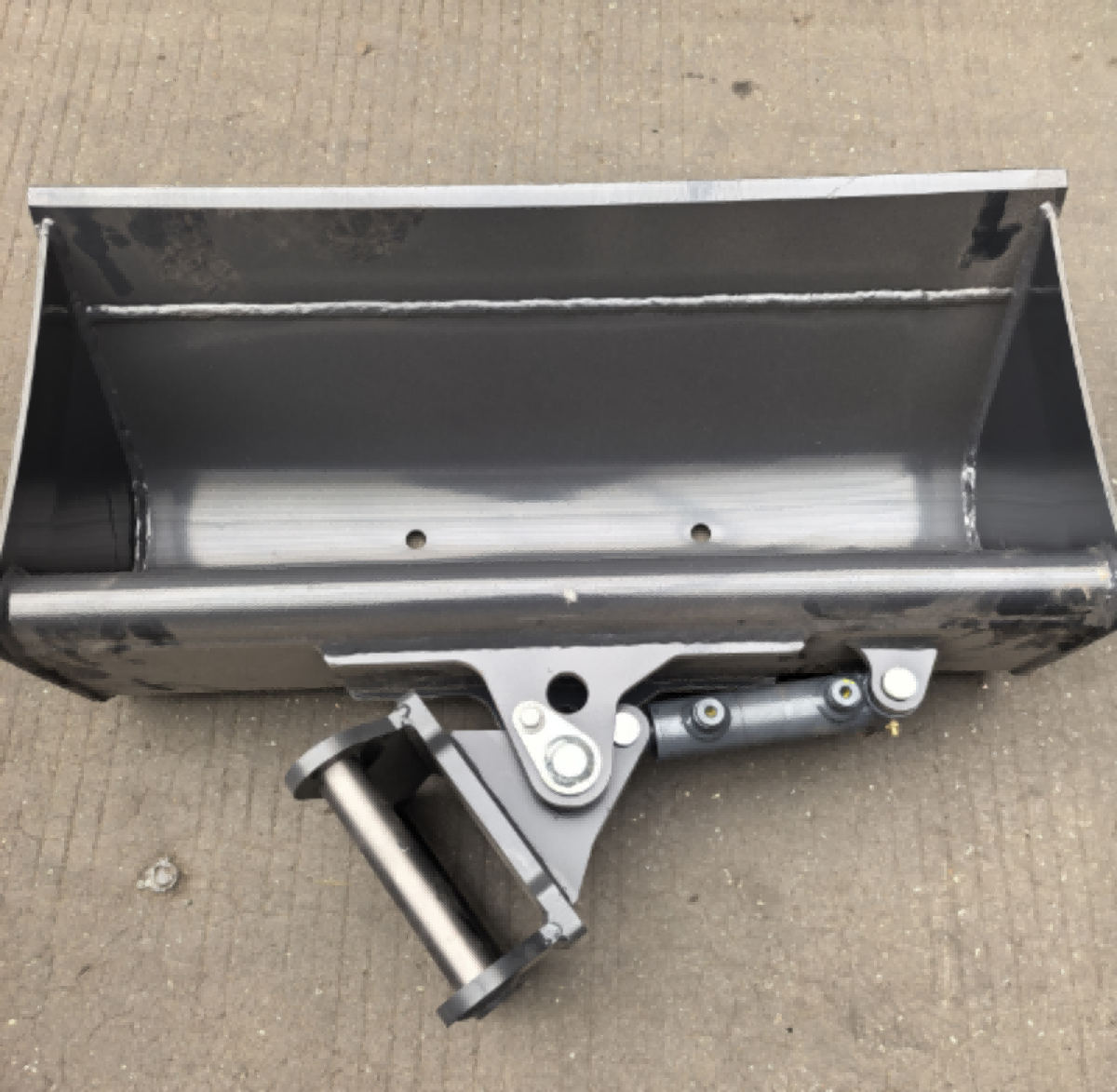

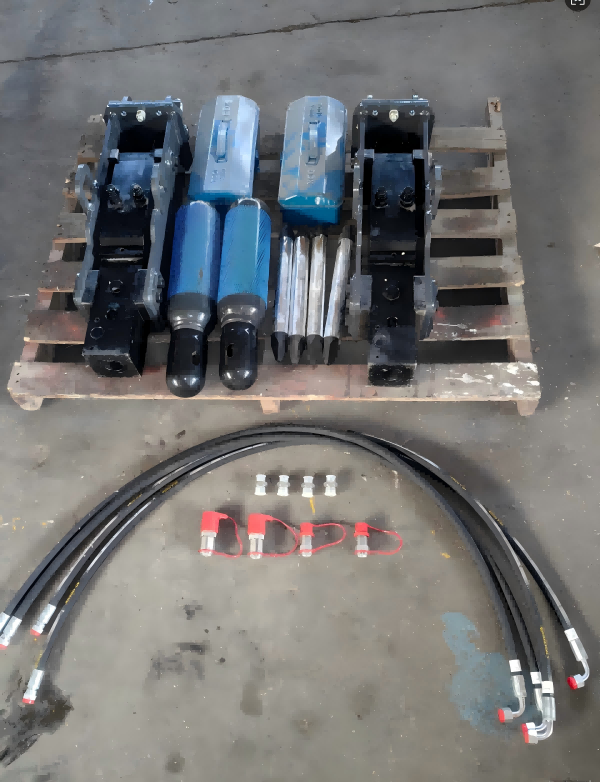

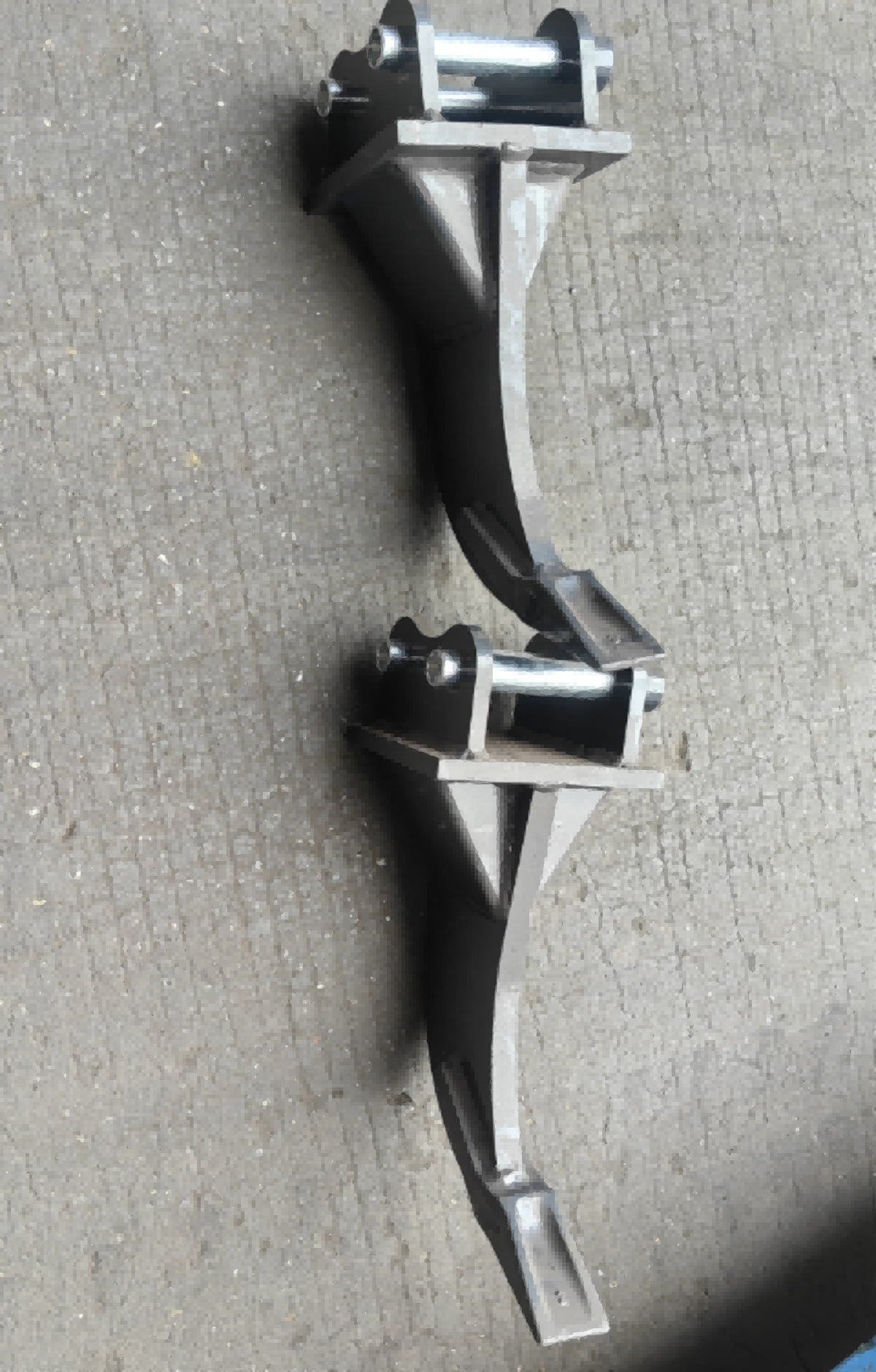

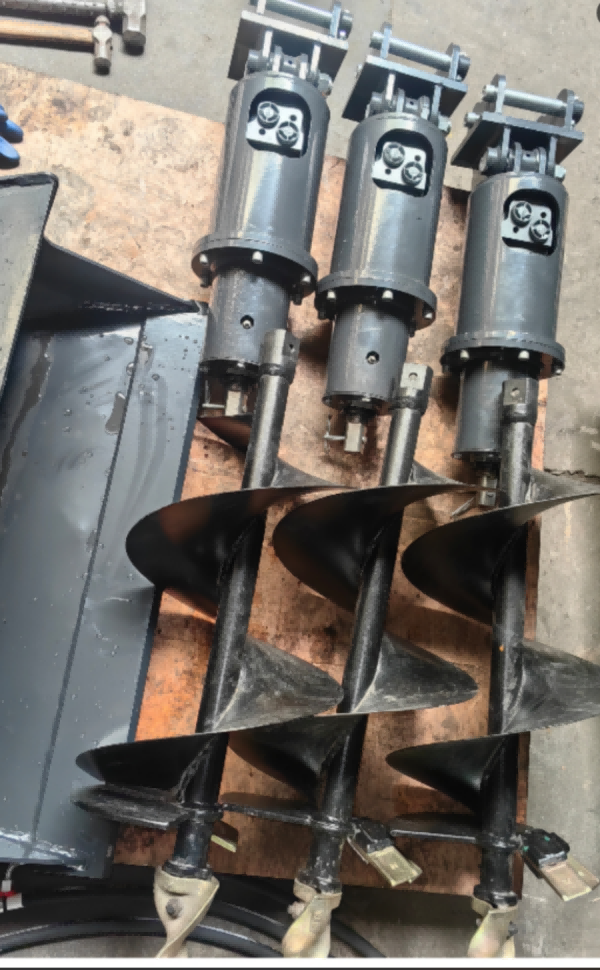

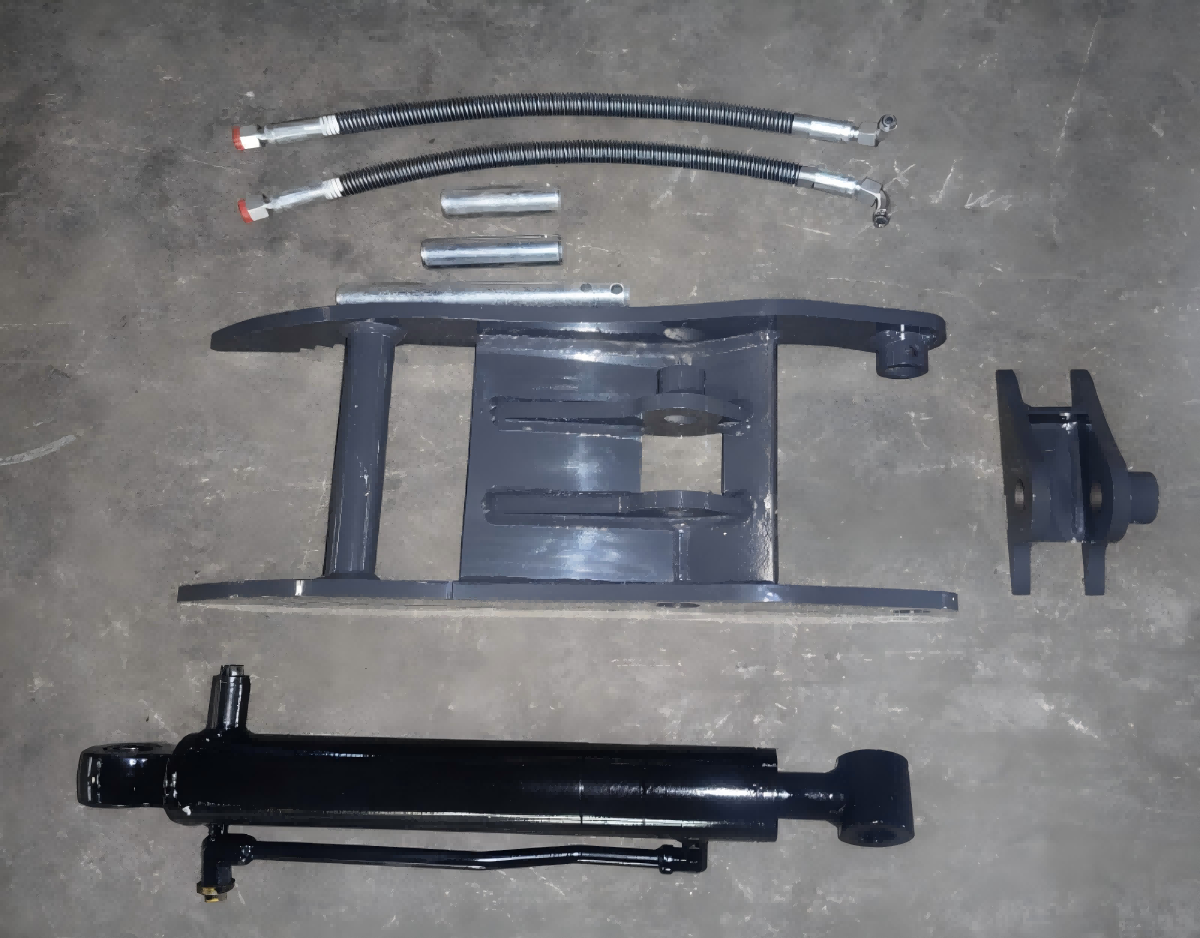

Wide Range of Attachments
Transform your excavator into a versatile multi-tool — KIMA provides a comprehensive selection of compatible attachments to suit various applications.

Two-Speed Travel
The high-speed mode boosts efficiency and shortens operation time, while the low-speed mode enhances traction and power for safer, more stable performance.

Premium Powder Coating
KIMA's advanced powder coating ensures superior corrosion resistance. Compared with conventional wet paint, it extends the machine’s service life, increases efficiency, and supports eco-friendly operation.

Zero-Tail Design
The compact, tailless structure allows for smooth maneuvering in small or complex job sites, ensuring exceptional agility and flexibility in tight working environments.

Load-Sensing Hydraulic System
A fully hydraulic, load-sensing setup ensures more responsive and efficient operation across different workloads.

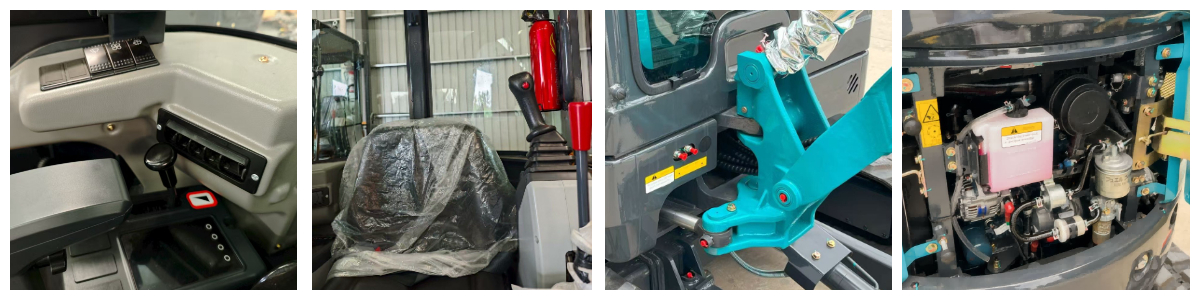

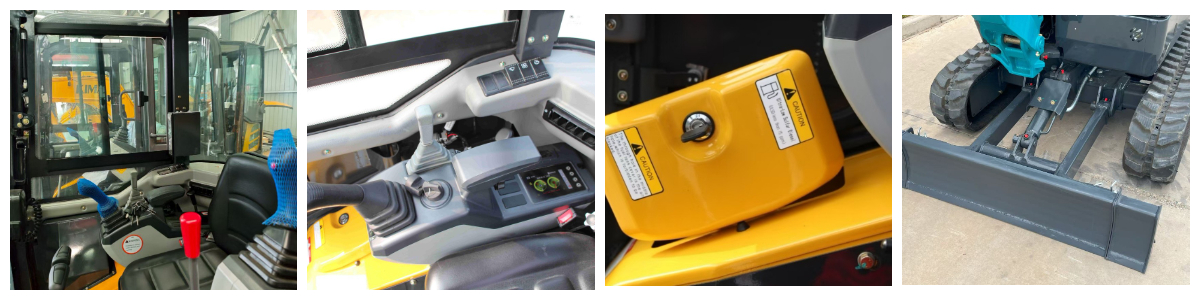

Comfortable Operator Cabin
The spacious, ergonomic cabin with a supportive seat, armrest, effective ventilation, and efficient heating system ensures a safe and comfortable working experience for the operator.

Product parameters

Type of cab		Cabin
Bucket capacity		m3	0.04
Operating weight		kg	1980
Dimensions	Overall length	mm	3575
	Overall height	mm	2405
	Overall width	mm	990/1300
	Min. Ground clearance	mm	145
	Tail swing radius	mm	650
Engine	Brand	Kubota
	Model	D902
	Output	kW/rpm	11.8/2300
Working ranges	Max Digging height	mm	3570
	Max Dumping height	mm	2480
	Max digging depth	mm	2270
	Max. Digging radius	mm	3910
	Min. swing radius	mm	1440
	Max digging force (Arm)	kN	9.5
	Max digging force (Bucket）	kN	16
Track	Type		Rubber track
Track	Rubber shoe width	mm	230
Undercarriage	Track length	mm	1593
	Traveling speed	km/h	2.2/4.3
	Grade ability	deg	58%
	Maximum Dozer Lift Height	mm	280
	Maximum Dozer Dig Depth	mm	190
Swing speed		rpm	9.5
Ground pressure		kpa	29
Hydraulic pumps	Type		Axial piston-variable displacement
Hydraulic pumps	Flow rate	L/min	64
Swing motor			Cycloidal motor
Travel motor			Axial piston motor
Fuel tank capacity		L	19
Hydraulic oil tank capacity		L	13.7
